Gedore GEDORE - Presszange CrimpMax- 8151 Flex Professional 3416445 8151 Crimper Ferrules 16 mm² (max) incl. exchangeabl
EAN:
Part number:
Item no:
Highlights & Details

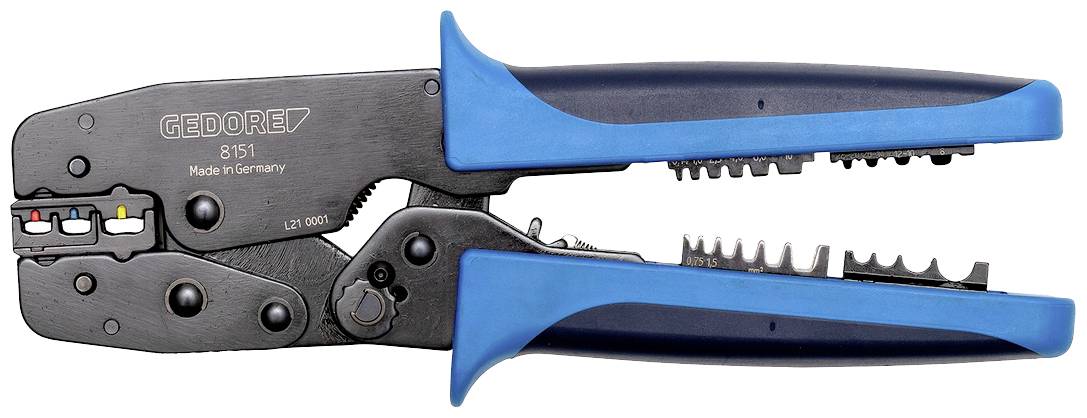

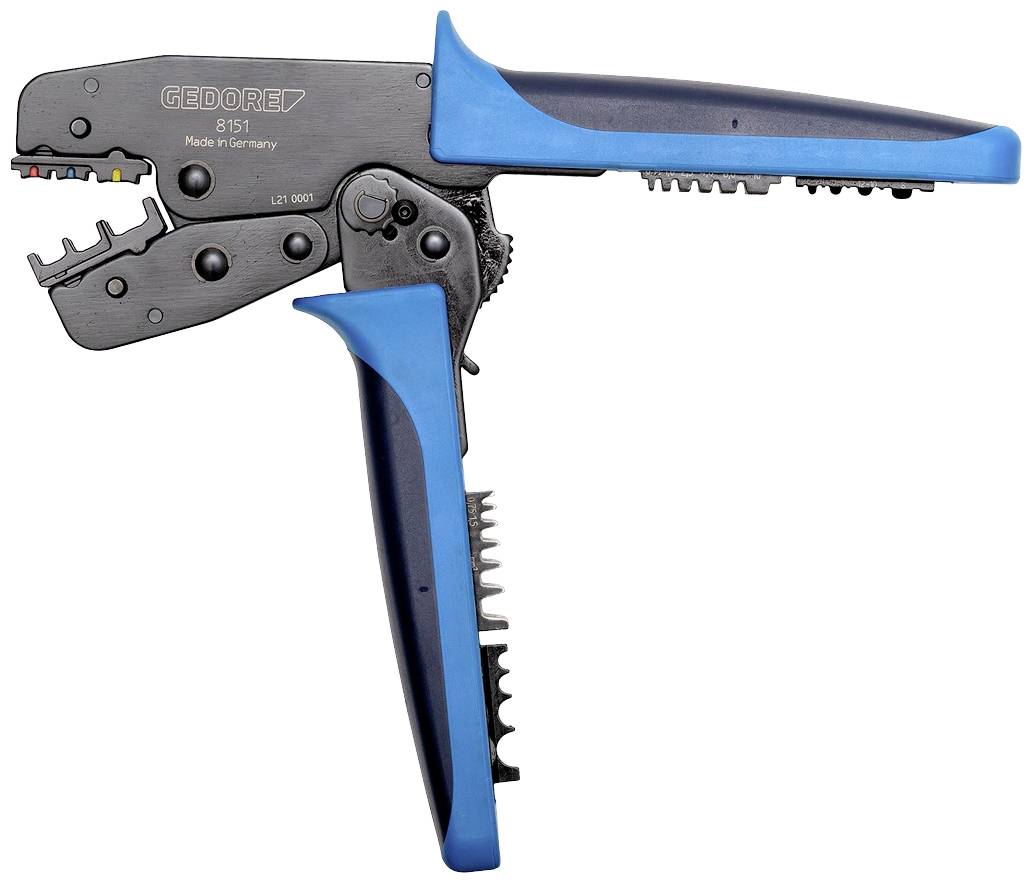

Crimping tool crimp Max-Flex Prof

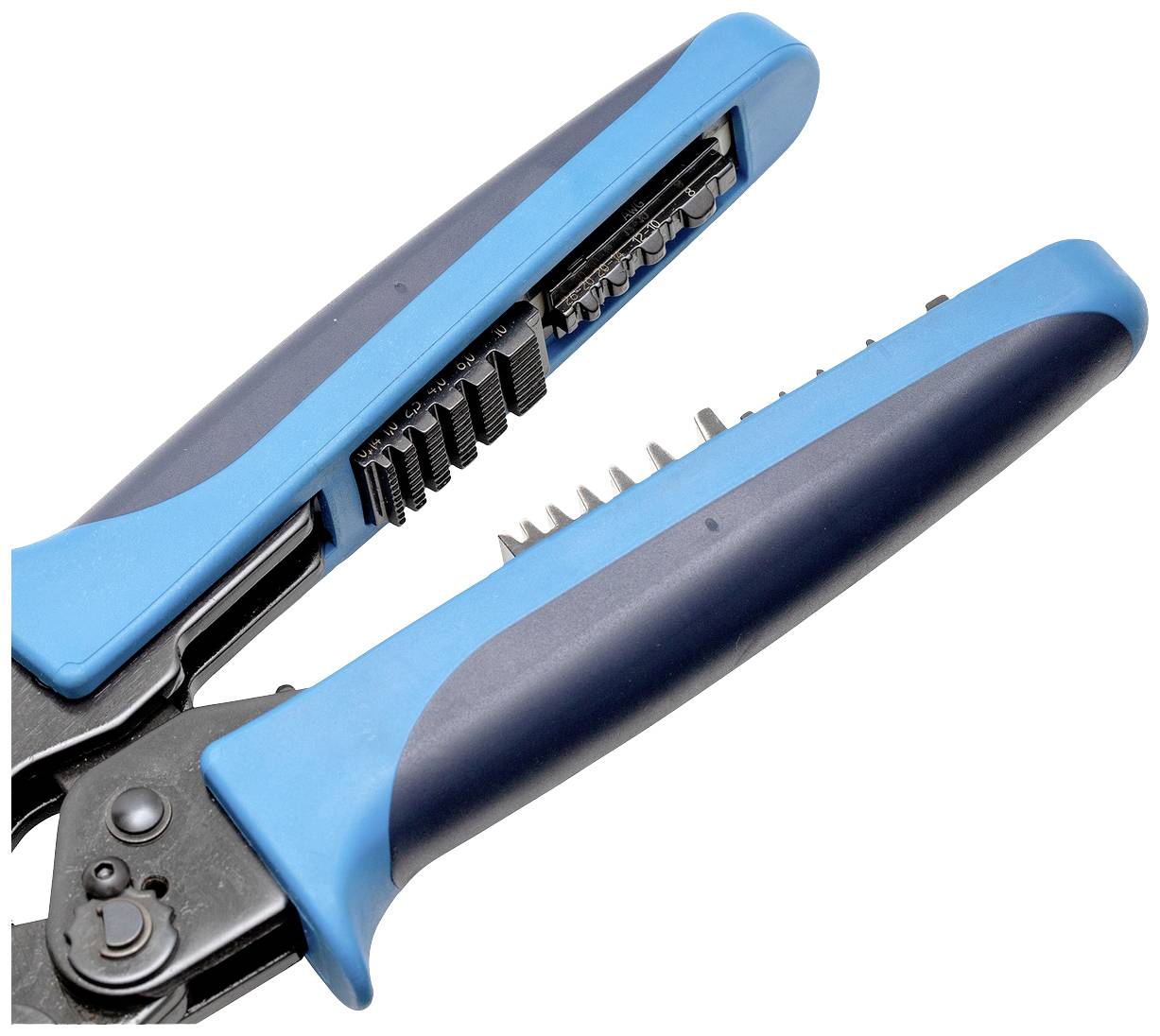

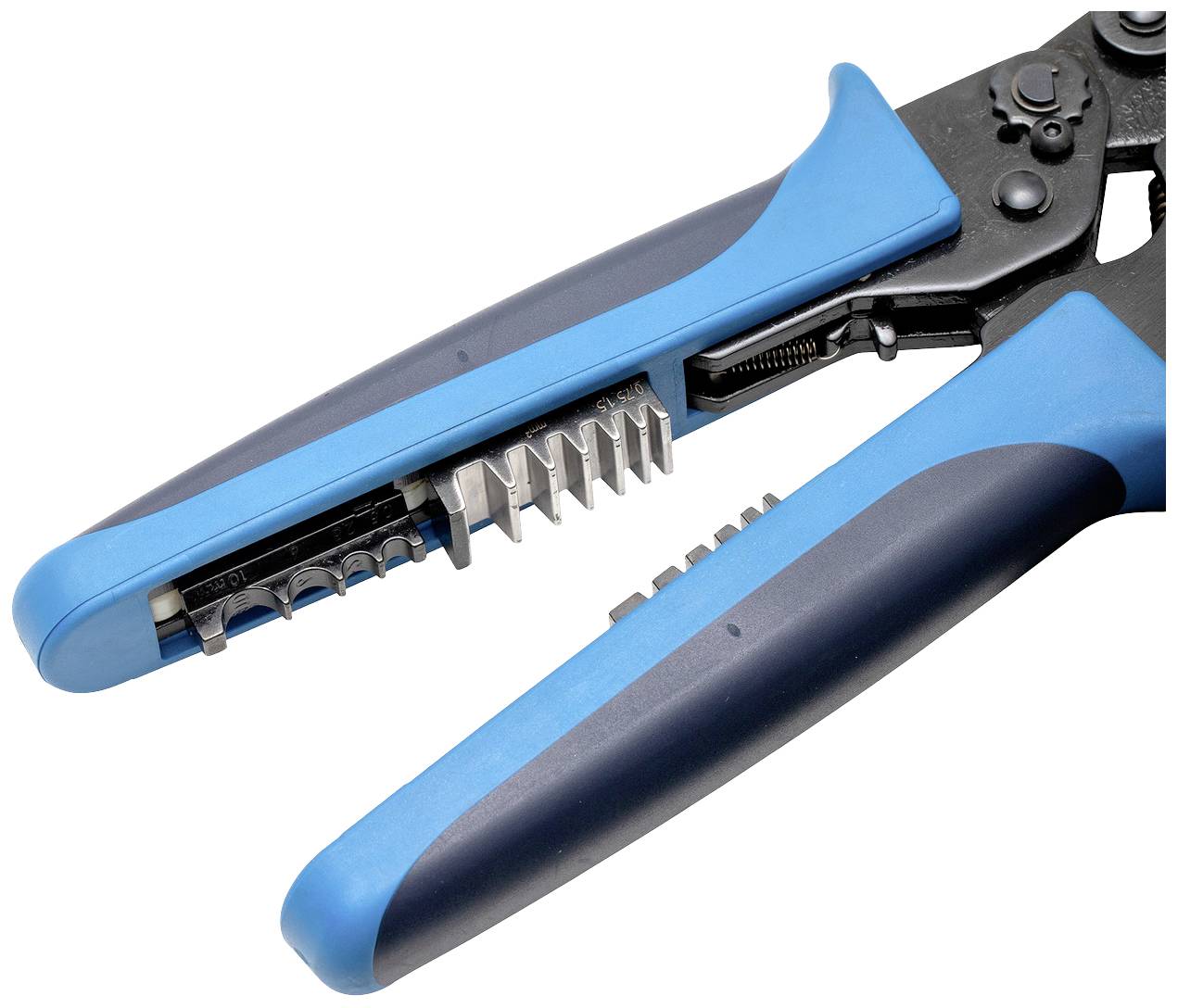

- Integrated storage system in the tool grip for 2 additional crimp insert sets
- Flexible tool system, comprising of basic tools and crimp-insert sets, which can be replaced quickly and without tools
- Up to 4 different crimp profiles with one insert set is possible
Technical specifications
- Product type
Crimper
- Manufacturer part #
8151
- Range of uses
Ferrules
- Crimp area
16 mm² (max)
- Crimp area (max.)
16 mm²
- Length
220 mm
- Material
Steel
- Material properties
quenched and tempered
- Width
80 mm
- Weight
0.51 kg
- Features
incl. exchangeable crimp insets
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220655 Gedore GEDORE - Presszange CrimpMax- 8151 Flex Professional 3416445 8151 Crimper Ferrules 16 mm² (max) incl. exchangeabl
Description
Integrated storage system in the tool grip for 2 additional crimp insert sets. Flexible tool system, comprising of basic tools and crimp-insert sets, which can be replaced quickly and without tools. Up to 4 different crimp profiles with one insert set is possible For crimping cables with conductor cross-sections up to 16 mm2. With a flexible removable system. Ergonomic soft grip with anti slip protection. Releaseable lock system secures the complete crimp. Extremely precisely manufactured and adjusted optimally in the factory, thus no further adjustment of the crimping force is necessary. Made of high-strength special steel, stressed parts were specially tempered
This text is machine translated.
This text is machine translated.
Features
- For crimping cables with conductor cross-sections up to 16 mm2
- With a flexible removable system
- Ergonomic soft grip with anti slip protection
- Releaseable lock system secures the complete crimp
- Extremely precisely manufactured and adjusted optimally in the factory, thus no further adjustment of the crimping force is necessary
- Made of high-strength special steel, stressed parts were specially tempered
Scope of delivery
- Crimping tool crimp Max-Flex Prof
