Gedore GEDORE - VDE-Kabelschere mit Hüllen-isolierung 8092-160 H3412407 VDE 8092-160 H VDE cable cutting scissors Suitab
EAN:
Part number:
Item no:
Highlights & Details

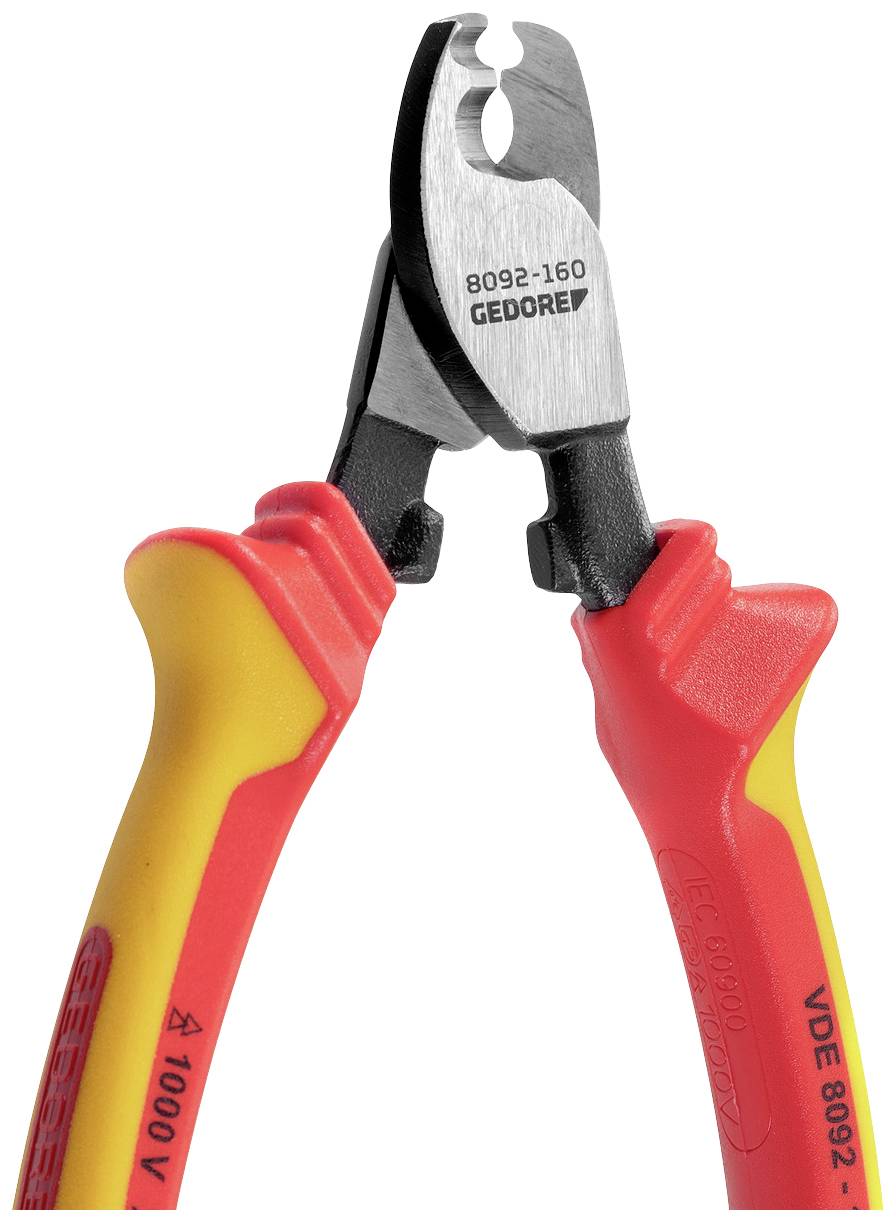

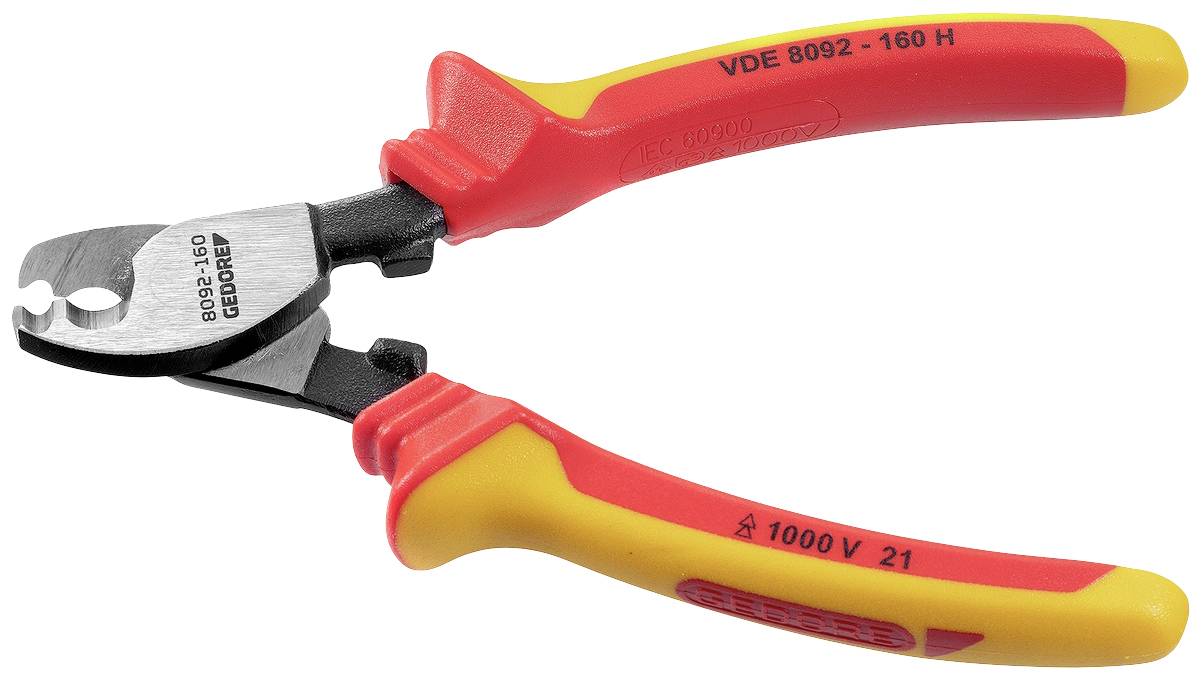

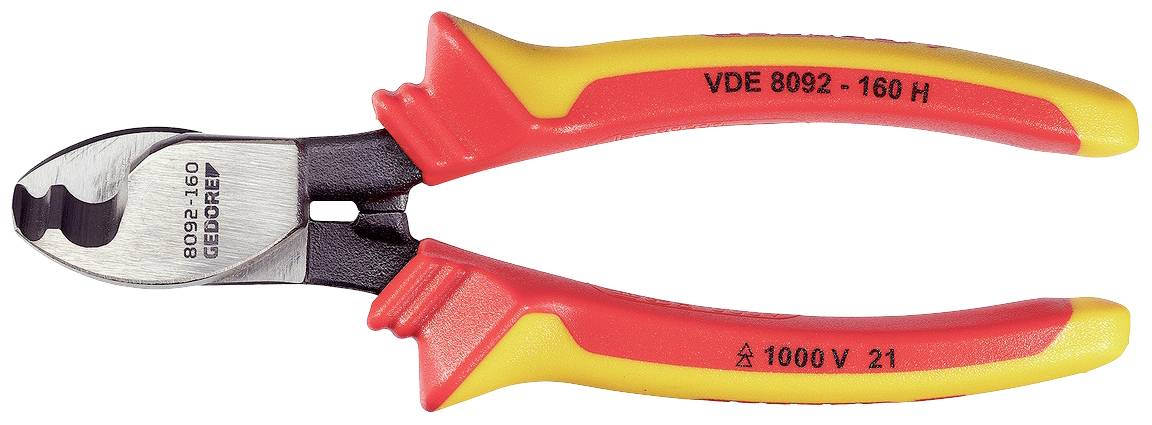

VDE-cable shears
- For cutting multi-core copper and aluminum cables up to max. 50 mm² or
- Up to a Ø of 10 mm
Technical specifications
- Product type
VDE cable cutting scissors
- Manufacturer part #
VDE 8092-160 H
- Suitable for
Single/multi-core aluminium and copper cables
- Length
169 mm
- Wire hardness diameter (max.)
10 mm
- Wire hardness cross section (max.)
50 mm²
- Weight
0.21 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220716 Gedore GEDORE - VDE-Kabelschere mit Hüllen-isolierung 8092-160 H3412407 VDE 8092-160 H VDE cable cutting scissors Suitab
Description
For cutting multi-core copper and aluminum cables up to max. 50 mm² or up to a Ø of 10 mm. Side VDE insulated up to 1000 V, according to DIN EN IEC 60900, sheath insulation. Precision ground for optimum transmission and new cutting geometry. Not suitable for steel wire or hard-drawn copper conductor. Cutting edge hardness 55 HRC. Special compensation steel, forged and ground
This text is machine translated.
This text is machine translated.
Features
- Schenk VDE insulated up to 1000 V, according to DIN EN IEC 60900, sheath insulation
- Precision ground for optimum transmission and new cutting geometry
- Not suitable for steel wire or hard-drawn copper conductor
- Cutting edge hardness 55 HRC
- Special compensation steel, forged and ground
Scope of delivery
- VDE-cable shears
