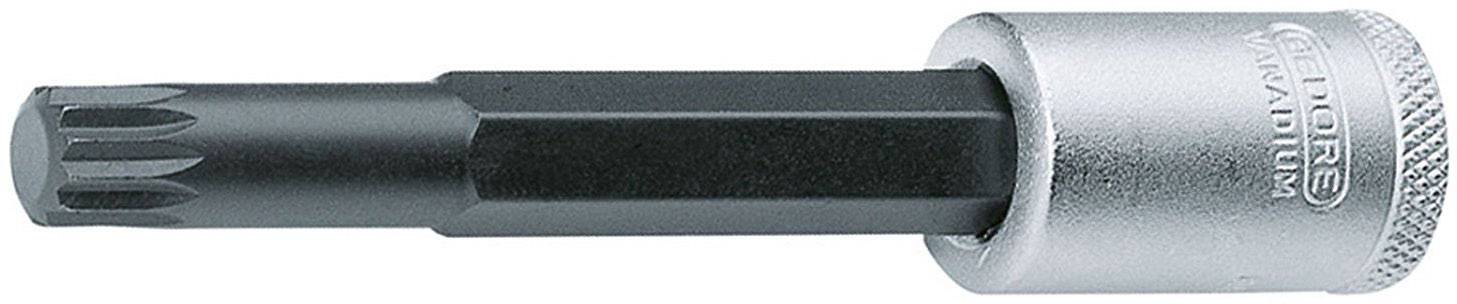

Gedore INX 30 L 8 1394320 XZN socket Screwdriver bit Ball head handle 8 mm 1 3/8" M8 3/8" (10 mm)
EAN:
Part number:
Item no:
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Technical specifications
- Diameter: 17.5 mm, tip length: 62 mm
- Design according to DIN 2324
- Inner square drive according to DIN 3120-C10, ISO 1174, with ball-catcher groove
- Manually operated, with handy cross edge
- Chrome-plated
- With inserted pin from GEDORE vanadium special steel, manganese-phosphated.
- Tip according to DIN 2325
- Product type
Screwdriver bit
- Drive
3/8" (10 mm)
- Spanner size
8 mm
- Ratchet bits (inch)
1 3/8"
- Size
M8
- Downforce
XZN socket
- Length
94 mm
- Max. length
94 mm
- Material
Special steel
- Material properties
chrome plated
- DIN standard
DIN 2324
- Width
17.5 mm
- Weight
71 g
- Screwdriver features
Ball head handle
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1905135 Gedore INX 30 L 8 1394320 XZN socket Screwdriver bit Ball head handle 8 mm 1 3/8" M8 3/8" (10 mm)
Information
Information 1905135 Gedore INX 30 L 8 1394320 XZN socket Screwdriver bit Ball head handle 8 mm 1 3/8" M8 3/8" (10 mm)
Description
Features
- Acc. to DIN 2324
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retaining groove
- Hand-operated, knurled grip
- Chrome-plated
- With pressed-in pin in GEDORE vanadium special steel, manganese-phosphated
- Tip as per DIN 2325
