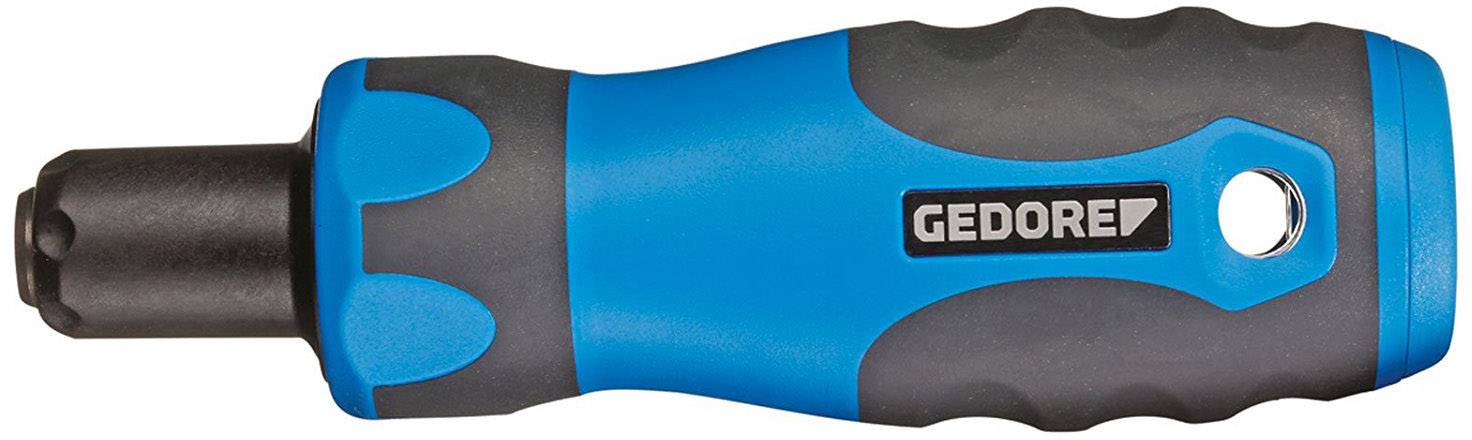

Gedore PGNP 1.5 FS Torque screwdriver 0.2 - 1.5 Nm DIN EN ISO 6789
EAN:
Part number:
Item no:
Technical specifications
- Application:
- Controlled screw suit
- Series assembly with constant value suit
- Electronics industry, precision mechanics and industrial production
- Design:
- Fixed torque screwdriver - without scale
- with 1/4" hexagonal socket for actuating 1/4" bits according to DIN 3126 - C 6.3
- classified according to DIN EN ISO 6789:2003 Type II Class F, With a traceable factory certificate
- calibrated for a permissible deviation of +/- 6% from the set value
- Precision round ball coupling for the controlled right and left-handed suit
- Precision mechanism glides clearly when the set value is reached by
- automatic return to the starting position
- fatigue-free working is achieved by an ergonomic handle and the gentle triggering
- Calibration stickers can be simply applied to the nose provided
- . The fixed setting can be made in the factory or manually on suitable test equipment
- . If factory fixed setting is desired, please specify N
- m value when ordering (price on request)
- . Delivery:
- Torque wrench type PGNP FS
- models 4.5 and 13.5 with additional cross-grip for easier work
- Test certificate according to DIN EN ISO 6789
- Delivery in sturdy cardboard
- Drive
1/4"
- Torque (min.)
0.2 Nm
- Torque (max.)
1.5 Nm
- Length
132 mm
- DIN standard
DIN EN ISO 6789
- Product type
Torque screwdriver
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909594 Gedore PGNP 1.5 FS Torque screwdriver 0.2 - 1.5 Nm DIN EN ISO 6789
Information
Information 1909594 Gedore PGNP 1.5 FS Torque screwdriver 0.2 - 1.5 Nm DIN EN ISO 6789
Description
Features
- Use:
- Controlled screw tightening in the range 0.05 - 13.5 N
- m
- Serial manufacture with constant tightening value
- Electronic industry, precision mechanics and industrial manufacturing Features:
- Pre-set torque screwdriver without a scale
- With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
- Classified to DIN EN ISO 6789:2017 Type II Class F, with a factory certificate allowing for operations to be traced back
- Calibrated to a permitted +/- 6 % deviation of the set torque
- Precision radial ball clutch and cam design for controlled bi-directional tightening
- Precision mechanism slips very noticeably through when set torque is reached
- Automatic resetting to the starting position
- Fatigue-free working due to an ergonomic hand grip and a smoth tool reset action
- Calibration stickers can be easily applied to the purpose designed nose
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If ordering, please specify the N
- m value - if a fixed factory setting is desired (price on request) Scope of delivery:
- Torque screwdriver type PGNP FS
- Models 4.5 and 13.5 with additional sliding T-bar for ease of use
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
