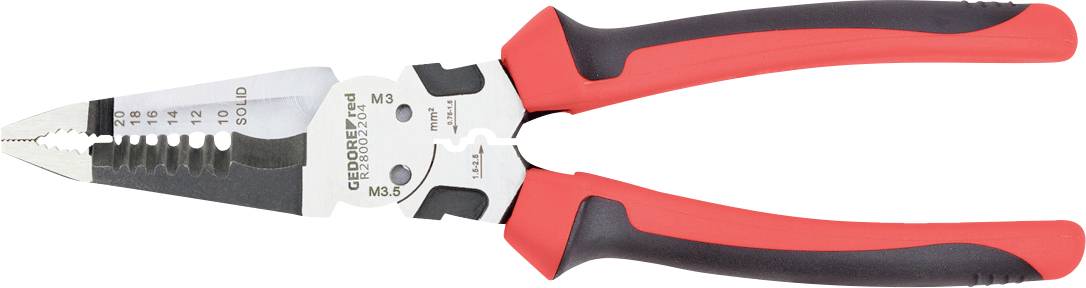

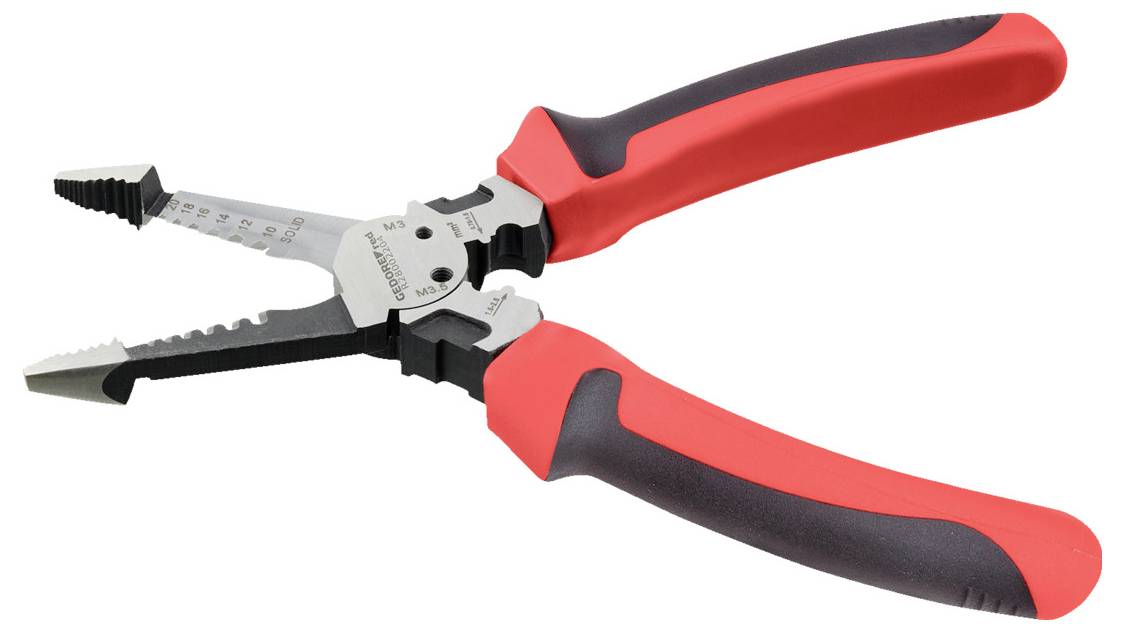

Gedore R28002204 Electrician Cable stripping pliers Incl. cable cutter 0.75 up to 2.5 mm² 1 up to 3.2 mm
EAN:
Part number:
Item no:
Technical specifications
- Wire stripping range, diameter 1 - 3.2 mm
- Handle design: 2 components
- Notch depth adjustable: No.
- Handle cover: Plastic sleeves
- Longitudinal cut: No.
- Stripping length: No.
- Round cut: Yes
- Insulated: Yes
- Spiral cut: No.
- Self-adjusting: No.
- Protective insulation 1000 V: No.
- VDE tested: No.
- With wire cutter: Yes
- With impact protection: No.
- Product type
Cable stripping pliers
- Suitable for
Plastic-coated cables
- Operating range (diameter)
1 up to 3.2 mm
- Working area diameter (min.)
1 mm
- Operating range (diameter) (max.)
3.2 mm
- Working area (cross section)
0.75 up to 2.5 mm²
- Working area cross section (min.)
0.75 mm²
- Operating range (cross section) (max.)
2.5 mm²
- Range of use
Electrician
- Material
Plastic
- Material properties
insulated
- Length
203 mm
- Weight
262 g
- Features
Incl. cable cutter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3720842 Gedore R28002204 Electrician Cable stripping pliers Incl. cable cutter 0.75 up to 2.5 mm² 1 up to 3.2 mm
Description

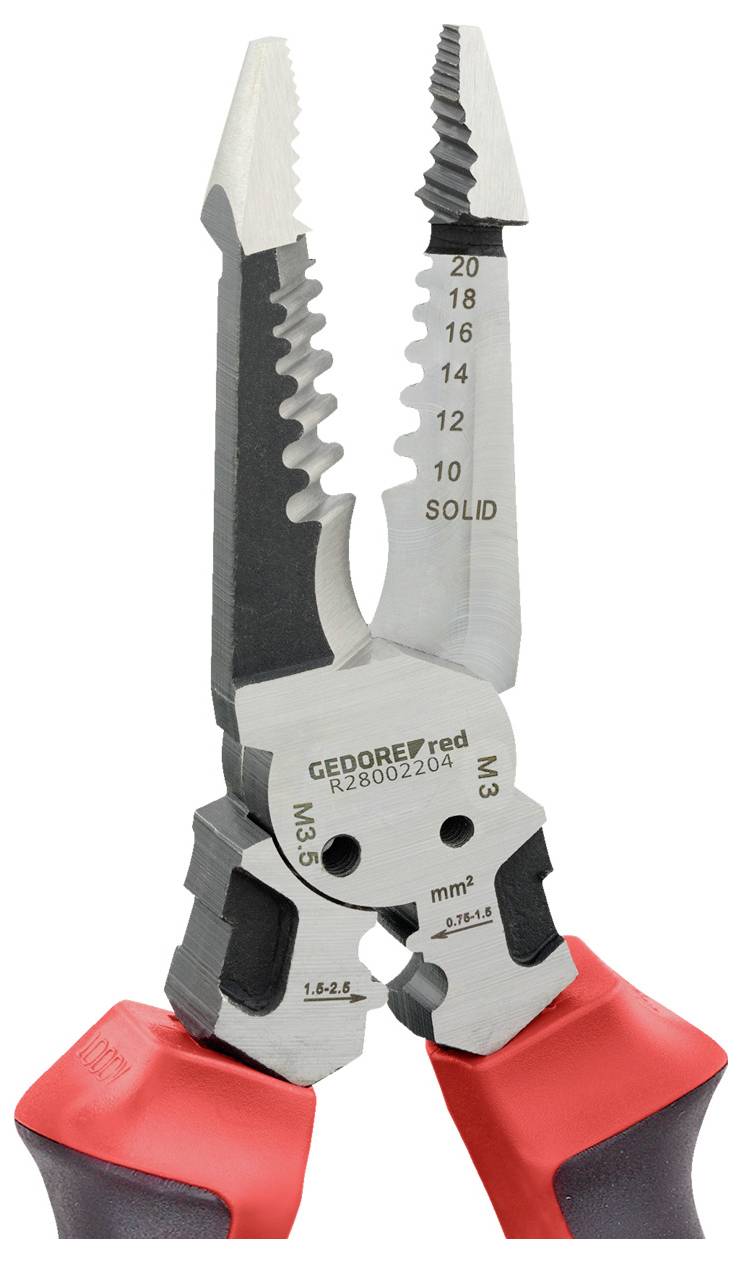

5-in-1 function: For gripping, stripping, cutting, cutting, cutting and crimping, separation function: Suitable for thread sizes M3 and M3.5, crimping areas: Suitable for cable cross-sections of 0.75 - 2.5 mm², stripping function: For insulation diameter of 1 - 3.2 mm, ergonomic 2-component grips: Non-slip and comfortable with longer use
