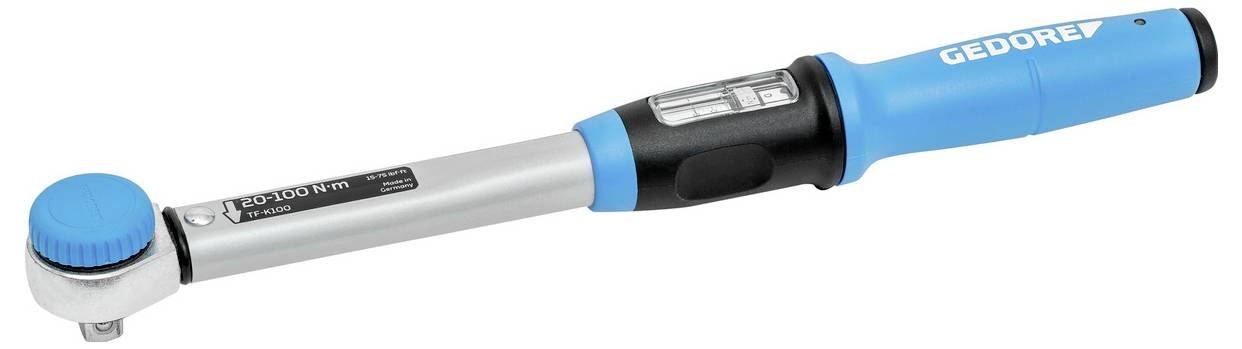

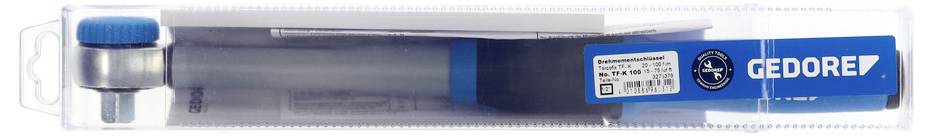

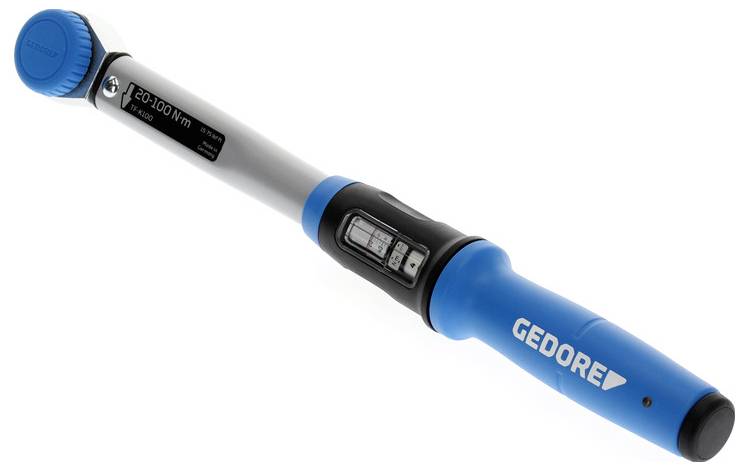

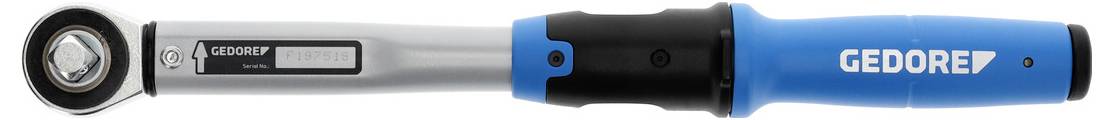

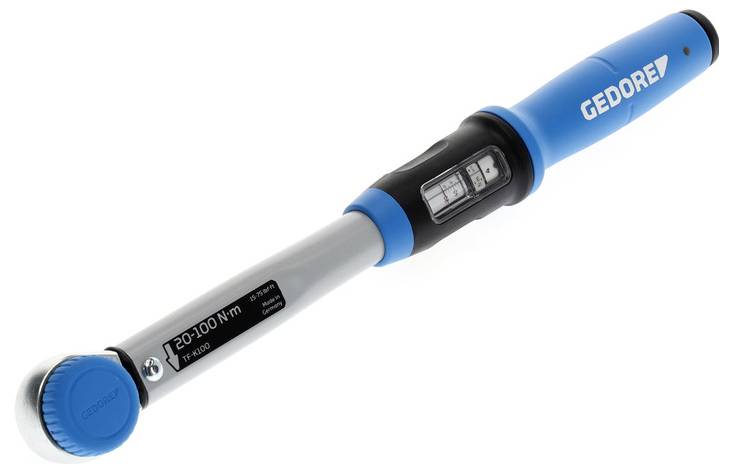

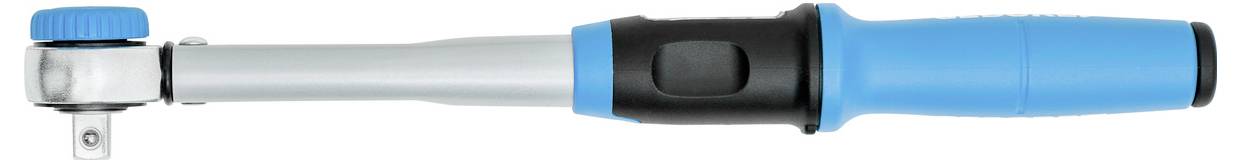

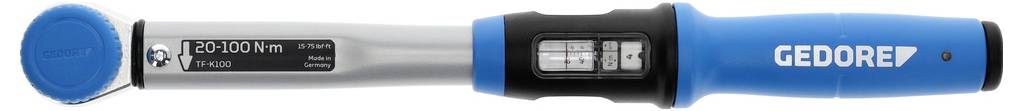

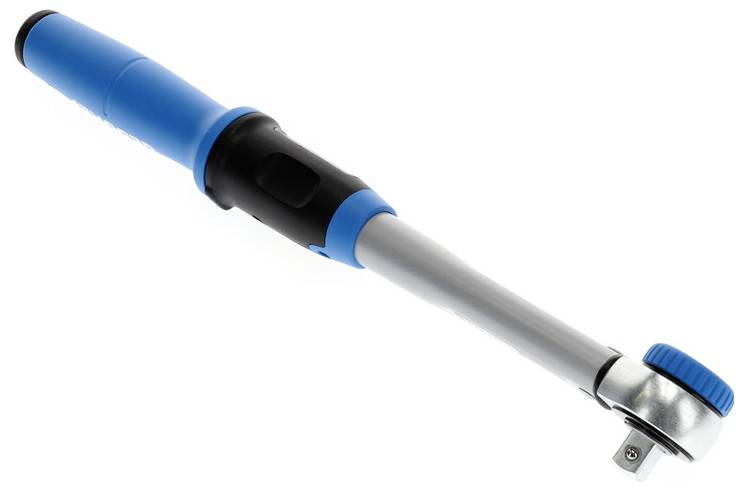

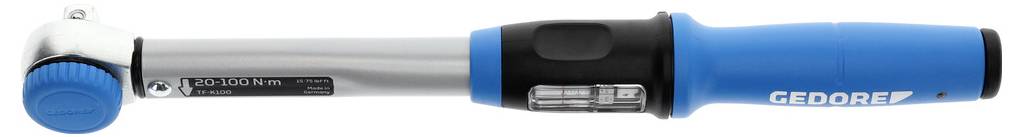

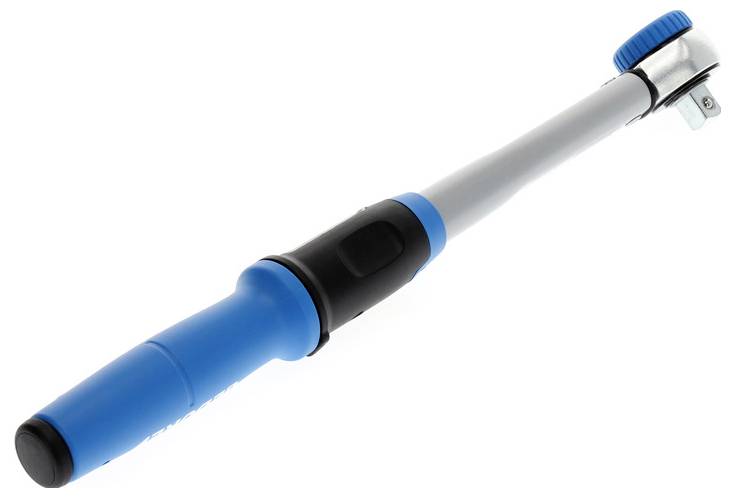

Gedore TF-K100 3278379 Torque wrench 1/2" (12.5 mm) 20 - 100 Nm
EAN:
Part number:
Item no:
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Technical specifications
- Distance from housing to square center: 22 mm
- Drive type/drive: Mushroom head
- Number of teeth: 48
- Tightening direction: Left and right
- Trigger mechanism: Short-travel release
- Calibration length 313.3 mm
- Head width 44 mm
- Head height 36 mm
- Material: Tubular steel construction, high-quality plastic parts
- Reverse angle: 7.5 degrees
- Drive square fuse: Ball lock
- Scale type: dual
- Product type
Torque wrench
- Downforce
1/2" (12.5 mm)
- Torque (min.)
20 Nm
- Torque (max.)
100 Nm
- Trigger accuracy
0.03 %
- Graduation
5 Nm
- Length
403.2 mm
- DIN standard
DIN 3120-A 12,5
DIN EN ISO 6789
- Weight
0.97 kg
- Width
44 mm
- Height
51.6 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451248 Gedore TF-K100 3278379 Torque wrench 1/2" (12.5 mm) 20 - 100 Nm
Description
Application:
Controlled screw suit in the range of 20 - 100 N.·m / 15 - 75 lbf·ft
Adjustable, triggering and robust pipe torque wrench with integrated ratchet with square drive for industry and trade
Construction:
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, calibrated to a maximum permissible deviation of +/- 3% and thus more precise than the +/- 4% required in the standard
Incl. Traceable test certificate (DIN EN ISO 6789-2:2017)
For the controlled right and left suit (insert square for change of direction)
1/2" mushroom head square with ball lock
Robust, matt powder-coated steel tube construction, with galvanized ratchet and high-quality plastic parts

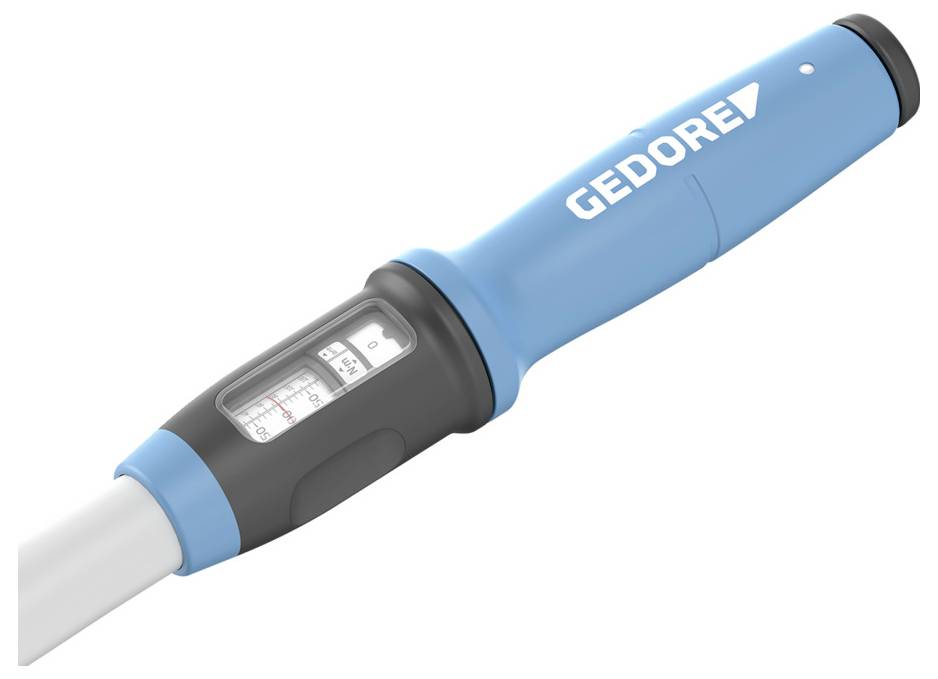

New ergonomic handle, shaped according to the natural grip of the hand
Clearly recognizable and tangible hand centering aid as well as calibration aid in the middle of the grip
Double scale N·m / lbf·ft with vernier (N.·m), enlarged viewing window protects against abrasion and contamination
With nonius scale for N.·m main scale for setting scale values; lbf·ft Setting only via main scale
Vertical alignment of the scale, torque setting suitable for left- right-handed people
Scale line positioned directly above the scale, prevents reading errors (parallax error)
Unit labeling integrated in the scale frame and also protected against abrasion via viewing window,
Precise bounce mechanism generates a clearly sensitive and audible trigger signal when the set torque value is reached
Incl. Roll-away safety device, prevents rolling away when the tool is placed
This text is machine translated.
