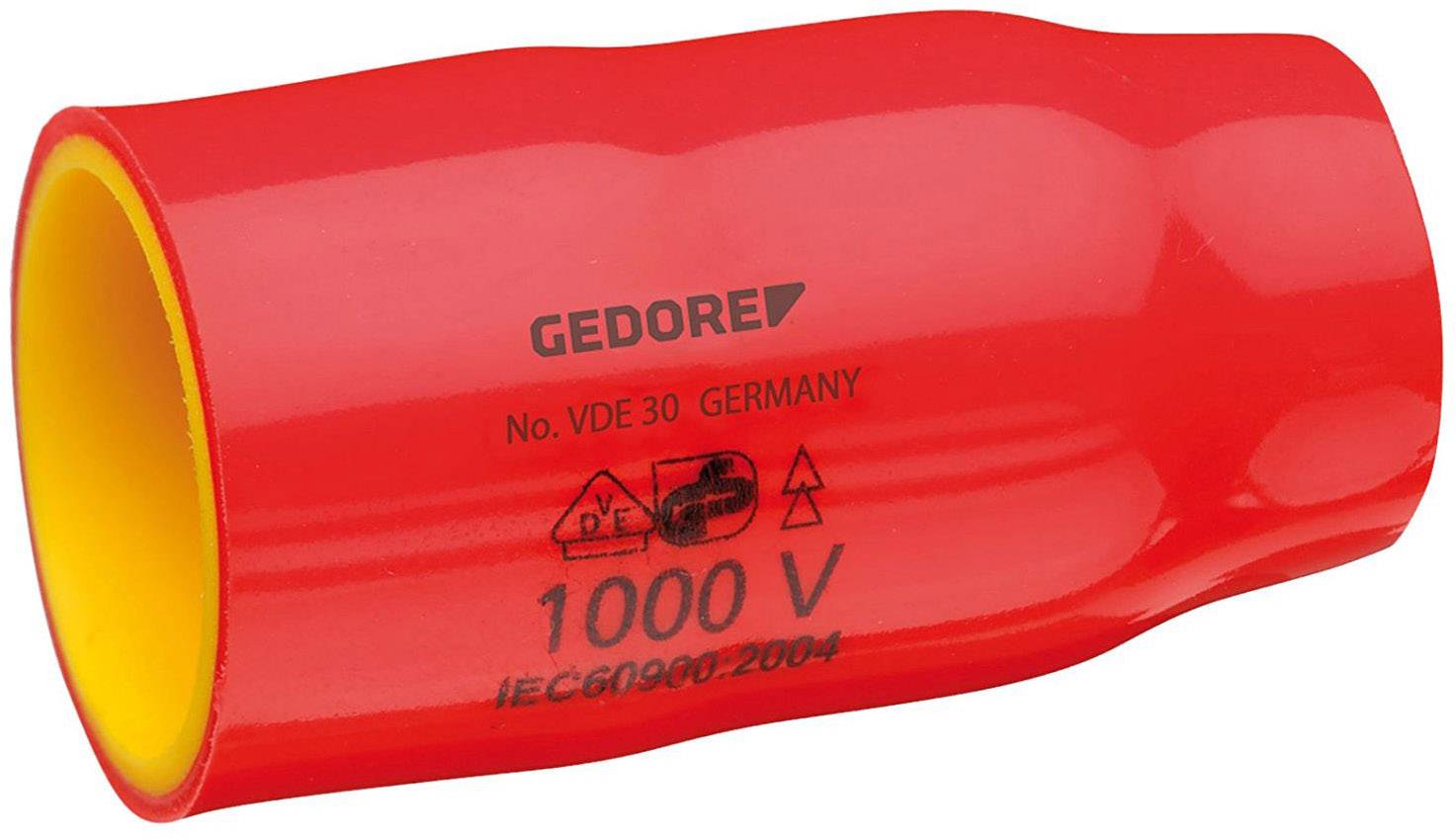

Gedore VDE 30 20 2946513 Square, solid, 10 mm (3/8") VDE bits 20 mm 1 3/8" 20 mm 3/8" (10 mm)
EAN:
Part number:
Item no:
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14-day return policy included
Technical specifications
- 1:31.2 mm diameter, Diameter 2:23 mm
- 6-edged, manually operated
- With inner hexagon drive according to DIN 3120-C10, ISO 1174
- GEDORE Vanadium Steel 31 CrV 3
- VDE insulated up to 1000 V, according to EN 60900/IEC 60900, 2-way check tool insulation
- 16 - 18 mm, insulation protrusion
- Product type
VDE bits
- Drive
3/8" (10 mm)
- Spanner size
20 mm
- Ratchet bits (inch)
1 3/8"
- Size
20 mm
- Downforce
Square, solid, 10 mm (3/8")
- Length
47 mm
- Max. length
47 mm
- Material
Chromium-vanadium steel
- Material properties
YELLOX
- DIN standard
DIN 3120
- Width
31.2 mm
- Weight
85 g
- Screwdriver features
Ball head handle
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1905328 Gedore VDE 30 20 2946513 Square, solid, 10 mm (3/8") VDE bits 20 mm 1 3/8" 20 mm 3/8" (10 mm)
Information
Information 1905328 Gedore VDE 30 20 2946513 Square, solid, 10 mm (3/8") VDE bits 20 mm 1 3/8" 20 mm 3/8" (10 mm)
Description
Features
- Hexagon socket wrench, hand-operated
- With square drive according to DIN 3120 - C 10, ISO 1174
- GEDORE vanadium steel 31CrV3
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
- 16 - 18 mm insulation overhang
