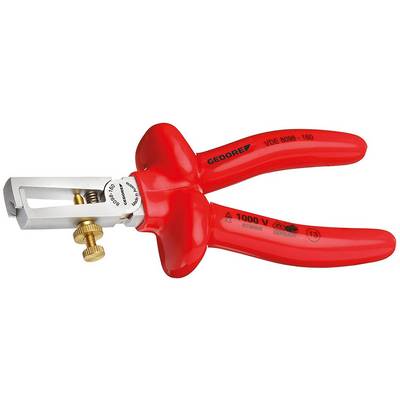

Gedore VDE 8098-160 6708980 VDE Cable stripping pliers 0.8 up to 6 mm²
EAN:
Part number:
Item no:
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
14-day return policy included
Technical specifications
- Self-opening, with spring and adjustment screw
- V-shaped cutting jaws for stripping one and multi-wired conductors with plastic insulation
- Easy adjustment to the required diameter of solid or stranded wire with the help of the adjustment screw and lock nut
- For wires from 0.8 to 6.0 mm²
- GEDORE special allowance steel, drop-forged, oil-hardened and tempered
- Thigh VDE insulated up to 1000 V, according to EN 60900/IEC 60900, diving insulation: 2-way check tool insulation
- Product type
Cable stripping pliers
- Suitable for
Plastic-coated cables
- Working area (cross section)
0.8 up to 6 mm²
- Working area cross section (min.)
0.8 mm²
- Operating range (cross section) (max.)
6 mm²
- Range of use
VDE
- Material
Steel
- Material properties
chrome plated
- Length
160 mm
- Width
18.5 mm
- Weight
217 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1907703 Gedore VDE 8098-160 6708980 VDE Cable stripping pliers 0.8 up to 6 mm²
Information
Information 1907703 Gedore VDE 8098-160 6708980 VDE Cable stripping pliers 0.8 up to 6 mm²
Description
Features
- Opening stop, spring and brass adjusting screw
- For cables 0.8 - 6.0 mm2
- GEDORE special hardened and tempered steel, chrome-plated
- Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
