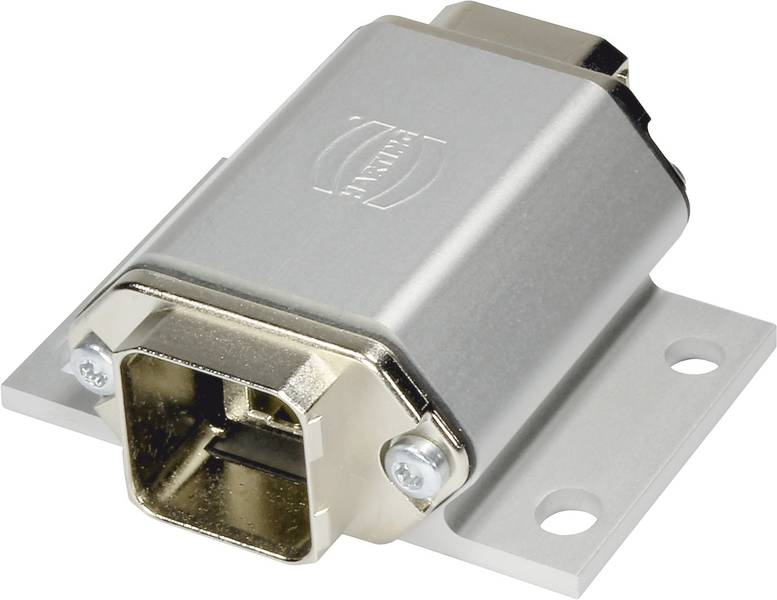

Gender changer 09352210501 HARTING Content: 1 pc(s) Gender changer
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Gender changer
Type
09 35 221 0501
Manufacturer part #
09352210501
Connection
RJ45
Datasheet (PDF)
Technical specifications
- Series: HAN® PushPull (V14)
- Component: Gender changer
- Lock type: PushPull
- Rated current 1.75 A
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Contact surface: Au over Ni on plug side
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61076-3-117, version 14 (V14); IEC 60603-7 mating face
- Net weight: 124.25 g
- Name RJ45
- Features: Intuitive locking
- Rated voltage: 50 V
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s.
- Conductor cross-section: 0.22 ... 0.32 mm² flexible;0.26 ... 0.32 mm² rigid
- Description: AIDA compliant
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Cat. 6A class EA to 500 MHz
- Protection class according to IEC 60529: IP65 when connected;IP67 when connected
- PROFINET: Yes
- Approvals DNV GL
- Material housing: Aluminium
- Surface of housing: Anodised
- Mounting: Surface mounting with 4 screws type M5
- Packaging type
Piece
- Type
09 35 221 0501
- Product type
Gender changer
- Manufacturer part #
09352210501
- Connection
RJ45
- Content
1 pc(s)
- Material
Aluminium
- Max. temperature
70 °C
Other
Other
Screwing
TRUE
TRUE
FALSE
Other
TRUE
FALSE
IP65
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3008170 Gender changer 09352210501 HARTING Content: 1 pc(s) Gender changer
Datasheet 3008170 Gender changer 09352210501 HARTING Content: 1 pc(s) Gender changer
User & Safety Instructions
User & Safety Instructions 3008170 Gender changer 09352210501 HARTING Content: 1 pc(s) Gender changer
Description
Gender changer, AIDA compliant, conductor cross-section: 0.22...0.32 mm² flexible 0.26...0.32 mm² rigid, aluminum
