Gerth PTF423602 PCB mount transformer 1 x 230 V 2 x 18 V AC 8 VA 222 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Only 2 Piece(s) available
Highlights & Details
EI 42/20 Print transformer
- 1 x 230 V
- 2 x 18 V AC
- 222 mA
- 8 VA
Technical specifications
- Output voltage
18 V AC
- Output voltage (number x voltage)
2 x 18 V AC
- Output current
222 mA
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
8 VA
- Width
45 mm
- Height
38 mm
- Length
38 mm
- Type
PTF423602
- Content
1 pc(s)

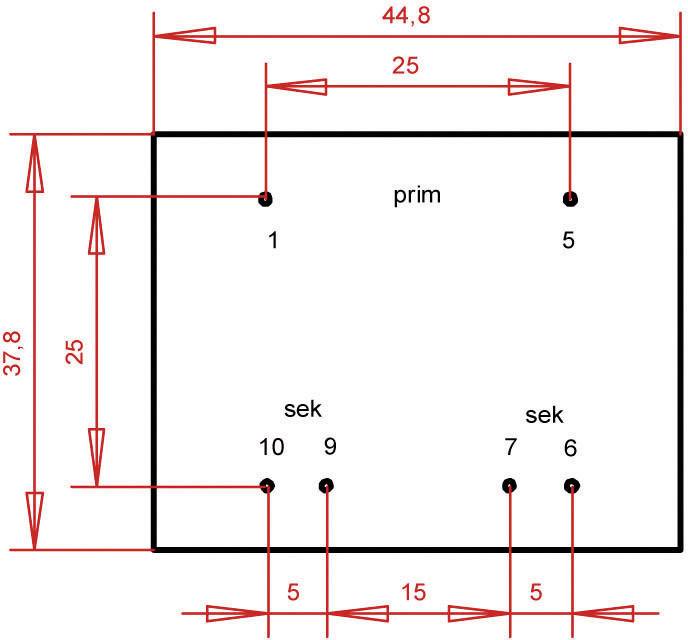

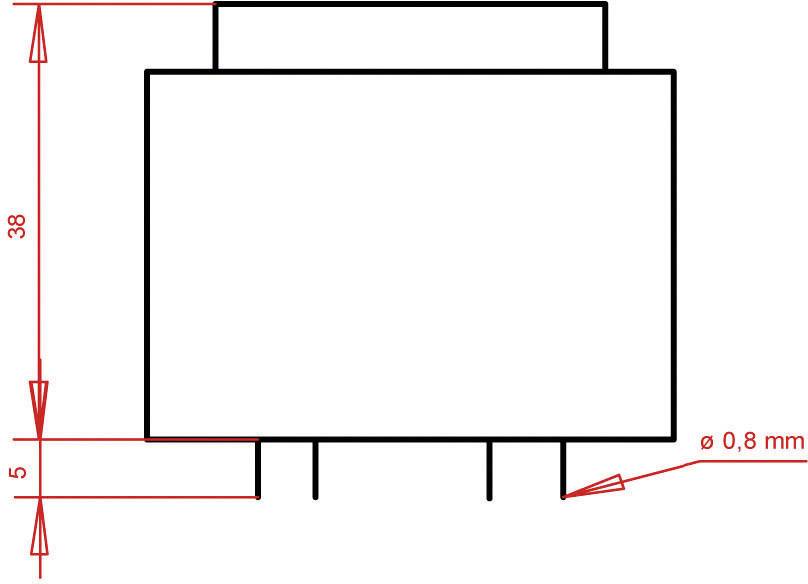

- Dim
(L x W x H) 38 x 45 x 38 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Max. ambient temperature
+70 °C
- Weight
250 g
- Product type
PCB mount transformer
Documents & Downloads
Datasheet
Datasheet 1092941 Gerth PTF423602 PCB mount transformer 1 x 230 V 2 x 18 V AC 8 VA 222 mA
User & Safety Instructions
User & Safety Instructions 1092941 Gerth PTF423602 PCB mount transformer 1 x 230 V 2 x 18 V AC 8 VA 222 mA
