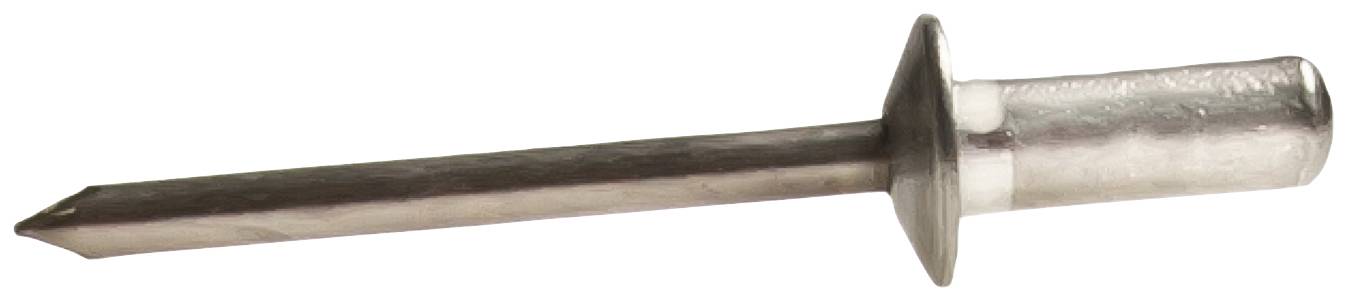

Gesipa 1433434 Sealing blind rivet (Ø x L) 4 mm x 12.5 mm Steel Aluminium Blindniet Al/St 4x12,5mm CAP Standard KS 6,5-8
EAN:
Part number:
Item no:
Product type
Sealing blind rivet
Length
12.5 mm
Material (spike)
Steel
Material (sleeve)
Aluminium
Max. clamping range
8.0 mm
Number (Package size 500 pc(s))
Total (€ 0.08 / piece)
€ 38.65
plus VAT.
14-day return policy included
Technical specifications
- Product type
Sealing blind rivet
- (Ø)
4 mm
- Length
12.5 mm
- Content
500 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Aluminium
- Dim
(Ø x L) 4 mm x 12.5 mm
- Max. clamping range
8.0 mm
- Min. clamping range
6.5 mm
- Thread tensile strength
2200 N
- Tubular rivet diameter
4 mm
- Tubular rivet length
12.5 mm
- Clamping range
6.5 - 8.0 mm
- Head Ø
8.5
- Head height
1.6 mm
- Hole diameter
4.1 mm
- Material properties
polished
- Rivet mandrel diameter
2.18 mm
- Shaft length
12.5 mm
- Shank Ø
4 mm
- Shear force
1600 N
- Head shape
Truss head
- Tensile force (max.)
2200 N
- UKCA
not relevant
