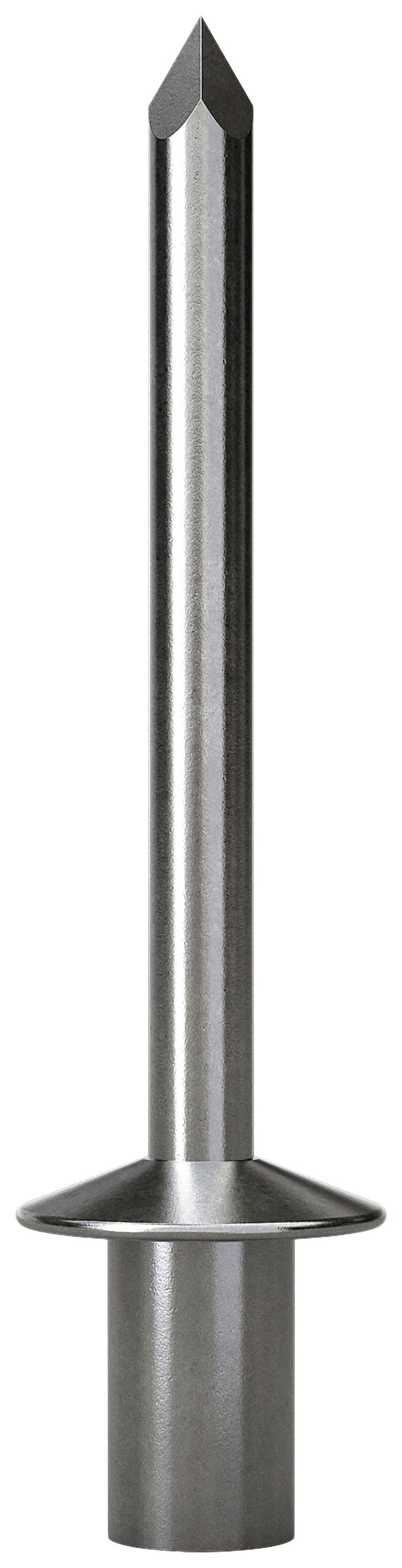

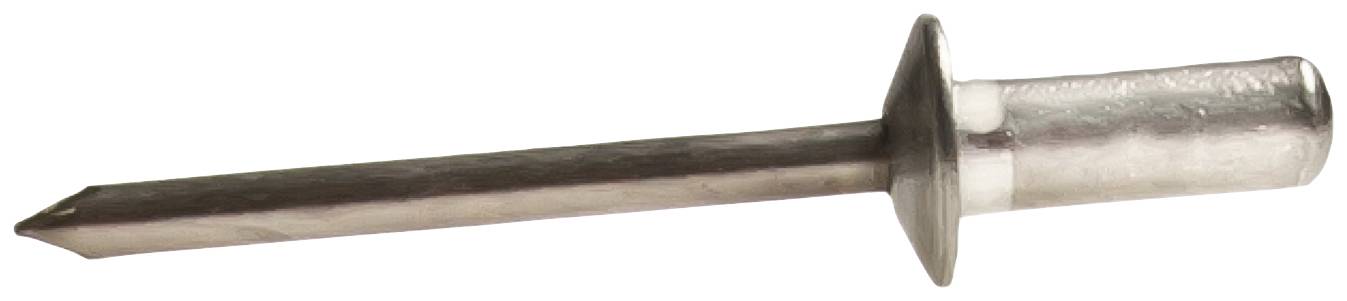

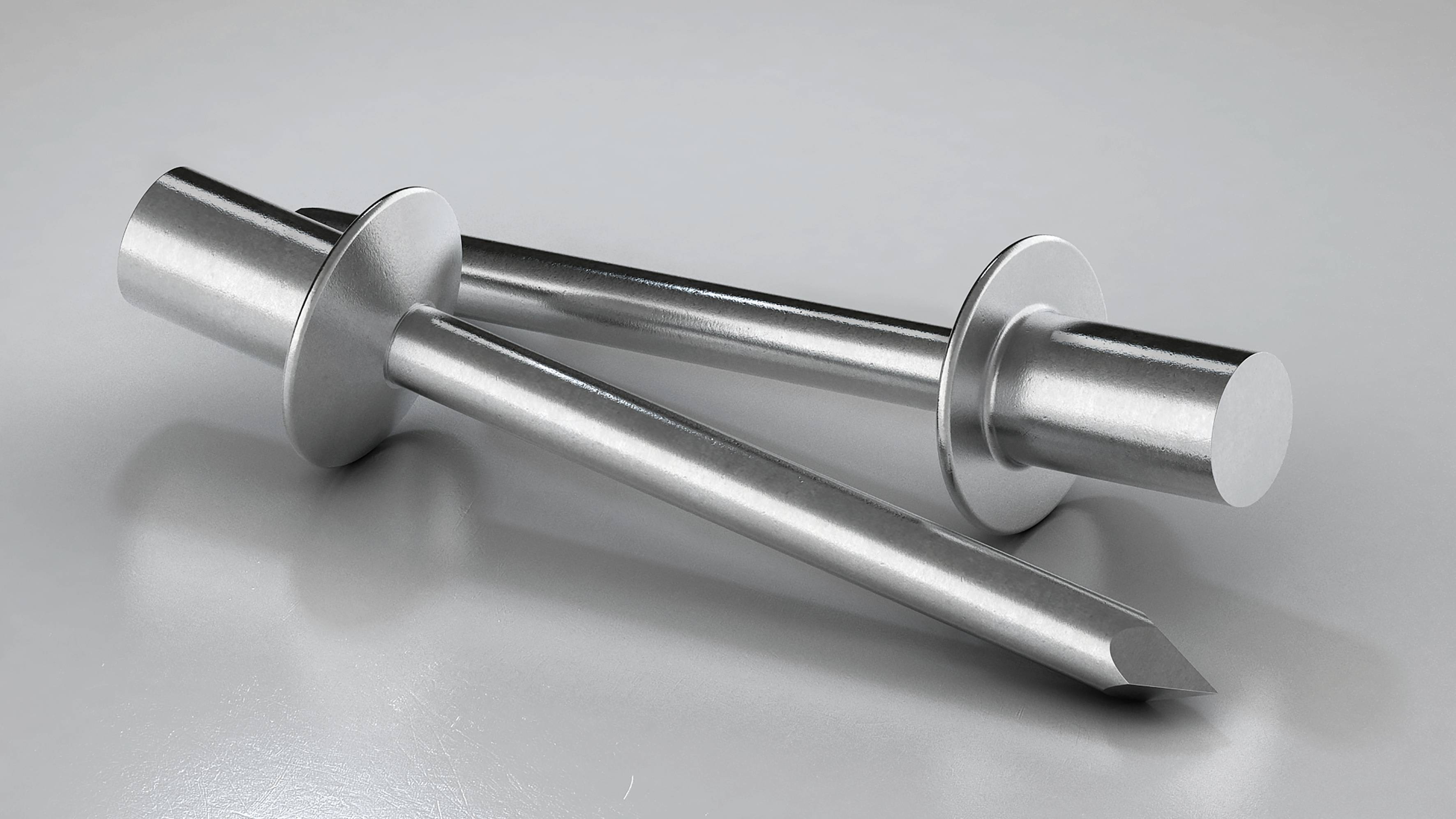

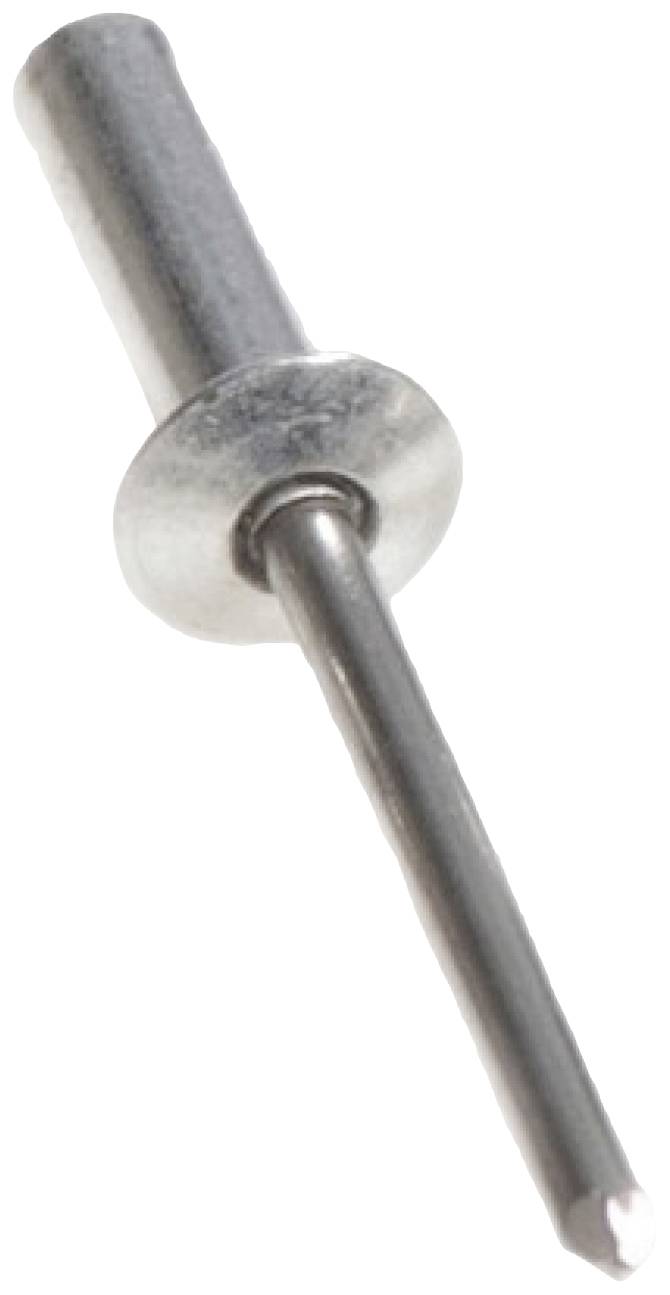

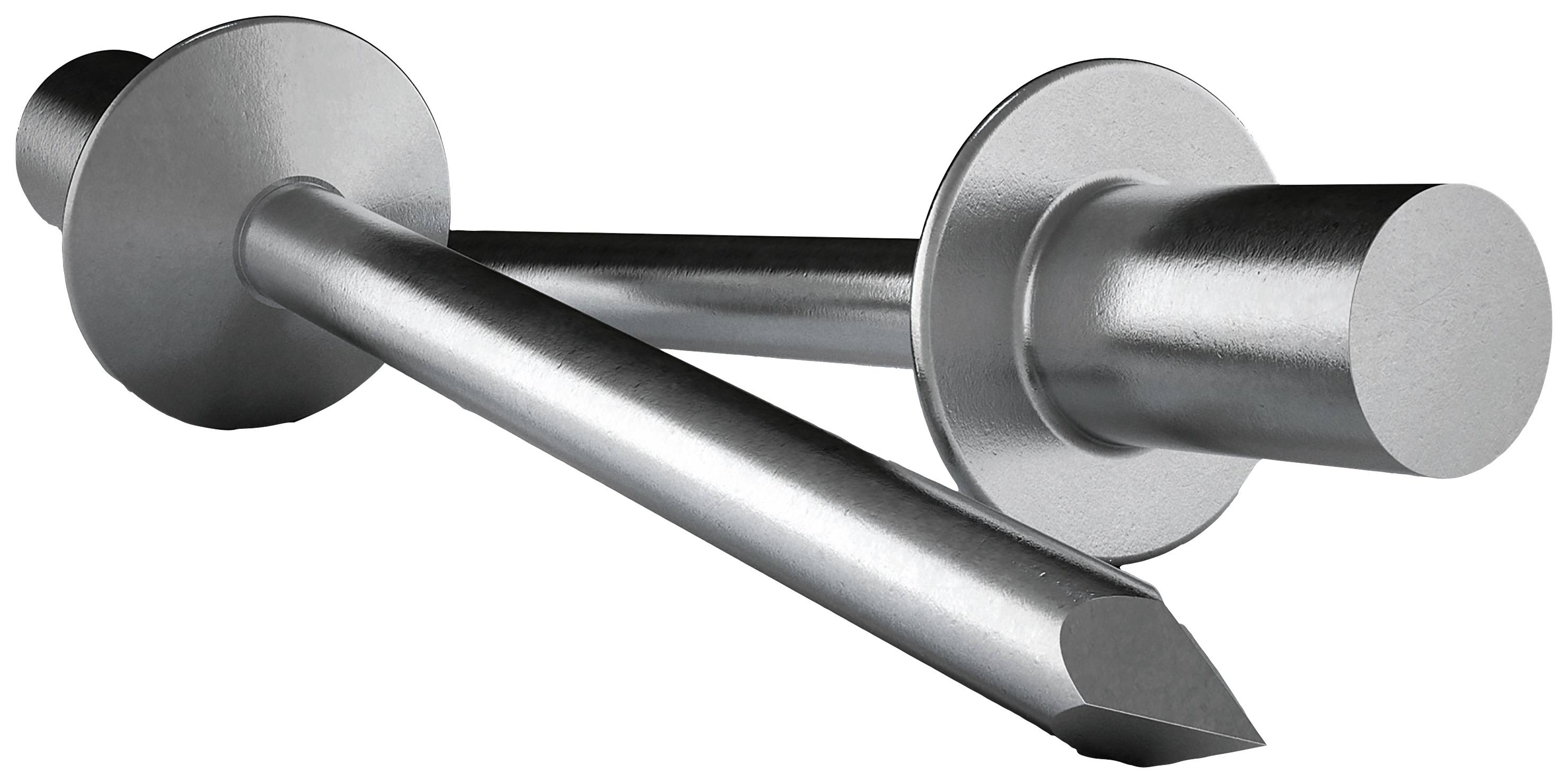

Gesipa 1433439 Sealing blind rivet Steel (stainless) Aluminium Steel (stainless) 500 pc(s)
EAN:
Part number:
Item no:
Product type
Sealing blind rivet
Material (spike)
Steel (stainless)
Material (sleeve)
Aluminium
Material
Steel (stainless)
Max. clamping range
5.0 mm
Number (Package size 500 pc(s))
Total (€ 0.12 / piece)
€ 62.18
plus VAT.
14-day return policy included
Technical specifications
- Product type
Sealing blind rivet
- Content
500 pc(s)
- Material (spike)
Steel (stainless)
- Material (sleeve)
Aluminium
- Material
Steel (stainless)
- Max. clamping range
5.0 mm
- Min. clamping range
3.5 mm
- Tubular rivet diameter
3.2 mm
- Tubular rivet length
9.5 mm
- Clamping range
3.5 - 5.0 mm
- Head Ø
6.5
- Head height
1.2 mm
- Hole diameter
3.3 mm
- Material properties
rust-proof
- Material properties (sleeves)
rust-proof
- Rivet mandrel diameter
1.7 mm
- Shear force
1100 N
- Head shape
Truss head
- Countersink angle
120°
- Tensile force (max.)
1250 N
- UKCA
not relevant
