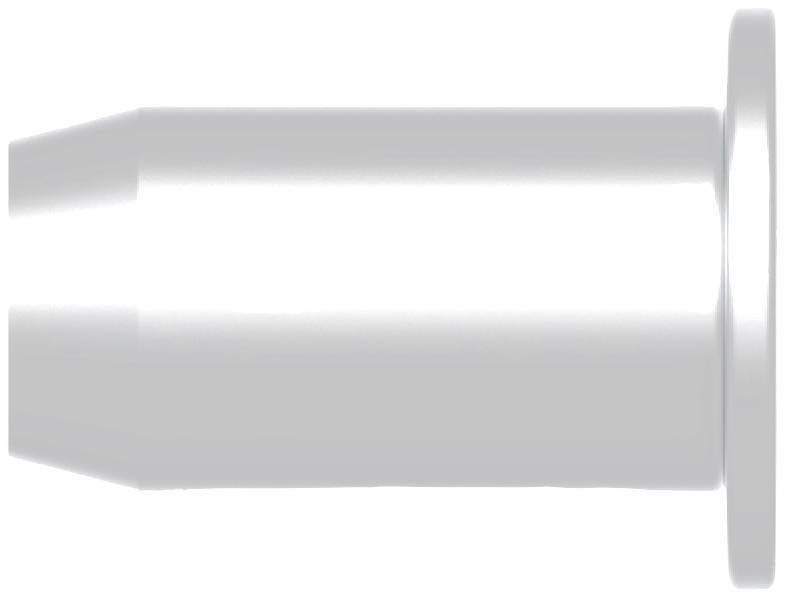

'Graphical representation of a cartridge case type or element, side view. No additional context or text present.'

'Graphical representation of a cartridge case type or element, side view. No additional context or text present.'

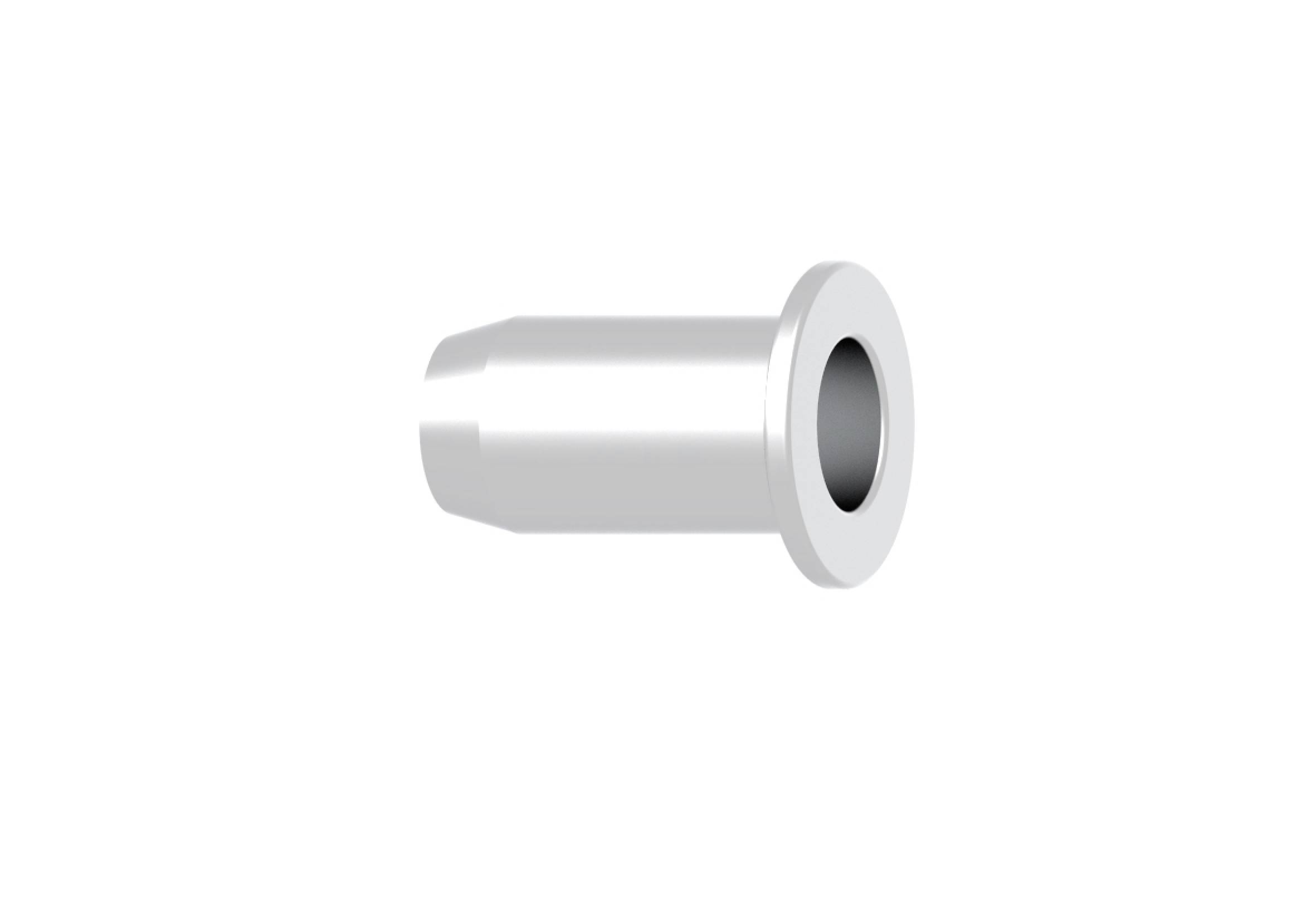

Silver cylindrical component with a broad base and narrow tip, potentially a type of connector or adapter.

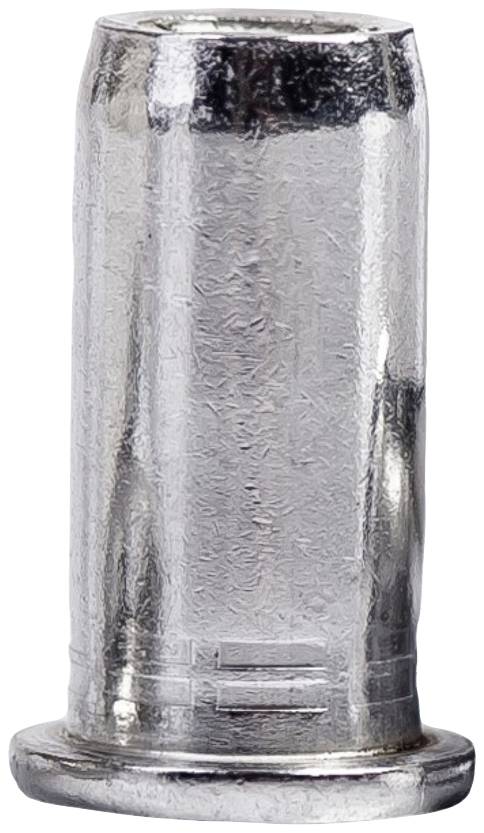

A silver cylindrical object with a shiny, metallic surface and a recessed edge at the bottom; could be a sleeve or casing.

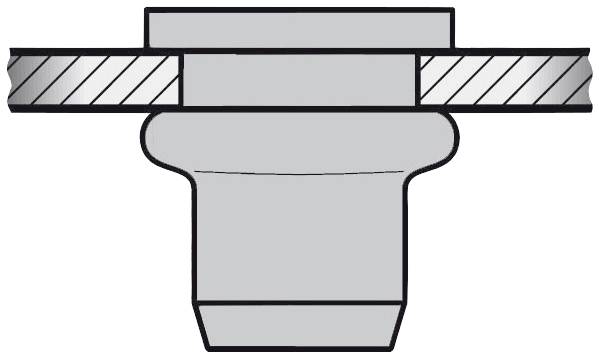

Cross-section of a flange, showing the upper and lower mounting surfaces with a broad central section.

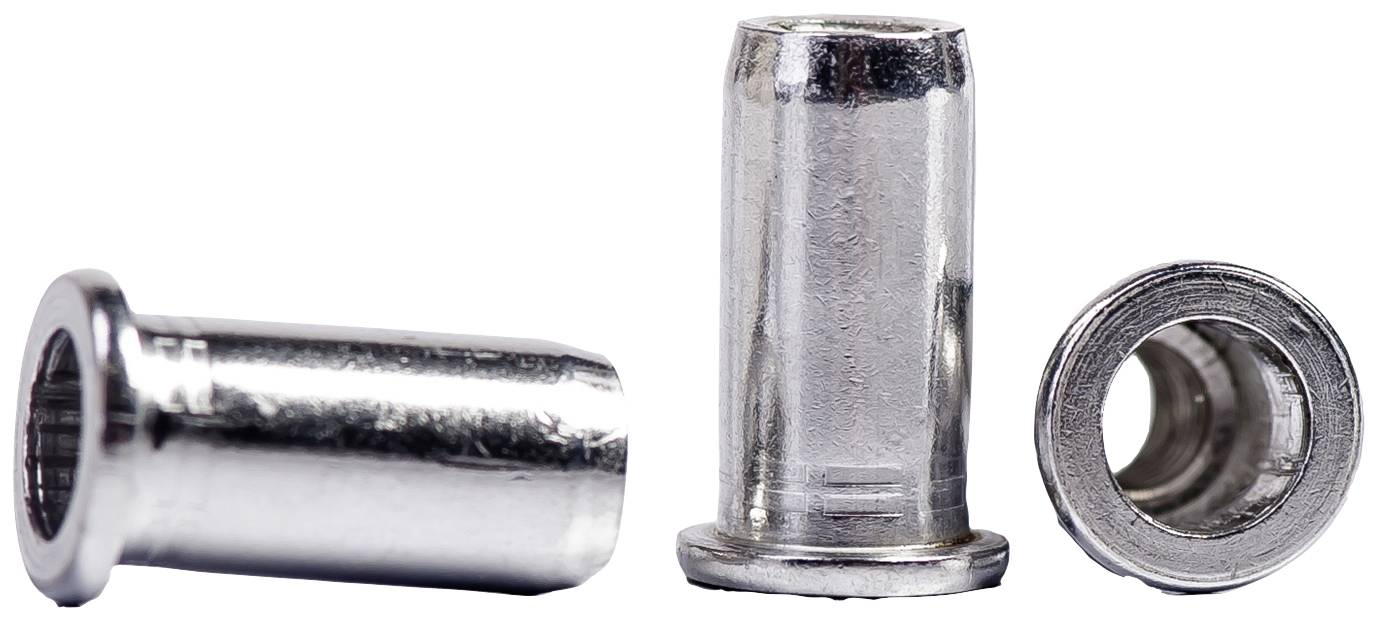

Three silver blind rivet nuts in different perspectives. On the left, one lies flat, in the middle one stands upright, on the right one shows an internal view.

A range of various metal and stainless steel impact nuts of different sizes, symmetrically arranged on a reflective surface.

1/6

Product type

Blind rivet nut

Thread size

M4

Material

Aluminium

Max. clamping range

4.5 mm

Min. clamping range

2.5 mm

Gesipa

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 0.11 / piece)

€ 55.45

plus VAT.

Report legal concerns

Technical specifications

Product type: Blind rivet nut

Content: 500 pc(s)

Thread size: M4

Material: Aluminium

Max. clamping range: 4.5 mm

Min. clamping range: 2.5 mm

Thread length: 6 mm

Thread tensile strength: 4800 N

Clamping range: 2.5 - 4.5 mm

Head Ø: 9

Hole diameter: 6.1 mm

Shaft length: 13

Shank Ø: 6 mm

Head shape: Truss head

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2910025 Gesipa 1433677 Blind rivet nut M4 Aluminium 500 pc(s)
