A silver, cylindrical sleeve with a flat rim at the right-hand end, potentially part of a mechanical or technical object.

A silver, cylindrical sleeve with a flat rim at the right-hand end, potentially part of a mechanical or technical object.

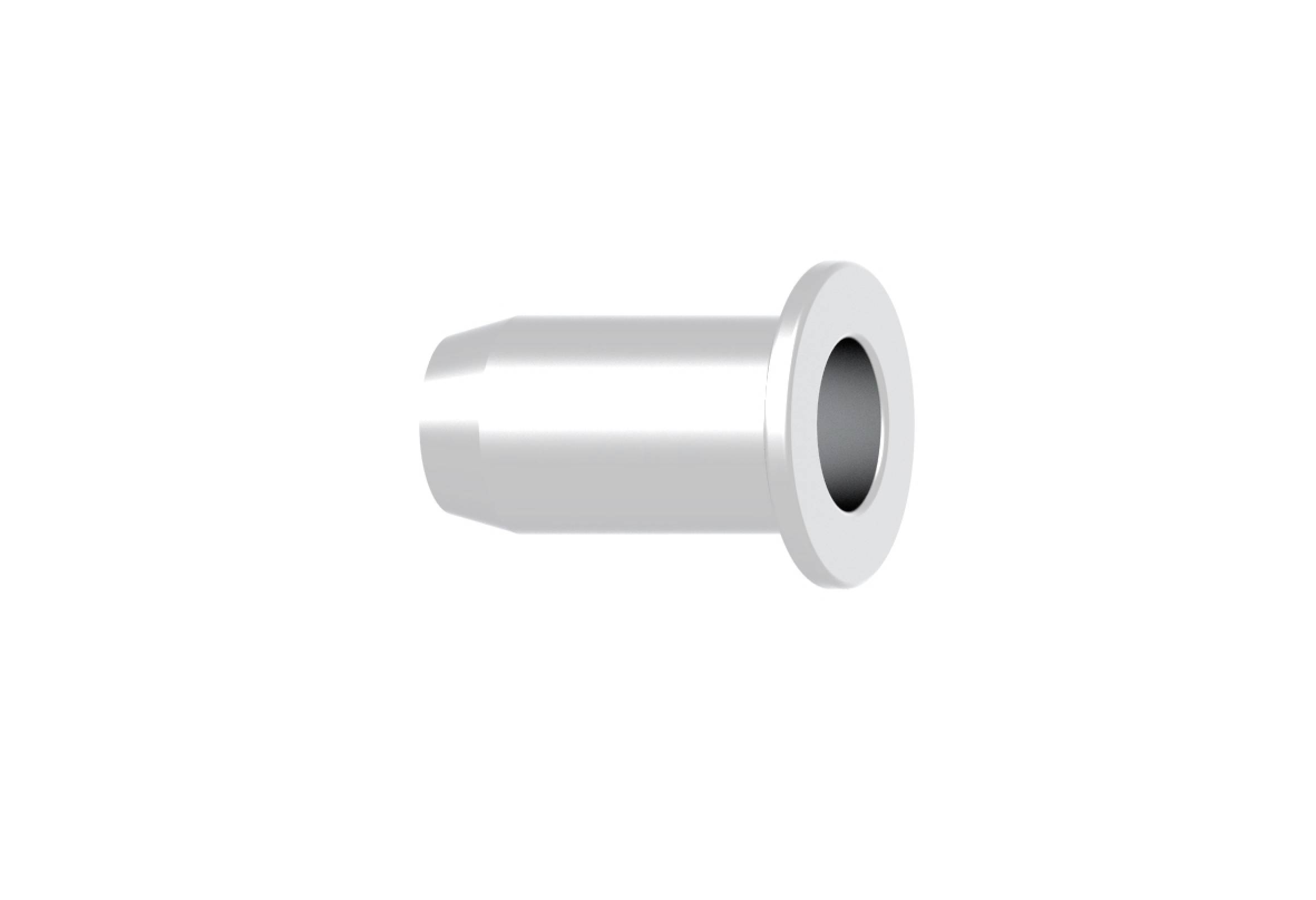

A silver, cylindrical metal part with a wide rim on one side. Potential use as a spacer or connecting element.

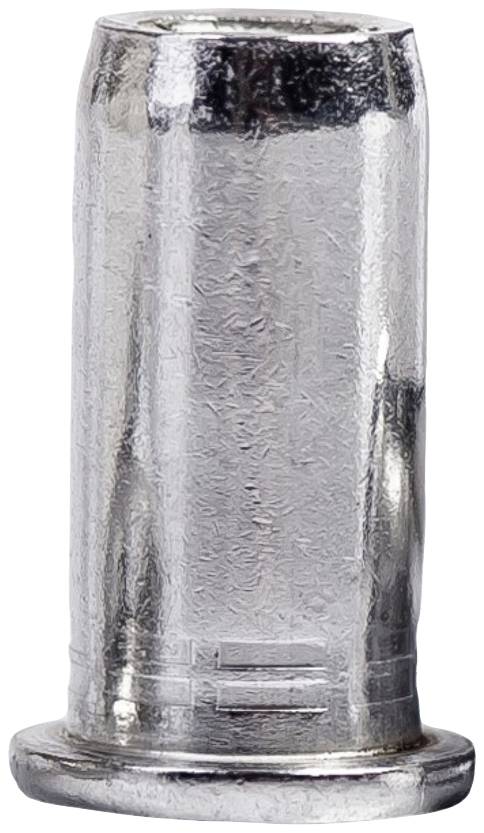

A silver metal cylinder with a flattened edge at the bottom. Surface texture visible, reflecting light on the metallic surface.

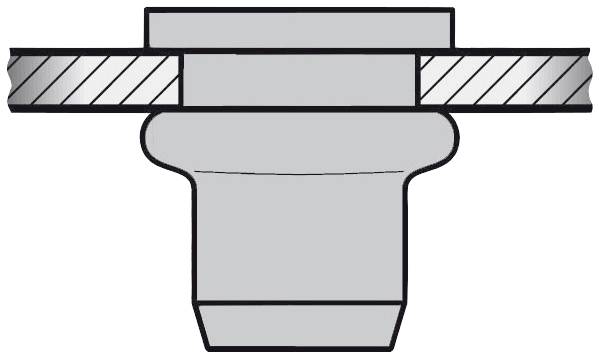

Cross-section of a pipe connection with a flange, showing the seal and bolt holes.

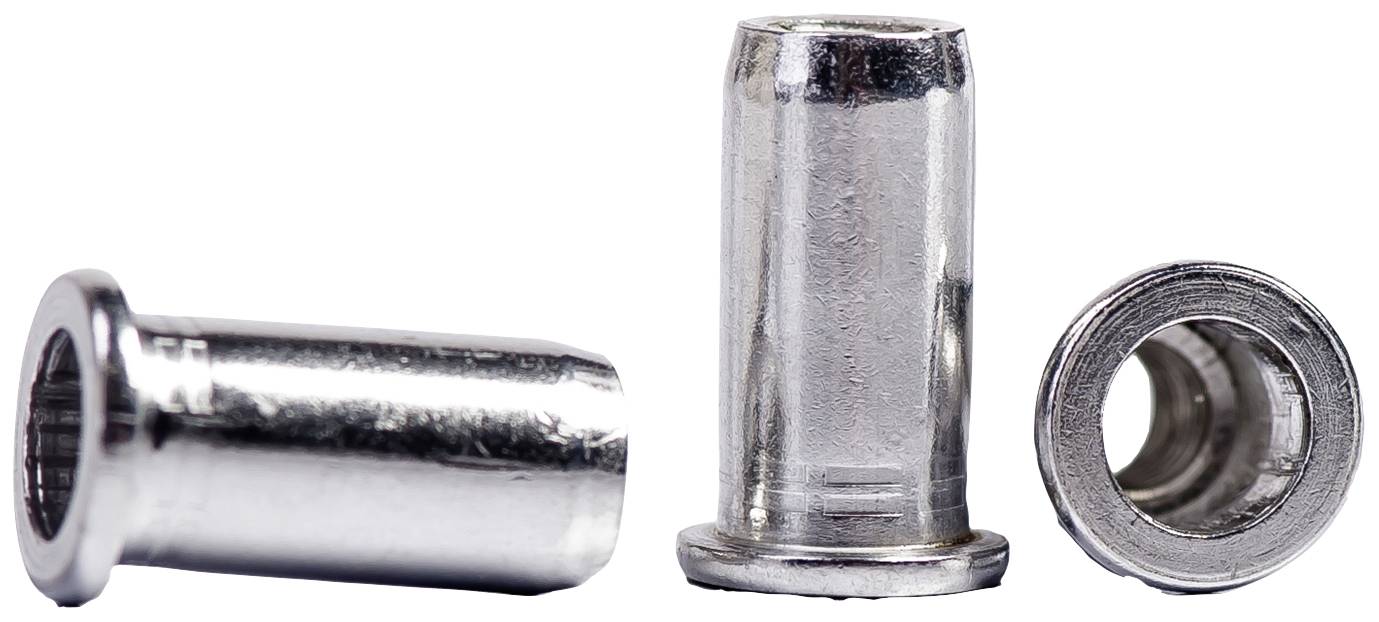

Three silver metal threaded sleeves, shown upright and horizontal, with smooth surface and curved base.

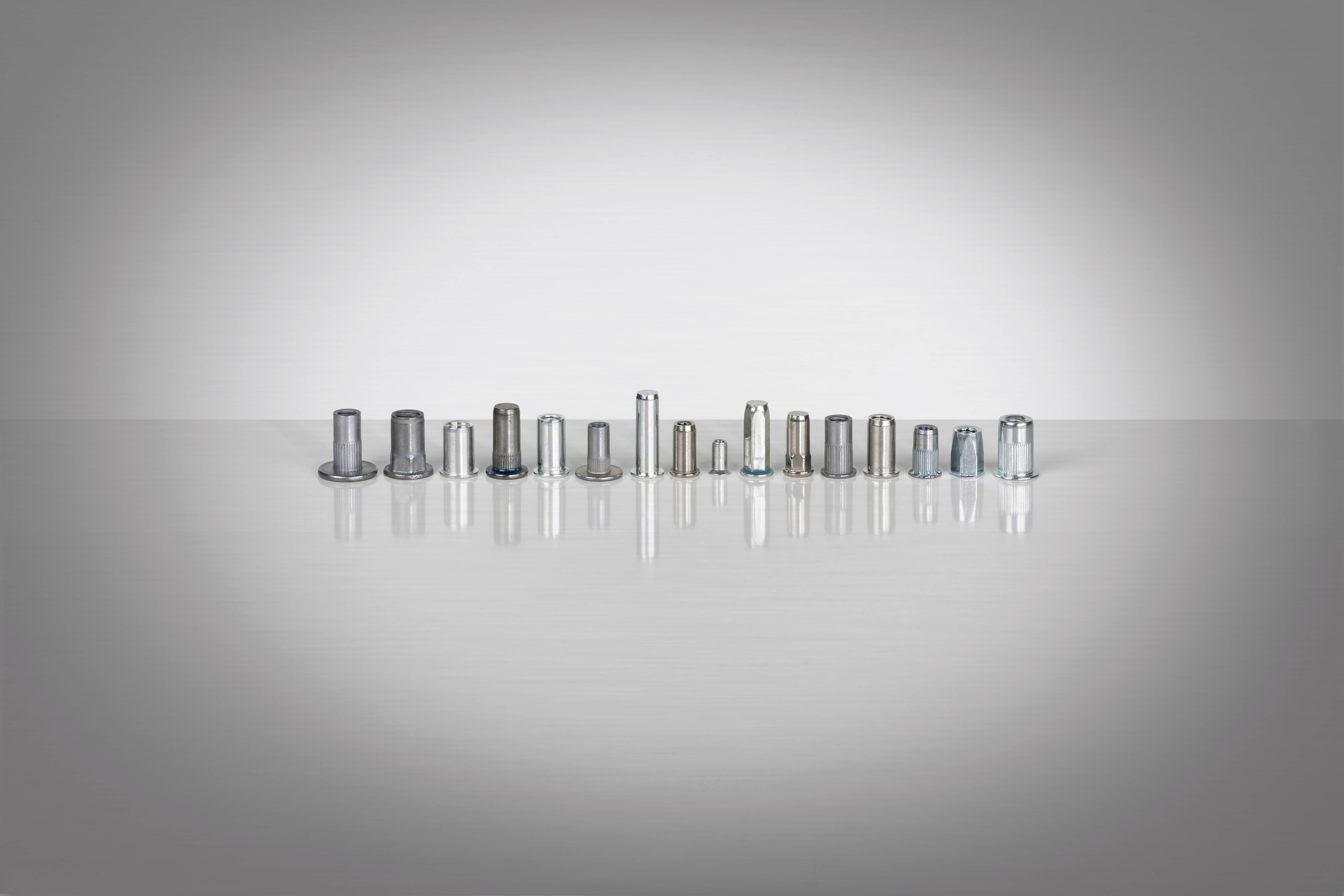

Several types of metal rivets are arranged in a row on a shiny surface, in various sizes and shapes.

1/6

Product type

Blind rivet nut

Length

18.0 mm

Material (sleeve)

Aluminium

Thread size

M6

Material

Aluminium

Gesipa

Dispatches on Tue, 3 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 250 pc(s))

Set(s)

Total (€ 0.21 / piece)

€ 52.09

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Blind rivet nut

(Ø): 9 mm

Length: 18.0 mm

Content: 250 pc(s)

Material (sleeve): Aluminium

Thread size: M6

Dim: (Ø x L) 9 mm x 18.0 mm

Material: Aluminium

Max. clamping range: 5.5 mm

Min. clamping range: 3.0 mm

Thread length: 8 mm

Thread tensile strength: 9500 N

Clamping range: 3.0 - 5.5 mm

Head Ø: 12

Hole diameter: 9.1 mm

Shaft length: 18

Shank Ø: 9 mm

Shear force: 2.200 N

Head shape: Truss head

Tensile force (max.): 9.500 N

UKCA: not relevant
