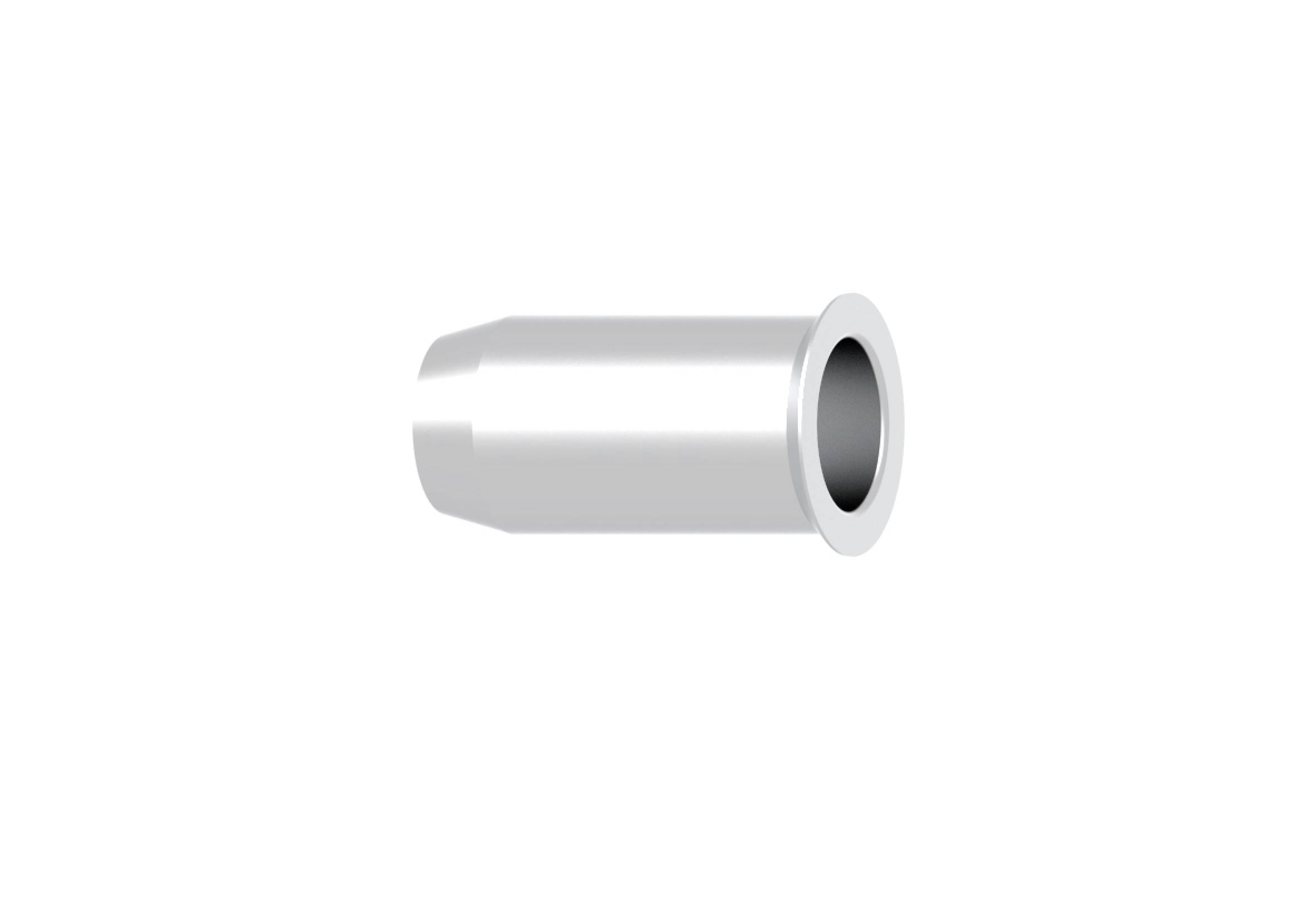

Metallic cylinder, probably a sleeve or pipe section, depicted against a white background.

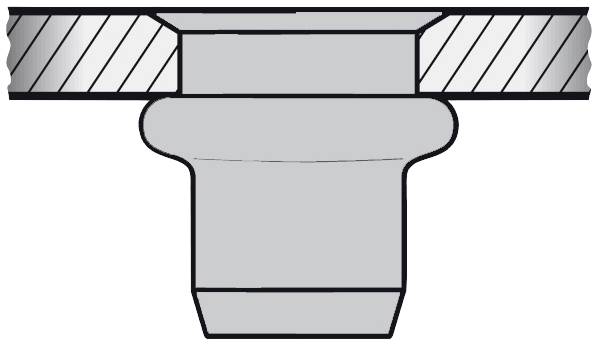

Cross-sectional diagram of a pipe connection with a flange, showing the structure and connection components.

Three silver metal threaded inserts, cylindrical, with external threads. They are positioned vertically and horizontally.

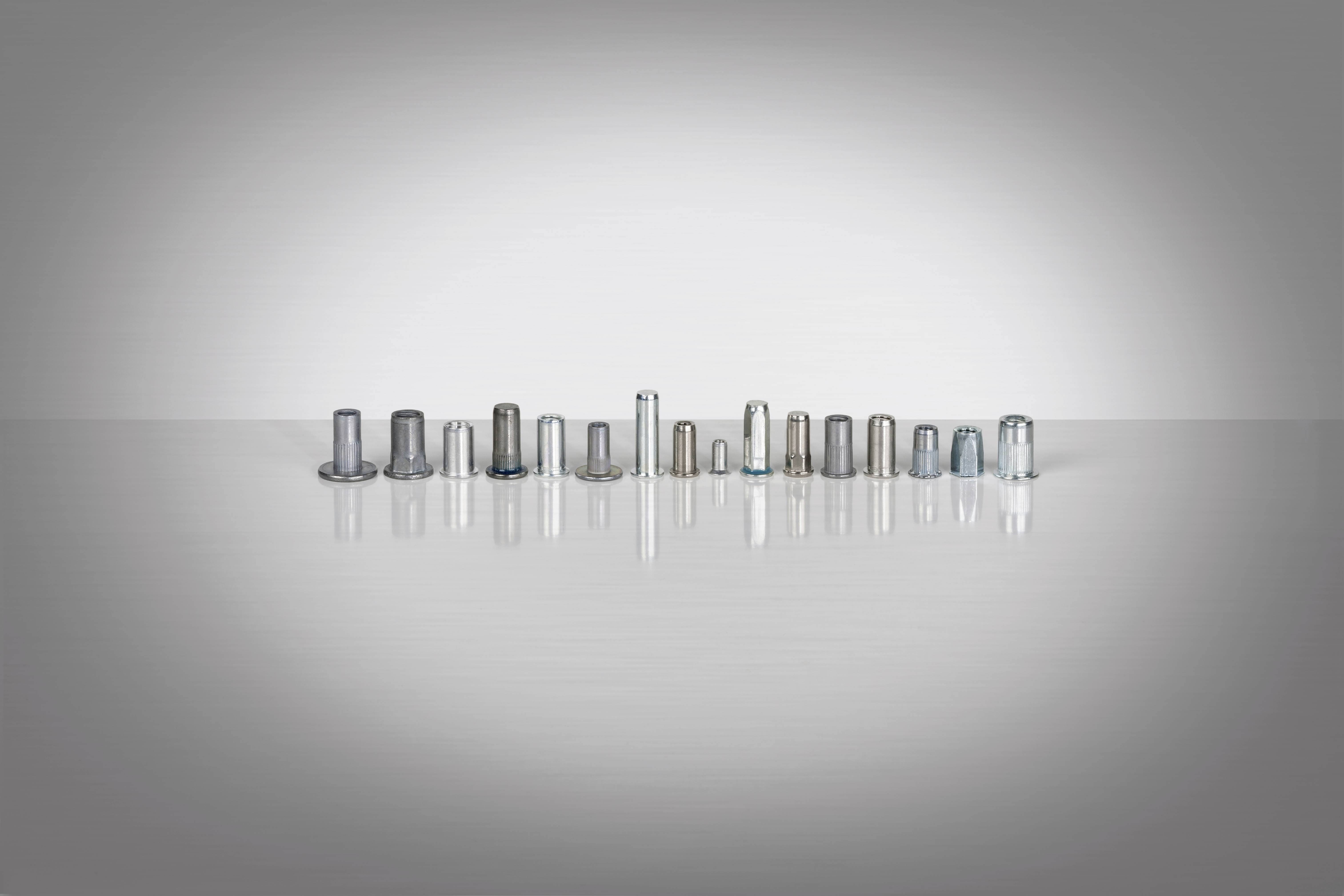

Various metallic nuts and bolts are lined up on a shiny surface against a grey background.

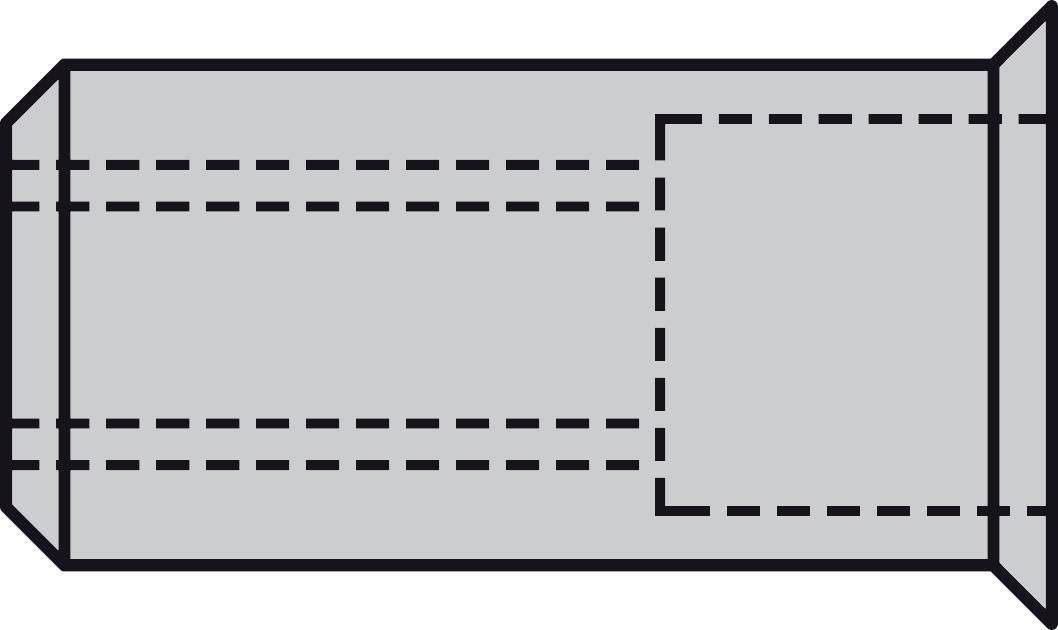

A grey, rectangular paper cut with foldable flaps, represented by dashed lines, for creating a packaging box.

1/6

Product type

Blind rivet nut

Thread size

M5

Material

Aluminium

Max. clamping range

3.0 mm

Min. clamping range

0.5 mm

Gesipa

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 0.12 / piece)

€ 62.18

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Blind rivet nut

Content: 500 pc(s)

Thread size: M5

Material: Aluminium

Max. clamping range: 3.0 mm

Min. clamping range: 0.5 mm

Thread length: 6.5 mm

Thread tensile strength: 5700 N

Tubular rivet diameter: 7.1 mm

Tubular rivet length: 12.5 mm

Clamping range: 0.5 - 3.0 mm

Head Ø: 8.1

Hole diameter: 7.1 mm

Shaft length: 12.5

Shank Ø: 7 mm

Head shape: Small head

UKCA: not relevant
