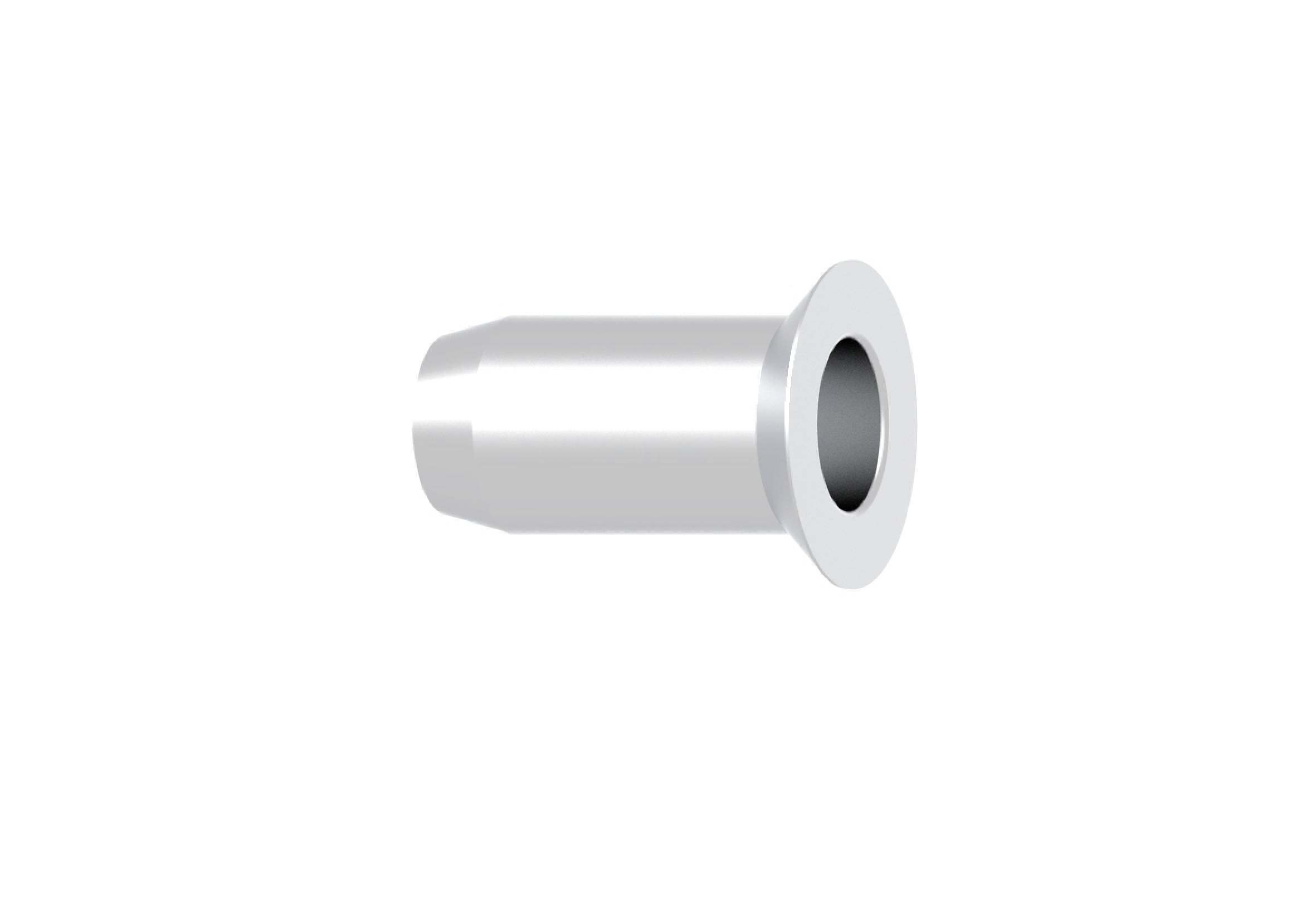

Gesipa 1433731 Blind rivet nut (Ø x L) 6 mm x 12 mm M4 Steel Steel 500 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet nut
Length
12 mm
Material (sleeve)
Steel
Thread size
M4
Material
Steel
Number (Package size 500 pc(s))
Total (€ 0.25 / piece)
€ 126.04
plus VAT.
14-day return policy included
Technical specifications
- Product type
Blind rivet nut
- (Ø)
6 mm
- Length
12 mm
- Content
500 pc(s)
- Material (sleeve)
Steel
- Thread size
M4
- Dim
(Ø x L) 6 mm x 12 mm
- Material
Steel
- Max. clamping range
3.0 mm
- Min. clamping range
1.5 mm
- Thread length
6 mm
- Thread tensile strength
10000 N
- Tubular rivet diameter
6 mm
- Tubular rivet length
12 mm
- Clamping range
1.5 - 3.0 mm
- Head Ø
9
- Head height
1.6 mm
- Hole diameter
6.1 mm
- Material properties
8.8 grade
- Material properties (sleeves)
8.8 grade
- Shaft length
12
- Shank Ø
6 mm
- Shear force
2.250 N
- Head shape
Countersunk
- Countersink angle
90°
- Tensile force (max.)
10.000 N
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910042 Gesipa 1433731 Blind rivet nut (Ø x L) 6 mm x 12 mm M4 Steel Steel 500 pc(s)
