Buy Gesipa 1433916 Multi-purpose blind rivet Stainless steel Stainless steel Stainless steel PolyGrip® 500 pc(s)

A silver metal nail with a flat head and fluted shaft, designed for secure fixing in concrete or masonry.

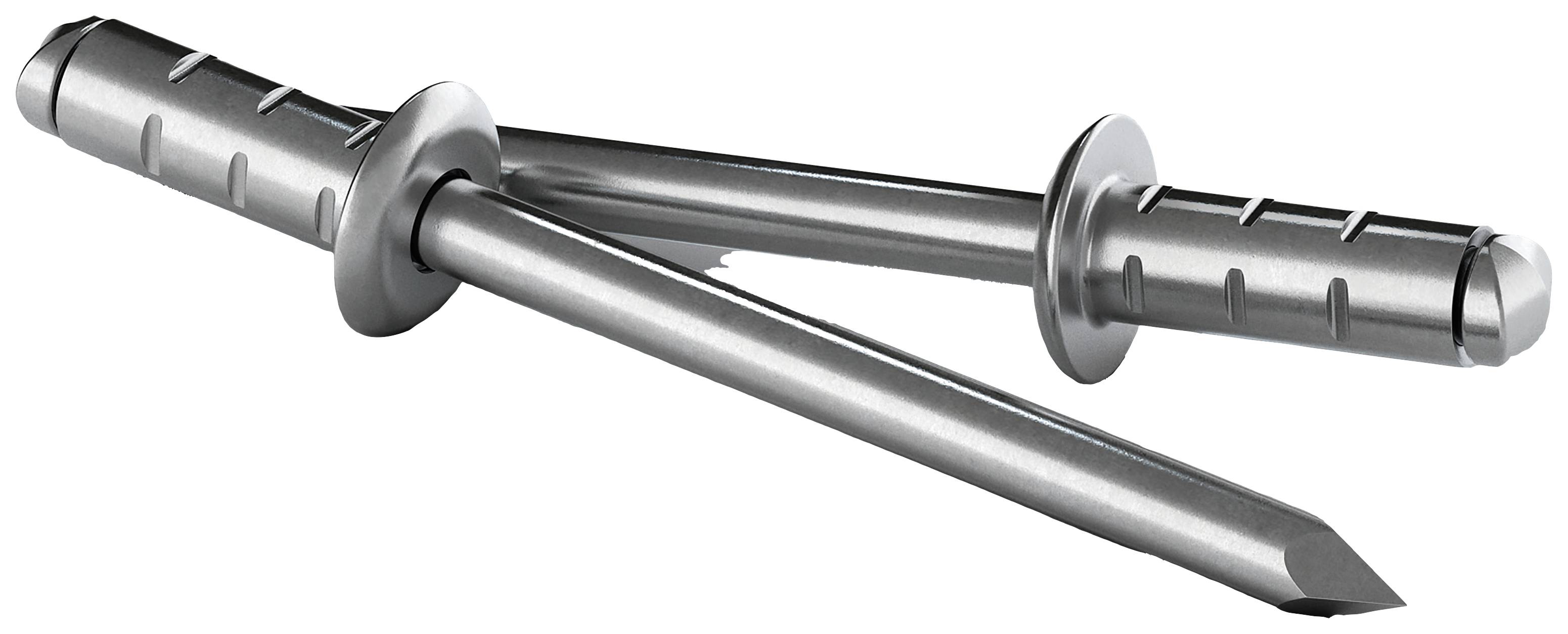

Two metal nails with grooves and broad heads lie crossed on a white surface. They are suitable for fastening.

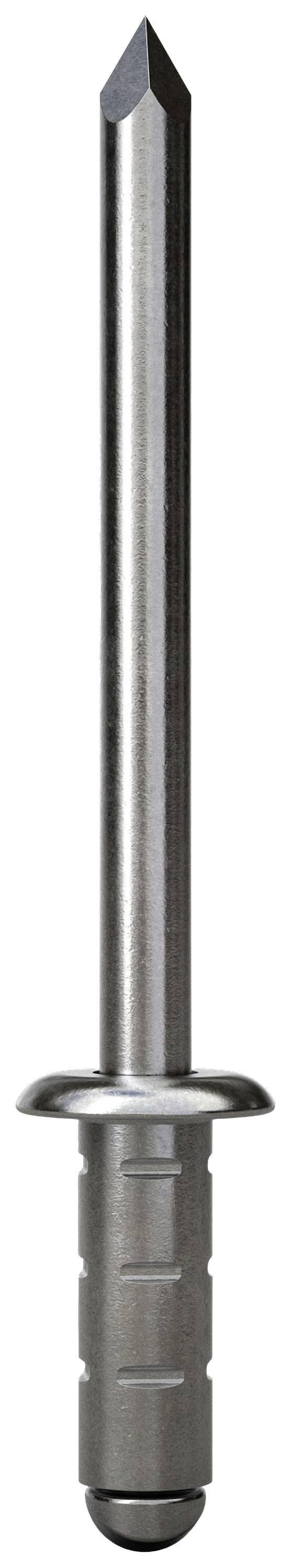

Metal rivet with a fluted shaft and flat head, typically used for permanent fastenings in construction and craftsmanship.

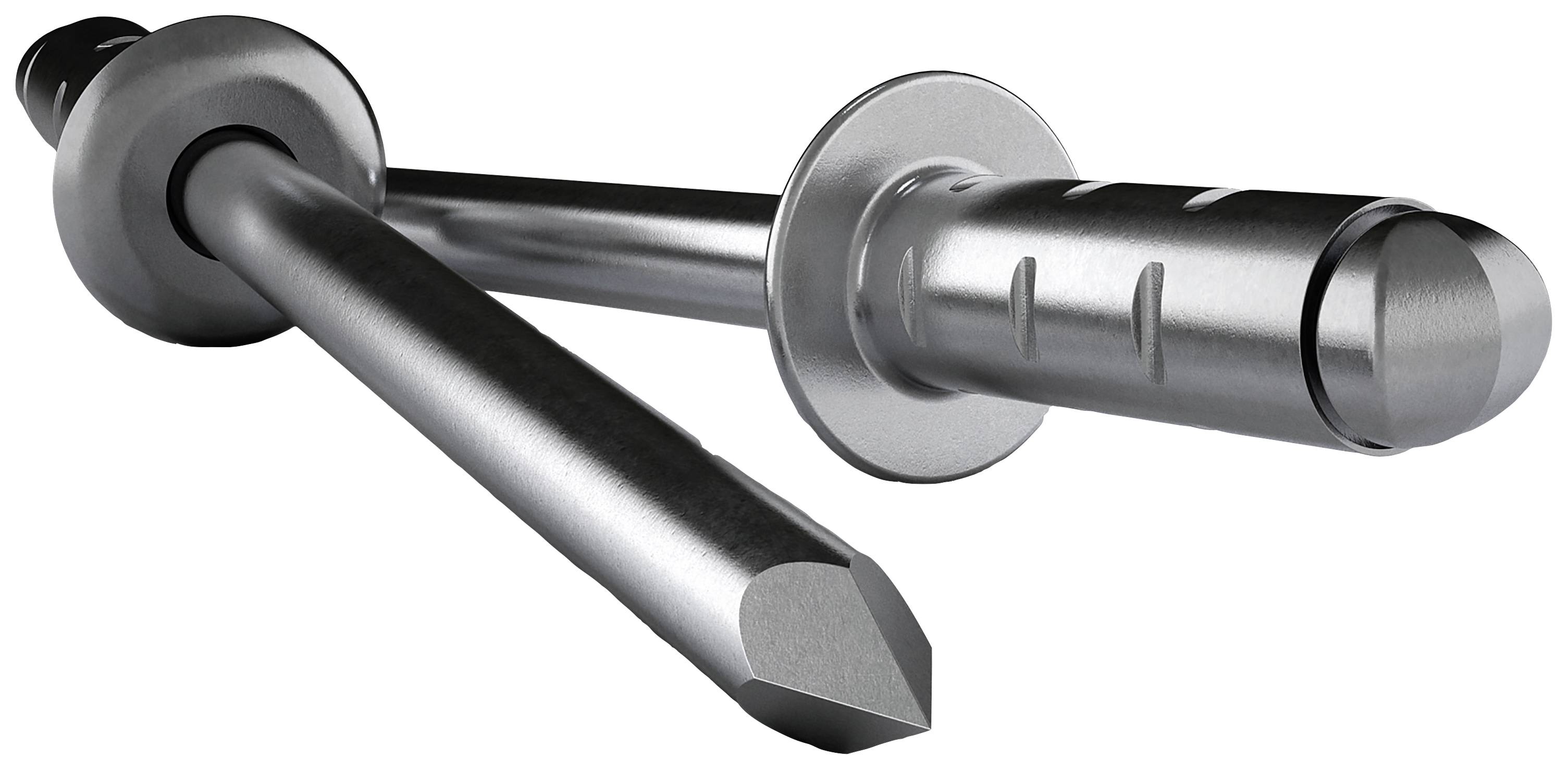

Two silver metal pins with flat heads and grooves are crossed over each other. They serve as fastening elements for building constructions.

1/4

Product type

Multi-purpose blind rivet

Length

17 mm

Material (spike)

Stainless steel

Material (sleeve)

Stainless steel

Material

Stainless steel

Dispatches on Tue, 20 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 0.34 / piece)

€ 168.06

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Multi-purpose blind rivet

Length: 17 mm

Content: 500 pc(s)

Material (spike): Stainless steel

Material (sleeve): Stainless steel

Material: Stainless steel

Max. clamping range: 12.0 mm

Min. clamping range: 8.0 mm

Tubular rivet diameter: 4.8 mm

Tubular rivet length: 17 mm

Clamping range: 8.0 - 12.0 mm

Head Ø: 9.5

Head height: 1.6 mm

Hole diameter: 4.9 mm

Material properties (spikes): A2

Material properties (sleeves): A2

Rivet mandrel diameter: 3.2 mm

Shaft length: 17 mm

Shank Ø: 4.8 mm

Shear force: 4000 N

Head shape: Truss head

Tensile force (max.): 5000 N

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Length

(Ø)

Content

Diameter

Min. clamping range

Max. clamping range

Product type

Gesipa 1433621 Blind rivet (Ø x L) 3 mm x 6 mm Stainless steel Stainless steel Stainless steel Blindniet A2/A2 3x6mm Standard KS 1,0-3,0mm 500 pc(s)

Item no:2799093

6 mm

3 mm

500 pc(s)

3 mm

1 mm

3 mm

Blind rivet

Gesipa 1433628 Blind rivet (Ø x L) 4 mm x 8 mm Stainless steel Stainless steel Stainless steel Blindniet A2/A2 4x8mm Standard KS 2,5-4,5mm 500 pc(s)

Item no:2799506

8 mm

4 mm

500 pc(s)

4 mm

2.5 mm

4.5 mm

Blind rivet

Gesipa 1433909 Blind rivet (Ø x L) 3.2 mm x 8 mm Stainless steel Stainless steel Stainless steel PolyGrip® 1000 pc(s)

Item no:2799515

8 mm

3.2 mm

1000 pc(s)

3.2 mm

1 mm

5 mm

Blind rivet

Gesipa 1433622 Blind rivet (Ø x L) 3 mm x 8 mm Stainless steel Stainless steel Stainless steel Blindniet A2/A2 3x8mm Standard KS 3,0-5,0mm 500 pc(s)

Item no:2909989

8 mm

3 mm

500 pc(s)

3 mm

3.0 mm

5.0 mm

Blind rivet

Gesipa 1433623 Blind rivet (Ø x L) 3.2 mm x 6 mm Stainless steel Stainless steel Stainless steel 500 pc(s)

Item no:2909990

6 mm

3.2 mm

500 pc(s)

3.2 mm

1.0 mm

3.0 mm

Blind rivet

Gesipa 1433624 Blind rivet (Ø x L) 3.2 mm x 8 mm Stainless steel Stainless steel Stainless steel 500 pc(s)

Item no:2909991

8 mm

3.2 mm

500 pc(s)

3.2 mm

3.0 mm

5.0 mm

Blind rivet

Gesipa 1433625 Blind rivet (Ø x L) 3.2 mm x 10 mm Stainless steel Stainless steel Stainless steel 500 pc(s)

Item no:2909992

10 mm

3.2 mm

500 pc(s)

3.2 mm

5.0 mm

6.5 mm

Blind rivet

Gesipa 1433626 Blind rivet Stainless steel Stainless steel Stainless steel 500 pc(s)

Item no:2909993

500 pc(s)

6.5 mm

8.5 mm

Blind rivet

Gesipa 1433632 Blind rivet (Ø x L) 4 mm x 20 mm Stainless steel Stainless steel Stainless steel 500 pc(s)

Item no:2909994

20 mm

4 mm

500 pc(s)

4 mm

12.0 mm

16.0 mm

Blind rivet

Gesipa 1433634 Blind rivet (Ø x L) 4.8 mm x 8 mm Stainless steel Stainless steel Stainless steel 500 pc(s)

Item no:2909995

8 mm

4.8 mm

500 pc(s)

4.8 mm

2.0 mm

4.0 mm

Blind rivet

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2910137 Gesipa 1433916 Multi-purpose blind rivet Stainless steel Stainless steel Stainless steel PolyGrip® 500 pc(s)
