Buy Gesipa 1433931 Blind rivet (Ø) 4.8 mm Steel Steel Steel 150 pc(s)

A metal nail with a ribbed shaft and a pointed end, suitable for fastenings.

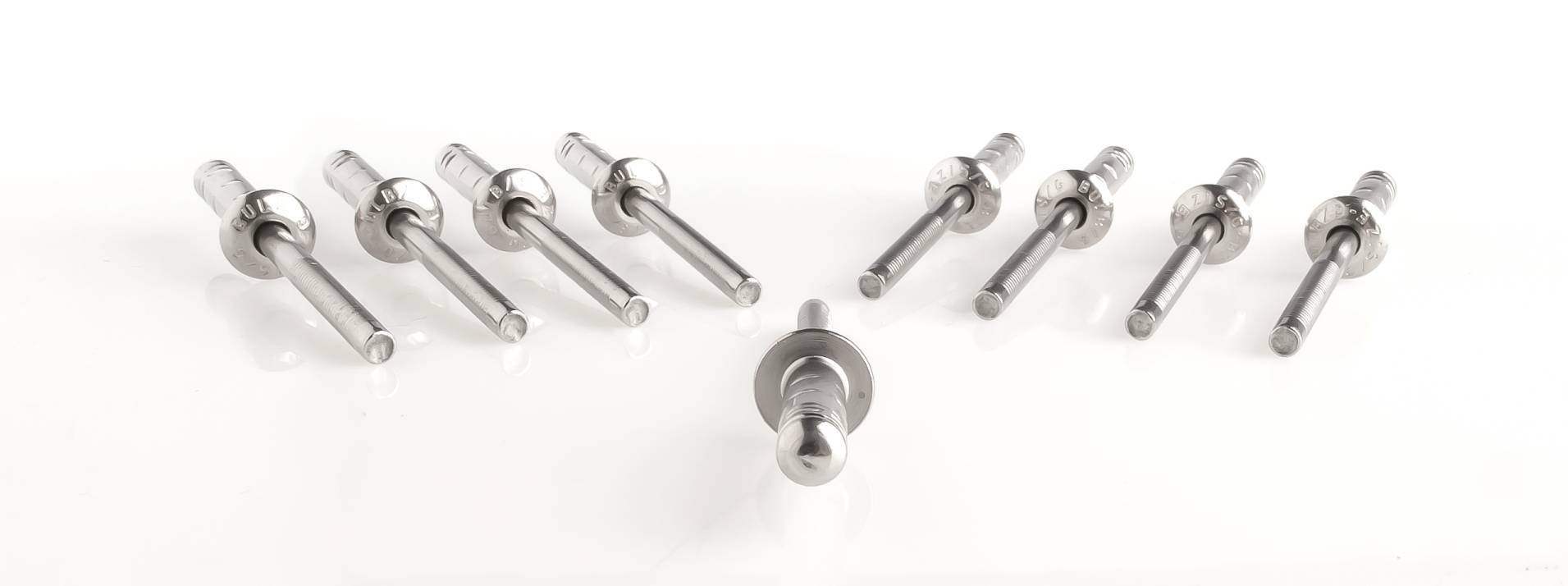

'Eight metal bolts and an additional bolt in the centre, arranged on a white surface.'

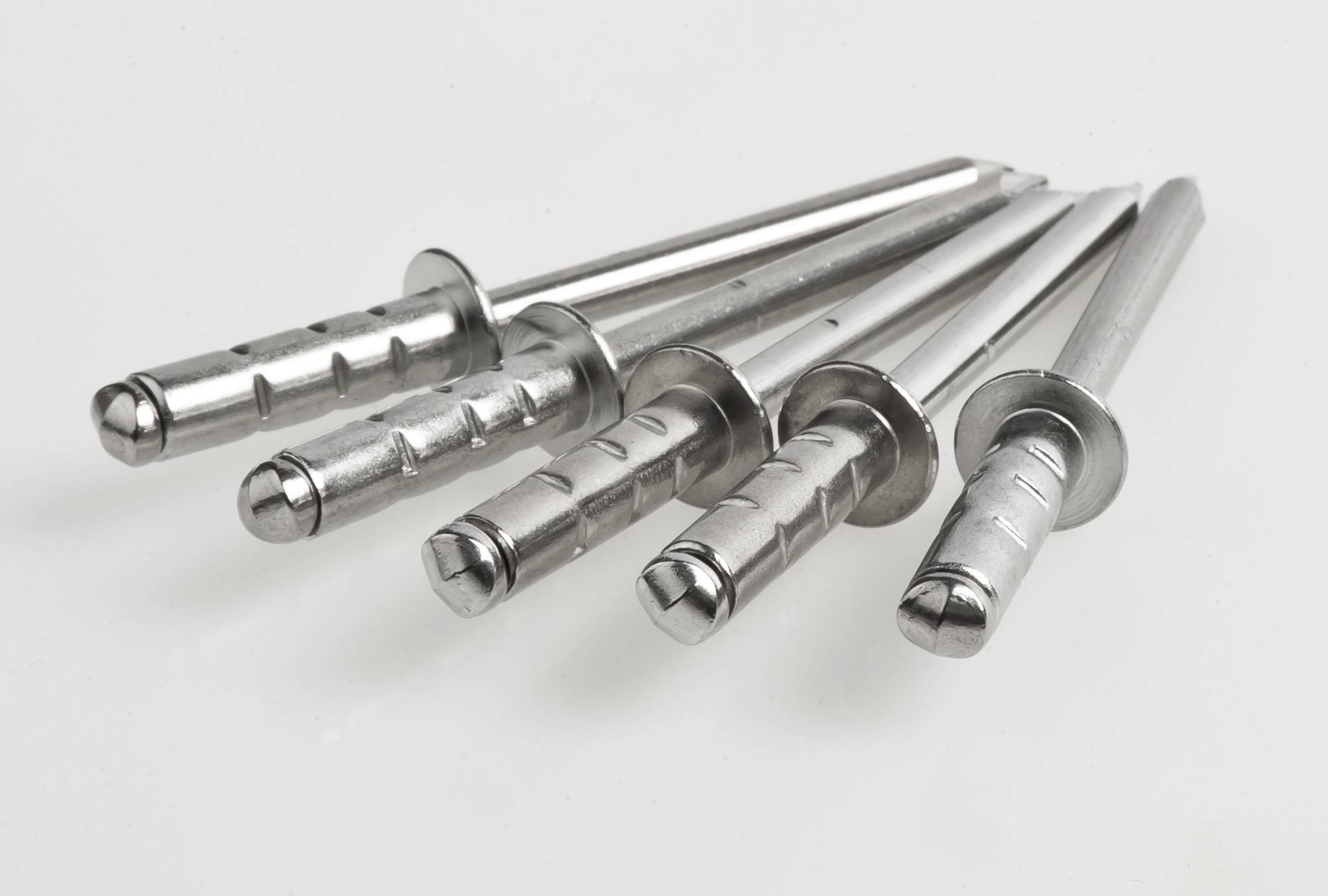

Five stainless steel dowels are lying parallel on a white surface.

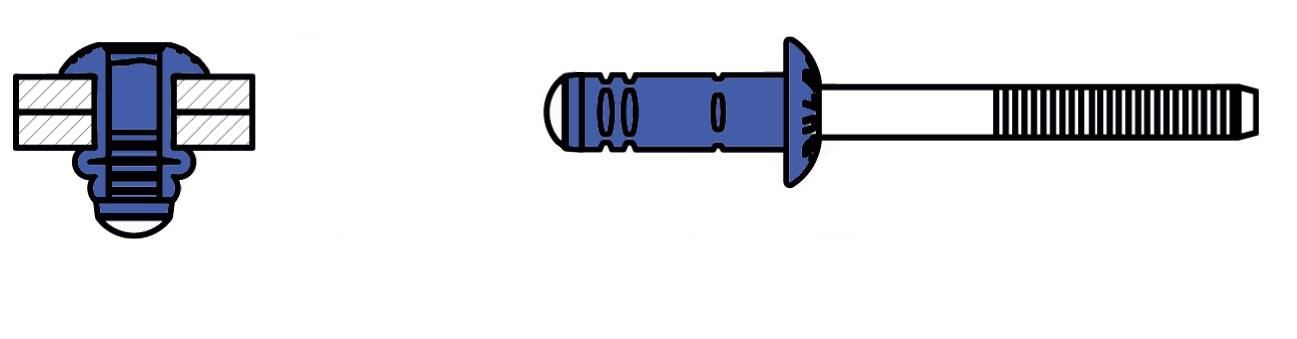

Two technical drawings of a blind rivet: on the left is the rivet mounted in cross-section, on the right the side view of the rivet.

1/4

Product type

Blind rivet

Material (spike)

Steel

Material (sleeve)

Steel

Material

Steel

Max. clamping range

13.0 mm

Fast track dispatch on Fri, 18 Sep

1 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 150 pc(s))

Set(s)

Total (€ 0.31 / piece)

€ 47.05

plus VAT.

Only 1 Set(s) available

Report legal concerns

Technical specifications

Product type: Blind rivet

(Ø): 4.8 mm

Content: 150 pc(s)

Material (spike): Steel

Material (sleeve): Steel

Dim: (Ø) 4.8 mm

Material: Steel

Max. clamping range: 13.0 mm

Min. clamping range: 10.5 mm

Tubular rivet diameter: 6.4 mm

Tubular rivet length: 23 mm

Clamping range: 10.5 - 13.0 mm

Head Ø: 13

Head height: 3 mm

Material properties: zinc plated

Material properties (spikes): zinc plated

Material properties (sleeves): zinc plated

Rivet mandrel diameter: 4.25 mm

Shear force: 11000 N

Head shape: Truss head

Tensile force (max.): 8000 N
