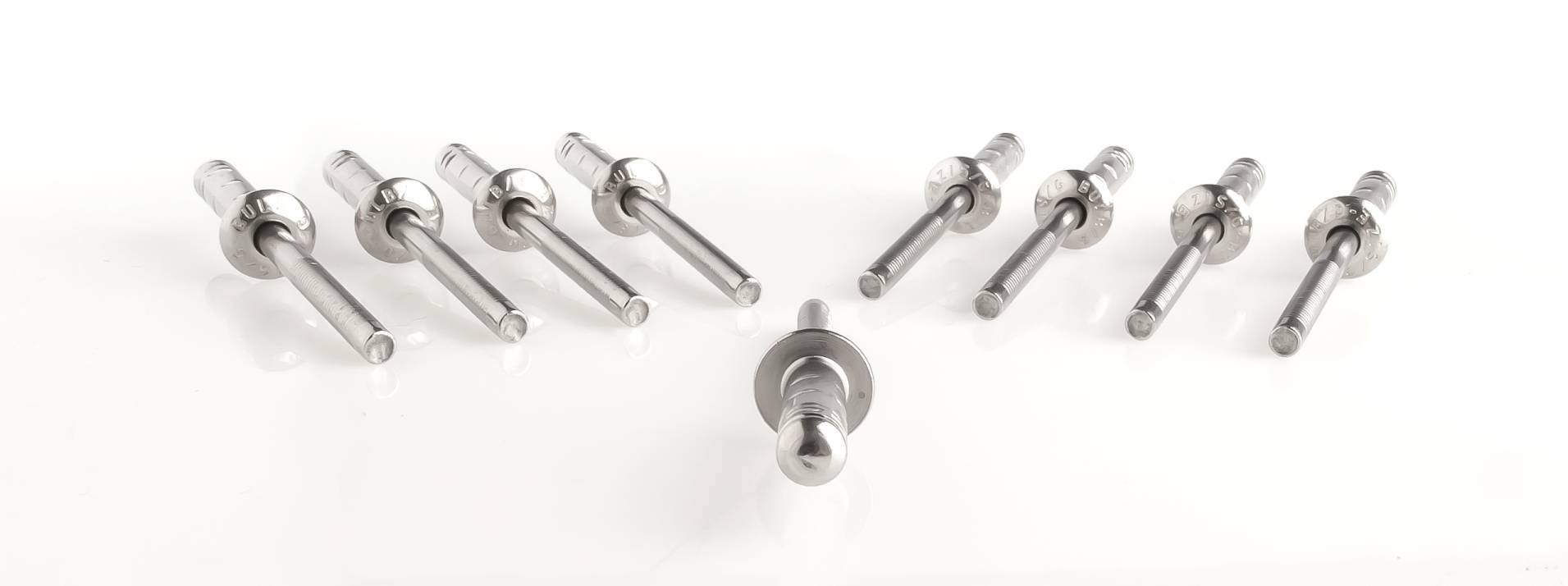

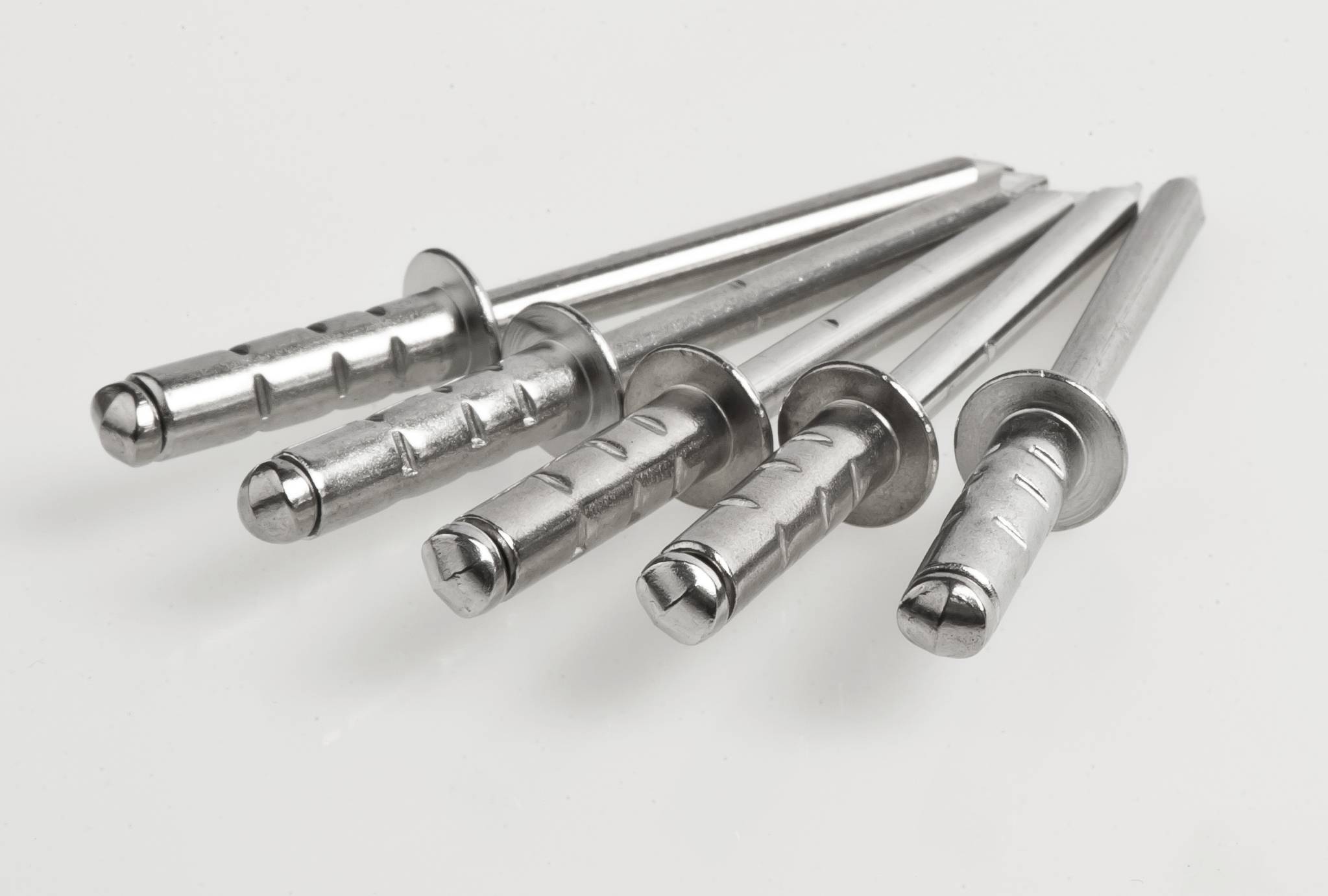

Gesipa 1433937 Blind rivet (Ø) 4.8 mm Stainless steel Stainless steel Stainless steel V2A 250 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Stainless steel
Material (sleeve)
Stainless steel
Material
Stainless steel V2A
Max. clamping range
4.0 mm
Number (Package size 250 pc(s))
Total (€ 0.52 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
Blind rivet
- (Ø)
4.8 mm
- Content
250 pc(s)
- Material (spike)
Stainless steel
- Material (sleeve)
Stainless steel
- Dim
(Ø) 4.8 mm
- Material
Stainless steel V2A
- Max. clamping range
4.0 mm
- Min. clamping range
2.0 mm
- Thread tensile strength
16000 N
- Tubular rivet diameter
6.4 mm
- Tubular rivet length
13 mm
- Clamping range
2.0 - 4.0 mm
- Head Ø
13
- Head height
3 mm
- Material properties
rust-proof
- Material properties (spikes)
rust-proof
- Material properties (sleeves)
rust-proof
- Rivet mandrel diameter
4.25 mm
- Shank Ø
4.8 mm
- Shear force
8000 N
- Head shape
Truss head
- Tensile force (max.)
8800 N
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910154 Gesipa 1433937 Blind rivet (Ø) 4.8 mm Stainless steel Stainless steel Stainless steel V2A 250 pc(s)
