Gesipa 1435453 Riveter set 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Riveter set
- Rivet diameter (min.)
3 mm
- Rivet diameter (max.)
6 mm
- Mouthpieces
2
- Features
incl. exchangeable crimp insets
- Weight
750 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910271 Gesipa 1435453 Riveter set 1 pc(s)
Information
Information 2910271 Gesipa 1435453 Riveter set 1 pc(s)
Information 2910271 Gesipa 1435453 Riveter set 1 pc(s)
Description

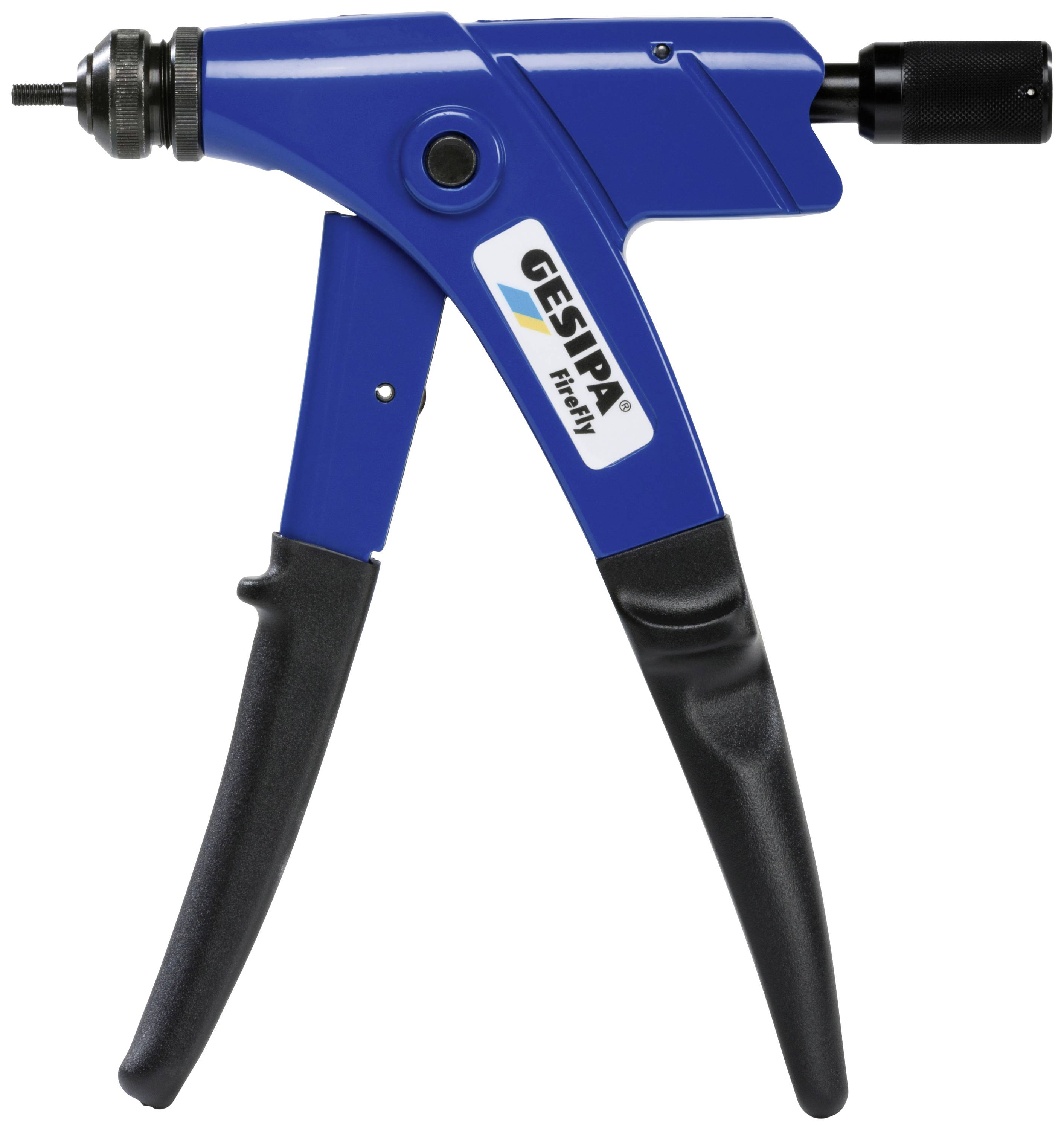

FireFly - hand blind rivet nut setting device
Power and intelligence to set blind rivet nuts
The practical
- The proven working method of the GESIPA hand-riveter Flipper and the ergonomic
In principle, you also save up to 40% manual force when setting blind rivet nuts.
- A special lever arrangement and ratchet mechanism allow working with extremely low hand force
- Tool-free change of threaded pin and mouthpiece
- Large stroke of 9 millimeters for easy insertion of blind rivet nuts, even in low joint strengths and for setting polyGrip blind rivet nuts
- Tool-free setting of setting stroke and thread mandrel lengths makes it easy to set blind rivet nuts of different lengths
The work area
Set blind rivet nuts of M3 to M6 aluminum as well as of M3 to M5 steel.
Technical Specifications
Total travel 9 mm
Single stroke 1.8 mm
Device weight 750 g
Weight incl. Packaging: 1.813 kg

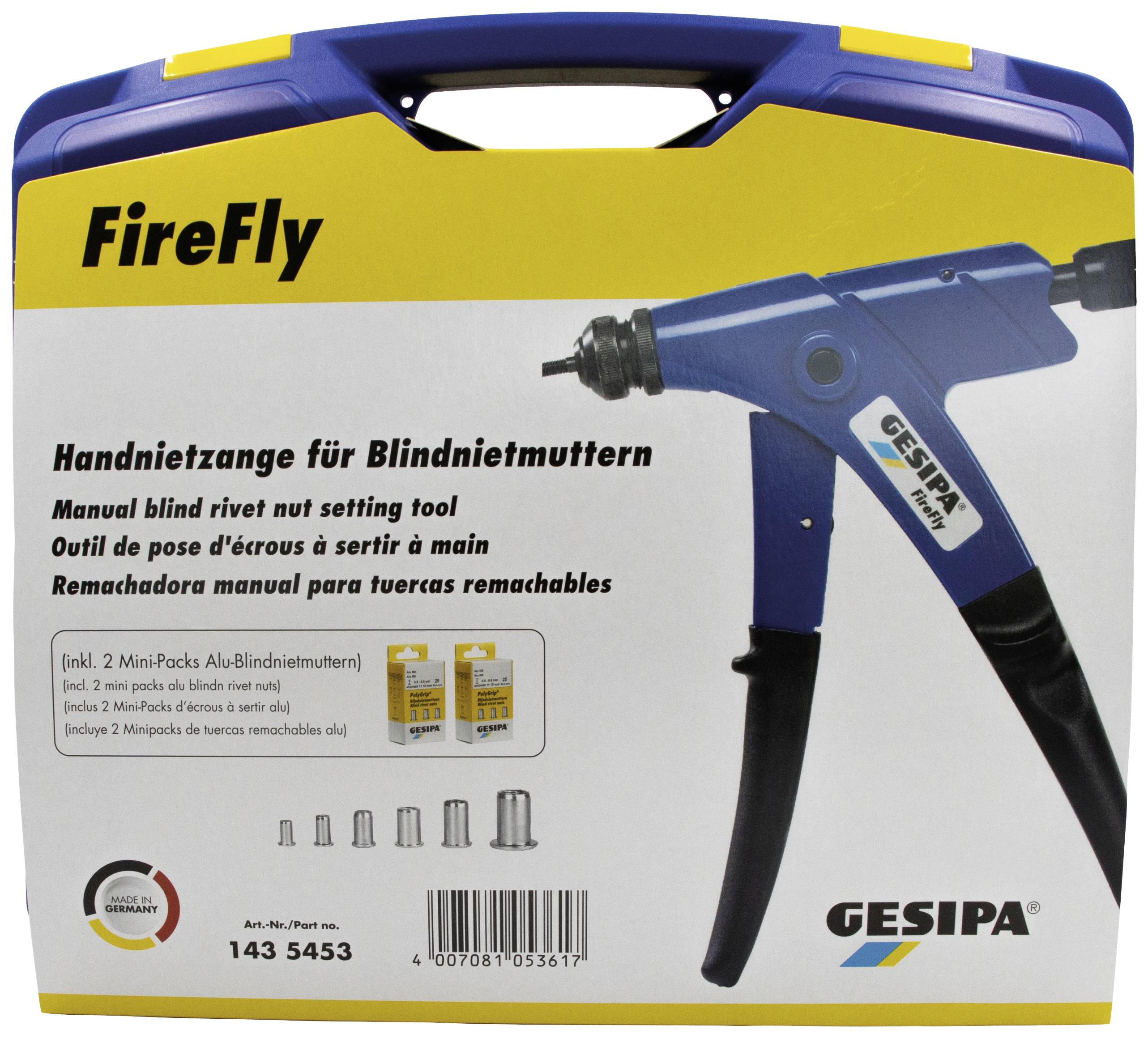

FireFly box
Equipped with a mouthpiece and thread mandrel M5 in plastic carrying case, with 2 mini packs of aluminum blind rivet nuts
M4 and M5 as well as additional threaded pin and mouthpiece M4, operating instructions and lift table
This text is machine translated.
Power and intelligence to set blind rivet nuts
The practical
- The proven working method of the GESIPA hand-riveter Flipper and the ergonomic
In principle, you also save up to 40% manual force when setting blind rivet nuts.
- A special lever arrangement and ratchet mechanism allow working with extremely low hand force
- Tool-free change of threaded pin and mouthpiece
- Large stroke of 9 millimeters for easy insertion of blind rivet nuts, even in low joint strengths and for setting polyGrip blind rivet nuts
- Tool-free setting of setting stroke and thread mandrel lengths makes it easy to set blind rivet nuts of different lengths
The work area
Set blind rivet nuts of M3 to M6 aluminum as well as of M3 to M5 steel.
Technical Specifications
Total travel 9 mm
Single stroke 1.8 mm
Device weight 750 g
Weight incl. Packaging: 1.813 kg
FireFly box
Equipped with a mouthpiece and thread mandrel M5 in plastic carrying case, with 2 mini packs of aluminum blind rivet nuts
M4 and M5 as well as additional threaded pin and mouthpiece M4, operating instructions and lift table
This text is machine translated.

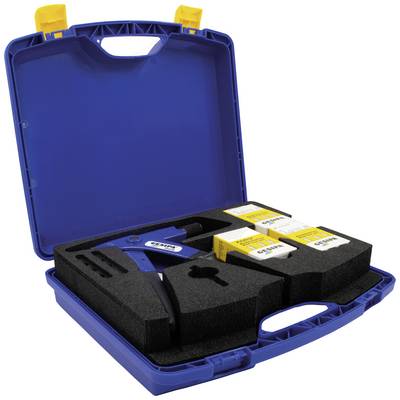

Scope of delivery
- FireFly, aluminum blind rivet nuts M4 x 6 x 13.0 mm, aluminum mini pack rivet nuts M5 x 7 x 13.5 mm, supplied in case
