Name: Gesipa 1450154 Sealing blind rivet Steel (stainless) Copper Steel (stainless) 500 pc(s)
Brand: Gesipa
SKU: 2910345
Availability: BackOrder

A silver steel bolt with a sharp point and a broad, circular base.

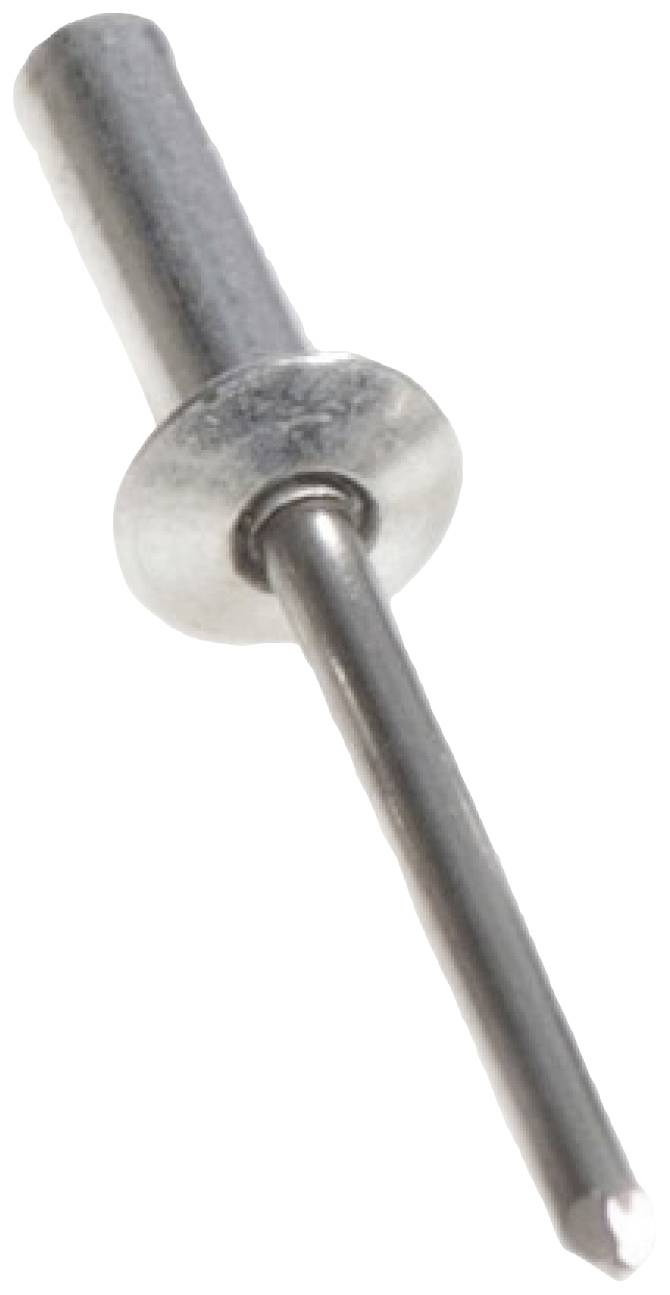

A silver metal rivet with a round head and a long pin, used for fastening purposes.

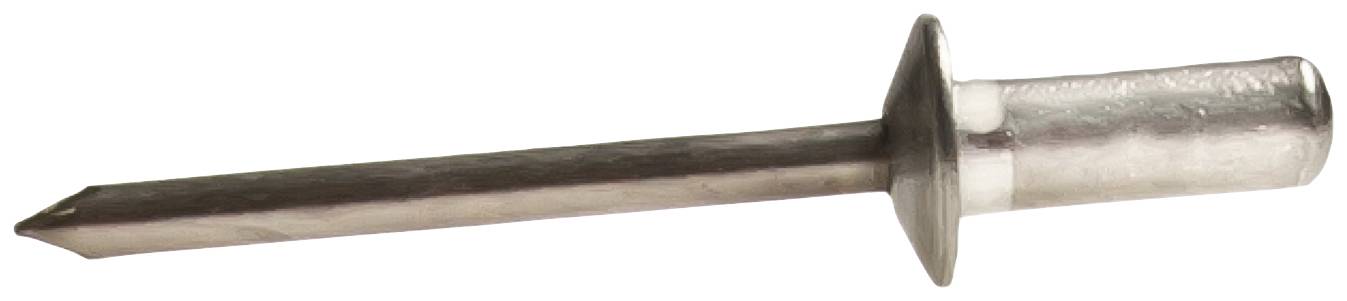

A silver blind rivet with a flange and mandrel for mechanically joining materials.

$A broken screwdriver tip indicates wear or fracture, a sign of the need for regular tool maintenance.$

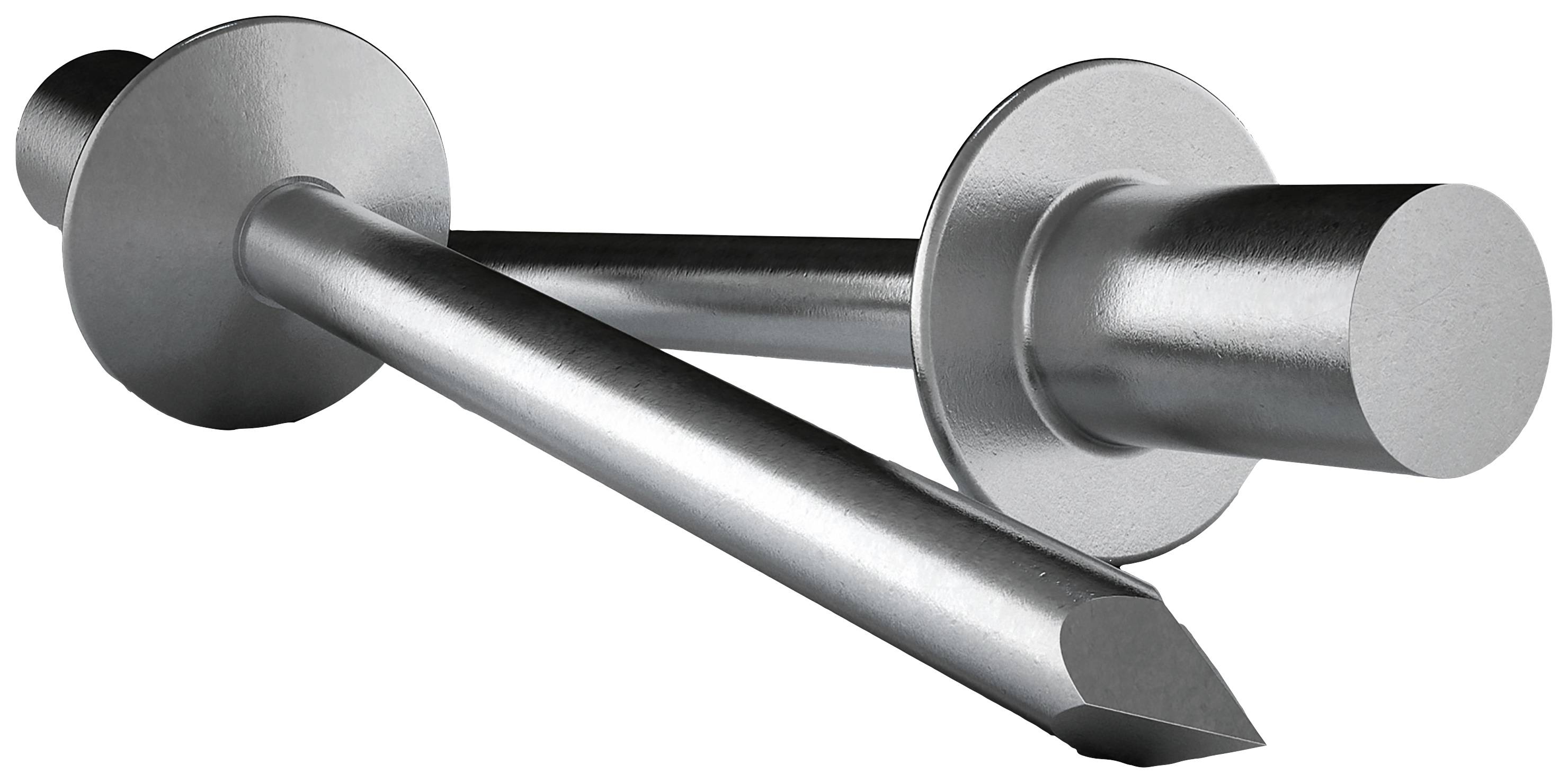

Two grey metal nails in a 3D representation. One lies flat, the other shows a sharpened point facing forward.

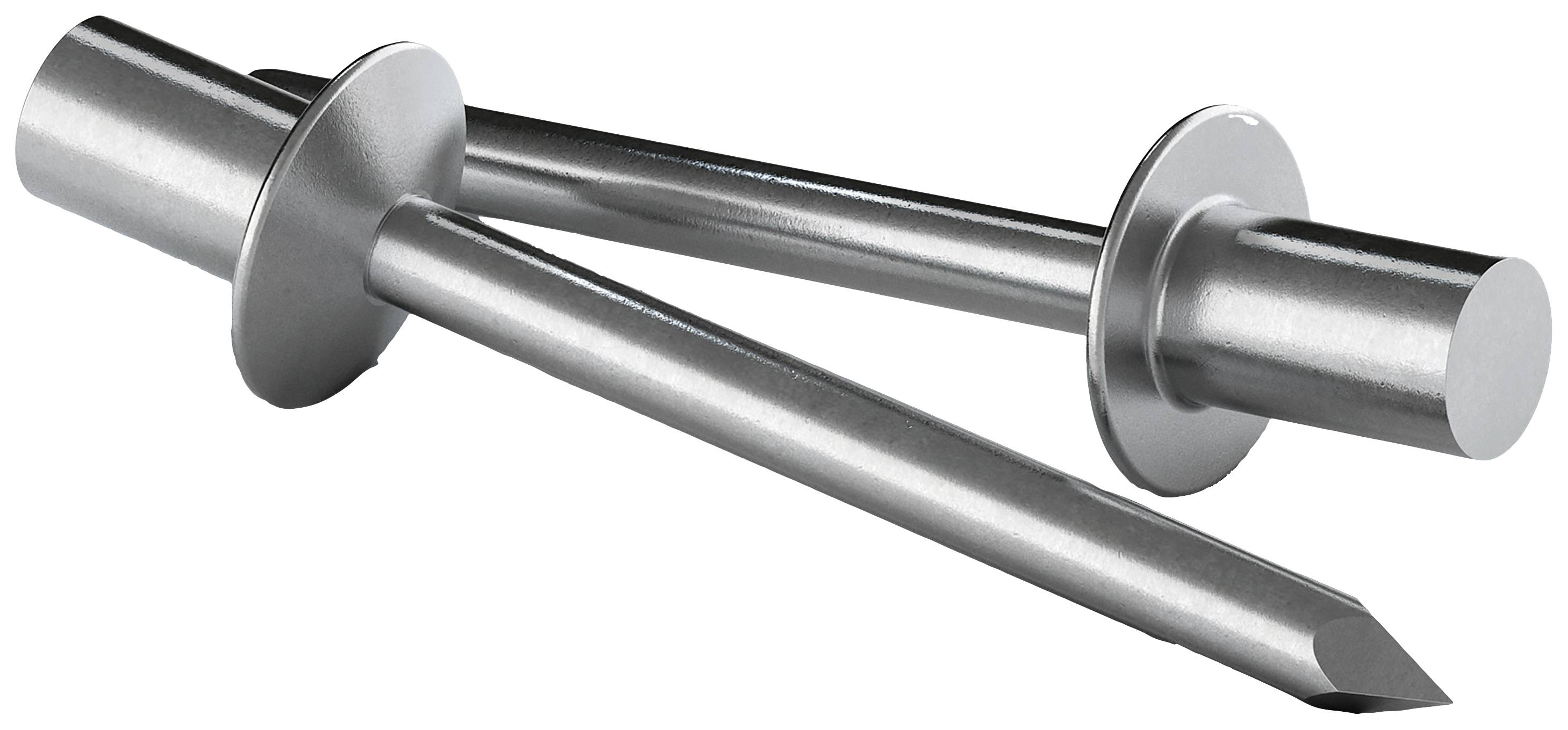

Two silver crossed dowel locking pins lie intersected. They are made of metal and have cylindrical shapes with flat heads.

1/6

Product type

Sealing blind rivet

Material (spike)

Steel (stainless)

Material (sleeve)

Copper

Material

Steel (stainless)

Max. clamping range

7.5 mm

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 0.26 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Sealing blind rivet

Content: 500 pc(s)

Material (spike): Steel (stainless)

Material (sleeve): Copper

Material: Steel (stainless)

Max. clamping range: 7.5 mm

Min. clamping range: 6.0 mm

Tubular rivet diameter: 4 mm

Tubular rivet length: 12.5 mm

Clamping range: 6.0 - 7.5 mm

Head Ø: 8.5

Head height: 1.6 mm

Hole diameter: 4.1 mm

Material properties: rust-proof

Material properties (sleeves): rust-proof

Rivet mandrel diameter: 2.18 mm

Shear force: 1350 N

Head shape: Truss head

Tensile force (max.): 2000 N

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2910345 Gesipa 1450154 Sealing blind rivet Steel (stainless) Copper Steel (stainless) 500 pc(s)

Description

CAP – The cup blind rivet

GESIPA CAP - By nature, air and water-tight.

The layout
For technical reasons, the rivet pin of the
CAP - blind rivets must be fixed in the hollow rivet.
This allows the rivet body to move during setting
however, it does not deform much. As a result,
A cup blind rivet has only marginal punching properties.
However, these are necessary in order to compensate for larger hole tolerances.

With care for the close connection:
If the GESIPA CAP blind rivet is carefully processed, it provides the base
For a reliable "dense" connection.
The technical conditions make a very careful preparation
Indispensable in the application. The drilled hole diameter should be so close
Be measured as possible to ensure a correct function in the application
Over a long term.

This text is machine translated.
