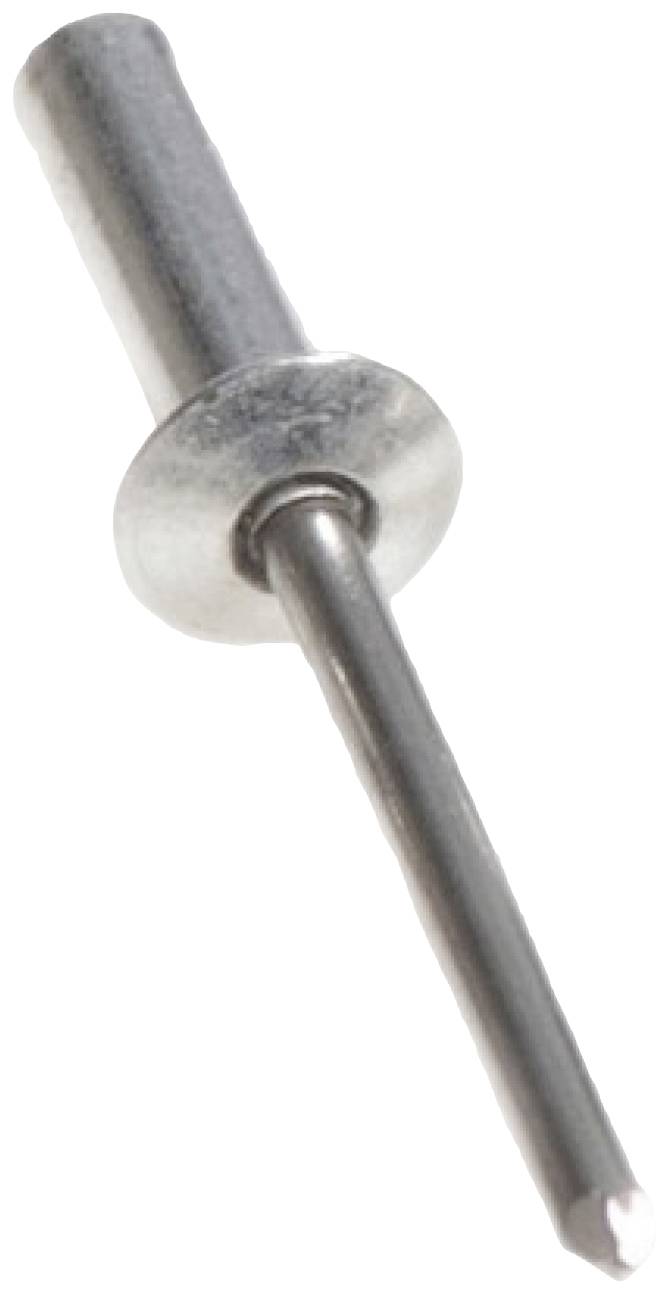

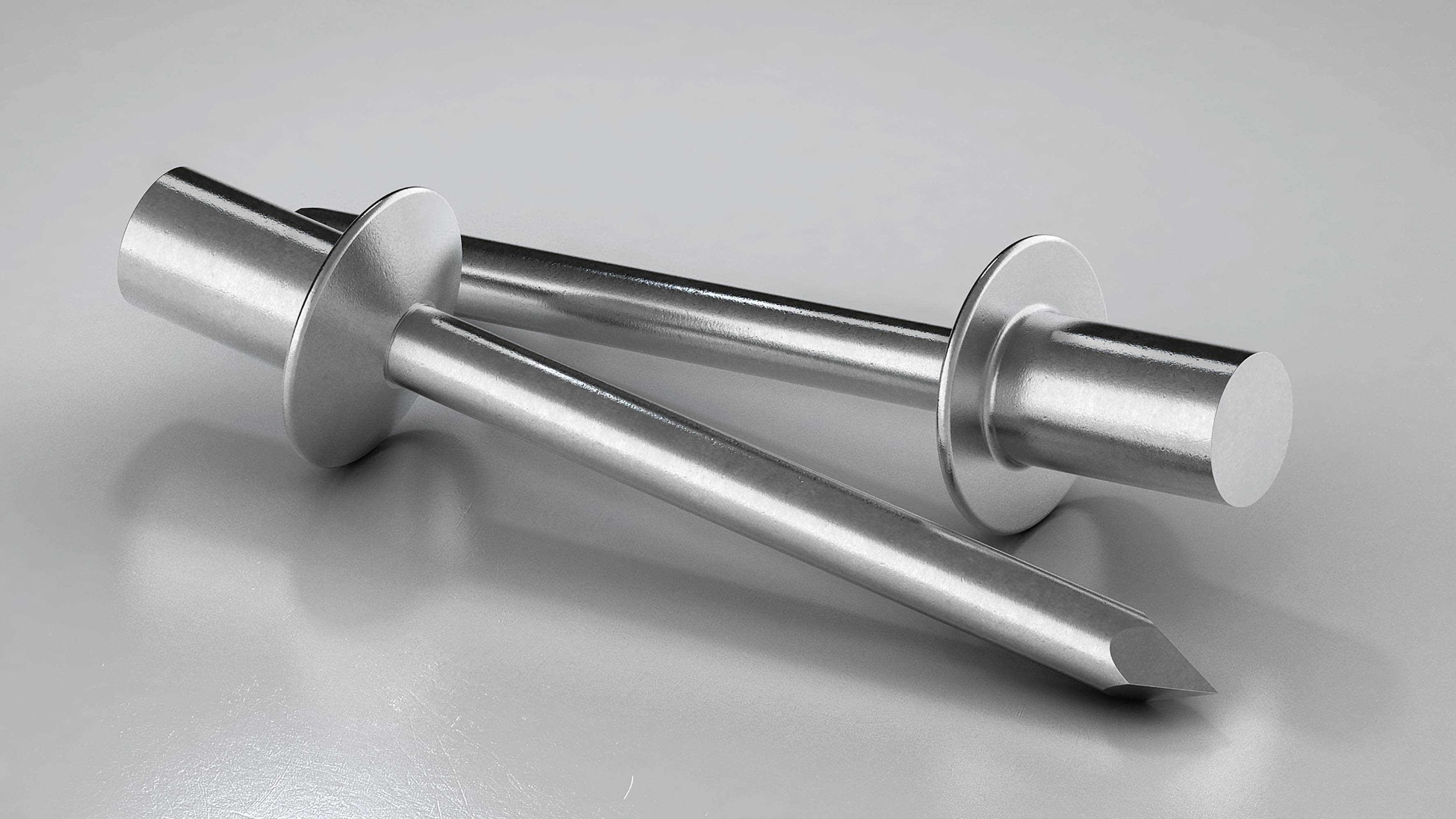

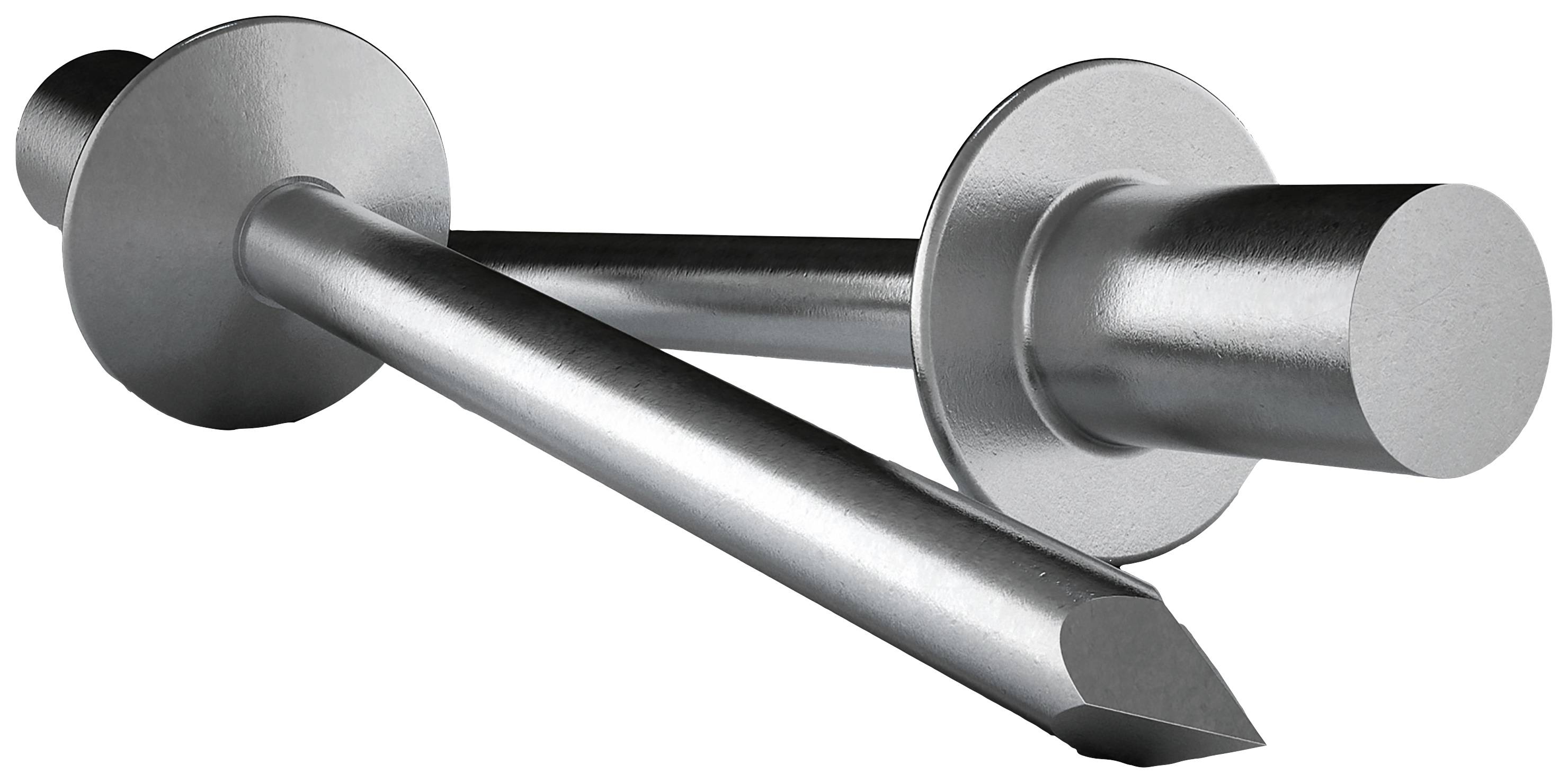

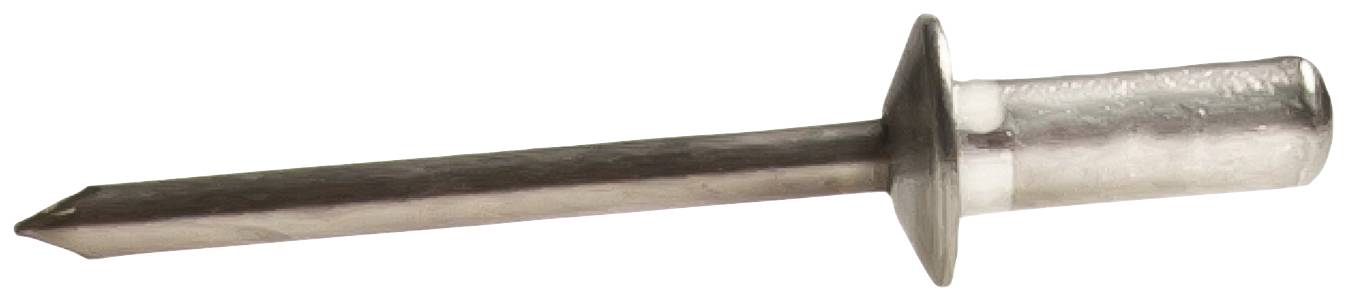

Gesipa 1453879 Sealing blind rivet Steel Aluminium 500 pc(s)
EAN:
Part number:
Item no:
Product type
Sealing blind rivet
Material (spike)
Steel
Material (sleeve)
Aluminium
Max. clamping range
11.0 mm
Min. clamping range
9.5 mm
Number (Package size 500 pc(s))
Total (€ 0.11 / piece)
€ 55.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Sealing blind rivet
- Content
500 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Aluminium
- Max. clamping range
11.0 mm
- Min. clamping range
9.5 mm
- Tubular rivet diameter
4.8 mm
- Tubular rivet length
16 mm
- Clamping range
9.5 - 11.0 mm
- Head Ø
10
- Head height
1.8 mm
- Hole diameter
4.9 mm
- Rivet mandrel diameter
2.63 mm
- Shear force
2230 N
- Head shape
Truss head
- Tensile force (max.)
3100 N
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910404 Gesipa 1453879 Sealing blind rivet Steel Aluminium 500 pc(s)
Description
CAP – The cup blind rivet
GESIPA CAP - By nature, air and water-tight.
The layout
For technical reasons, the rivet pin of the
CAP - blind rivets must be fixed in the hollow rivet.
This allows the rivet body to move during setting
however, it does not deform much. As a result,
A cup blind rivet has only marginal punching properties.
However, these are necessary in order to compensate for larger hole tolerances.
With care for the close connection:
If the GESIPA CAP blind rivet is carefully processed, it provides the base
For a reliable "dense" connection.
The technical conditions make a very careful preparation
Indispensable in the application. The drilled hole diameter should be so close
Be measured as possible to ensure a correct function in the application
Over a long term.
This text is machine translated.
GESIPA CAP - By nature, air and water-tight.
The layout
For technical reasons, the rivet pin of the
CAP - blind rivets must be fixed in the hollow rivet.
This allows the rivet body to move during setting
however, it does not deform much. As a result,
A cup blind rivet has only marginal punching properties.
However, these are necessary in order to compensate for larger hole tolerances.
With care for the close connection:
If the GESIPA CAP blind rivet is carefully processed, it provides the base
For a reliable "dense" connection.
The technical conditions make a very careful preparation
Indispensable in the application. The drilled hole diameter should be so close
Be measured as possible to ensure a correct function in the application
Over a long term.
This text is machine translated.
