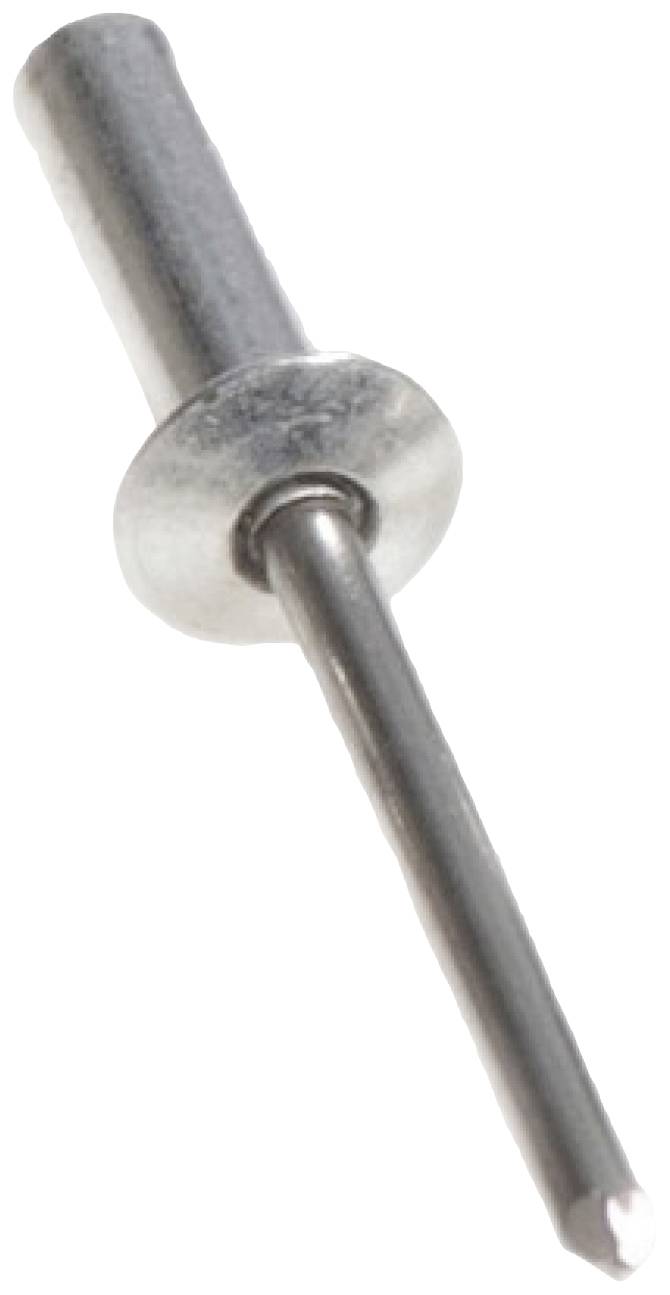

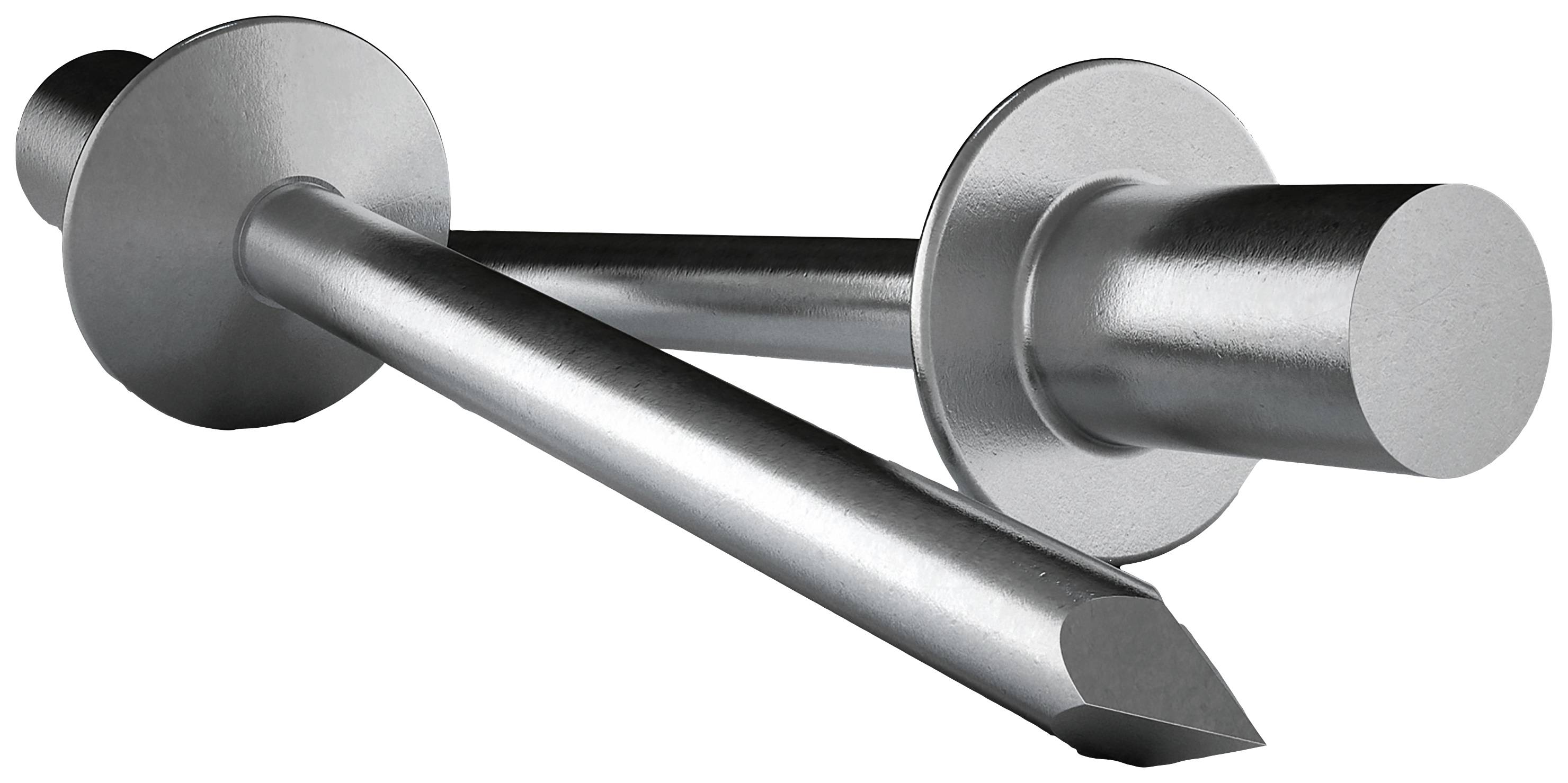

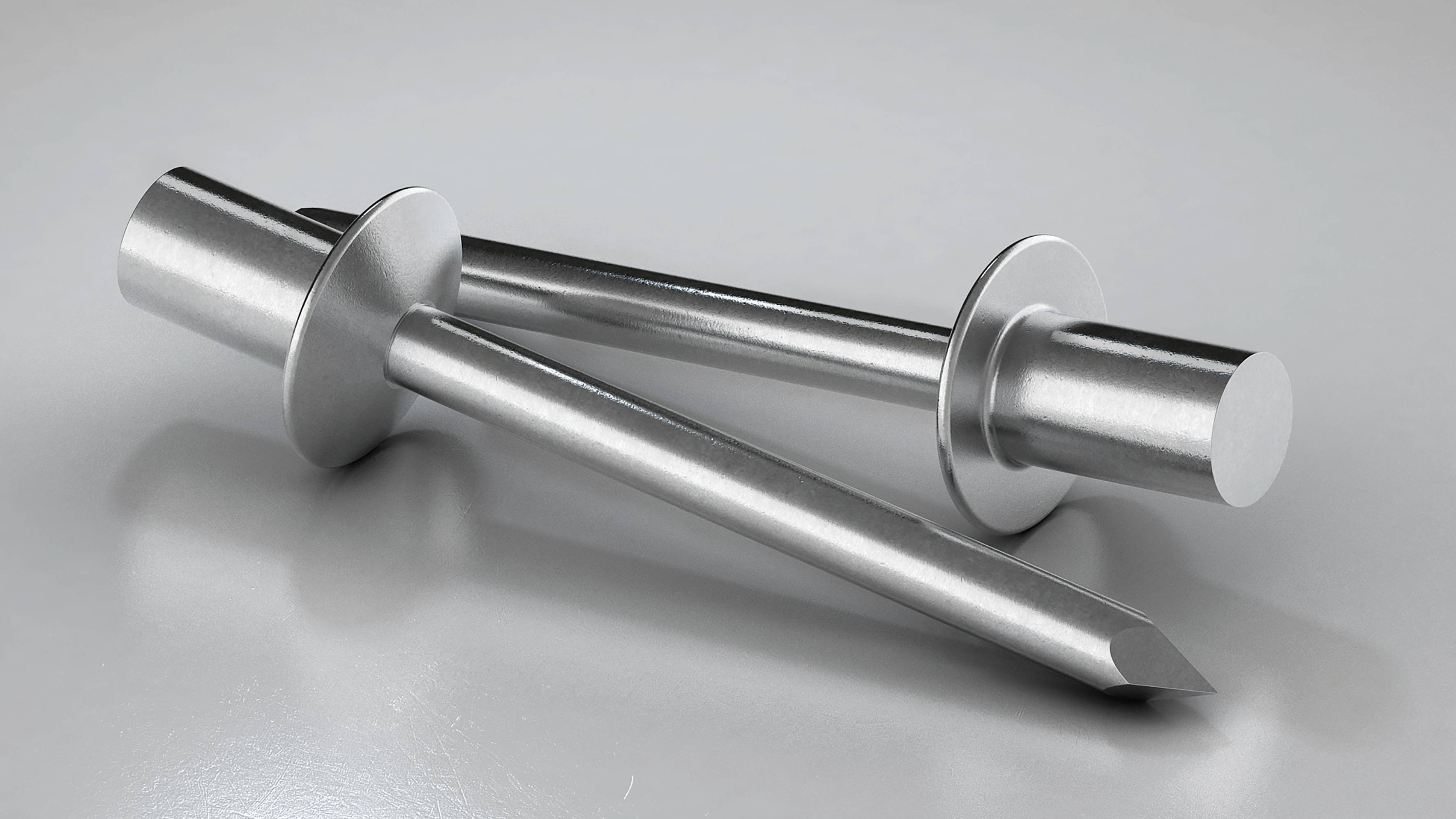

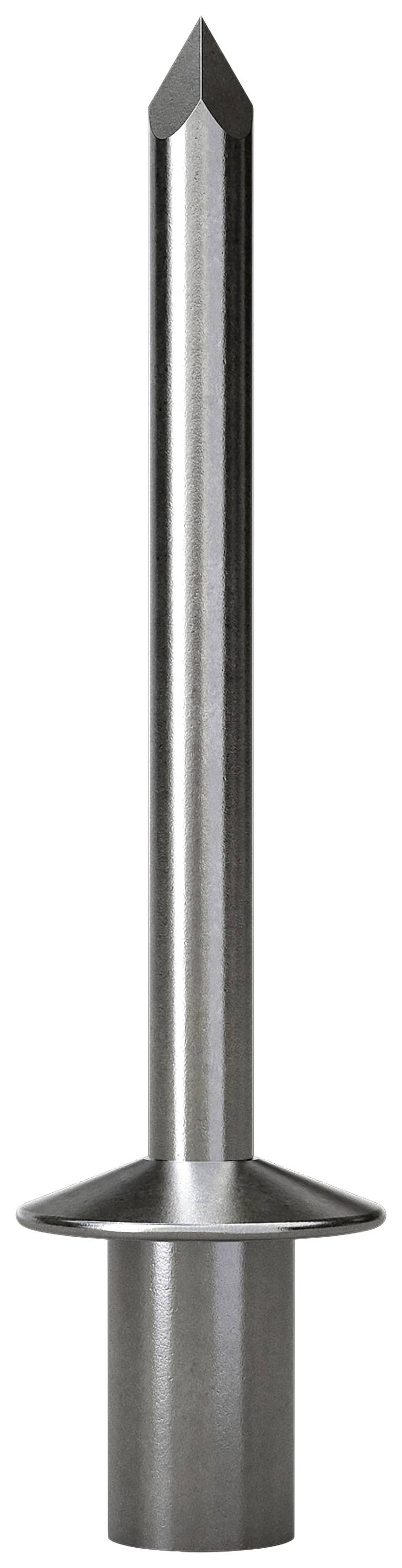

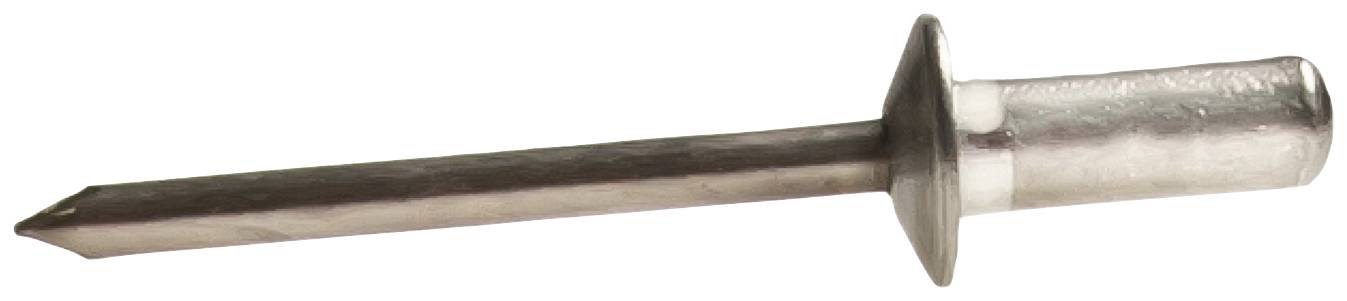

Gesipa 1453915 Sealing blind rivet Steel (stainless) Copper 500 pc(s)
EAN:
Part number:
Item no:
Product type
Sealing blind rivet
Material (spike)
Steel (stainless)
Material (sleeve)
Copper
Max. clamping range
4.5 mm
Min. clamping range
3.0 mm
Number (Package size 500 pc(s))
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
Technical specifications
- Product type
Sealing blind rivet
- Content
500 pc(s)
- Material (spike)
Steel (stainless)
- Material (sleeve)
Copper
- Max. clamping range
4.5 mm
- Min. clamping range
3.0 mm
- Tubular rivet diameter
3.2 mm
- Tubular rivet length
9 mm
- Clamping range
3.0 - 4.5 mm
- Head Ø
6
- Head height
1.2 mm
- Hole diameter
3.3 mm
- Rivet mandrel diameter
1.7 mm
- Shear force
980 N
- Head shape
Truss head
- Tensile force (max.)
1340 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910416 Gesipa 1453915 Sealing blind rivet Steel (stainless) Copper 500 pc(s)
Description
CAP – The cup blind rivet
GESIPA CAP - By nature, air and water-tight.
The layout
For technical reasons, the rivet pin of the
CAP - blind rivets must be fixed in the hollow rivet.
This allows the rivet body to move during setting
however, it does not deform much. As a result,
A cup blind rivet has only marginal punching properties.
However, these are necessary in order to compensate for larger hole tolerances.
With care for the close connection:
If the GESIPA CAP blind rivet is carefully processed, it provides the base
For a reliable "dense" connection.
The technical conditions make a very careful preparation
Indispensable in the application. The drilled hole diameter should be so close
Be measured as possible to ensure a correct function in the application
Over a long term.
This text is machine translated.
GESIPA CAP - By nature, air and water-tight.
The layout
For technical reasons, the rivet pin of the
CAP - blind rivets must be fixed in the hollow rivet.
This allows the rivet body to move during setting
however, it does not deform much. As a result,
A cup blind rivet has only marginal punching properties.
However, these are necessary in order to compensate for larger hole tolerances.
With care for the close connection:
If the GESIPA CAP blind rivet is carefully processed, it provides the base
For a reliable "dense" connection.
The technical conditions make a very careful preparation
Indispensable in the application. The drilled hole diameter should be so close
Be measured as possible to ensure a correct function in the application
Over a long term.
This text is machine translated.
