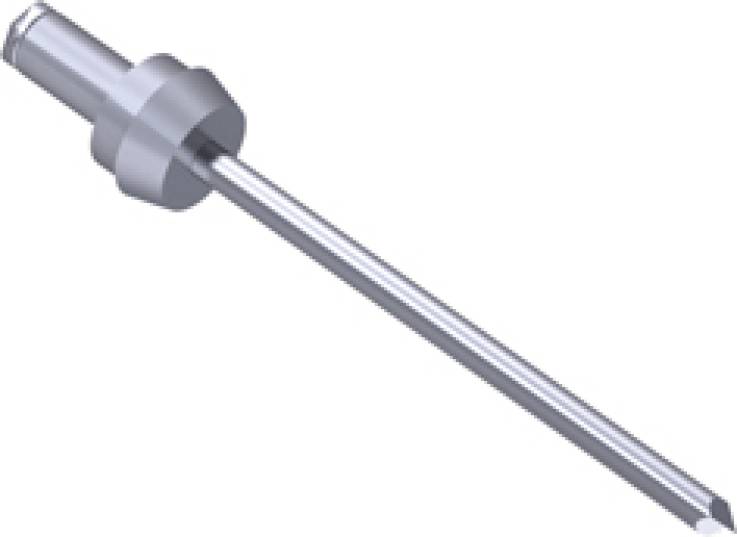

Gesipa 1453923 Speciality rivet Steel Aluminium 500 pc(s)
EAN:
Part number:
Item no:
Product type
Speciality rivet
Material (spike)
Steel
Material (sleeve)
Aluminium
Max. clamping range
4.0 mm
Min. clamping range
1.0 mm
Sales and shipping:
Number (Package size 500 pc(s))
Total (€ 0.50 / piece)
€
Technical specifications
- Product type
Speciality rivet
- Content
500 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Aluminium
- Max. clamping range
4.0 mm
- Min. clamping range
1.0 mm
- Tubular rivet diameter
4 mm
- Tubular rivet length
7 mm
- Clamping range
1.0 - 4.0 mm
- Head height
5 mm
- Hole diameter
4.1 mm
- Rivet mandrel diameter
2.1 mm
- Shear force
850 N
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910423 Gesipa 1453923 Speciality rivet Steel Aluminium 500 pc(s)
Description

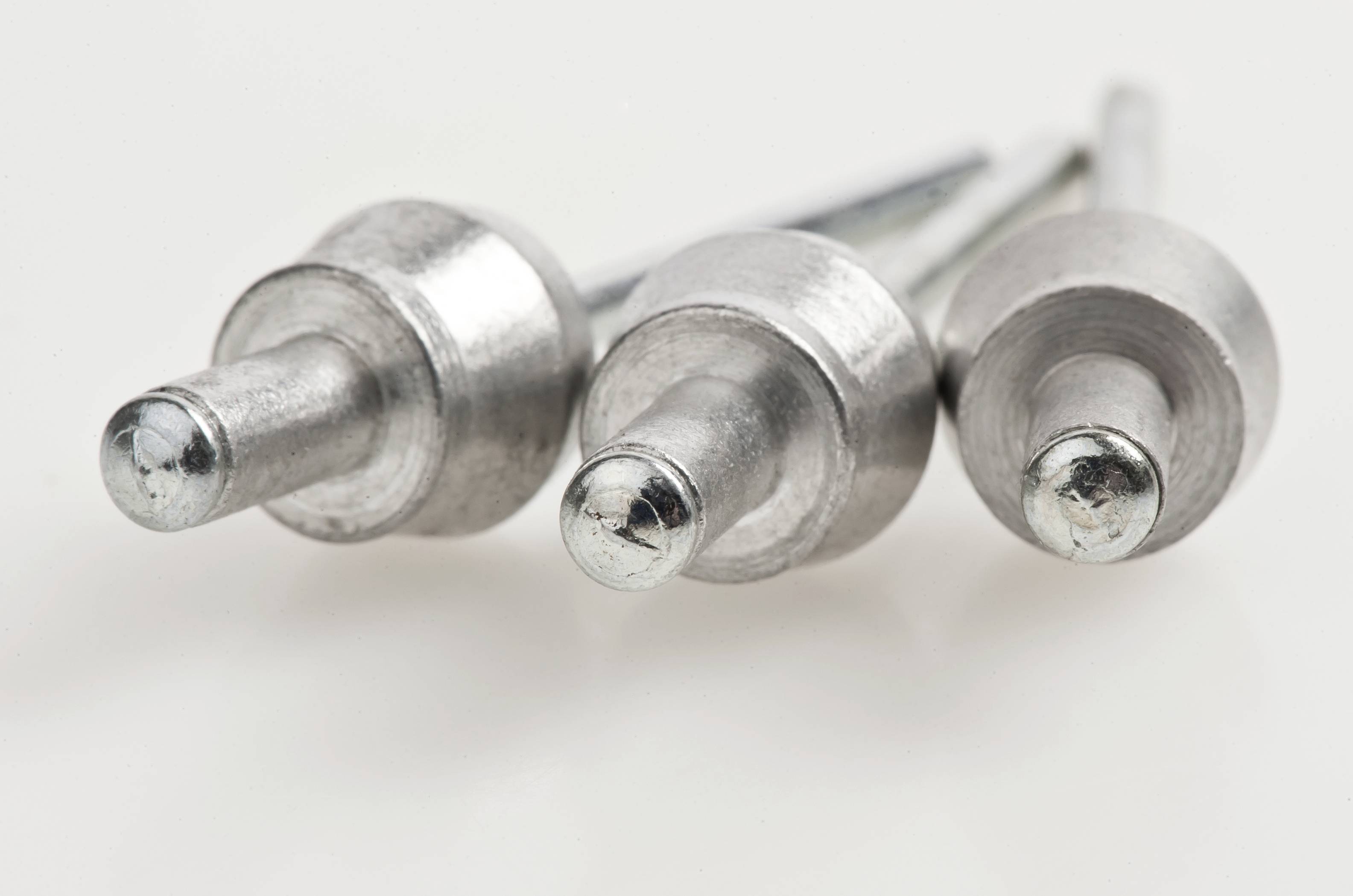

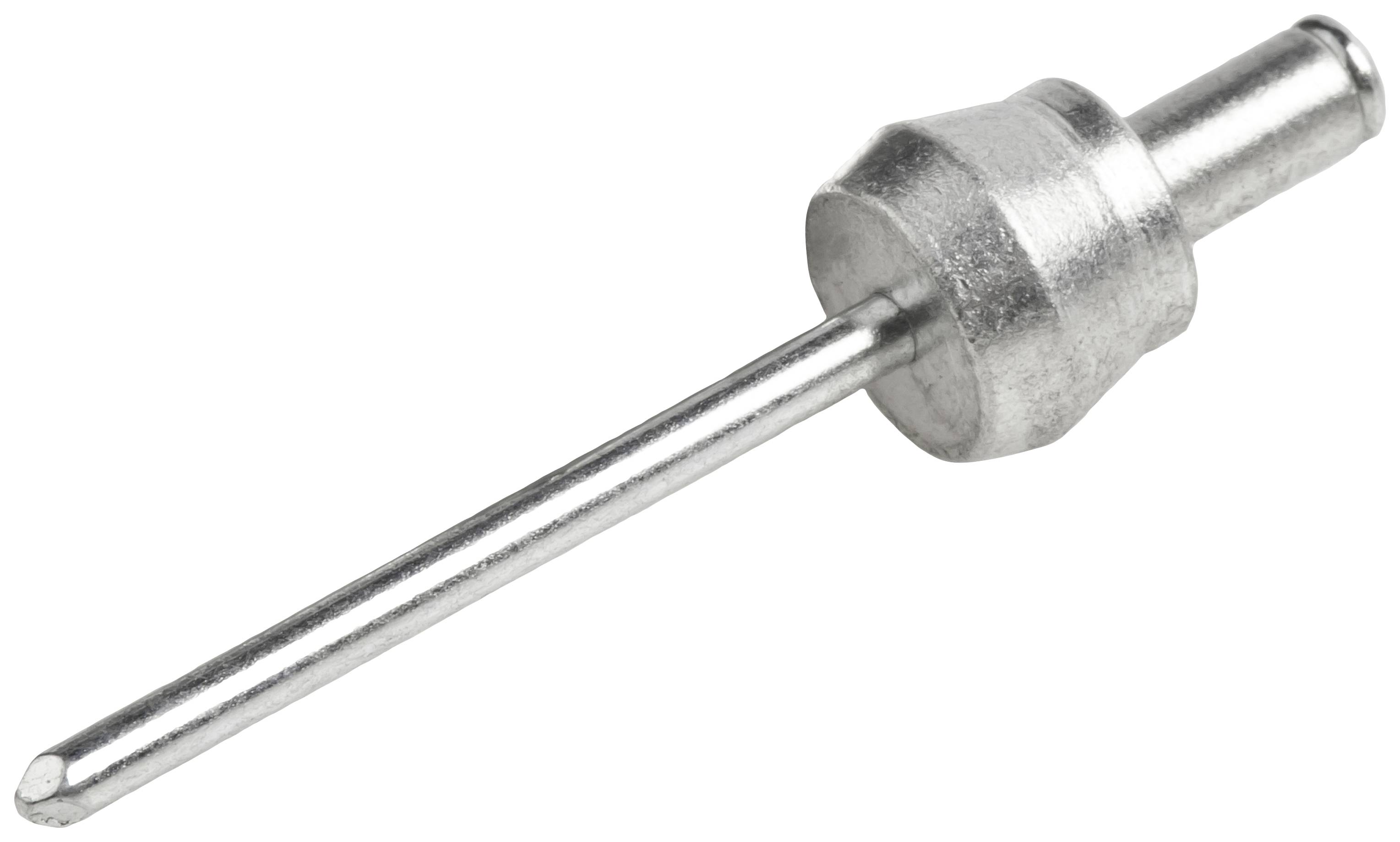

GESIPA clamp profile blind rivets
There are numerous applications that require the use of special blind rivet connections.
GESIPA has developed a number of models to meet these requirements.
The GESIPA clamp profile blind rivets is ideal for assembly of components
To be able to maintain distances or to set a stop in runners.
Accordingly, this special rivet is used, among other things, in the white goods and furniture industry.
This text is machine translated.
There are numerous applications that require the use of special blind rivet connections.
GESIPA has developed a number of models to meet these requirements.
The GESIPA clamp profile blind rivets is ideal for assembly of components
To be able to maintain distances or to set a stop in runners.
Accordingly, this special rivet is used, among other things, in the white goods and furniture industry.
