Gesipa 1454108 Speciality rivet Steel Aluminium Steel 500 pc(s)
EAN:
Part number:
Item no:
Product type
Speciality rivet
Material (spike)
Steel
Material (sleeve)
Aluminium
Material
Steel
Content
500 pc(s)
Number (Package size 500 pc(s))
Total (€ 0.07 / piece)
€ 36.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
Speciality rivet
- Content
500 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Aluminium
- Material
Steel
- Tubular rivet diameter
4.8 mm
- Tubular rivet length
10 mm
- Head height
1.5 mm
- Hole diameter
4.9 mm
- Rivet mandrel diameter
2.7 mm
- Shear force
1800 N
- Head shape
Truss head
- Tensile force (max.)
2700 N
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910485 Gesipa 1454108 Speciality rivet Steel Aluminium Steel 500 pc(s)
Description

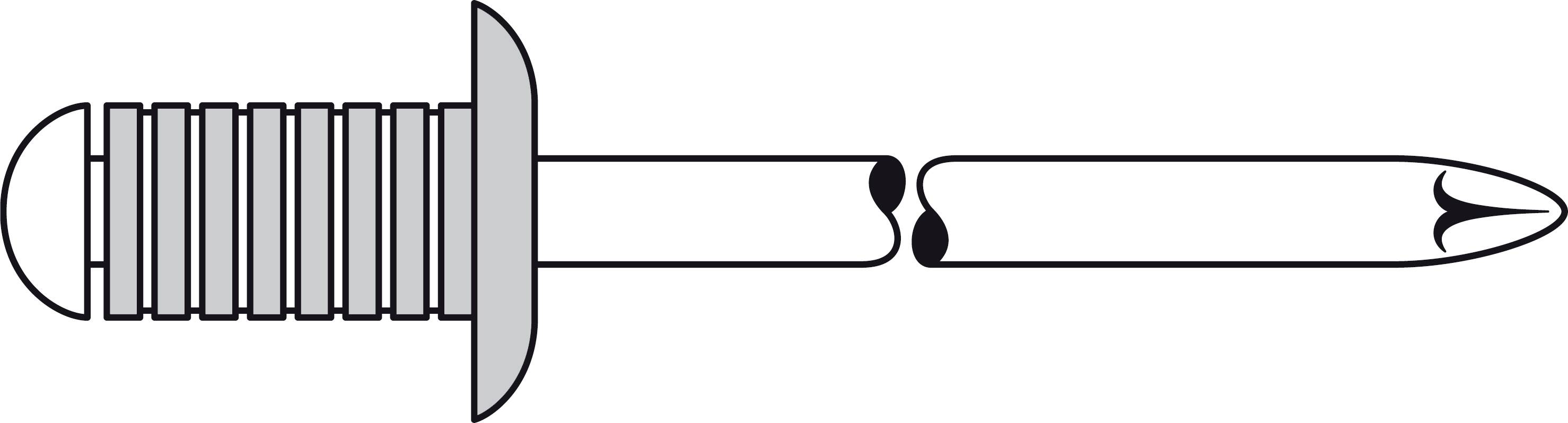

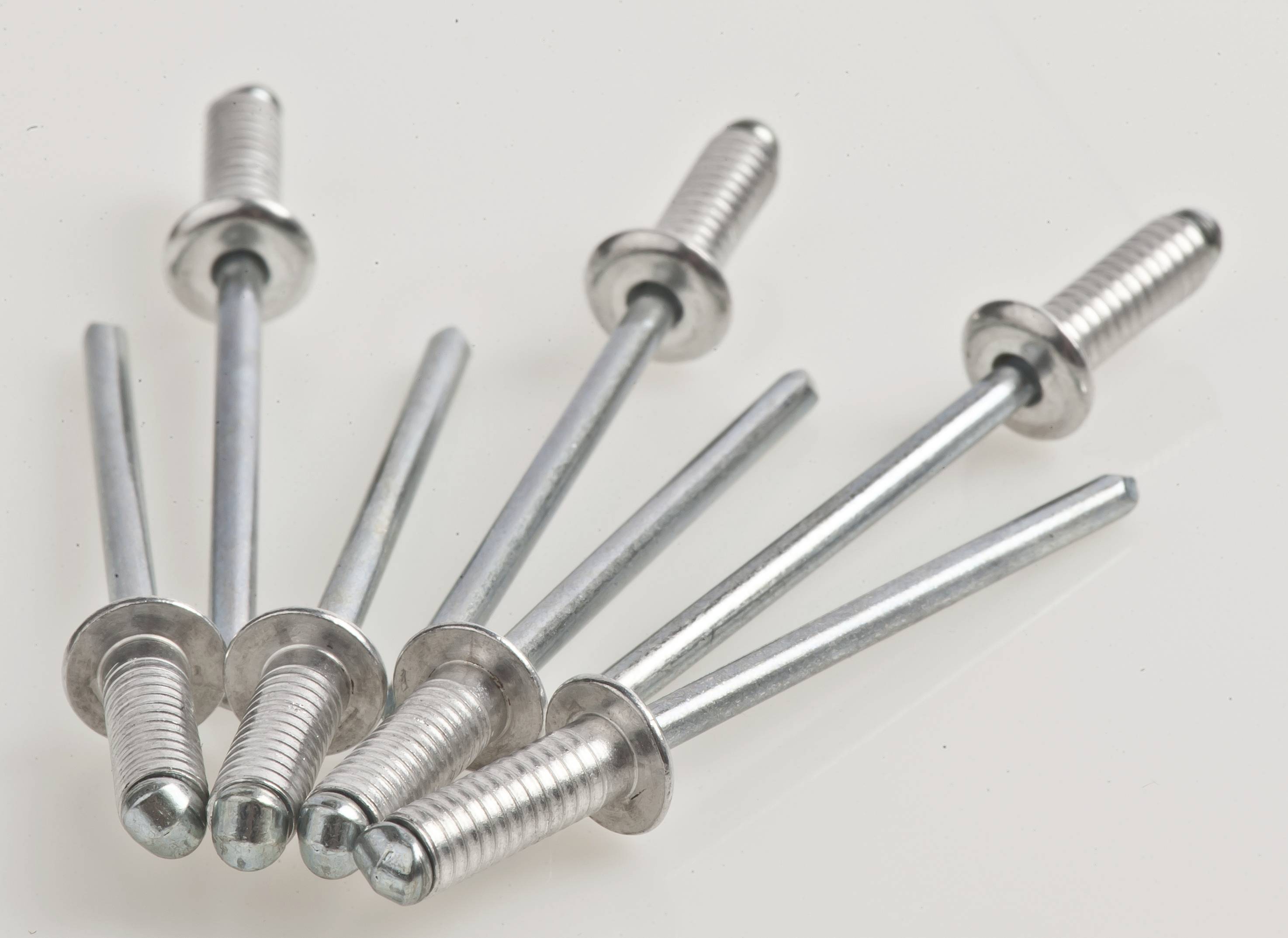

GESIPA special blind rivet (corrugated)
There are numerous applications that require the use of special blind rivet connections.
GESIPA® has developed a number of models to meet these requirements.
Grooves are suitable for riveting in soft materials as a blind hole.
They are used in the furniture industry, in interior design, in wood and
Plastics processing industry, in body building and much more.
Important: Before processing the grooved blind rivets, the hole diameter must be tested
And the minimum drilling depth must be observed.
