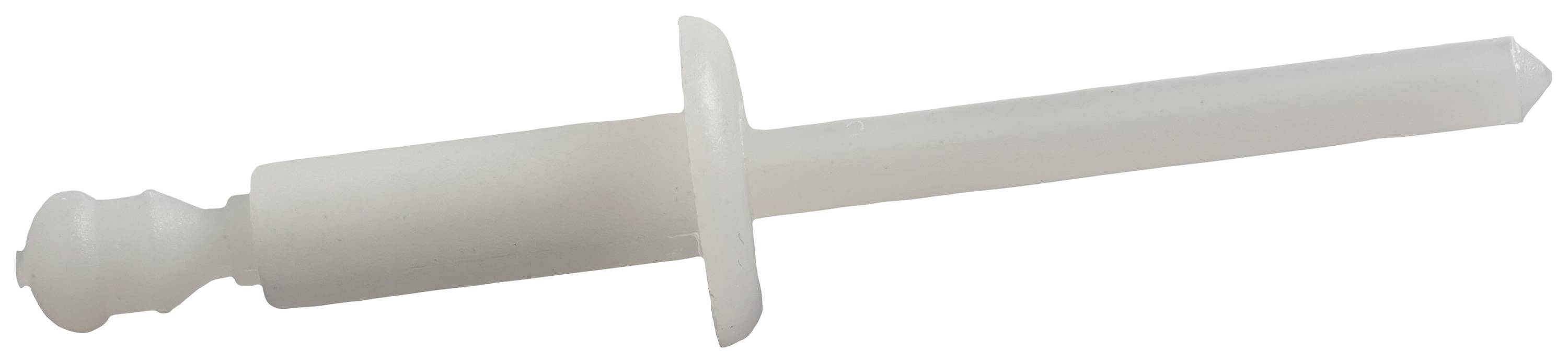

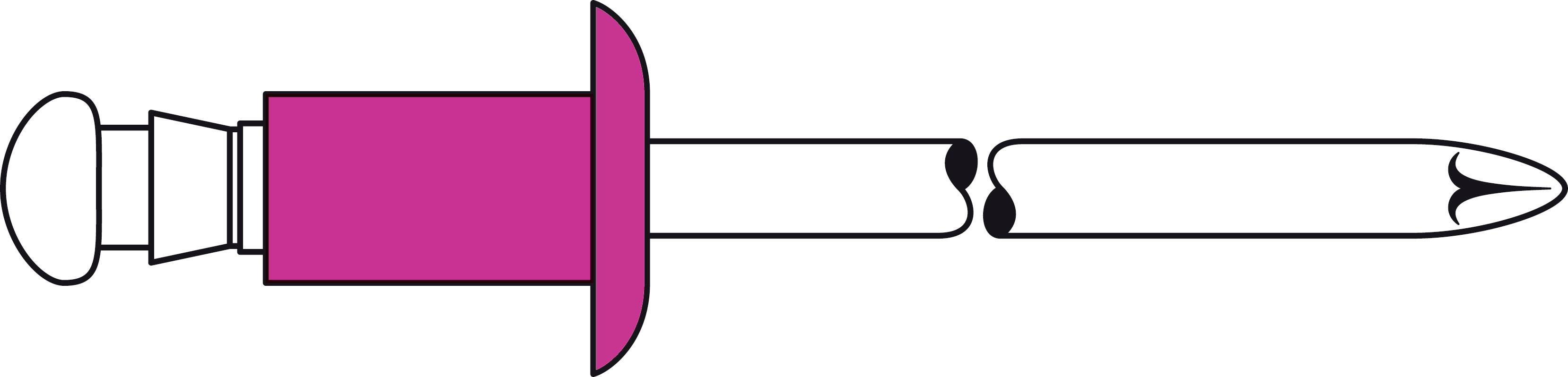

Gesipa 1455340 Speciality rivet Polyamide 6.6 Polyamide 6.6 Polyamide 6.6 500 pc(s)
EAN:
Part number:
Item no:
Product type
Speciality rivet
Material (spike)
Polyamide 6.6
Material (sleeve)
Polyamide 6.6
Material
Polyamide 6.6
Max. clamping range
9.0 mm
Number (Package size 500 pc(s))
Total (€ 0.16 / piece)
€ 78.98
plus VAT.
Technical specifications
- Product type
Speciality rivet
- Content
500 pc(s)
- Material (spike)
Polyamide 6.6
- Material (sleeve)
Polyamide 6.6
- Material
Polyamide 6.6
- Max. clamping range
9.0 mm
- Min. clamping range
5.0 mm
- Tubular rivet diameter
5 mm
- Tubular rivet length
12 mm
- Clamping range
5.0 - 9.0 mm
- Head height
1.5 mm
- Hole diameter
5.1 mm
- Material properties
anti-corrosive
- Rivet mandrel diameter
3 mm
- Shear force
300 N
- Head shape
Truss head
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910601 Gesipa 1455340 Speciality rivet Polyamide 6.6 Polyamide 6.6 Polyamide 6.6 500 pc(s)
Description

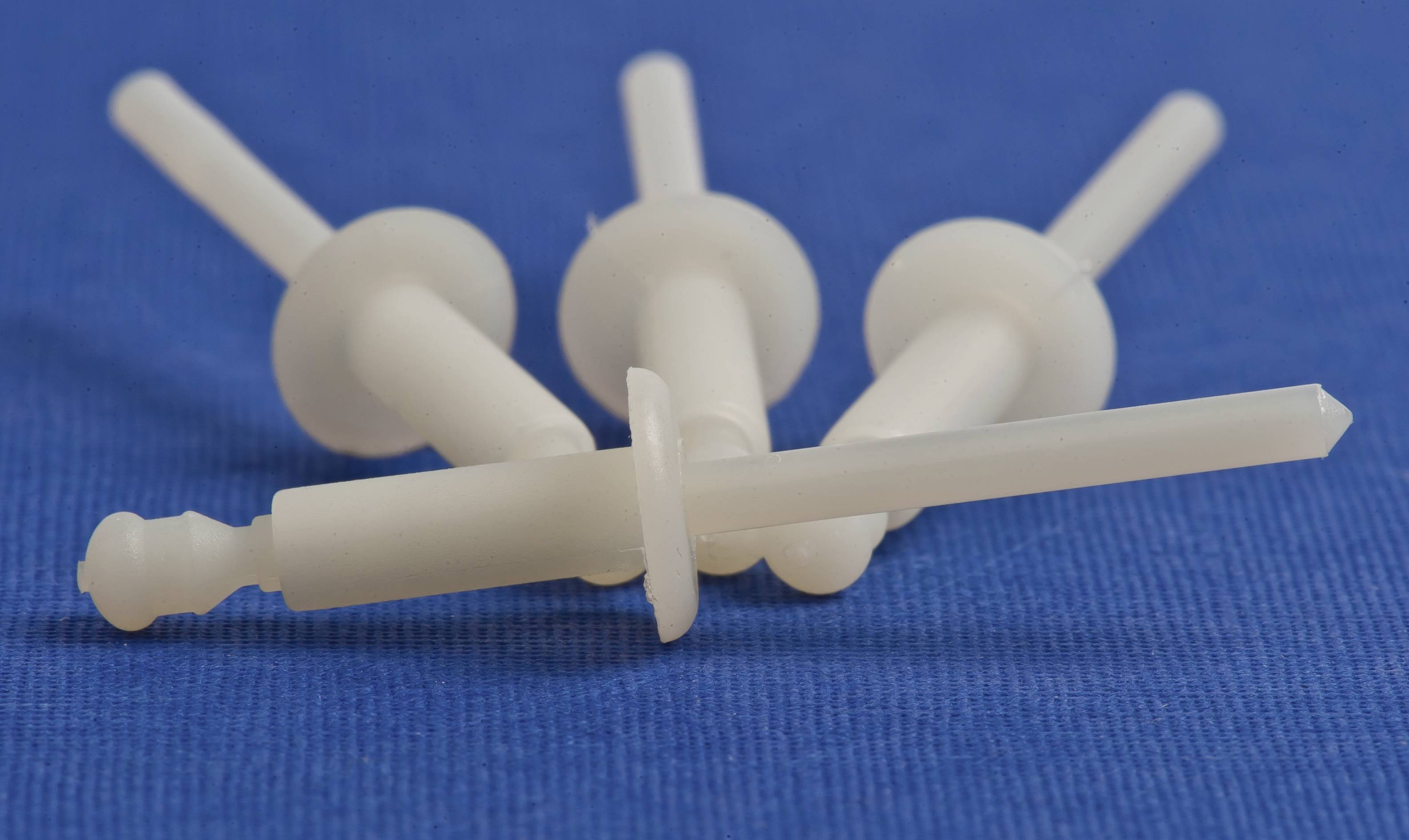

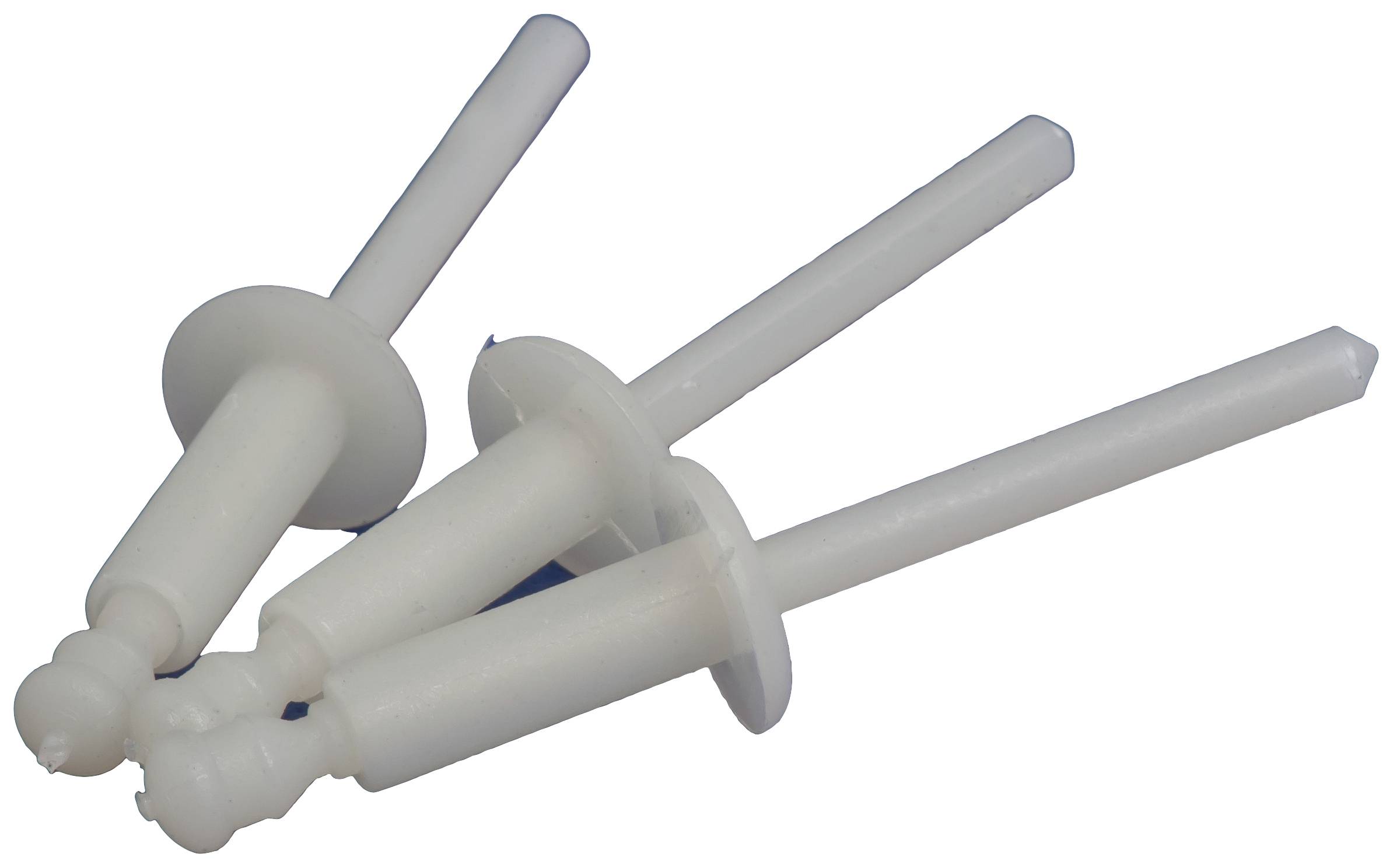

GESIPA plastic rivets
There are numerous applications that require the use of special blind rivet connections.
GESIPA has developed a number of models to meet these requirements.
Plastic rivets are corrosion-free, electrically non-conductive and do not damage painted surfaces.
They are easy and quick to process with GESIPA hand blind rivets and automated setting devices.
The plastic blind rivets can be found in many artisanal areas, and their versatility makes them for the
Various applications.
This text is machine translated.
There are numerous applications that require the use of special blind rivet connections.
GESIPA has developed a number of models to meet these requirements.
Plastic rivets are corrosion-free, electrically non-conductive and do not damage painted surfaces.
They are easy and quick to process with GESIPA hand blind rivets and automated setting devices.
The plastic blind rivets can be found in many artisanal areas, and their versatility makes them for the
Various applications.
This text is machine translated.
