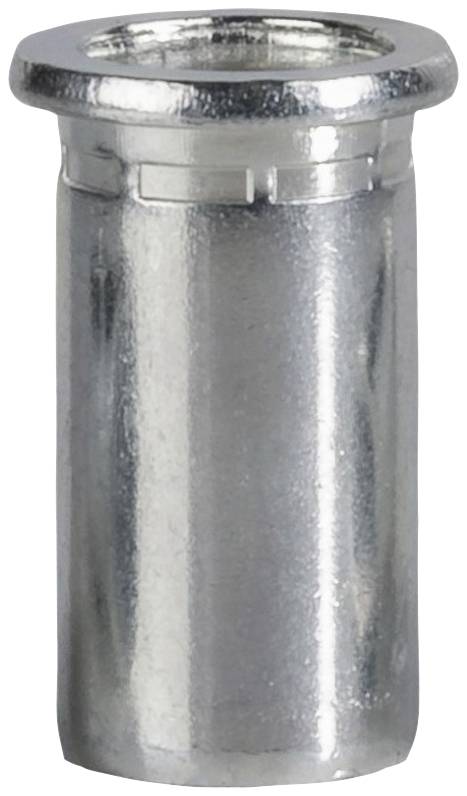

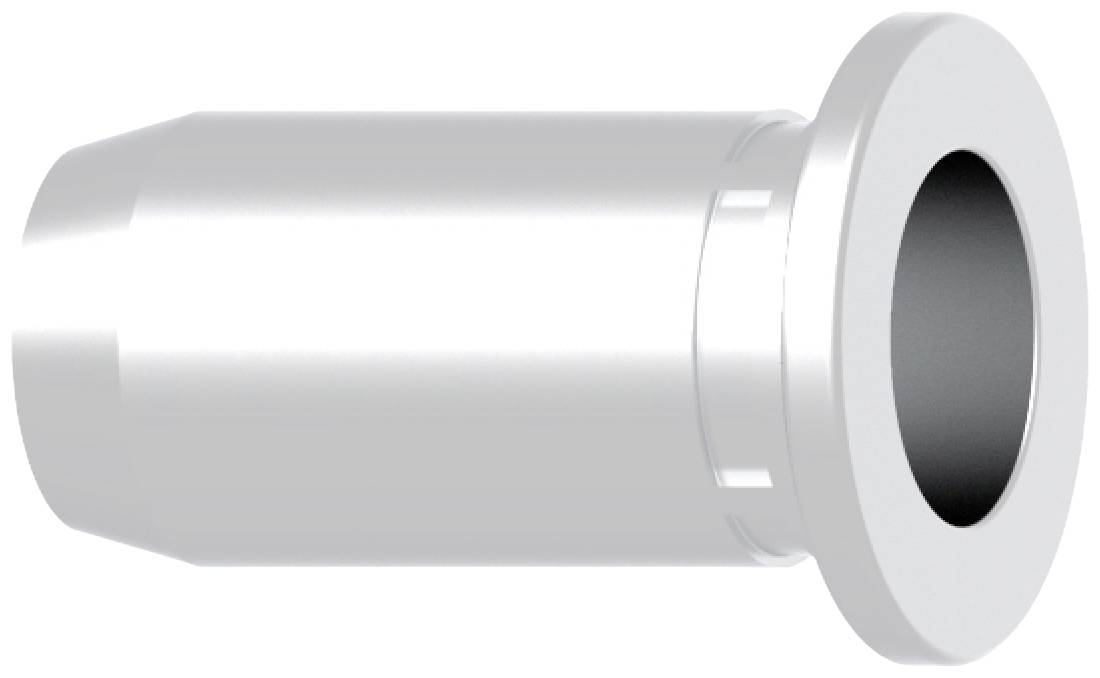

Gesipa 1455567 Multi-purpose blind rivet nut (Ø) 6 mm M6 250 pc(s)
EAN:
Part number:
Item no:
Product type
Multi-purpose blind rivet nut
Thread size
M6
Max. clamping range
6.0 mm
Min. clamping range
0.5 mm
(Ø)
6 mm
Number (Package size 250 pc(s))
Total (€ 0.52 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
Multi-purpose blind rivet nut
- (Ø)
6 mm
- Content
250 pc(s)
- Thread size
M6
- Dim
(Ø) 6 mm
- Max. clamping range
6.0 mm
- Min. clamping range
0.5 mm
- Thread tensile strength
25000 N
- Clamping range
0.5 - 6.0 mm
- Head Ø
12
- Head height
1.5 mm
- Hole diameter
9.1 mm
- Shaft length
18
- Shank Ø
9 mm
- Head shape
Truss head
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910693 Gesipa 1455567 Multi-purpose blind rivet nut (Ø) 6 mm M6 250 pc(s)
Description
PolyGrip blind rivet nuts
The GESIPA blind rivet nuts with large clamping area
The PolyGrip blind rivet nuts by GESIPA are a consistent further development from the
Many years of experience with our PolyGrip multi-area blind rivets.
With the advantages of the large hole tolerance and the covering of different clamping areas
With only one fastener, the PolyGrip blind rivet nut is used in many industrial applications and
Become a first choice connector in crafts, too.
Combining several dimensions saves handling and storage costs and also reduces them in the long term
The likelihood of confusion in the workplace and consequently subsequent quality problems.
Large clamping range
In the ideal case a Poly-Grip blind rivet nut can be used due to the large clamping range
Replace up to five different dimensions of the DINStandard blind rivet nuts.
This gives you the following advantages:
- Type restriction
- Reduction of the variety of types in the warehouse
- Reduction of the risk of confusion, thereby reducing errors in processing
This text is machine translated.
The GESIPA blind rivet nuts with large clamping area
The PolyGrip blind rivet nuts by GESIPA are a consistent further development from the
Many years of experience with our PolyGrip multi-area blind rivets.
With the advantages of the large hole tolerance and the covering of different clamping areas
With only one fastener, the PolyGrip blind rivet nut is used in many industrial applications and
Become a first choice connector in crafts, too.
Combining several dimensions saves handling and storage costs and also reduces them in the long term
The likelihood of confusion in the workplace and consequently subsequent quality problems.
Large clamping range
In the ideal case a Poly-Grip blind rivet nut can be used due to the large clamping range
Replace up to five different dimensions of the DINStandard blind rivet nuts.
This gives you the following advantages:
- Type restriction
- Reduction of the variety of types in the warehouse
- Reduction of the risk of confusion, thereby reducing errors in processing
This text is machine translated.
