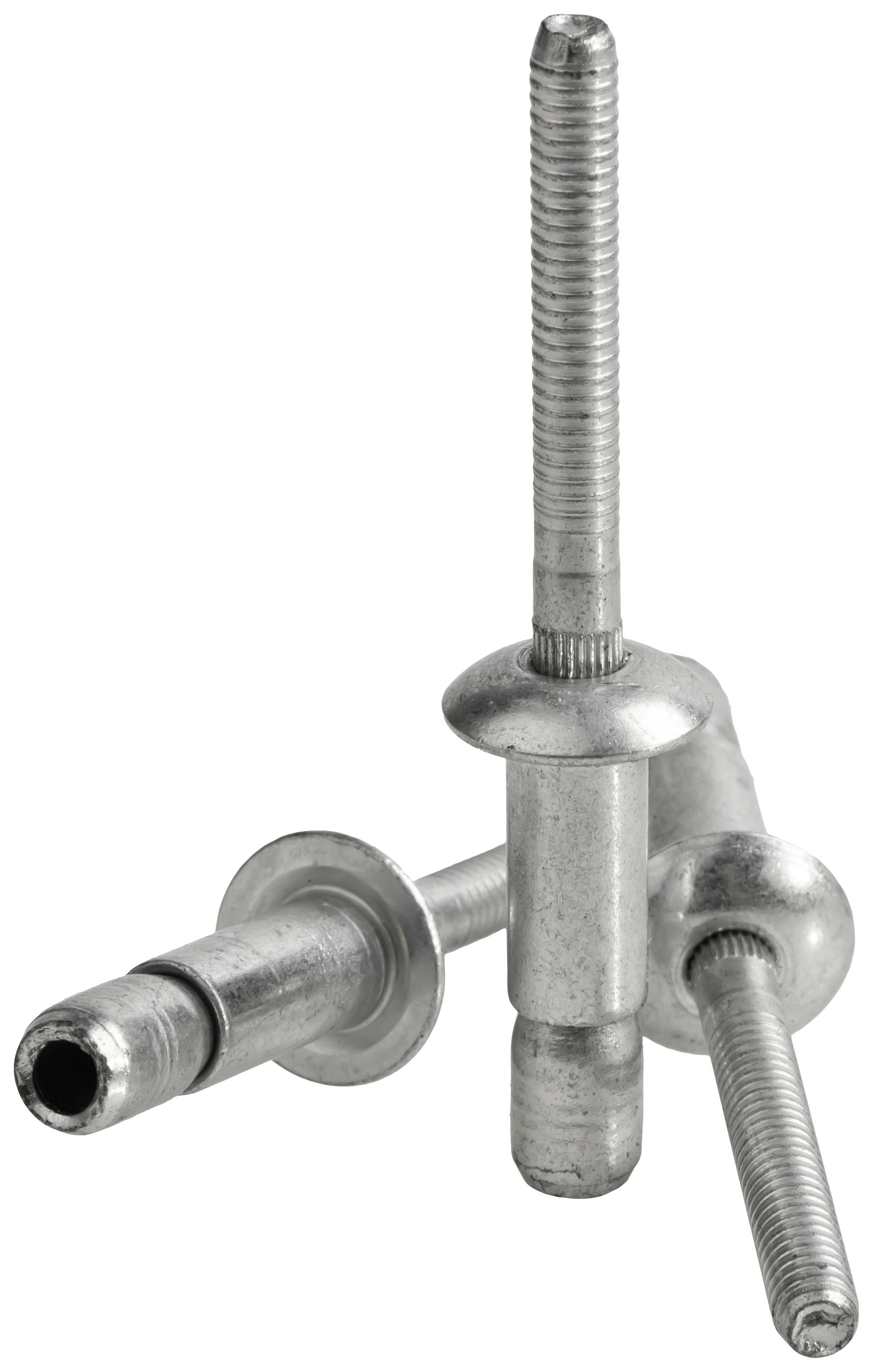

Gesipa 1455663 Blind rivet Steel Steel Steel 200 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Steel
Material (sleeve)
Steel
Material
Steel
Max. clamping range
9.5 mm
Number (Package size 200 pc(s))
Total (€ 0.37 / piece)
€ 73.94
plus VAT.
14 days return policy included
Technical specifications
- Product type
Blind rivet
- Content
200 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Steel
- Material
Steel
- Max. clamping range
9.5 mm
- Min. clamping range
2.0 mm
- Tubular rivet diameter
6.4 mm
- Tubular rivet length
14.1 mm
- Clamping range
2.0 - 9.5 mm
- Head Ø
12.7
- Head height
2.6 mm
- Rivet mandrel diameter
3.9 mm
- Shear force
12455 N
- Head shape
Truss head
- Tensile force (max.)
8200 N
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910707 Gesipa 1455663 Blind rivet Steel Steel Steel 200 pc(s)
Description
MEGA GRIP - Blind rivet
The high-strength structural blind rivet with extra large clamping area and optimum economy.
Optimal economic viability
The GESIPA-MEGA GRIP is a high-strength structure blind rivet with extra large clamping area.
The variable clamping range makes economic use possible and reduces through the fusion
Handling costs of up to five blind rivet lengths in a MEGA GRIP dimension.
The set-up process

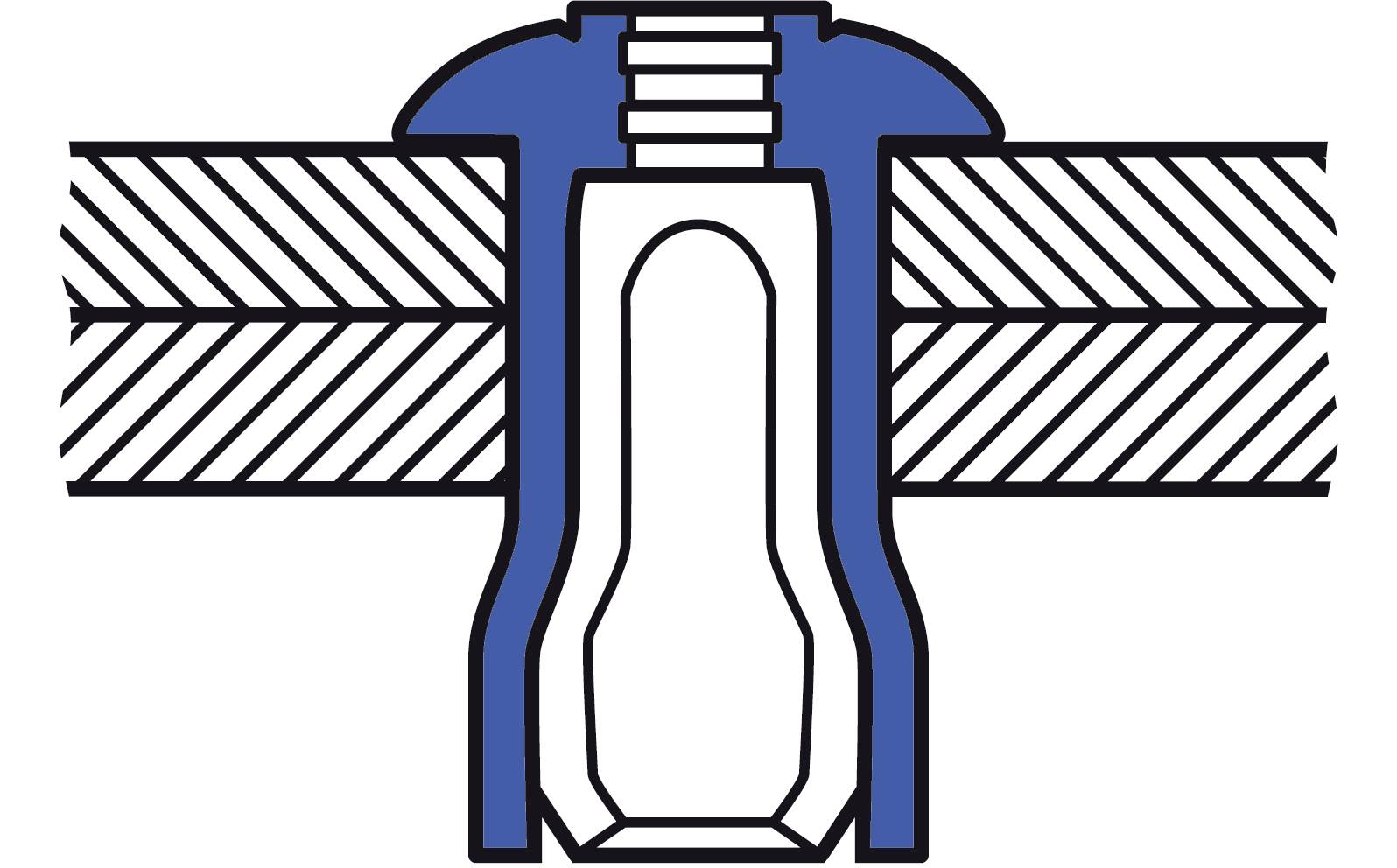

During the setting process, the hollow punch head pushes the hollow rivet with great force to the rivet hole wall.
The radial deformation provides here for the cover of an above-average clamping area.
The staying power of the rivet punch over the entire setting length guarantees the adherence to the high shear forces through double locking.
The excellent pasting properties provide optimum protection against water spray.
MEGA GRIP blind rivets – standard or custom made?
The GESIPA-MEGA GRIP is available in the round head and head shapes and is available as standard in the aluminum/aluminum and steel/steel combinations.
Available in large and small packages, the MEGA GRIP is available at all times in the right quantity.
We will be pleased to offer you special dimensions in large quantities on request.
Benefits at a glance
- Optimum splash protection
- Economic use thanks to large clamping range cover
- High shear strength due to double residual mandrel lock
- Very good punching properties
- A flush tear on the setting head without sharp edges.
Please note that to achieve the best possible values of the GESIPA-MEGA GRIP the use of special devices/mouthpieces is necessary.
