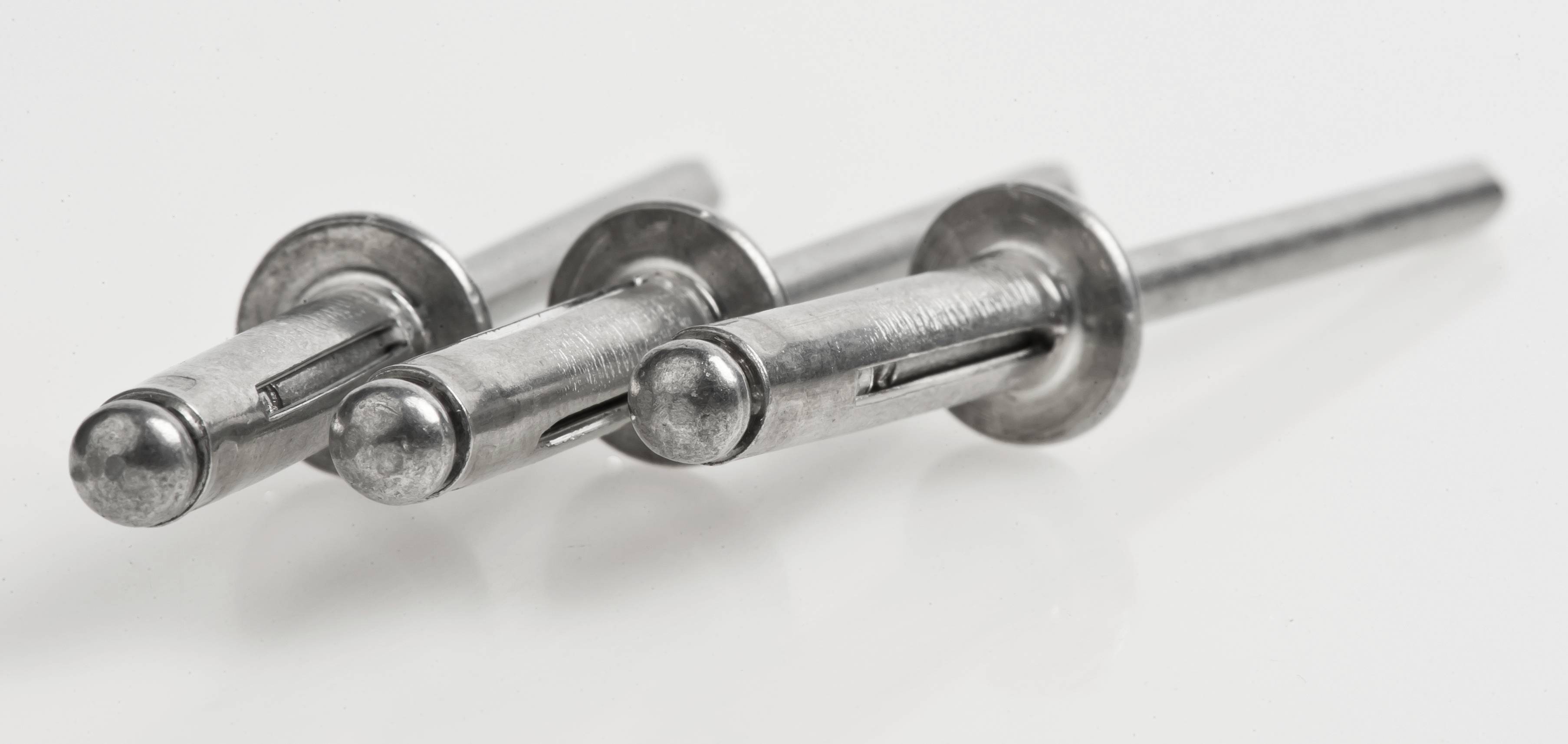

Gesipa 1455668 Blind rivet Aluminium Aluminium Aluminium 250 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Aluminium
Material (sleeve)
Aluminium
Material
Aluminium
Max. clamping range
8.5 mm
Number (Package size 250 pc(s))
Total (€ 0.28 / piece)
€ 68.90
plus VAT.
14-day return policy included
Technical specifications
- Product type
Blind rivet
- Content
250 pc(s)
- Material (spike)
Aluminium
- Material (sleeve)
Aluminium
- Material
Aluminium
- Max. clamping range
8.5 mm
- Min. clamping range
3.0 mm
- Tubular rivet diameter
4.8 mm
- Tubular rivet length
20 mm
- Clamping range
3.0 - 8.5 mm
- Head Ø
10.1
- Head height
1.7 mm
- Hole diameter
5.1 mm
- Rivet mandrel diameter
2.9 mm
- Shear force
1100 N
- Head shape
Truss head
- Tensile force (max.)
1400 N
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910708 Gesipa 1455668 Blind rivet Aluminium Aluminium Aluminium 250 pc(s)
Description

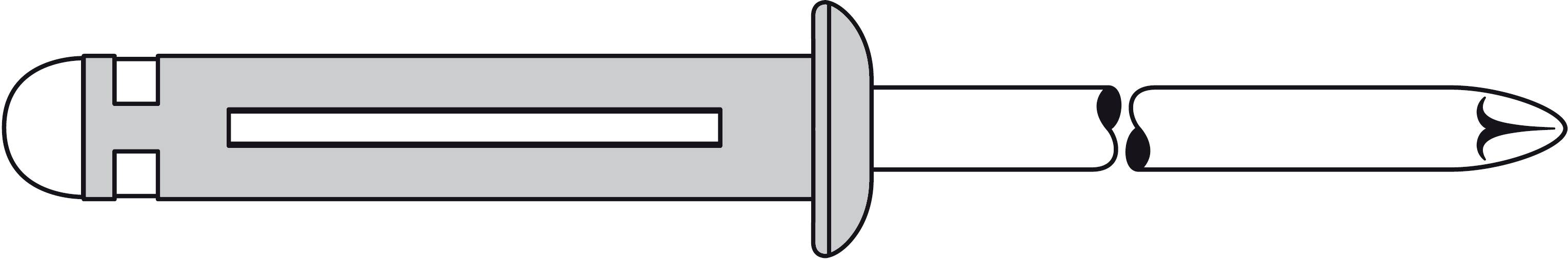

TRI-FOLD press-release rivets
The rivet for very soft and porous applications
The function

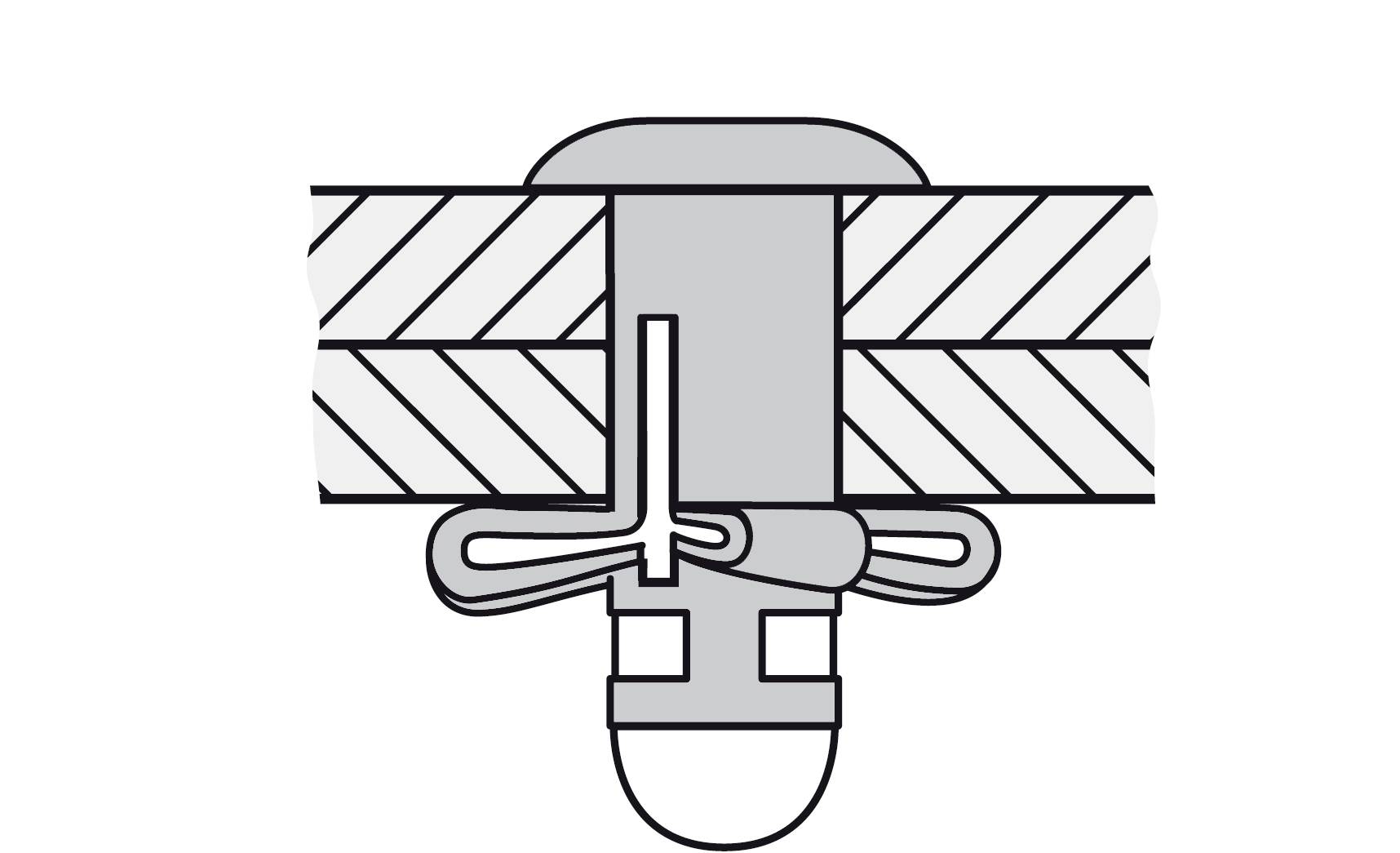

The GESIPA-TRI-FOLD blind rivet forms three pressing tabs on the closing head side during the setting process.
The advantages
The large formed crimp lugs distribute the resulting clamping force evenly
And gently on the riveted material. The large contact surface also provides
Excellent protection against pulling through the rivet with very soft, porous
Or rough application parts. The TRI-FOLD is due to its special design
Also able to compensate for oversized or irregular bore hole diameters.
Areas of application
TRI-FOLD blind rivets are excellent for automotive applications, such as plastic covers,
Body parts and for the vehicle interior equipment, but also for all other applications that particular
are soft, brittle, easily deformed or porous.
This text is machine translated.
