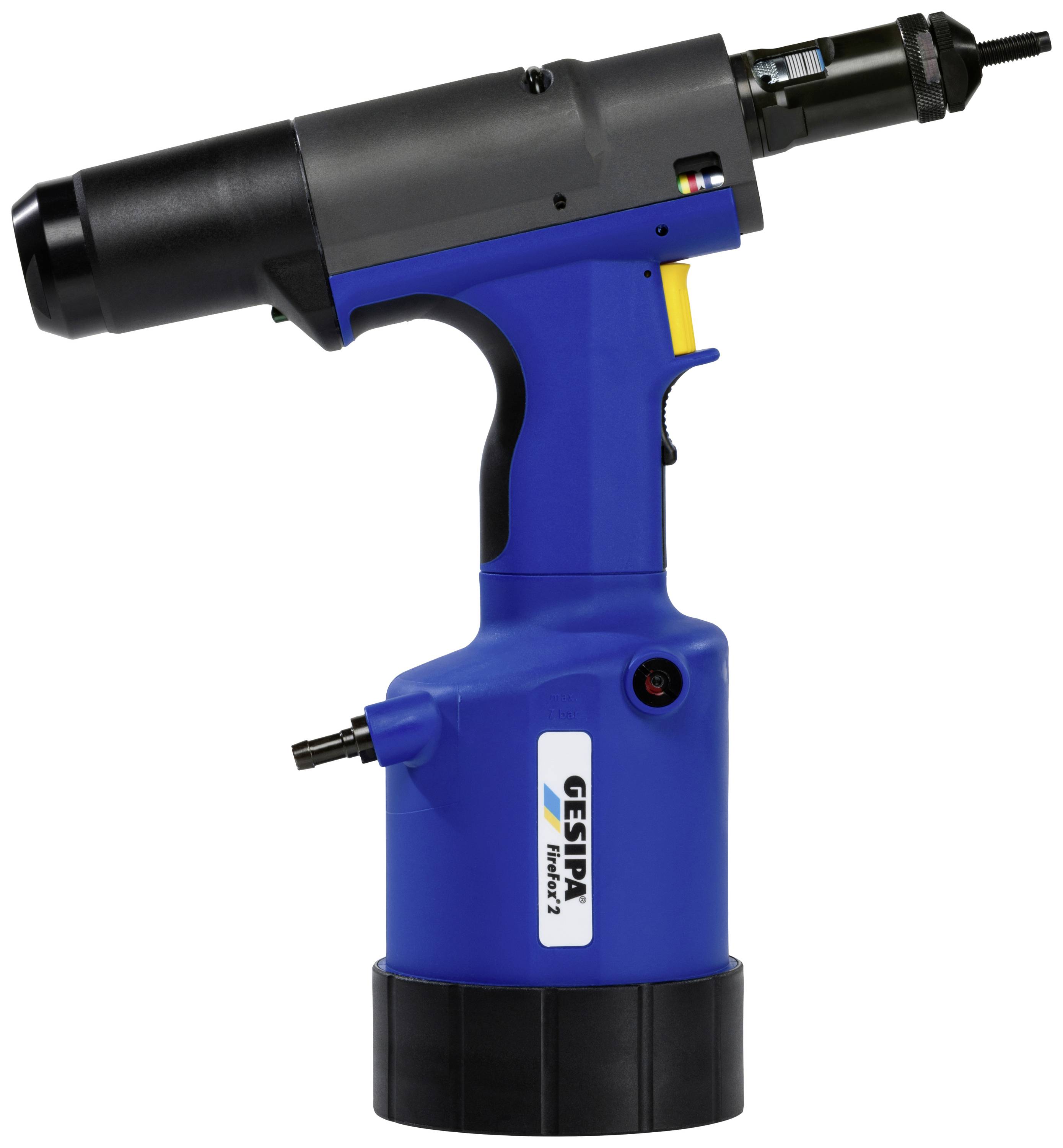

Gesipa 1458086 Hydraulic riveter 1 pc(s)

Firefox 2
The pneumatic-hydraulic blind rivet nut inserter can be used as a version with either stroke or set force control

The Firefox 2 can be selected via a stroke setting or a setting of setforce
system. In particular, the latter ensures that the material and the thread are protected safely
Anchoring the blind rivet nut and high process safety. The choice, whether lifting or actuating power-controlled
Depends on the length of the blind rivet nut and the thickness of the material. Blind rivet nut sizes with
The same or varying length in changing material thicknesses requires adjustment of the insertion force.
If the same nut size and length are always set in the same joint strengths, it can be used with blind rivet
Constant setting stroke.

Advantages
- Fast and precise adjustment of the setting force by color-coded adjustment ring (1)
- New lift scale can be easily and safely adjusted even under poor light conditions
- Maximum lift clearly identifiable by marking with blue ring on the lift scale (2)
- Throttle plate: Even safer and more gentle setting by means of the automatic throttle already with M3 blind rivet nuts
- PTFE sealing rings (Teflon) Improved service life of control spool through PTFE sealing rings and optimized control holes

Working range
Set blind rivet nuts of M3 to M10 of all materials as well as M12 in aluminum and steel.

Technical data
Weight: 2.4 kg.
Setting stroke, adjustable, max. 10 mm
Setting force, adjustable, max. 22 kN at 6 bar
Operating pressure 5-7 bar
Hose connection: 6 mm Ø (1/4’’)
Air consumption: Approx. 2 to 4 ltr. Per setting process (depending on nut size)

Included in the delivery
2 double wrench SW 24/27
4 threaded pins (M4, M5, M6 and M8)*
4 mouthpieces (M4, M5, M6 and M8)*
1 Hex screwdriver SW 4
1 refiller bottle with hydraulic oil 100 ml
1 oil-refiller tanks
Operating instructions with list of spare parts
Card with quick adjustment

Accessories
- Adapter* for the use of cylindrical screws with DIN EN ISO 4762 hexagon socket as threaded pin from M4 to M8
- Adapter for setting blind rivet screws, M4 to M8
- Mouthpieces and threaded thorns in Imperial or US dimensions
- Complete thread punch and mouthpiece sets
