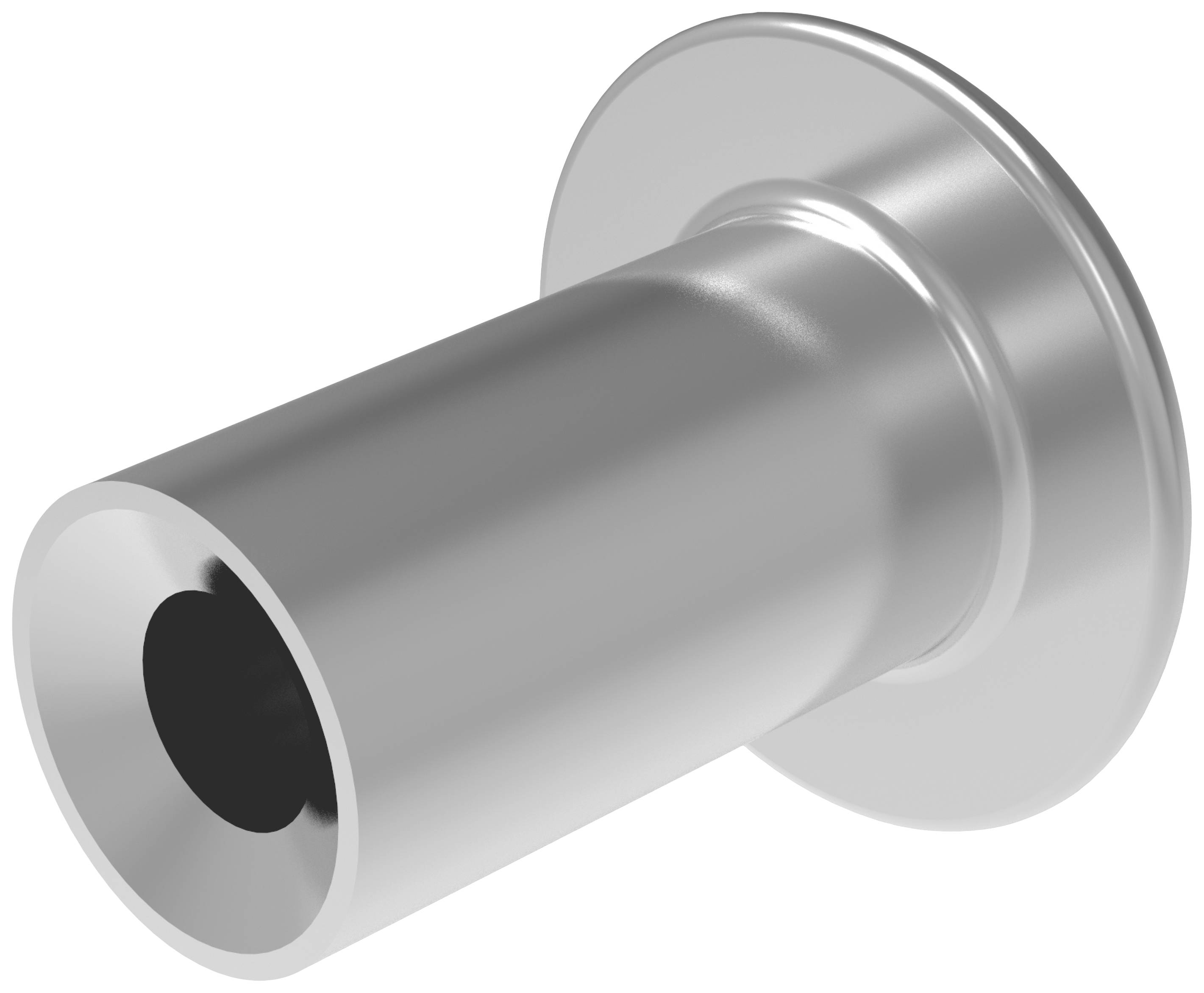

Gesipa 1463662 Blind rivet Steel Aluminium Steel 15000 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Steel
Material (sleeve)
Aluminium
Material
Steel
Max. clamping range
6.0 mm
Number (Package size 15000 pc(s))
Total (€ 0.07 / piece)
€ 1,049.58
plus VAT.
Technical specifications
- Product type
Blind rivet
- Content
15000 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Aluminium
- Material
Steel
- Max. clamping range
6.0 mm
- Min. clamping range
1.0 mm
- Tubular rivet diameter
3.2 mm
- Tubular rivet length
7 mm
- Clamping range
1.0 - 6.0 mm
- Head Ø
5.7
- Shaft length
485 mm
- Shear force
900 N

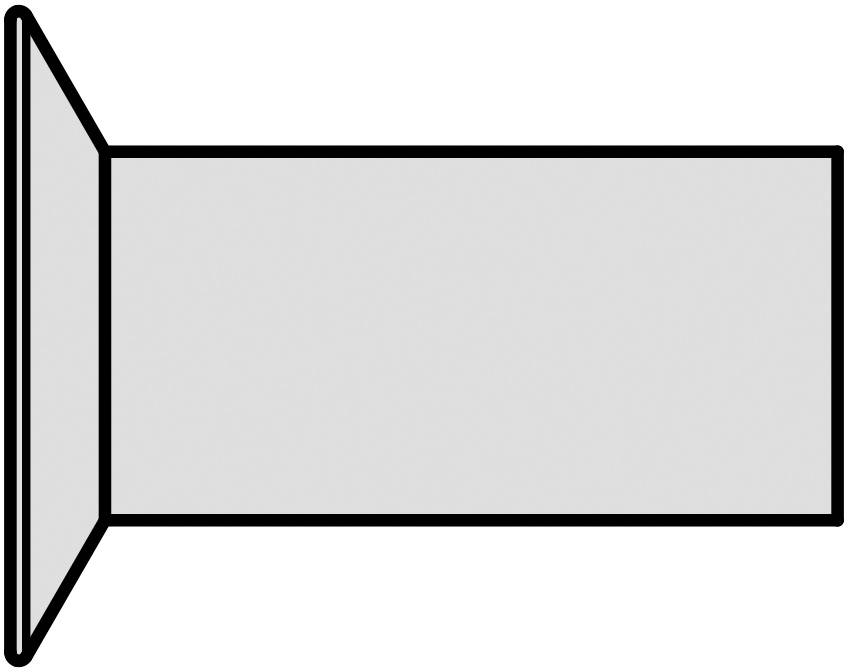

- Head shape
Countersunk
- Countersink angle
120°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2914267 Gesipa 1463662 Blind rivet Steel Aluminium Steel 15000 pc(s)
Description
G-SPEED
The multi-use G-SPEED magazine kit from GESIPA with many different applications
Advantages
- Large clamping range
- Reduced variety of variants
- Optimum hole filling and pronounced hole leaching
- Ideally suited for transmitting shearing forces with moderate clamping force
- Ideal for applications in:
- LED light strips
- Electronics/PCB equipment
- Lightweight sheet metal construction
- PC housing
- Type plates
- Blind holes

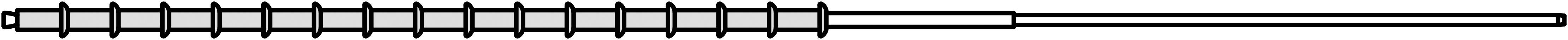

Two rivet punch lengths of the rivet magazine are available:
L4 ≈ 485 mm for standard mouthpiece
L5 ≈ 510 mm for long or bent mouthpiece (available on request)
In order to create an optimum rivet connection for different hole diameters
Several rivet mandrel size groups. The areas of application are identified by the conspicuous color marking
Of the rivet magazine, whereby the clear allocation of the rivet mandrel size groups is guaranteed.
This text is machine translated.
The multi-use G-SPEED magazine kit from GESIPA with many different applications
Advantages
- Large clamping range
- Reduced variety of variants
- Optimum hole filling and pronounced hole leaching
- Ideally suited for transmitting shearing forces with moderate clamping force
- Ideal for applications in:
- LED light strips
- Electronics/PCB equipment
- Lightweight sheet metal construction
- PC housing
- Type plates
- Blind holes
Two rivet punch lengths of the rivet magazine are available:
L4 ≈ 485 mm for standard mouthpiece
L5 ≈ 510 mm for long or bent mouthpiece (available on request)
In order to create an optimum rivet connection for different hole diameters
Several rivet mandrel size groups. The areas of application are identified by the conspicuous color marking
Of the rivet magazine, whereby the clear allocation of the rivet mandrel size groups is guaranteed.
This text is machine translated.
