Name: Gesipa 1538406 Blind rivet (Ø) 3.2 mm Brass Copper Brass 500 pc(s)
Brand: Gesipa
SKU: 3411708
Availability: BackOrder

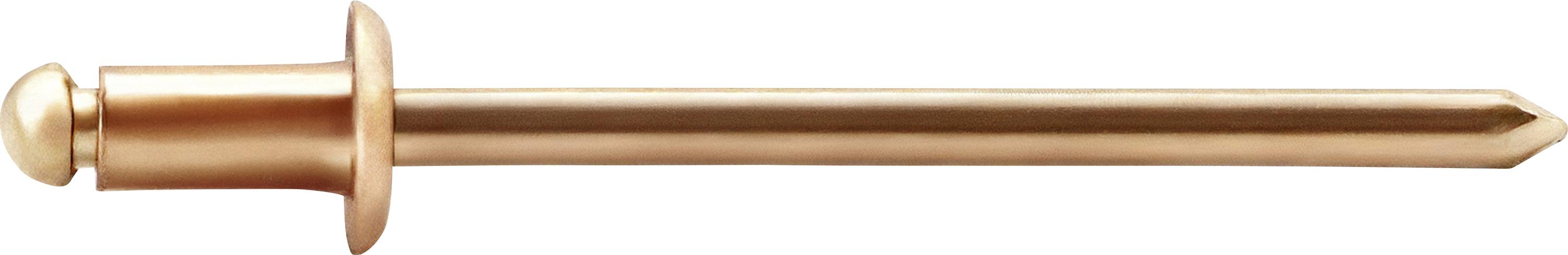

Copper-coloured rivets with round heads and flat shanks, used for fastening materials.

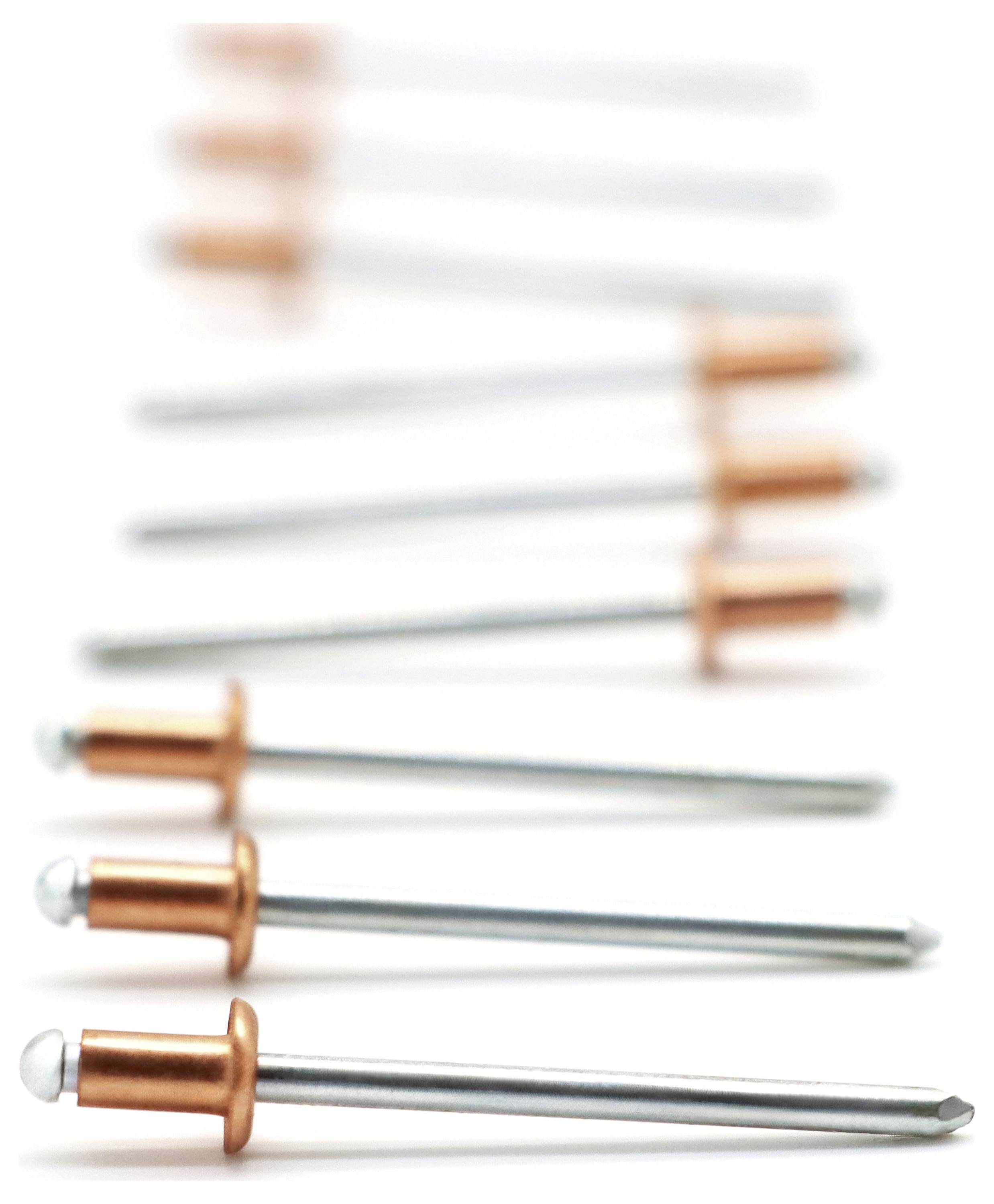

Nine silver-copper blind rivets aligned in two rows, blurred in the background, sharp in the foreground. Illustrates building materials.

1/2

Product type

Blind rivet

Material (spike)

Brass

Material (sleeve)

Copper

Material

Brass

Max. clamping range

6.00 mm

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 0.18 / piece)

€ 89.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Copper/bronze spiral head 3.2 x 10

Solderable
All relevant versions for Spengler/Installers available in 3.2mm
Stock items by local specialist trade
Stainless steel rivet can be welded with TIG welding procedure
Can be used with every GESIPA® rivet unit
Small packaging unit

Technical specifications

Product type: Blind rivet

(Ø): 3.2 mm

Content: 500 pc(s)

Material (spike): Brass

Material (sleeve): Copper

Dim: (Ø) 3.2 mm

Material: Brass

Max. clamping range: 6.00 mm

Min. clamping range: 3.50 mm

Tubular rivet diameter: 3.20 mm

Tubular rivet length: 10.00 mm

Clamping range: 3.50 - 6.00 mm

Head Ø: 6.75 mm

Hole diameter: 3.30 mm

Rivet mandrel diameter: 2.00 mm

Shank Ø: 3.2 mm

Shear force: 800 N

Head shape: Truss head

Tensile force (max.): 1.000 N

Documents & Downloads

Datasheet

Datasheet 3411708 Gesipa 1538406 Blind rivet (Ø) 3.2 mm Brass Copper Brass 500 pc(s)

User & Safety Instructions

User & Safety Instructions 3411708 Gesipa 1538406 Blind rivet (Ø) 3.2 mm Brass Copper Brass 500 pc(s)

Description

GESIPA Splint rivets

The plumbers' rivet is the ideal solution for the roof trade.
It can be easily soldered and is available in a variety of materials.

Benefits:
- Easily soldered
- All relevant versions for Spengler/Installers available in 3.2 mm
- Stock items from local specialist trade
- Stainless steel rivet weldable with TIG welding process
- Particularly suitable for very thin materials
- Can be used with every GESIPA rivet unit
- Small packaging unit

This text is machine translated.
