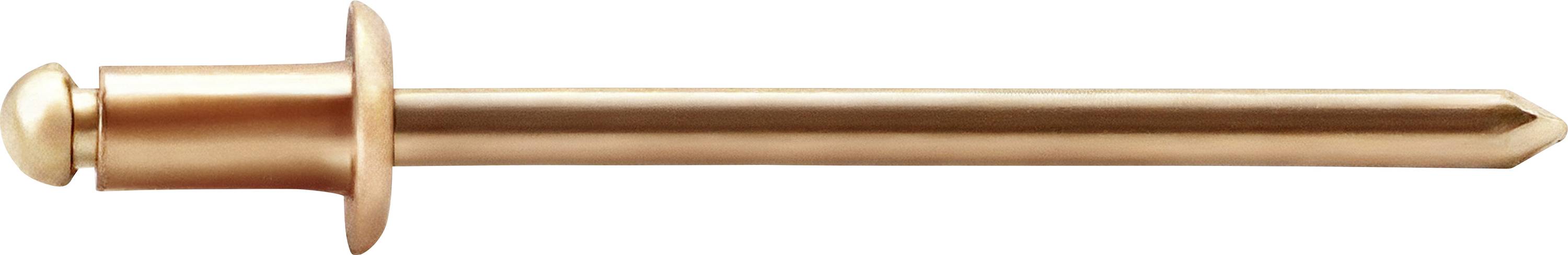

Gesipa 1538407 Blind rivet Brass Copper Brass 500 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Brass
Material (sleeve)
Copper
Material
Brass
Max. clamping range
7.50 mm
Datasheet (PDF)
Number (Package size 500 pc(s))
Total (€ 0.15 / piece)
€ 77.30
plus VAT.
14-day return policy included
Highlights & Details
Copper/bronze spiral head 3.2 x 12
- Solderable
- All relevant versions for Spengler/Installers available in 3.2mm
- Stock items by local specialist trade
- Stainless steel rivet can be welded with TIG welding procedure
- Can be used with every GESIPA® rivet unit
- Small packaging unit
Technical specifications
- Product type
Blind rivet
- Content
500 pc(s)
- Material (spike)
Brass
- Material (sleeve)
Copper
- Material
Brass
- Max. clamping range
7.50 mm
- Min. clamping range
4.50 mm
- Tubular rivet diameter
3.20 mm
- Tubular rivet length
12.00 mm
- Clamping range
4.50 - 7.50 mm
- Head Ø
6.75 mm
- Hole diameter
3.30 mm
- Rivet mandrel diameter
2.00 mm
- Shank Ø
3.2 mm
- Shear force
800 N
- Head shape
Truss head
- Tensile force (max.)
1.000 N
Documents & Downloads
Datasheet
Datasheet 3411709 Gesipa 1538407 Blind rivet Brass Copper Brass 500 pc(s)
User & Safety Instructions
User & Safety Instructions 3411709 Gesipa 1538407 Blind rivet Brass Copper Brass 500 pc(s)
Description
GESIPA Splint rivets
The plumbers' rivet is the ideal solution for the roof trade.
It can be easily soldered and is available in a variety of materials.
Benefits:
- Easily soldered
- All relevant versions for Spengler/Installers available in 3.2 mm
- Stock items from local specialist trade
- Stainless steel rivet weldable with TIG welding process
- Particularly suitable for very thin materials
- Can be used with every GESIPA rivet unit
- Small packaging unit
This text is machine translated.
The plumbers' rivet is the ideal solution for the roof trade.
It can be easily soldered and is available in a variety of materials.
Benefits:
- Easily soldered
- All relevant versions for Spengler/Installers available in 3.2 mm
- Stock items from local specialist trade
- Stainless steel rivet weldable with TIG welding process
- Particularly suitable for very thin materials
- Can be used with every GESIPA rivet unit
- Small packaging unit
This text is machine translated.
