Gesipa 1712694 Speciality rivet Steel Aluminium Aluminium e-Fast PolyGrip® 250 pc(s)
EAN:
Part number:
Item no:
Product type
Speciality rivet
Length
15 mm
Material (spike)
Steel
Material (sleeve)
Aluminium
Material
Aluminium
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 250 pc(s))
Total (€ 0.11 / piece)
€ 26.88
plus VAT.
14-day return policy included
Technical specifications
- Product type
Speciality rivet
- Length
15 mm
- Content
250 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Aluminium
- Material
Aluminium
- Max. clamping range
9.0 mm
- Min. clamping range
3.3 mm
- Tubular rivet diameter
4.8 mm
- Tubular rivet length
15 mm
- Clamping range
3.3 - 9.0 mm
- Head Ø
11.4
- Head height
1.8 mm
- Hole diameter
5 mm
- Rivet mandrel diameter
2.63 mm
- Shear force
1500 N
- Head shape
Truss head
- Tensile force (max.)
2300 N
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2911211 Gesipa 1712694 Speciality rivet Steel Aluminium Aluminium e-Fast PolyGrip® 250 pc(s)
Description

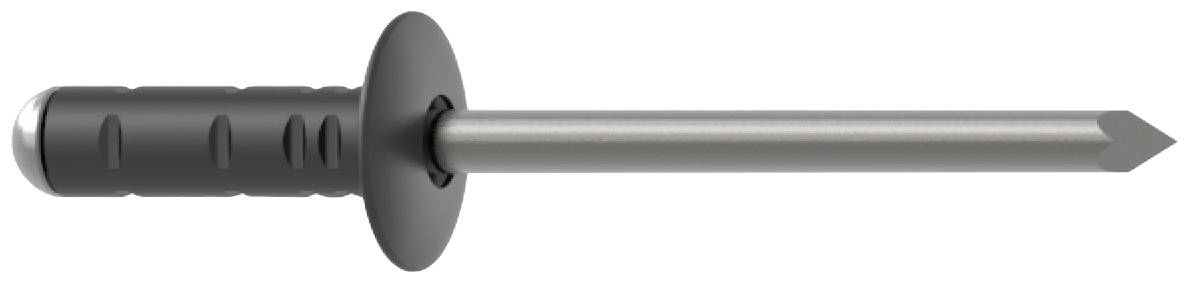

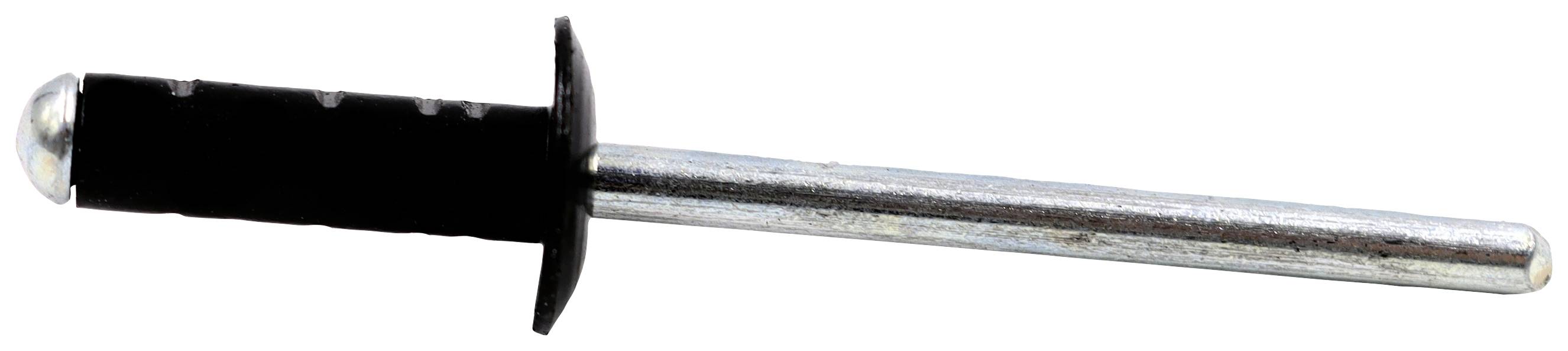

EFast PolyGrip switchboard rivet
The PolyGrip insulated, black coated, has been specially developed for control cabinet requirements.
The remaining rivet pin lock prevents rust from sticking while putting in and prevents injuries when inserting the cables.
The advantages of the e-FAST
- No rivet protrusion after placing and thus no cable injuries when feeding (standard)
- Hole cover by large head: Fulfils large head K 11.4
- Residual pin locking
- Suitable for large bore holes
- Large clamping range: 3.3 mm - 9 mm
- Insulated coating
- Due to black surface suitable for optical testing
This text is machine translated.
The PolyGrip insulated, black coated, has been specially developed for control cabinet requirements.
The remaining rivet pin lock prevents rust from sticking while putting in and prevents injuries when inserting the cables.
The advantages of the e-FAST
- No rivet protrusion after placing and thus no cable injuries when feeding (standard)
- Hole cover by large head: Fulfils large head K 11.4
- Residual pin locking
- Suitable for large bore holes
- Large clamping range: 3.3 mm - 9 mm
- Insulated coating
- Due to black surface suitable for optical testing
This text is machine translated.
