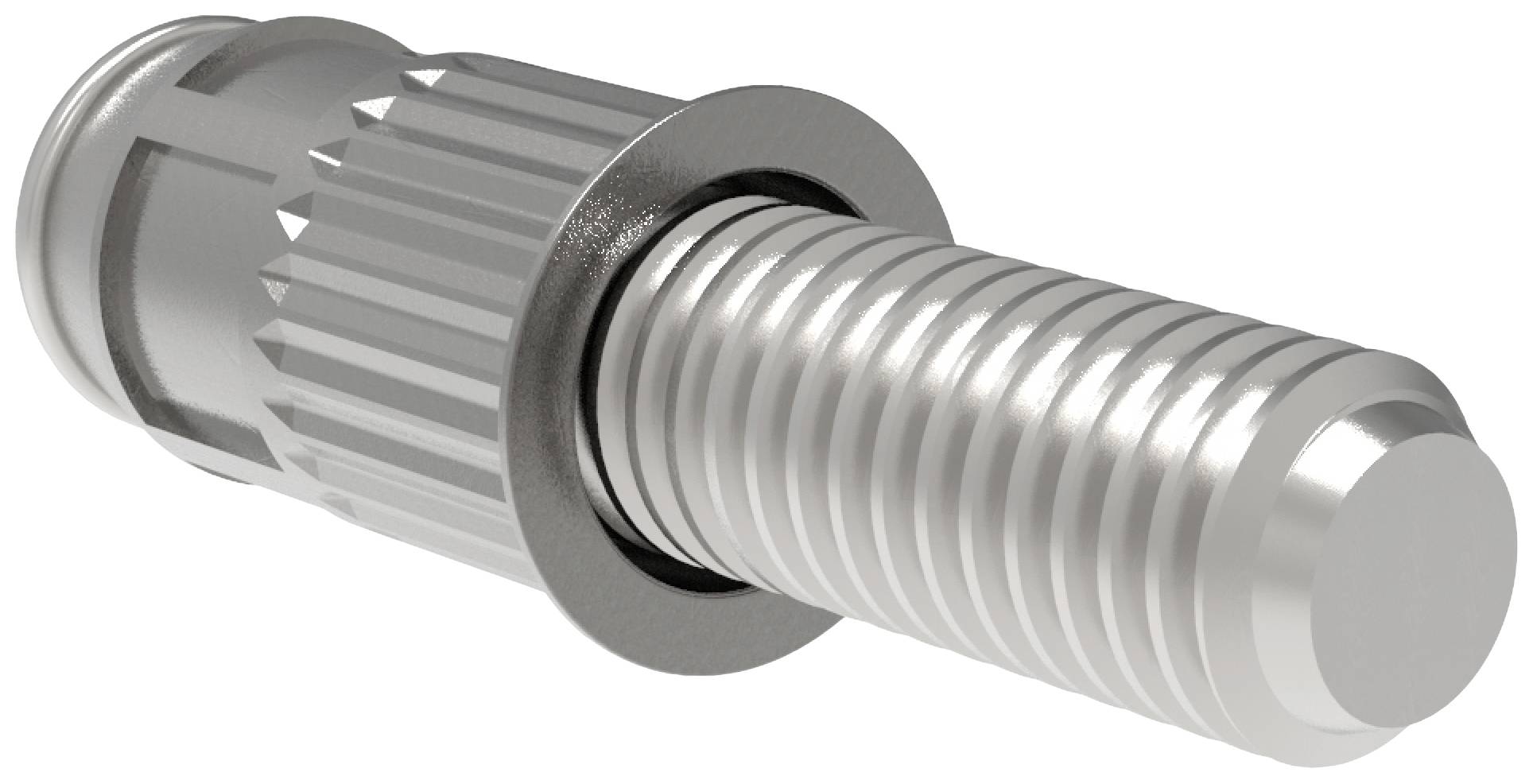

Gesipa 1747258 Blind rivet screw 100 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet screw
Content
100 pc(s)
Head Ø
12
Rivet mandrel diameter
2.63 mm
Shaft length
15.5
Number (Package size 100 pc(s))
Total (€ 0.59 / piece)
€ 58.82
plus VAT.
Technical specifications
- Product type
Blind rivet screw
- Content
100 pc(s)
- Head Ø
12
- Rivet mandrel diameter
2.63 mm
- Shaft length
15.5
- Shank Ø
9 mm
- Shear force
10800 N
- Head shape
Small head
- Tensile force (max.)
17800 N
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2911229 Gesipa 1747258 Blind rivet screw 100 pc(s)
Description
GESIPA blind rivets
The combination of blind rivet nut and bolt as an alternative or replacement for
Welding bolts and press-in bolts
Blind rivet screws are a technical combination of blind rivet nuts and bolt
Such as an economical alternative to welding bolts or other multi-part T-nut systems.
The blind rivet screw has dual function. First, it combines thin materials
Also made from different materials. On the other hand it offers with the safe and lasting
A fixed screw, another mounting point or a positioning aid.
Various dimensions, materials and head shapes cover a wide range of applications.
In addition to the standard program, application-specific adjustments are possible.
Benefits:
- Double function: Connect the joint material and provide additional fixing point (threaded bolts)
- Only one-sided accessibility is required
- Large thread load capacity
- Easier, clean and fast processing
- Space saving
- No damage to painted surfaces
- No heat input, i.e. no change in the material structure
- Suitable for repair of welding bolts
Application area:
- Thin carrier materials such as sheet metal, plastics, etc.
- Required pre-centering
- Thermal effects, e.g. welding on composites not possible or permissible
- Surface coatings must not be damaged
- Manufacture of electrically conductive connections
- Fast repairs of welding bolts
GESIPA blind rivet screws can be used with the rivet nut setting devices Firebird and Firefox
Using appropriate adapters for blind rivet screws (see device description) without any problems.
This text is machine translated.
The combination of blind rivet nut and bolt as an alternative or replacement for
Welding bolts and press-in bolts
Blind rivet screws are a technical combination of blind rivet nuts and bolt
Such as an economical alternative to welding bolts or other multi-part T-nut systems.
The blind rivet screw has dual function. First, it combines thin materials
Also made from different materials. On the other hand it offers with the safe and lasting
A fixed screw, another mounting point or a positioning aid.
Various dimensions, materials and head shapes cover a wide range of applications.
In addition to the standard program, application-specific adjustments are possible.
Benefits:
- Double function: Connect the joint material and provide additional fixing point (threaded bolts)
- Only one-sided accessibility is required
- Large thread load capacity
- Easier, clean and fast processing
- Space saving
- No damage to painted surfaces
- No heat input, i.e. no change in the material structure
- Suitable for repair of welding bolts
Application area:
- Thin carrier materials such as sheet metal, plastics, etc.
- Required pre-centering
- Thermal effects, e.g. welding on composites not possible or permissible
- Surface coatings must not be damaged
- Manufacture of electrically conductive connections
- Fast repairs of welding bolts
GESIPA blind rivet screws can be used with the rivet nut setting devices Firebird and Firefox
Using appropriate adapters for blind rivet screws (see device description) without any problems.
This text is machine translated.
