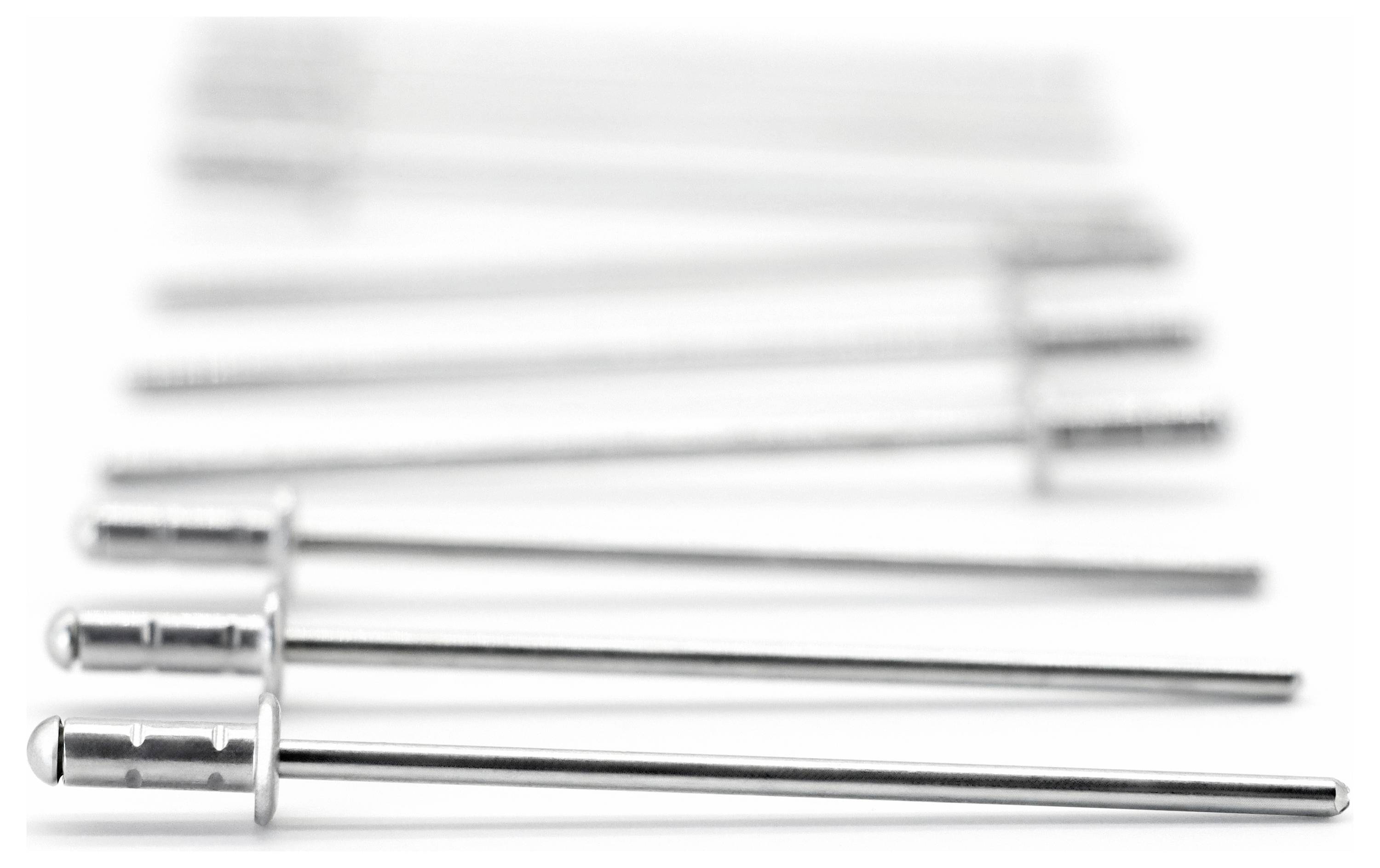

Gesipa 1816967 Blind rivet Stainless steel Aluminium alloy Stainless steel 500 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Stainless steel
Material (sleeve)
Aluminium alloy
Material
Stainless steel
Max. clamping range
5.00 mm
Datasheet (PDF)
Number (Package size 500 pc(s))
Total (€ 0.08 / piece)
€ 37.81
plus VAT.
Highlights & Details
Universal grip blind rivets aluminum/Niro 3.2 x 8
- Long rivet pin - enables the use of extended mouthpieces
- Economical – one dimension can replace up to five standard dimensions
- Easy to use - with standard device and extended standard mouthpiece
- Standardization – even for small annual requirements
Technical specifications
- Material hollow rivet aluminum alloy
- Material rivet pin A2
- Product type
Blind rivet
- Content
500 pc(s)
- Material (spike)
Stainless steel
- Material (sleeve)
Aluminium alloy
- Material
Stainless steel
- Max. clamping range
5.00 mm
- Min. clamping range
0.50 mm
- Tubular rivet diameter
3.20 mm
- Tubular rivet length
8.00 mm
- Clamping range
0.50 - 5.00 mm
- Head Ø
6.50
- Hole diameter
3.30 mm
- Material properties
A2
- Rivet mandrel diameter
1.80 mm
- Shear force
720 N
- Head shape
Truss head
- Tensile force (max.)
1.050 N
Documents & Downloads
Datasheet
Datasheet 3411689 Gesipa 1816967 Blind rivet Stainless steel Aluminium alloy Stainless steel 500 pc(s)
User & Safety Instructions
User & Safety Instructions 3411689 Gesipa 1816967 Blind rivet Stainless steel Aluminium alloy Stainless steel 500 pc(s)
Description

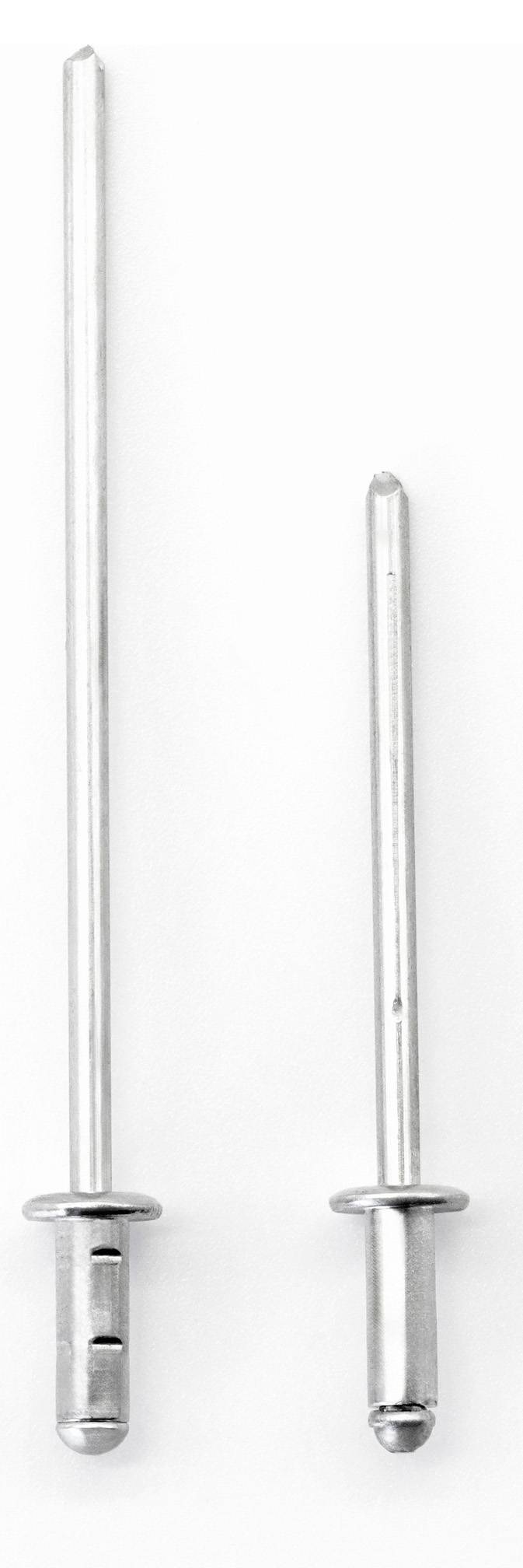

GESIPA Universal Grip - The PolyGrip connector for difficult to access rivet joints
For applications where there is very little space for the processing device due to the design (interference edges, deep depressions), the use of extended mouthpieces is recommended. However, you need a blind rivet with extended rivet pin. The Universal Grip blind rivet is now available for these applications. The Universal Grip combines the advantages of PolyGrip with those of an extended rivet punch and can be processed with all our mouthpieces with special length.
Area of application
• Hard-to-reach rivet areas of any kind, e.g. riveting in profiles
• Rivets close to component edges
THE ADVANTAGES OF UNIVERSAL GRIP
• Long rivet punch - allows the use of extended mouthpieces
• Large clamping area - one dimension can replace up to five standard dimensions
• Economical - usable with standard device and extended standard mouthpiece
• Standardization - also for small annual requirements
