GETT KO28010 TKO-Smart-001-Case-NO-PF-RGB-001 Button 36 V 50 mA momentary RGB 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Button
Lighting type
LED
Connection
Jack connector
Switching voltage
36 V
Datasheet (PDF)
Highlights & Details

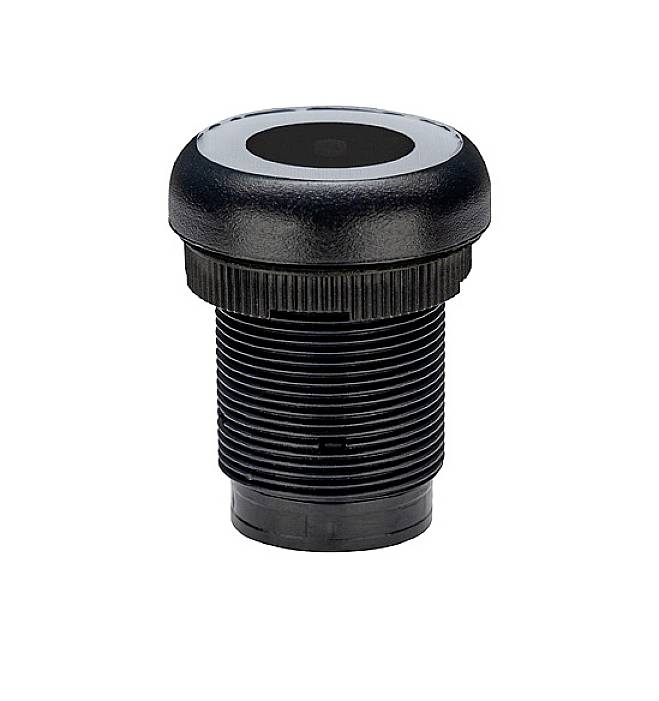

Optical button
- Particularly suitable for use in hygiene-sensitive areasOperation without touch possibleButton operates without wear, as there are no moving parts Function control using the integrated microcontroller3 lighting-indicated states (default values)Illumination color d. LEDs and response of the switching output can be adapted by software (USB)Standard installation dimension 22.3 mm / thread M221Output potential-free contact
Technical specifications
- Packaging type
Piece
- Product type
Button
- Switch/button features
+ LED
- Functions
momentary
- Lighting type
LED
- Colour
RGB
- Bulb type
LED (monochrome)
- Connection
Jack connector
- Switching voltage
36 V
- Switching current (max.)
50 mA
- Height
43 mm
- Button diameter
30 mm
- Recess diameter
22.3 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
TKO-Smart-001-Case-NO-PF-RGB-001
Documents & Downloads
Datasheet
Datasheet 2705600 GETT KO28010 TKO-Smart-001-Case-NO-PF-RGB-001 Button 36 V 50 mA momentary RGB 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2705600 GETT KO28010 TKO-Smart-001-Case-NO-PF-RGB-001 Button 36 V 50 mA momentary RGB 1 pc(s) Piece
Description
Never TOUCH a running systemContact-less operation - the optical button by GETT makes possible.The world of technology is fast-moving and places ever higher demands on function and usability, as well as in the field of operating technology. If only a few years ago the market was still dominated by touch operation in the form of capacitive single and area sensors, today a new type of operation is in the focus of attention. Operation without any contact.Especially since the pandemic, the subject of hygiene and the need to take measures to minimize health risks has become increasingly relevant. With the optical sensor we meet this requirement and make our contribution to a safe and intuitive human-machine relationship.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
System requirements
- Windows XP until Windows 10
