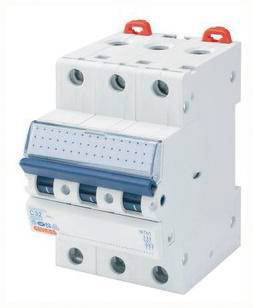

Gewiss 2371003 GW92571 Circuit breaker 3-pin 32 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
B
Nominal current - rounded value
32 A
Nominal voltage (details)
230 - 400 V
Datasheet (PDF)
Technical specifications
- Nominal voltage (details)
230 - 400 V
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
B
- Nominal current - rounded value
32 A
- Nominal current
32 A
- Dim
(W x H x D) 54 x 85 x 72 mm
- Content
2 pc(s)
- Operating voltage
230 - 400 V
- Nominal voltage
230 V
400 V
- Width
54 mm
- Height
85 mm
- Depth
72 mm
Documents & Downloads
Datasheet
Datasheet 2226605 Gewiss 2371003 GW92571 Circuit breaker 3-pin 32 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 2226605 Gewiss 2371003 GW92571 Circuit breaker 3-pin 32 A 230 V, 400 V
Description
Circuit breaker switch (MCB) according to EN60898-1, with time-delayed thermal overload release and electromagnetic short-circuit release. Alternatively, a RESTART restart unit RM TOP, a RESTART remote drive CM or two auxiliary devices can be installed on the left-hand side. With labeling window on the device. Connection (max): 35qmm with insulated under-plug protection. The connection screws can be provided with a sealable cover (order accessories separately). The shift lever can be sealed when switched off and on or locked with a lever lock for pre-locking. The shift lever can be sealed when switched off and on or locked with a lever lock for pre-locking.
This text is machine translated.
This text is machine translated.
