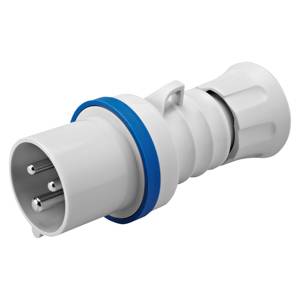

Gewiss GW60004FH GW60004FH CEE plug 16 A 250 V AC 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE plug
- Nominal voltage
250 V AC
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
IP44
- Content
1 pc(s)
- Number of pins
3
Gland nut
3
Plastic
Nickel-plated
16 A
Screw less terminal
Straight
FALSE
Other
IP44
FALSE
6 h
Blue
200 - 250 V (50+60 Hz) blue
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3120704 Gewiss GW60004FH GW60004FH CEE plug 16 A 250 V AC 1 pc(s)
Description
Connector for industrial applications according to IEC 60 309-(EN 60 309) Series IEC 309 HP with locking system SAFE-LOCK, nickel-plated contacts, metal parts made of stainless steel, plastic parts halogen-free in accordance with EN 50 267-2-2, cable entry as cable gland with integrated strain relief, connection technology: Screwless tension spring clamp, terminal cross section 1 - 2.5 mm² fine wired / 1.5 - 4 mm² single or multi-wired, UV resistant, IK09 impact strength
