GEZE 1401-0102 Door closer Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

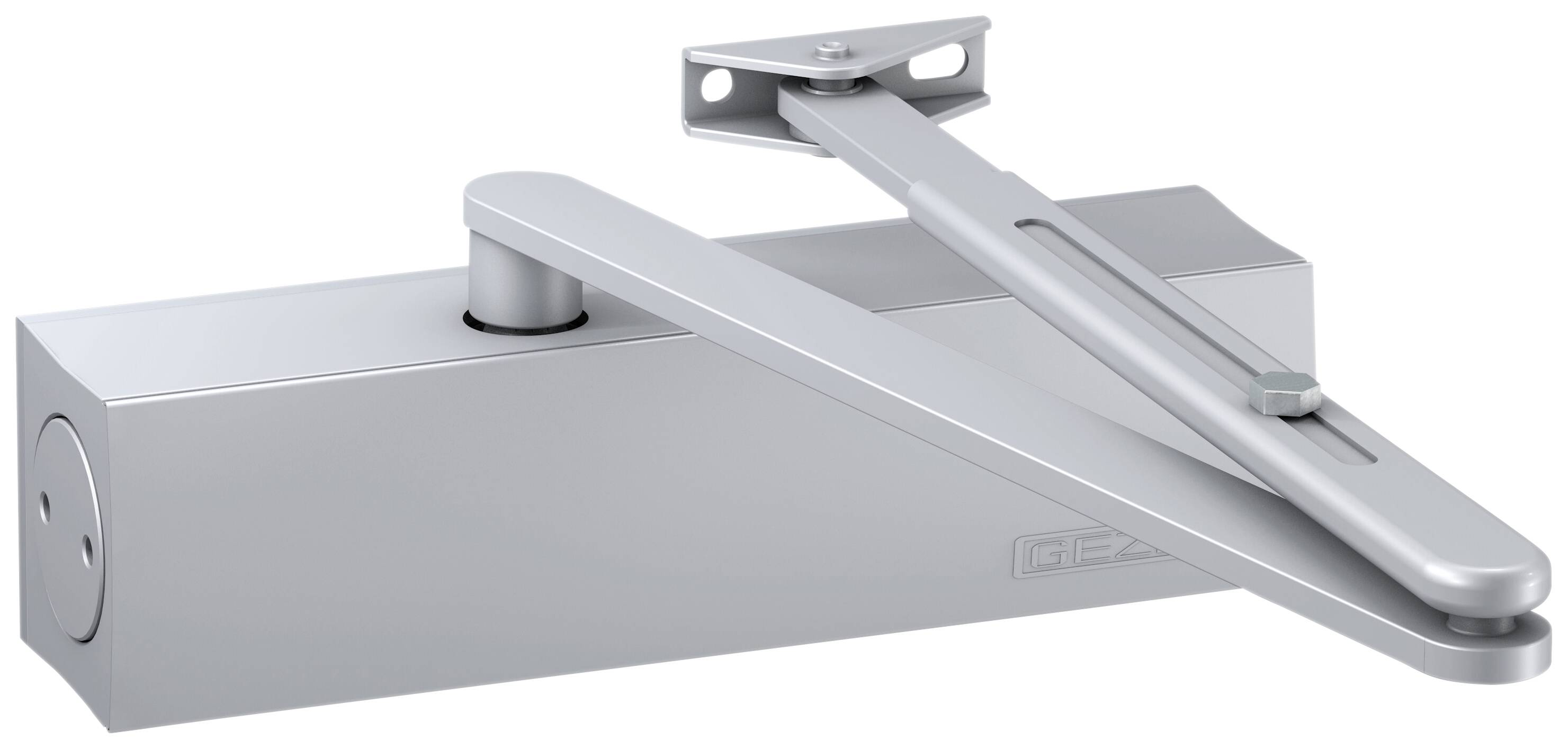

GEZE Door Closer TS 2000NV Silver, Up to 1100 mm Wing width
- GEZE Door Closer for Front doors, Side doors, Entrance doors
- Suitable for DIN left/DIN right, stop doors up to 1100 mm blade width
- Mounting material and mounting instructions included
- Closing force according to EN 1154 (EN 2-4)
Technical specifications
- Product type
Door closer
- Weight
2108 g

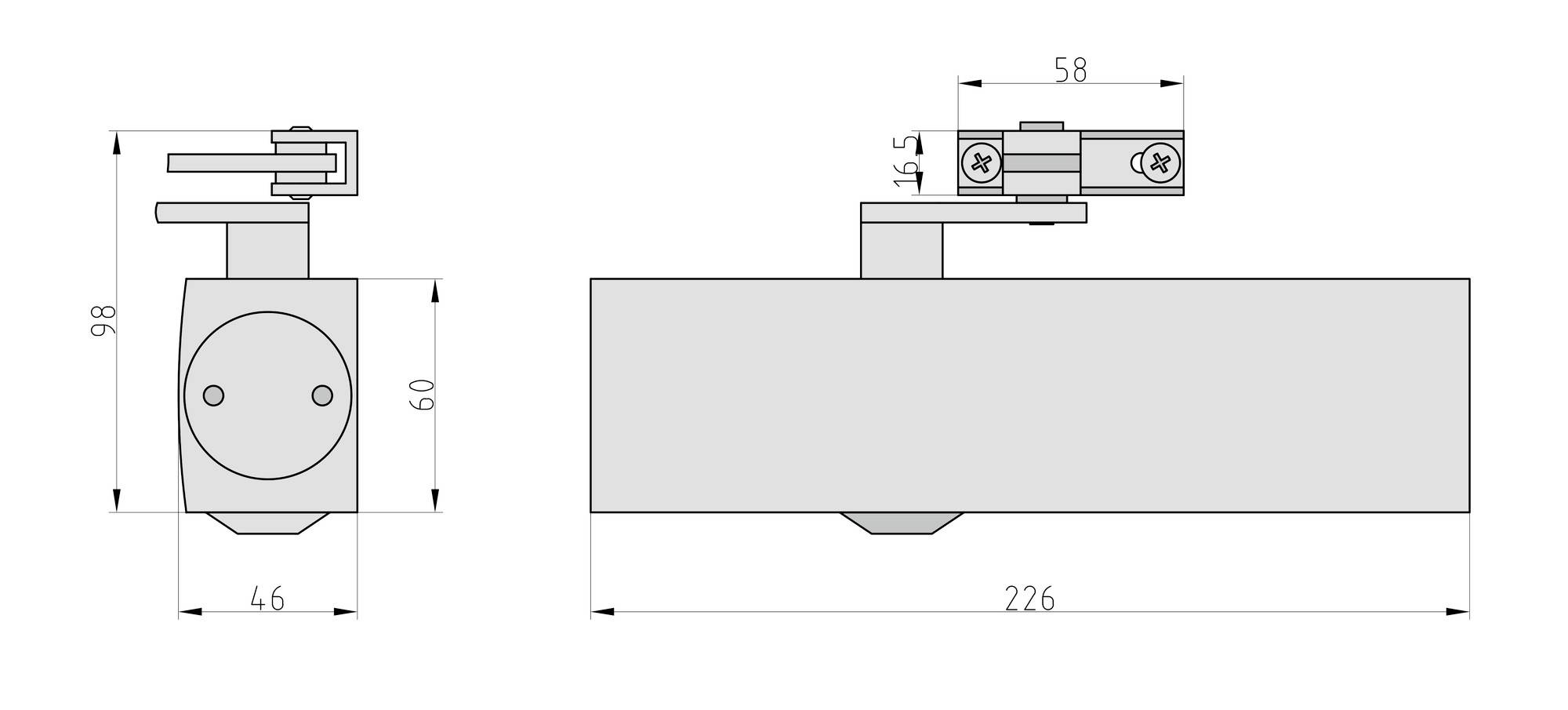

- Dim
(W x H x D) 226 x 60 x 46 mm
- Factory colour
Silver
- Width
226 mm
- Height
60 mm
- Depth
46 mm
Documents & Downloads
Datasheet
Datasheet 3098625 GEZE 1401-0102 Door closer Silver
User & Safety Instructions
User & Safety Instructions 3098625 GEZE 1401-0102 Door closer Silver
Description
The GEZE TS 2000NV Door Closer is ideal for home entrance and side entrance doors. The overhead NO contact with linkage is suitable for stop doors up to 1100 mm. The closing force can be set variably (EN 2-4). The door closer is suitable for DIN left and right doors. The closing speed and opening damping can be adjusted from the front - end stop via the shear rod. Material and instructions for mounting included - an optional mounting plate is available separately.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Door closer
- Fitting Material
- Installation instructions.
