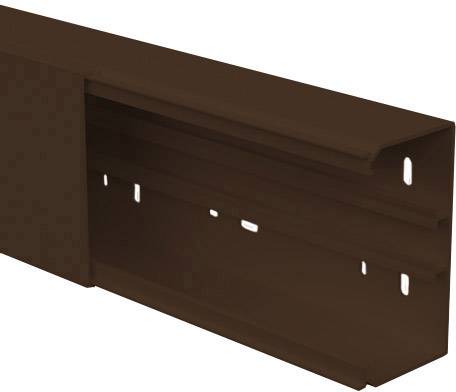

GGK 1045 Cable trunking (L x W x H) 2000 x 110 x 62 mm 1 pc(s) Brown
EAN:
Part number:
Item no:
Technical specifications
- Material: PVC
- Product type
Cable trunking
- Supplied length
2000 mm
- Content
1 pc(s)
- Factory colour
Brown
- Dim
(L x W x H) 2000 x 110 x 62 mm
- Length
2000 mm
- Width
110 mm
- Material
PVC
- Height
62 mm
- Depth
62 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2158046 GGK 1045 Cable trunking (L x W x H) 2000 x 110 x 62 mm 1 pc(s) Brown
Description
Cable routing channel, FB 60x110, dimensions H 62 mm x W 110 mm x L 2000 mm, made of plastic, color: Brown 8014, certified according to DIN EN 50085-2-1, cable routing channel for laying cables on wall and ceiling, consisting of upper section (completely cross-section) and lower section, lower section with double-row floor perforation, three DIN mounting rails for the snap-in mounting of partition walls for system partition and 4 cable holding clamps. Other cable routing channel system components: Inner corner, outer corner, end piece, flat angle, freely movable cable holding clamp and snap-in partition. Changes in direction are elegantly possible with the molded parts, open channel ends are to be closed with plug-on end pieces.
This text is machine translated.
This text is machine translated.
