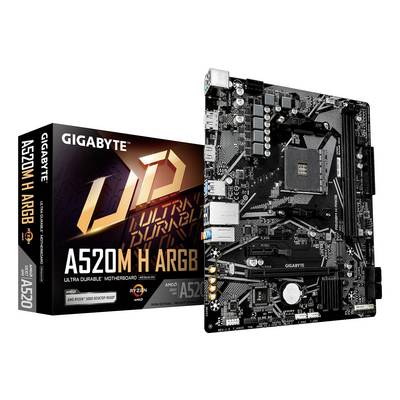

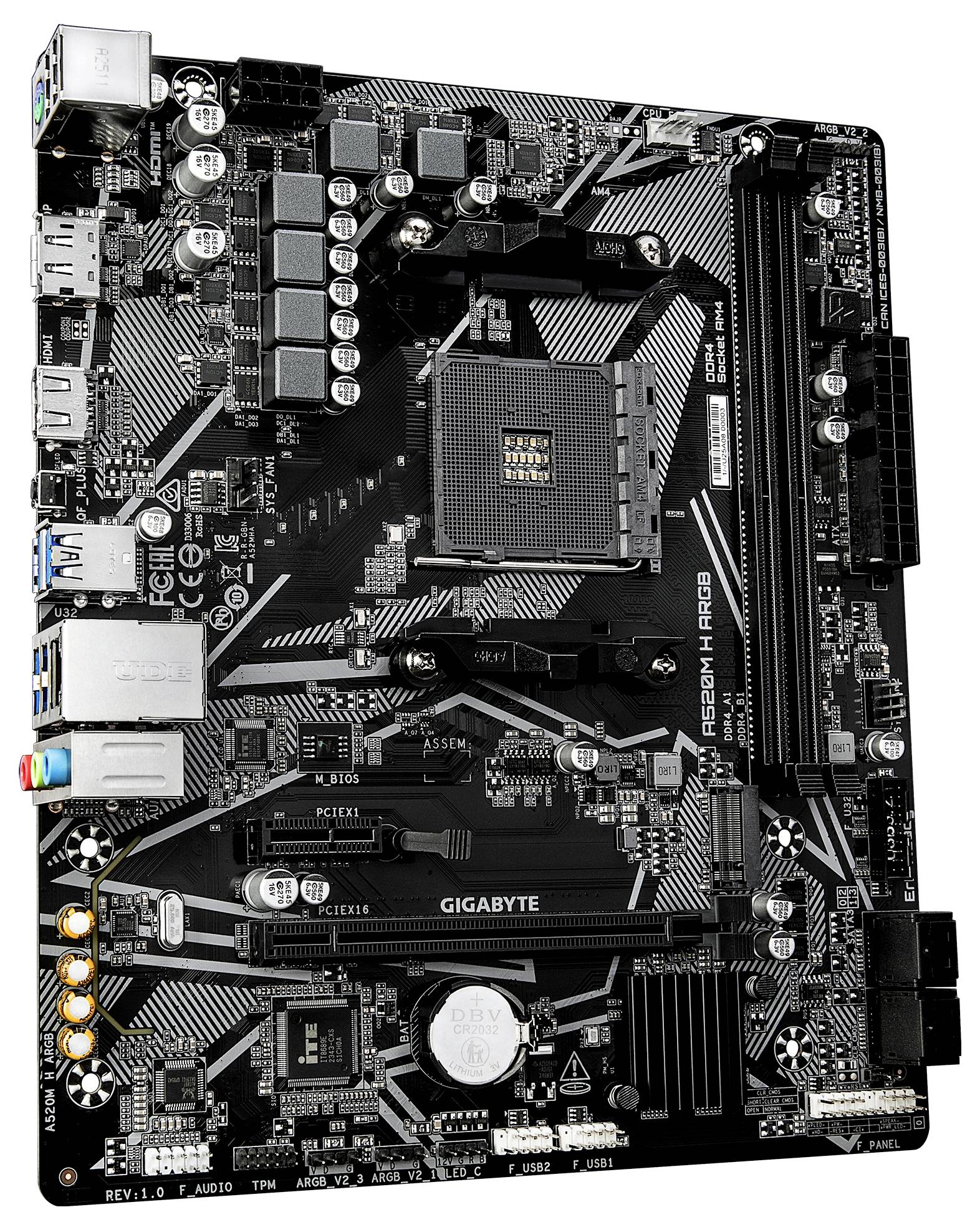

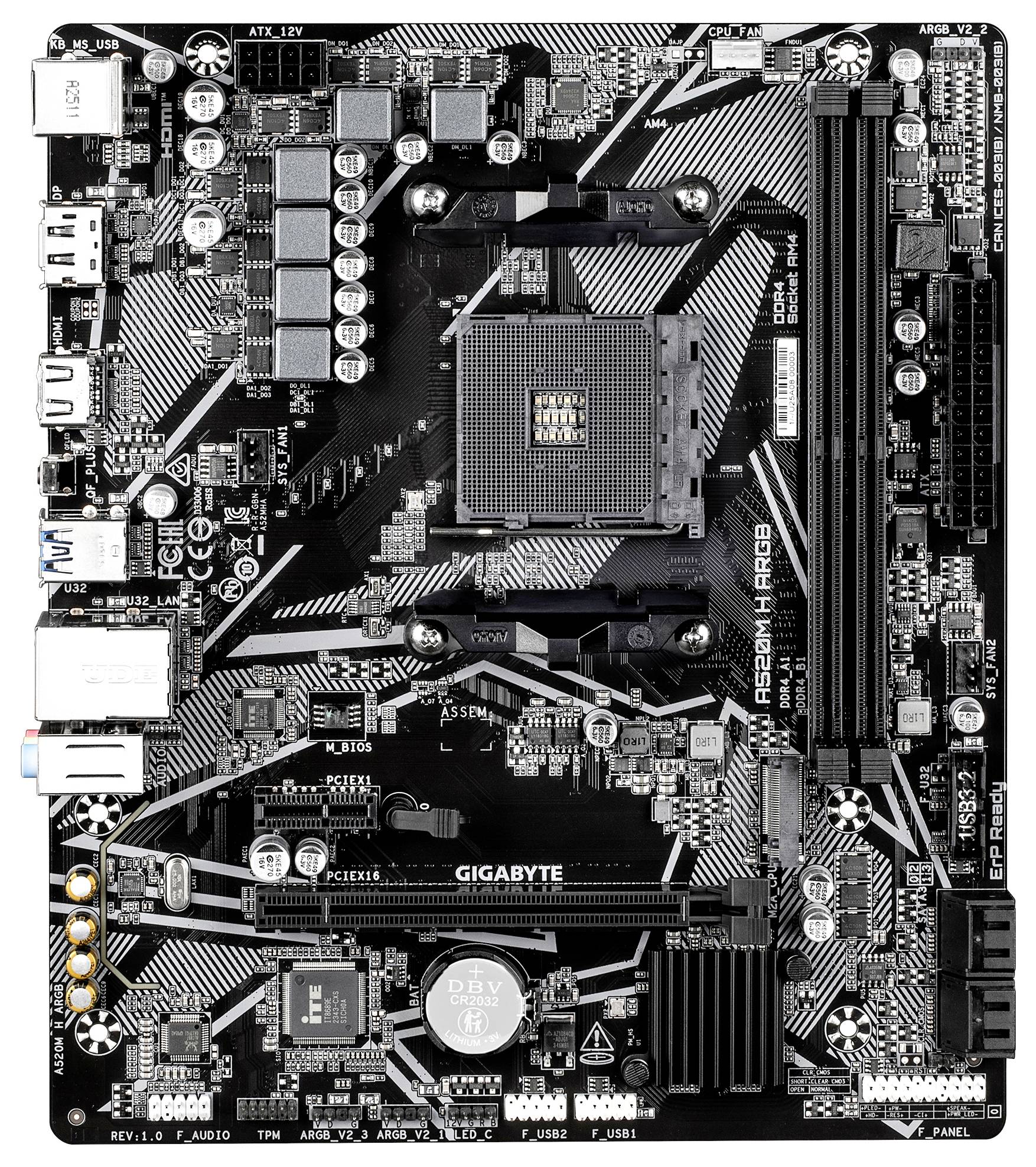

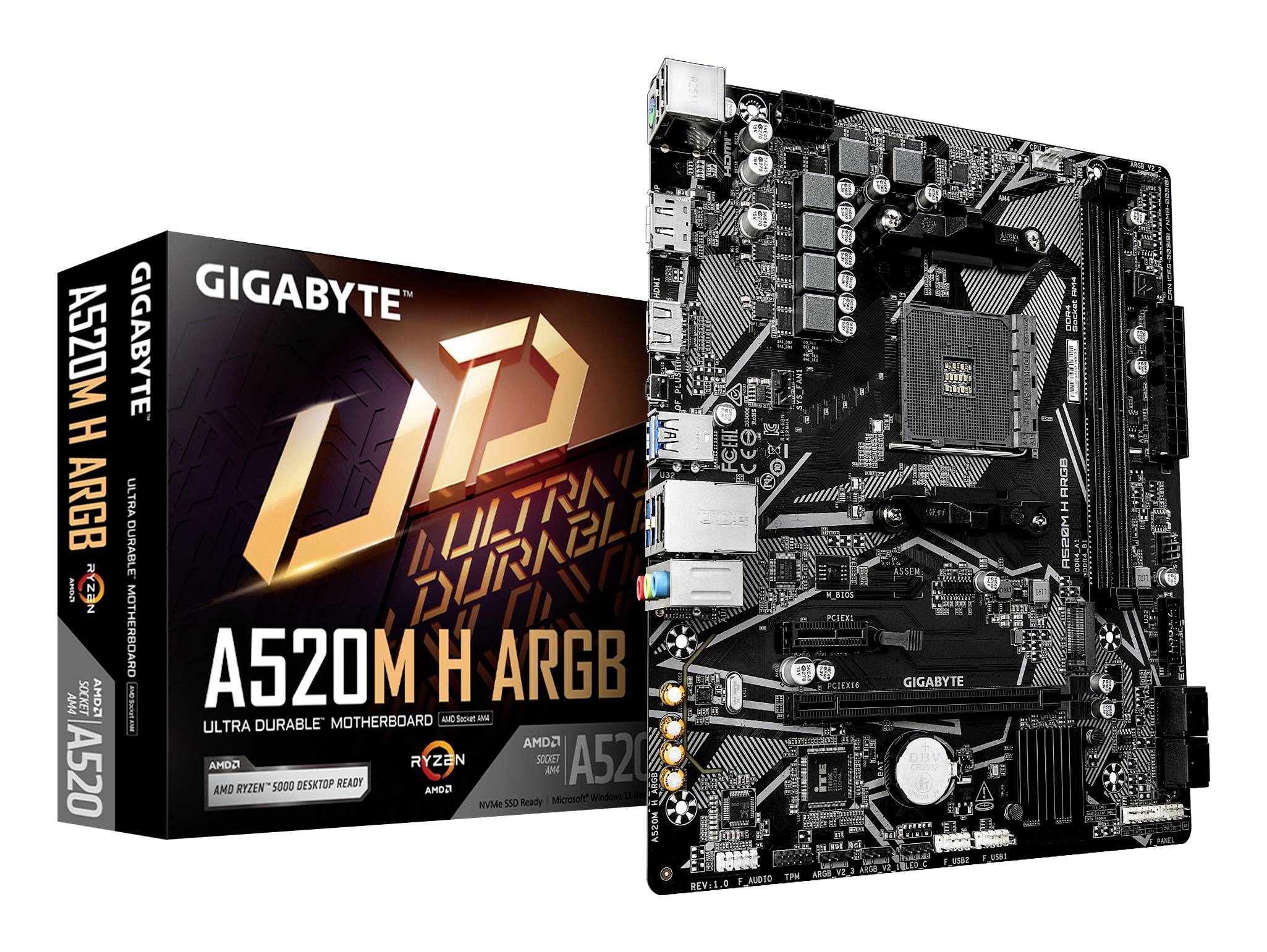

Gigabyte A520M H ARGB Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® A520
EAN:
Part number:
Item no:
Gigabyte A520M H ARGB Motherboard
Highlights & Details
- AMD socket AM4 AMD Ryzen 3000 series, AMD Ryzen 4000 series, AMD Ryzen 5000 series, AMD Ryzen PRO 3000 series, AMD Ryzen PRO 4000 series, AMD Ryzen PRO 5000 series
- PC micro ATX AMD A520 Realtek ALC897 7.1 channels
- DDR4 SDRAM 2 DIMM RAM maximum: 64 GB
- HDD & SSD M.2, PCI Express 3.0, SATA III RAID-support Number of supported storage drives: 5
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
- Gigabit Ethernet
Technical specifications
- Socket AM4
- Supported processor slots: Socket AM4
- HDMI version 2.1
- AMD A520 motherboard chipset
- Product color: Dark brown
- Motherboard form factor: Micro ATX
- Battery technology: Lithium-manganese dioxide (LiMnO2)
- Product type
Motherboard
- Chipset
AMD® A520
AMD AM4
- Form factor
Micro-ATX
- RAM type
DIMM
- Clock speed
5100 MHz
- RAM / Max. upgrade
64 GB
- No. of DDR4 slots
2 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Depth
198 mm
- Height
35 mm
- Width
233 mm
- Display resolution
5120 x 2880 Pixel
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Christmas lighting features
12.0
- Cooling
Passive
- HDCP
Yes
- Battery capacity
220 mAh
- 10/100/1000 Mbps ports
1 x
- Software included
Norton® Internet Security (OEM version)
- Range of use
PC
- Weight
700 g
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
128 Mbit
- Screws included
yes
- Line-in
yes
- Ethernet LAN
yes
- PCI Express x1 (Gen 3.x) slots
1
- Number of memory slots
2
- Number of M.2 (M) slots
1
- Products per shipping (inner) case
1 Stück(e)
- Headphone outputs
1
- Microphone in
yes
- Front panel connector
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- TPM connector
yes
- RGB LED pin header
yes
- Supported memory clock speed (max)
5100 MHz
- Lithium weight per battery
0.07 g
4
1
1
32 GB
- Battery weight
3 g
- Batteries included
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
772 g
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Clear CMOS jumper
yes
- Number of storage drives supported
5
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3756392 Gigabyte A520M H ARGB Motherboard PC base AMD AM4 Form factor (details) Micro-ATX Motherboard chipset AMD® A520
Description
Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.
This text is machine translated.
This text is machine translated.
Features
- Supports AMD Ryzen 5000 series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and 3000 G-Series processors
- Dual channel ECC/ non-ECC unbuffered DDR4, 2 DIMMs
- Integrated ARGB connector and Q-Flash Plus button
- PCIe Gen3 x4 M.2 with support for PCIe NVMe & SATA mode
- Fast network: GbE LAN
- 8 channel HD audio with high quality audio capacitors
- Rear HDMI and D-Sub ports for multi-display support
- Smart fan 6 offers several temperature sensors, hybrid fan connections with fan stop
- Gigabyte CONTROL CENTER (GCC), simple and user-friendly
