Gigabyte B550 EAGLE WIFI6 Motherboard PC base AMD AM4 Form factor (details) ATX Motherboard chipset AMD® B550
EAN:
Part number:
Item no:

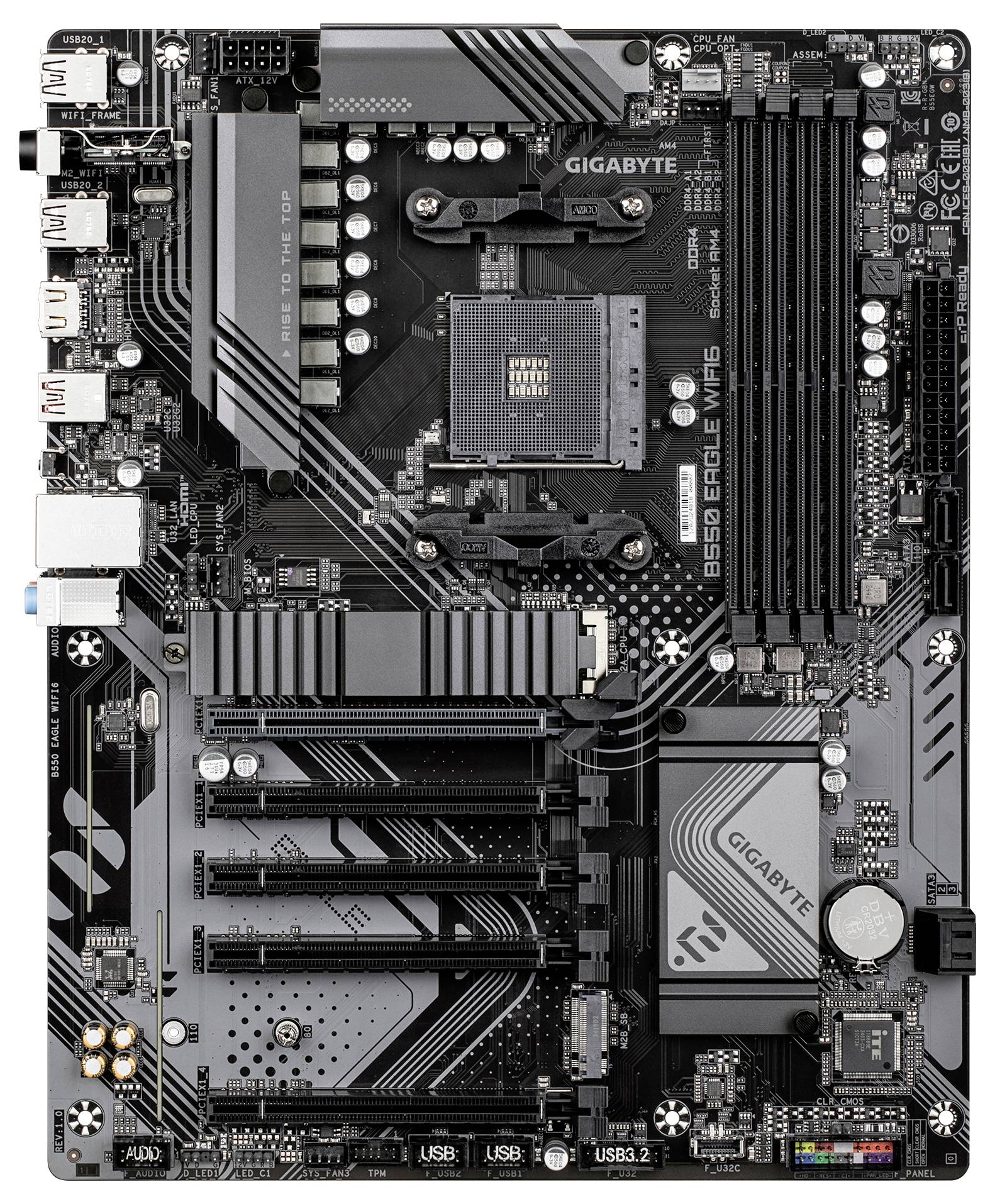

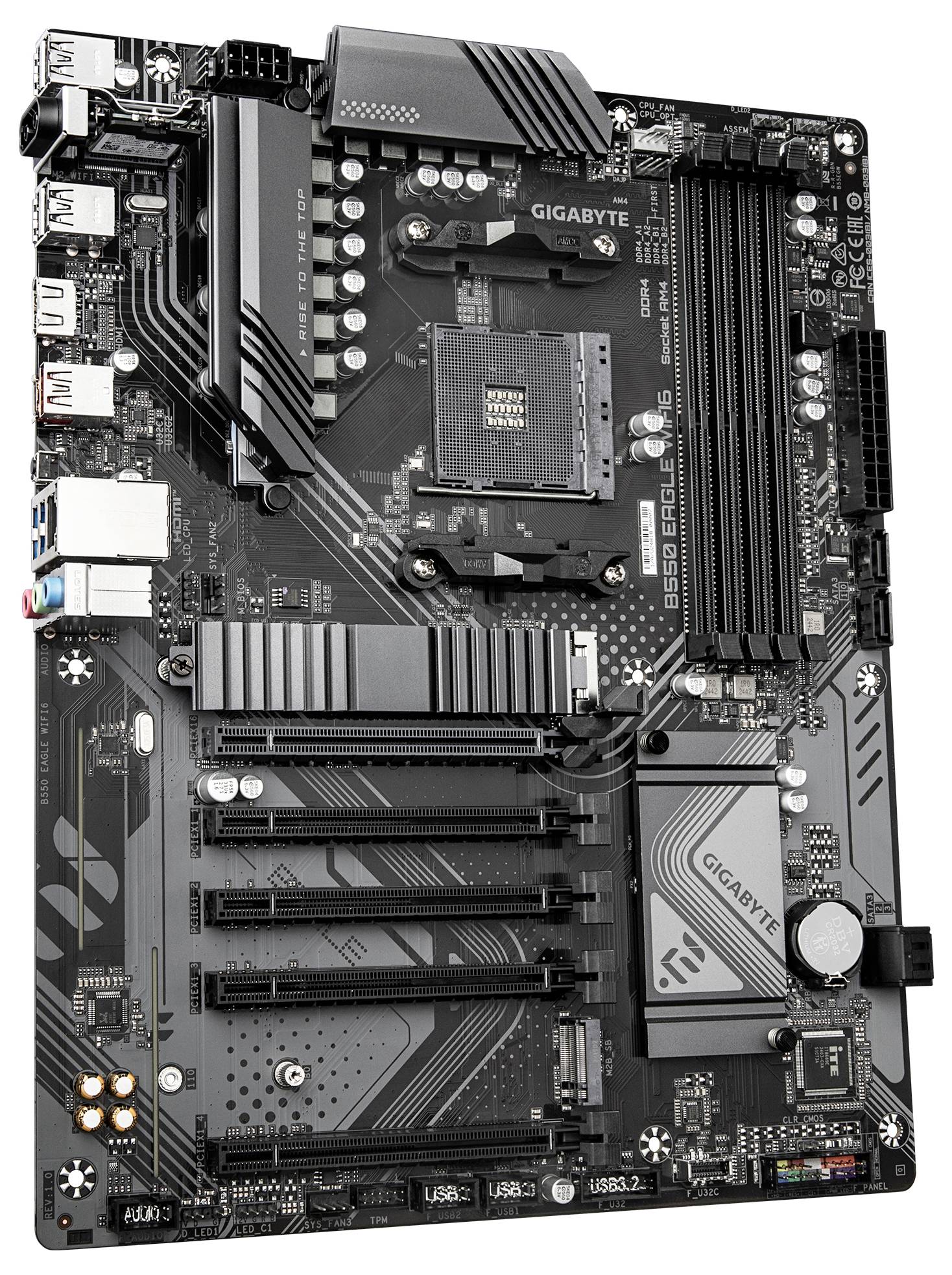

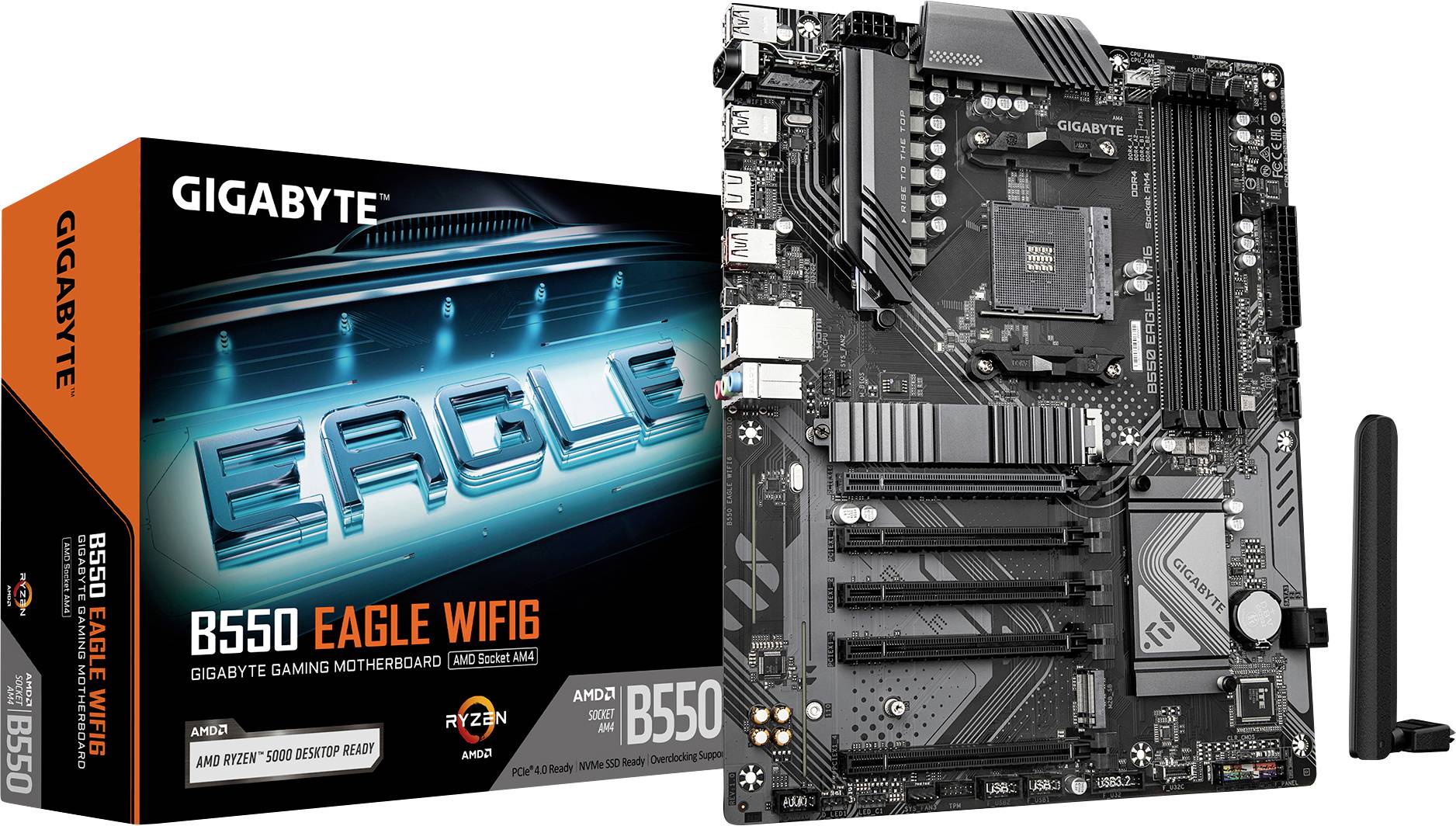

Gigabyte B550 EAGLE WIFI6 Motherboard
Highlights & Details
- AMD socket AM4 AMD Ryzen 3000 series, AMD Ryzen 4000 series, AMD Ryzen 5000 series
- PC ATX AMD B550 Realtek ALC897 7.1 channels
- DDR4 SDRAM 4 DIMM RAM maximum: 128 GB
- HDD & SSD M.2, PCI Express 4.0, SATA III RAID-support Number of supported storage drives: 6
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
- Gigabit Ethernet WLAN Wi-Fi 6 (802.11ax) Bluetooth 5.3
Technical specifications
- Socket AM4
- Supported processor slots: Socket AM4
- ECC compatibility: ECC and non-ECC
- Maximum internal memory per slot: 32 GB
- Number of CPU fan ports: 2
- Number of EPS power connections (4-pin): 1
- Number of water pump connections: 1
- Number of RGB LED pin strips: 5
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- AMD B550 motherboard chipset
- Product color: Dark brown
- 1. M.2 Largest key size: 22110
- 1. M.2 highest PCI Express generation: 4.0
- 2. M.2 Largest key size: 22110
- 2. M.2 highest PCI Express generation: 3.0
- Battery technology: Lithium-manganese dioxide (LiMnO2)
- Product type
Motherboard
- Chipset
AMD® B550
AMD AM4
- Form factor
ATX
- RAM type
DDR4 SDRAM
- RAM / Max. upgrade
128 GB

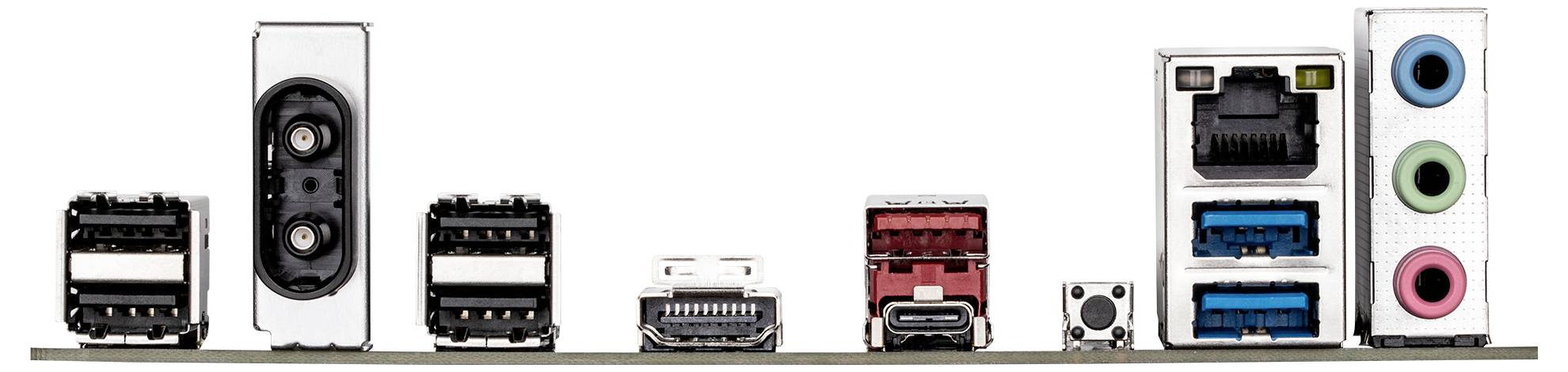

- Interfaces
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
USB A (USB 3.1 2nd gen)
HDMI™
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of SATA III ports
4 x
- Bluetooth
5.3
- Bluetooth
Yes
- Depth
244 mm
- Height
35 mm
- Width
305 mm
- Display resolution
4096 x 2160 Pixel
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
1 x
- Christmas lighting features
12.0
- Cooling
Passive
- Software included
Norton® Internet Security (OEM version)
LAN bandwidth management software
- Range of use
PC
- Weight
1.25 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
128 Mbit
- Screws included
yes
- Line-in
yes
- Ethernet LAN
yes
- Antenna included
yes
- PCI Express x1 (Gen 3.x) slots
4
- Number of memory slots
4
- Number of M.2 (M) slots
2
- Products per shipping (inner) case
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Headphone outputs
1
- Microphone in
yes
- Front panel connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
2
- TPM connector
yes
- RGB LED pin header
yes
- Supported memory clock speed (max)
3200 MHz
- Lithium weight per battery
0.07 g
- Battery weight
3 g
- Batteries included
yes
- HDCP
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.48 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Unbuffered memory
yes
- Clear CMOS jumper
yes
- Number of storage drives supported
6
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3376580 Gigabyte B550 EAGLE WIFI6 Motherboard PC base AMD AM4 Form factor (details) ATX Motherboard chipset AMD® B550
Description
Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
This text is machine translated.
This text is machine translated.
Features
- AMD socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 series processors
- Digital twin VRM design with 10+3+1 phases
- Dual channel DDR4: 4 DIMMs with AMD EXPO memory module support
- EZ-Latch: PCIe slots with Quick Release design
- Friendly user interface: Multi-theme, AIO fan control and Q-Flash Auto Scan in BIOS and software.
- Ultra-fast memory: 2 M.2 slots, including PCIe 4.0 x1
- Efficient cooling: VRM Thermal Armor Advanced
- Fast network connection: GbE LAN & Wi-Fi 6
- Advanced connectivity: HDMI, DisplayPort
- PCIe UD slot: PCIe 4.0 x16 slots with 10 times strength for graphics cards and improved heat dissipation
