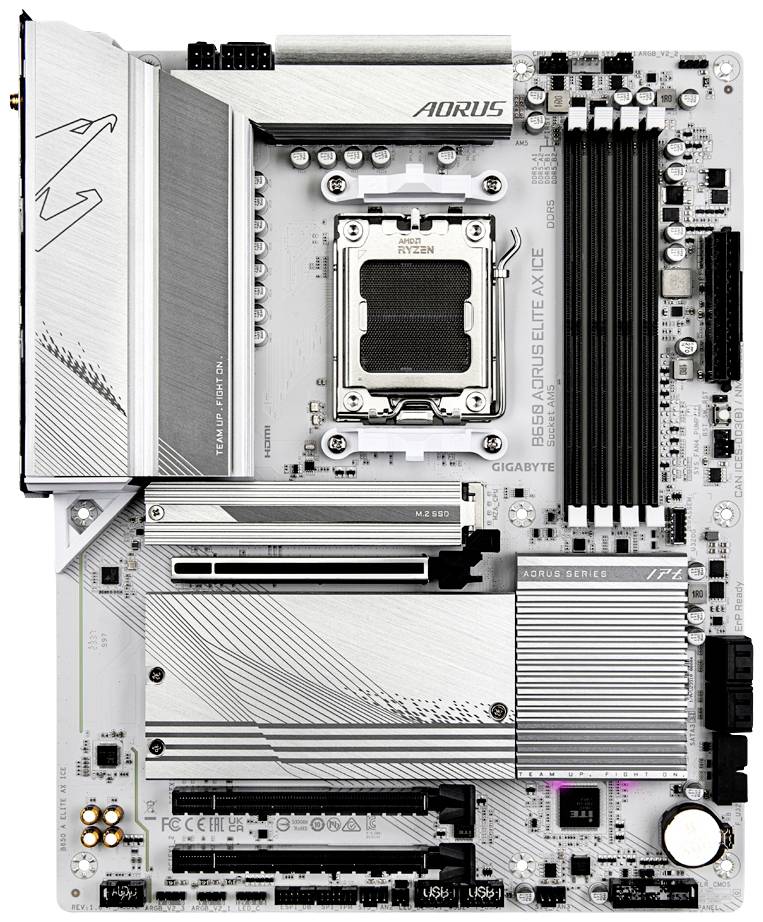

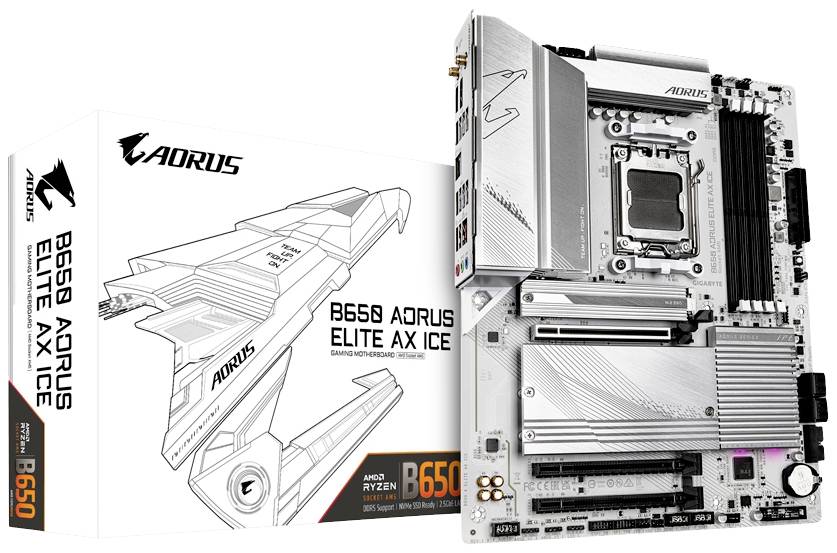

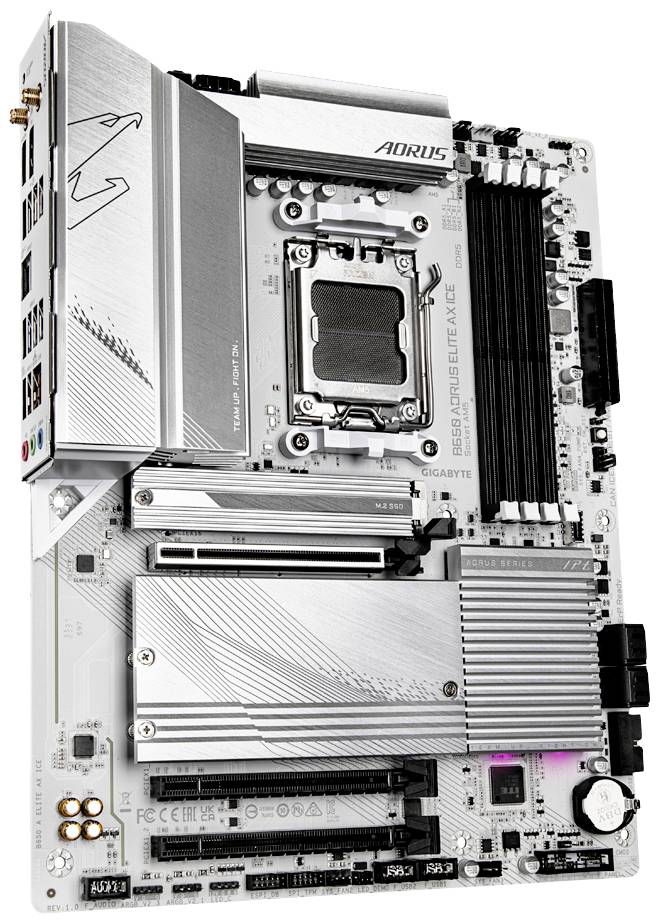

Name: Gigabyte B650 AORUS ELITE AX ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B65
Brand: Gigabyte
SKU: 3045575

Gigabyte B650 AORUS ELITE AX ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B65-0

Gigabyte B650 AORUS ELITE AX ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B65-1

Gigabyte B650 AORUS ELITE AX ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B65-2

Gigabyte B650 AORUS ELITE AX ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B65-3

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP), AMD EXPO technology
Audio type: HD audio (8-channel)
Audio-compatibility: High-definition audio
Network controller: Realtek RTL8852CE
Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 4.0 x16; 2 x PCIe 3.0 x16 (1x mode); 3 x M.2 socket (2280/25,110 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10; PCIe 1 ports: 2 x M.2 - RAID 0 / RAID 4.0 / RAID 10; PCIe 5.0 ports: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

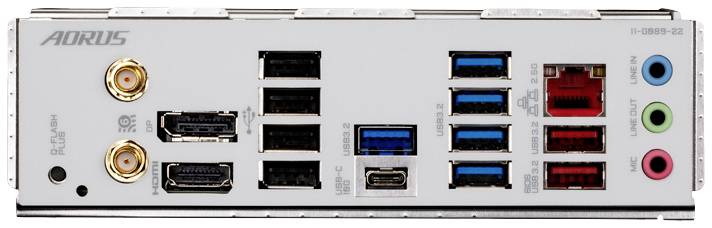

External interfaces: 1 x HDMI; 1 x DisplayPort; 1 x audio line out – mini jack plug; 1 x microphone – mini jack plug; 1 x USB-C 3.2 Gen 2; 2 x USB 3.2 Gen 2; 4 x USB 1; 5 x USB 3.2 Gen 2.0; 2 x antenna; 1 x LAN (2.5Gigabit Ethernet); 1 x audio line in
Internal interfaces: 4 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2x2 - pin strip; 1 x audio - pin bar; 1 x SPI - pin header; 1 x serial - pin header
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS Features: WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware monitoring: System voltage, water cooling flow rate, fan failure warning, fan speed detection, temperature detection
Hardware features: Q-Flash, Ultra Durable, 2x copper PCB, 6 layers PCB, Q-flash plus, RGB FUSION, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, solid pin Power connectors, DIY friendly design, Gigabyte Smart fan 6, MultiKey, VRM heat sink design, PCIe EZ-lock, M.2 Thermal Guard Ext., M.2 EZ Latch Plus, 12+2+2 Phase Power design

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: ATX

Processor/type: Ryzen (unterstützt Ryzen 7000/8000 Series)

RAM type: DDR5 RAM

Clock speed: 5600 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6666 MHz
6600 MHz
7000 MHz
6800 MHz
4400 MHz
7200 MHz
5200 MHz
7600 MHz
7800 MHz
8000 MHz
Show more

RAM / Max. upgrade: 192 GB

Interfaces: HDMI™
DisplayPort
Audio line in
Audio line out
Microphone (3.5 mm jack)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 2nd gen)
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
Gigabit LAN (1/2.5 Gbps)
USB C® (USB 3.2 2x 2nd gen)
Bluetooth
Wi-Fi 6E (IEEE 802.11ax)
Show more

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 2 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 8 x

No. of USB 3.2 2nd Gen (USB 3.1): 2 x

No. of USB 3.2: 7 x

No. of USB 3.0 ports: 2 x

Depth: 300 mm

Height: 100 mm

Width: 300 mm

UKCA: yes
