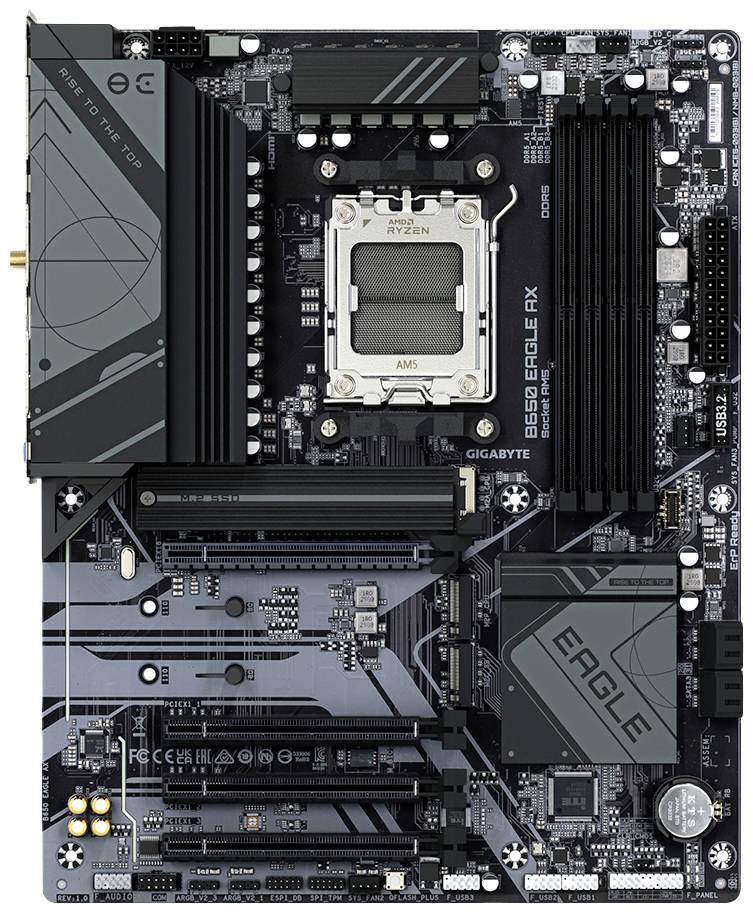

Motherboard with AM5 socket, multiple PCIe slots and four RAM slots. Labelled as 'B650 EAGLE AX'.

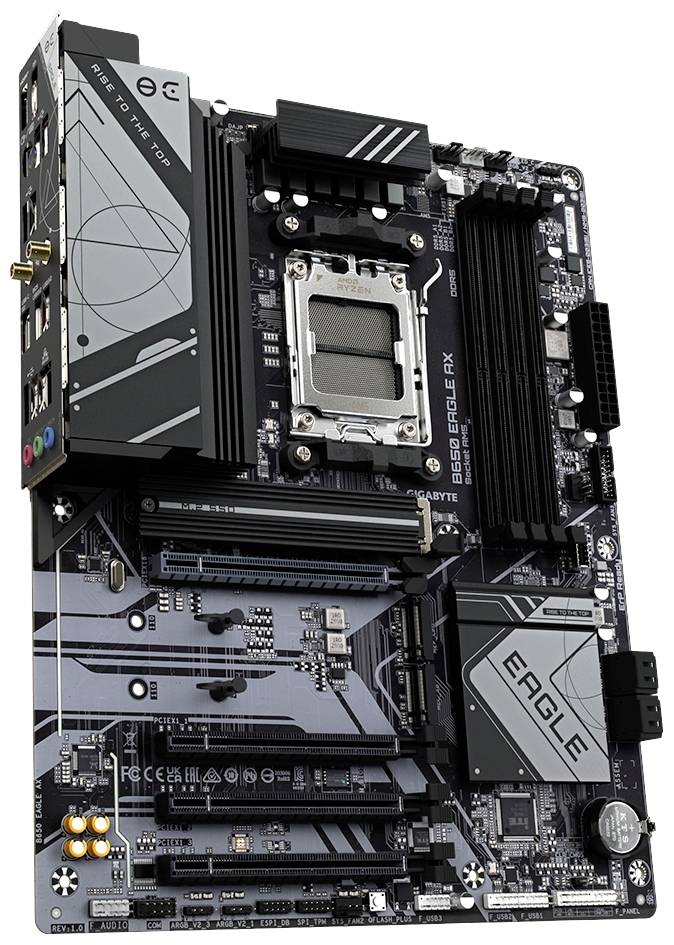

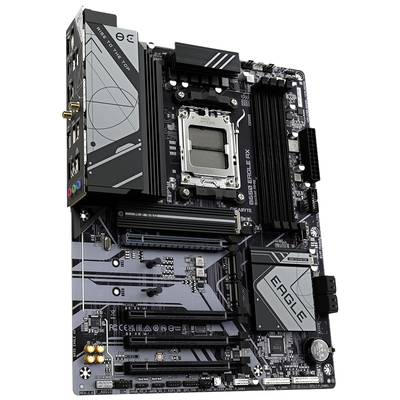

A black computer motherboard with multiple slots and connectors, including four RAM slots and several PCIe slots.

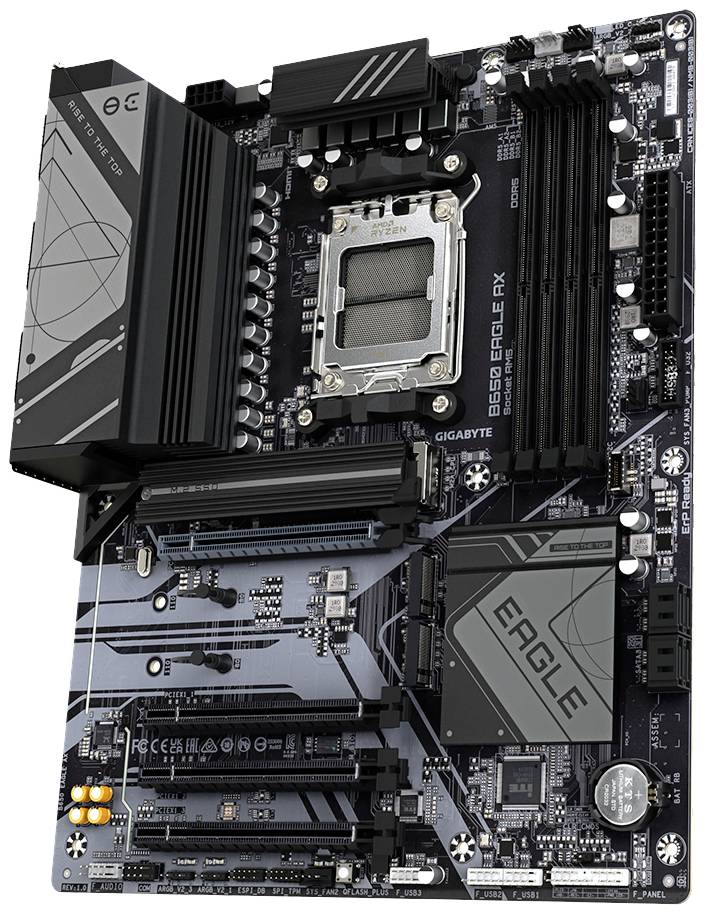

'Gigabyte motherboard with black design, CPU socket visible, multiple RAM slots, several expansion slots.'

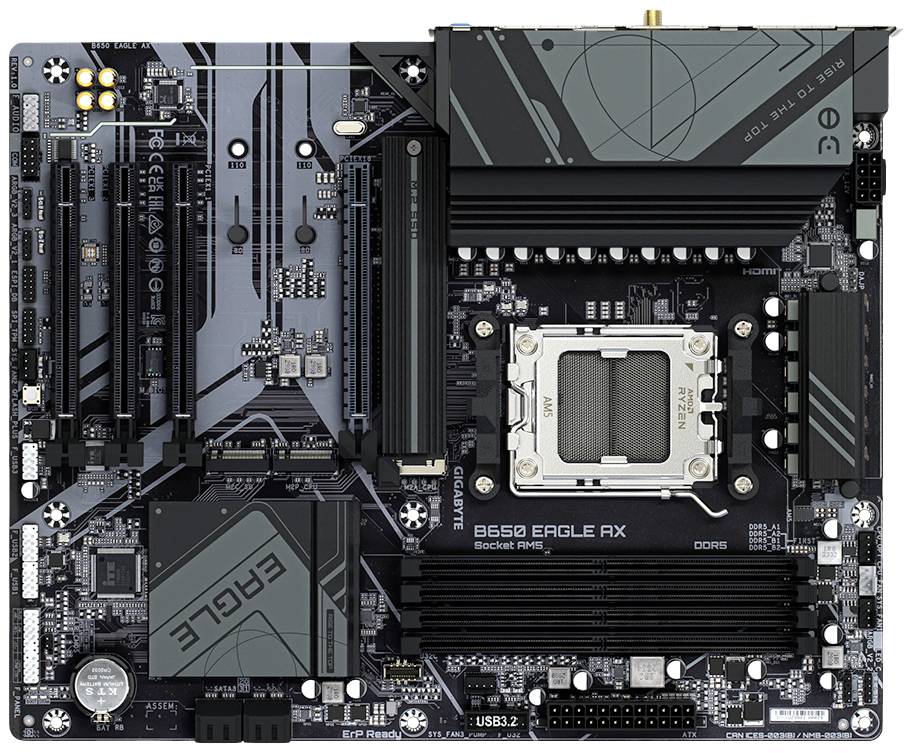

A black motherboard with various ports, chips, and components. In the centre, the CPU socket is located.

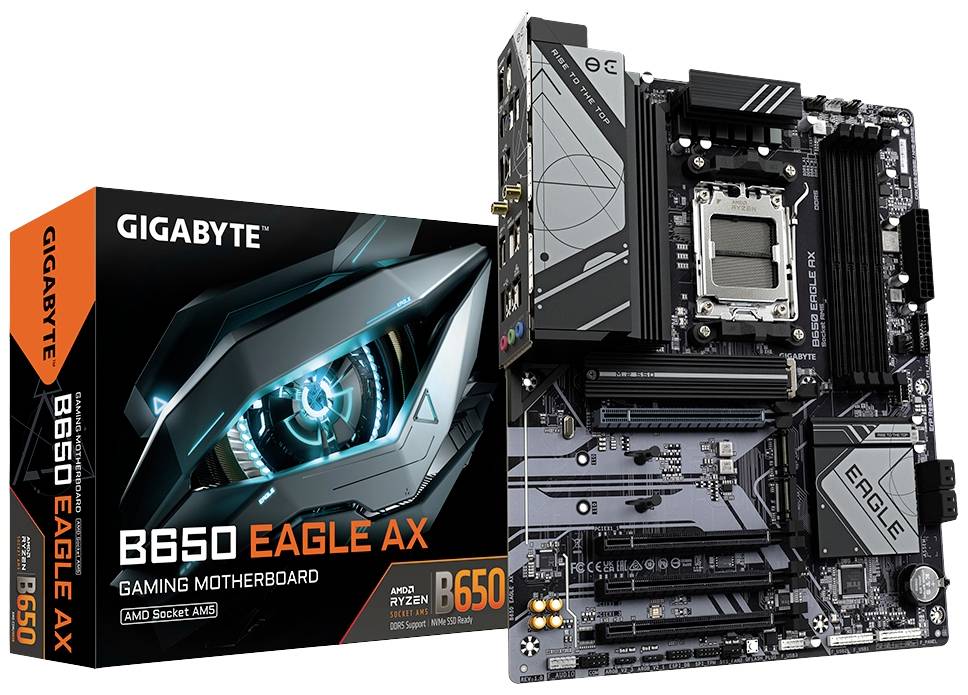

Motherboard 'GIGABYTE B650 EAGLE AX' with packaging. Supports AMD Ryzen processors, offers PCIe 5.0, WiFi 6E, and DDR5 memory.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Gigabyte B650 EAGLE AX Motherboard

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP), AMD EXPO technology
Audio type: HD audio (8-channel)
Audio-compatibility: High-definition audio
Network interfaces: Gigabit Ethernet
Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 4.0 x16; 3 x PCIe 3.0 x16 (1x mode); 3 x M.2 socket (2280/25,110 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10; PCIe 1 ports: 2 x M.2 - RAID 0 / RAID 4.0 / RAID 10; PCIe 5.0 ports: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
External interfaces: 1 2.0 x HDMI; 1 1 x DisplayPort; 1 2 x audio line-in – mini-jack plug; 1 x audio line-out – mini-jack plug; 1 x microphone – mini-jack plug; 6 x USB-C 3.2 Gen 2; 2 x USB 3.2; 1 x PS/1 keyboard/mouse; 1 x LAN (Gigabit Ethernet); 2 x antenna
Internal interfaces: 6 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 1 - multi-pin connector; 1 x audio - multi-pin connector; 1 x SPI - multi-pin connector; 1 x serial - pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS Features: WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware monitoring: System voltage, water cooling flow rate, fan failure warning, fan control, fan speed detection, Temperature detection
Hardware features: Q-Flash, Ultra Durable, 6 layer PCB, Q-Flash Plus, audio noise guard, RGB FUSION, M.2 Thermal Guard, pre-installed I/O shield, Gigabyte Smart Fan 6, PCIe EZ-locking, high-end audio capacitors, 12+2+2 Phase Power Design, MOSFET heatsink

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: ATX

Processor/type: Ryzen (unterstützt Ryzen 7000/8000 Series)

RAM type: DDR5 RAM

Clock speed: 5600 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
4400 MHz
7200 MHz
5200 MHz
7600 MHz
Show more

RAM / Max. upgrade: 192 GB

Interfaces: HDMI™
DisplayPort
Audio line in
Audio line out
Microphone (3.5 mm jack)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB A (USB 2.0)
PS/2
Gigabit LAN (1 Gbps)
USB A (USB 3.2 1st gen)
Show more

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 3 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 12 x

No. of USB 3.2 2nd Gen (USB 3.1): 2 x

No. of USB 3.2: 2 x

No. of USB 3.0 ports: 2 x

No. of PS/2 ports: 1 x

Factory colour: Multicolour

Depth: 300 mm

Height: 100 mm

Width: 350 mm

Weight: 1.8

UKCA: yes
