Gigabyte B650E A STEALTH ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650
EAN:
Part number:
Item no:
Highlights & Details

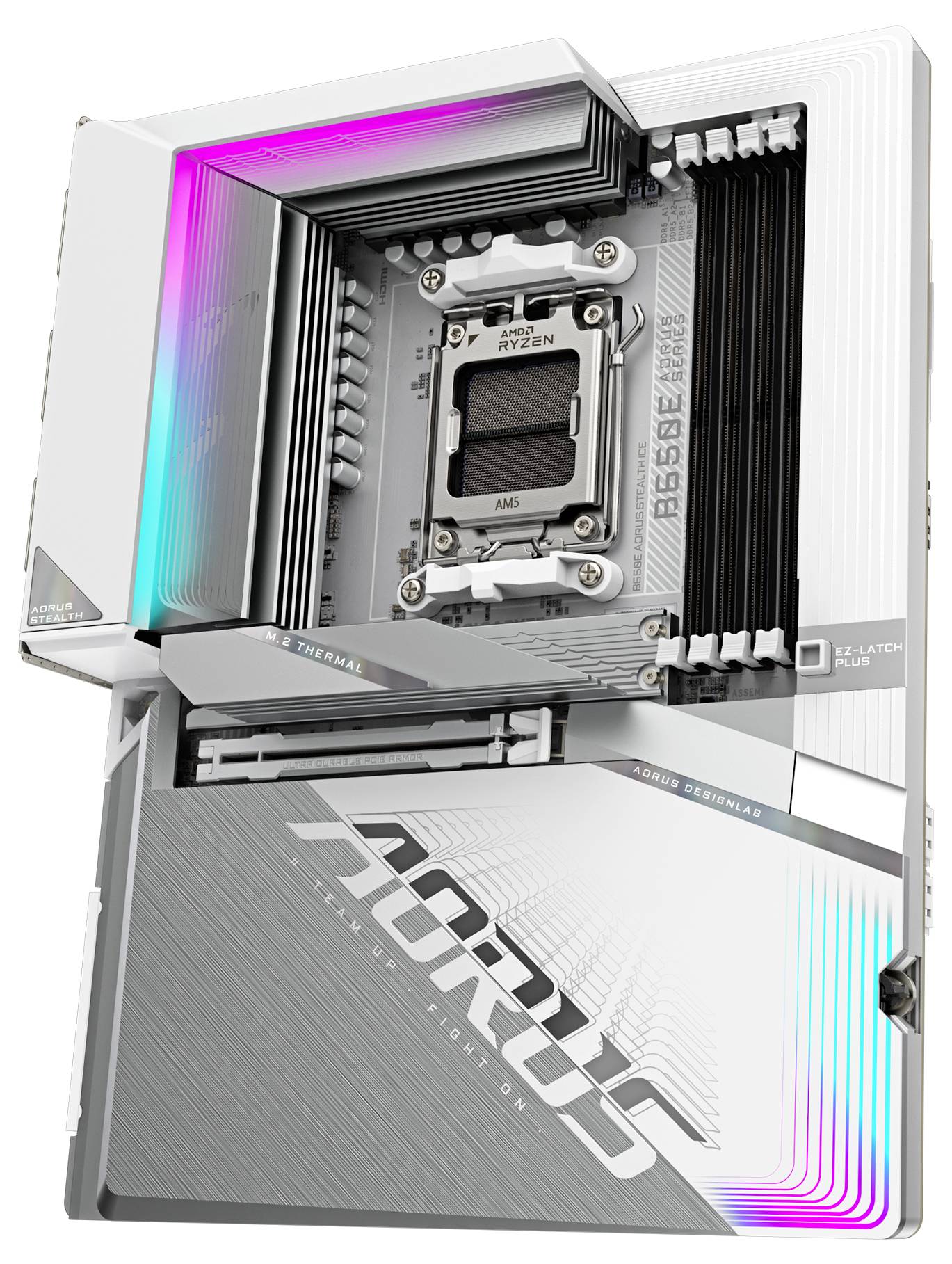

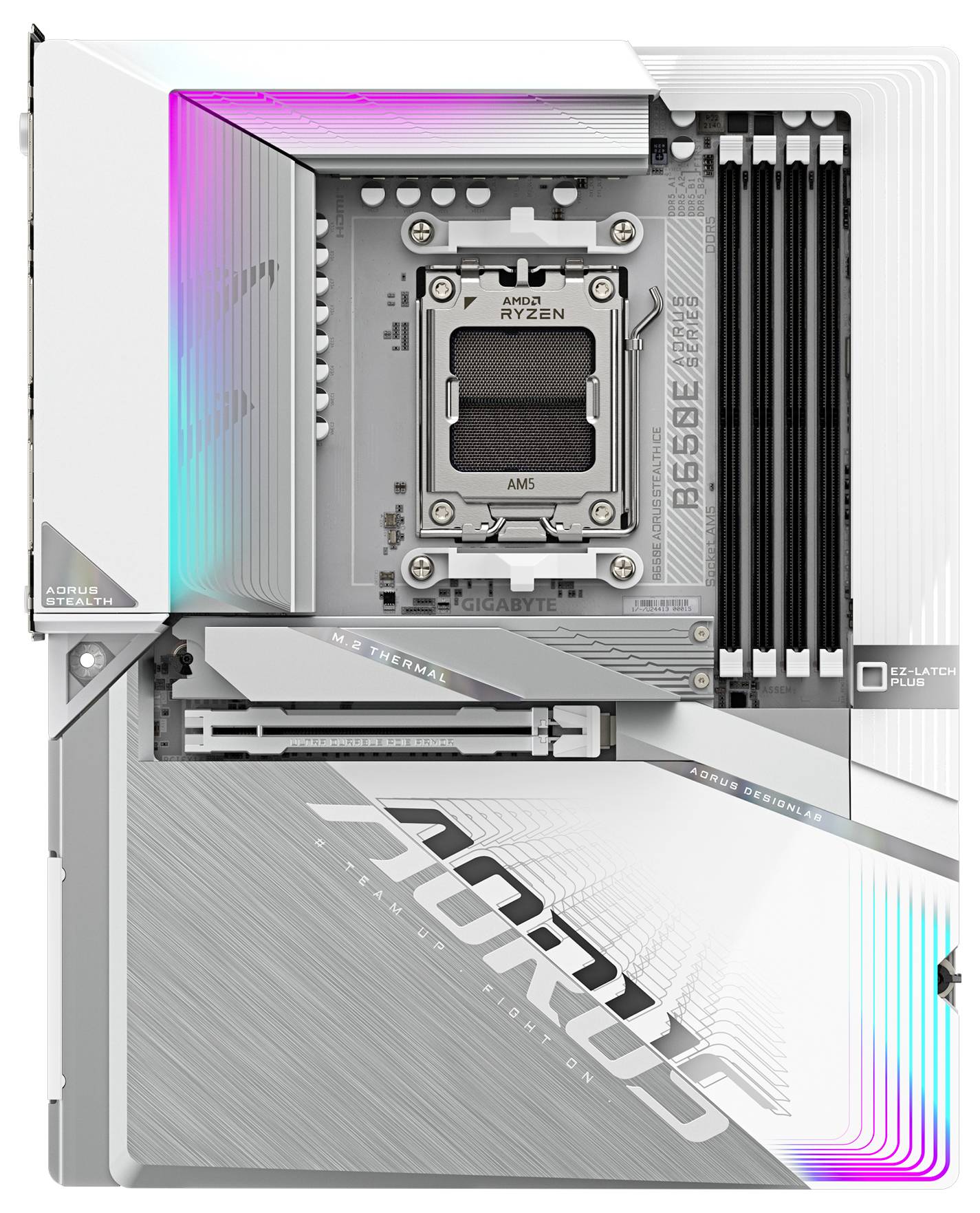

Gigabyte B650E A STEALTH ICE Motherboard
- AMD socket AM5 AMD Ryzen™ 7
- PC ATX AMD B650 7.1 channels
- DDR5 SDRAM 4 DIMM ECC Without ECC RAM Maximum: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket AM5
- Compatible Processors: AMD Ryzen™ 7
- Maximum number of SMP processors: 1
- Supported processor slots: Socket AM5
- Maximum internal memory supported by the processor: 192 GB
- Supported memory: DDR5 SDRAM
- Number of memory slots: 4
- RAM type DIMM
- Memory channels: Two-channel
- ECC: Yes
- Without ECC: Yes
- Supported memory speed: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7600,7800,8000 MHz
- Supported memory clock rate (max.): 8000 MHz
- RAM maximum: 192 GB
- Memory module capacities supported: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB
- Unbuffered memory: Yes
- Supported drives: HDD & SSD
- Supported drive interfaces: M.2, SATA III.
- Maximum number of HDD supported: 4
- Number of supported storage drives: 7
- RAID support: Yes
- RAID levels 0, 1, 5, 10
- Maximum resolution 4096 x 2160 pixel
- HDCP: Yes
- DirectX version: 12.1
- Number of USB 2.0 ports 2
- USB 3.2 Gen 1 (3.1 Gen 1) Connections 1
- USB 3.2 2x 2nd Gen ports 1
- SATA III connections 4
- Total number of SATA ports: 4
- Front Panel audio connector: Yes
- Front panel connector: Yes
- ATX power plug (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- 12 V power connection: Yes
- RGB LED pin strip: Yes
- Number of USB 2.0 connections 4
- USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Number of ports Type A: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Number of C-type connectors: 1
- Number of Ethernet LAN connections (RJ-45): 1
- Number of HDMI connections: 1
- HDMI version 2.1
- Number of DisplayPort connections: 1
- Display Ports Version: 1.4
- Ethernet/LAN: Yes
- Ethernet interface type 2.5 Gigabit Ethernet
- Top WLAN standard Wi-Fi 7 (802.11b)
- WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model MediaTek MT7925
- AMD B650 motherboard chipset
- Audio channels: 7.1 channels
- PC health monitoring: Fan, temperature, voltage
- Component for: PC
- Motherboard form factor ATX
- Motherboard Chipset family: AMD
- Supports Windows operating systems: Windows 11 x64
- PCI-Express x16 slots: 3
- Number of M.2 (M) slots: 3
- BIOS TYPE UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) Version: 2.7
- System Administration BIOS (SMBIOS) Version: 2.7
- Quantity per shipping box: 1 pieces(s)
- Battery weight 3 g
- Lithium weight per battery 0.07 g
- Number of battery cells: 1
- Battery/battery type CR2032
- Supplied cable SATA
- Batteries/rechargeable batteries included: Yes
- Drivers included: Yes
- Supplied software: Norton Internet Security (OEM version)
- LAN bandwidth management software
- Product type
Motherboard
- Chipset
AMD® B650
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
192 GB
- No. of PCIe x16
3 x
- No. of USB 2.0 ports
2 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
White
- Depth
244 mm
- Height
35 mm
- Width
305 mm
- Display resolution
4096 x 2160 Pixel
- Design height
35 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB ports
4 x
- No. of memory slots
4
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
5 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- HDCP
Yes
- Mobile internet
WiFi
- No. of HDMI connections
1
- Video resolution
4096 x 2160 Pixel
- Range of use
PC
- Wi-Fi
built-in
- Wi-Fi
Yes
- Battery / technology
Lithium manganese Dioxide (LiMnO2)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3221968 Gigabyte B650E A STEALTH ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650
Description
Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
This text is machine translated.
This text is machine translated.
Features
- Processor manufacturer: AMD
- Socket AM5
- Compatible Processors: AMD Ryzen™ 7
- Supported memory: DDR5 SDRAM
- RAM maximum: 192 GB
- RAM type DIMM
- Supported drive interfaces: M.2
- SATA III
- Supported drives: HDD & SSD
- RAID levels 0
- 1
- 5
- 10
- Maximum resolution 4096 x 2160 pixel
- Ethernet interface type 2.5 Gigabit Ethernet
- Top WLAN standard Wi-Fi 7 (802.11b)
- WLAN-standards 802.11a
- 802.11b
- 802.11g
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7
