Name: Gigabyte B650M S2H - 1.0 Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B650
Brand: Gigabyte
SKU: 3045529

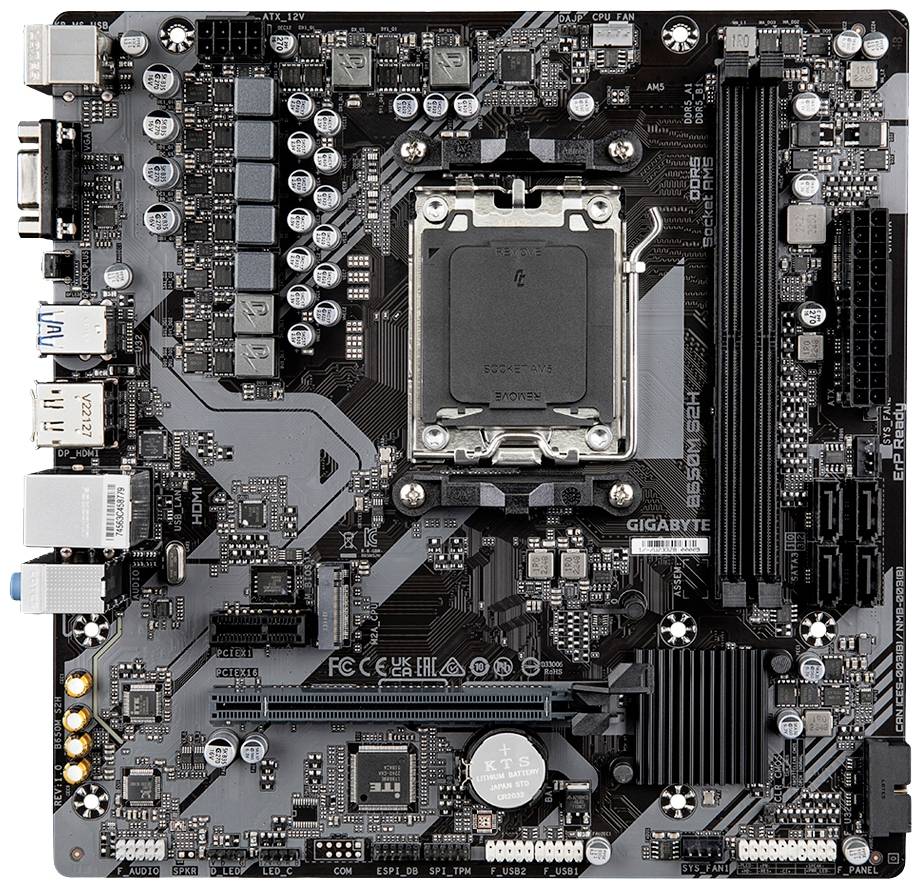

Computer motherboard with multiple ports, expansion slots, and a CPU socket, suitable for hardware and system integration.

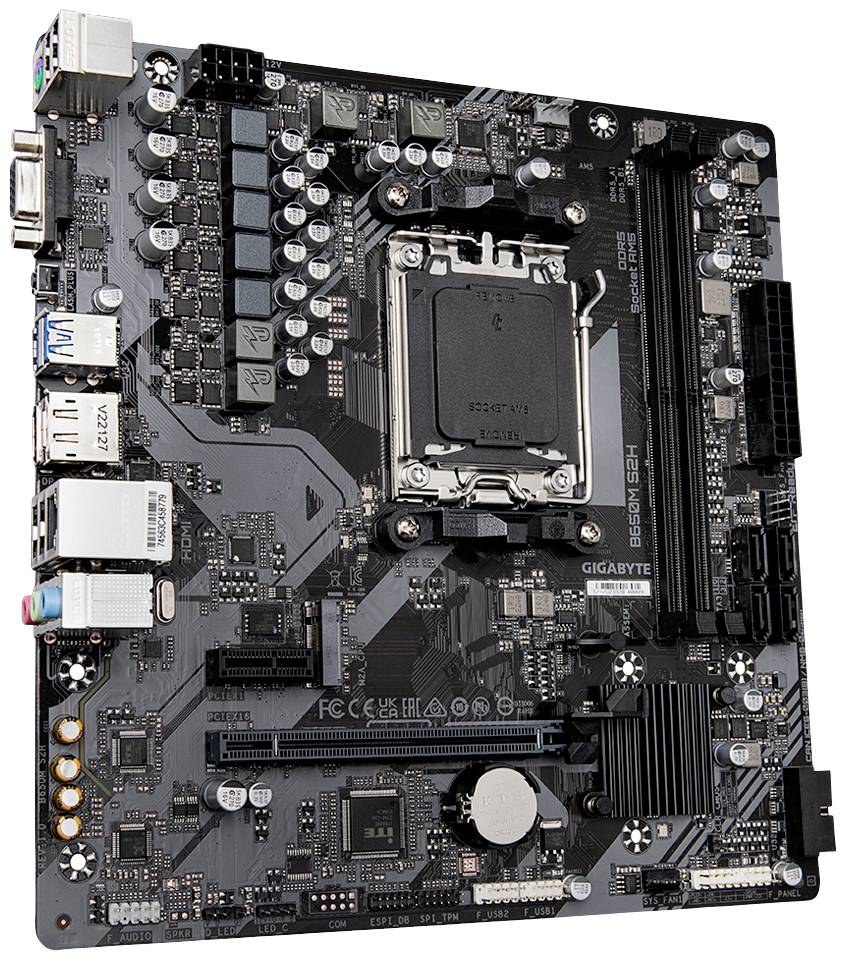

A black computer motherboard with multiple expansion slots and connectors, suitable for technological hardware extensions.

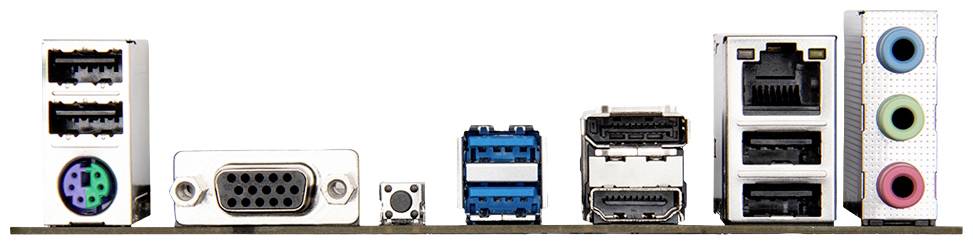

Back of a computer motherboard with various ports: USB, VGA, HDMI, Ethernet and audio for connecting different devices.

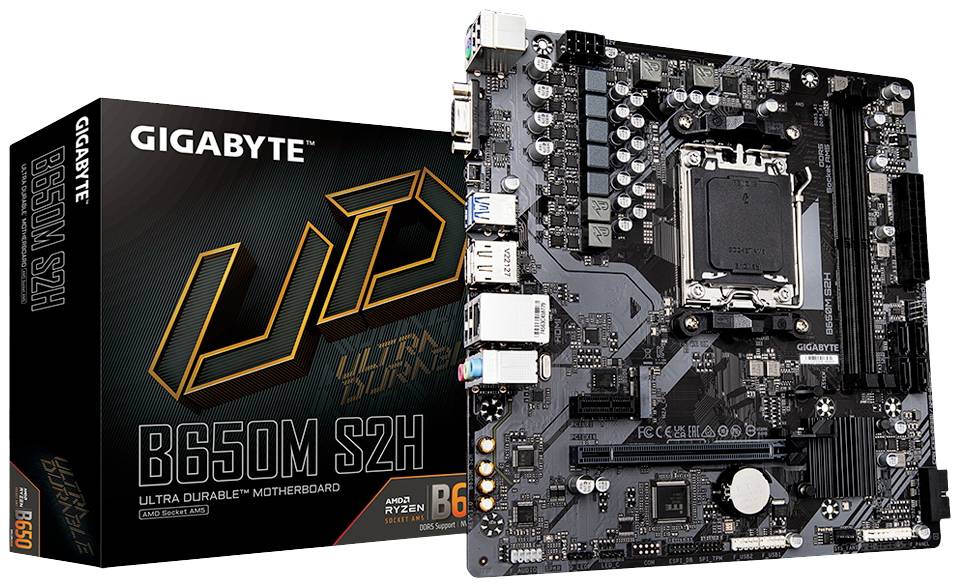

Main image shows a Gigabyte B650M S2H motherboard beside its packaging. The focus is on the technical configuration of the circuit board.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP), AMD EXPO technology
Audio type: HD audio (8-channel)
Audio-compatibility: High-definition audio
Network interfaces: Gigabit Ethernet
Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x1; 1 x M.2 socket (2580 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 4.0 ports 1 x M.2
External interfaces: 1 x HDMI; 1 x VGA; 4 x USB 2.0; 2 x USB 3.2 Gen 1; 1 x LAN (Gigabit Ethernet); 1 x Audio Line Out - Mini jack plug; 1 x Audio Line In - Mini jack plug; 1 x Microphone - Mini jack plug; 1 x DisplayPort; 1 x PS/2 keyboard/mouse
Internal interfaces: 1 x SPI multi-pin connector; 1 x audio multi-pin connector; 4 x USB 2.0 multi-pin connector; 2 x USB 3.2 Gen 1 multi-pin connector; 1 x audio multi-pin connector
Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
BIOS type: AMI
BIOS Features: WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware monitoring: System voltage, water cooling flow rate, fan failure warning, fan control, fan speed detection, Temperature detection
Hardware features: Q-flash, Q-flash plus, RGB FUSION, DIY friendly design, Gigabyte Smart fan 6, 5+2+2 phase Power design, PCIe EZ-locking

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: Micro-ATX

Processor/type: Ryzen (unterstützt Ryzen 7000 Series)

RAM type: DDR5 RAM

Clock speed: 5600 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
4400 MHz
5200 MHz

RAM / Max. upgrade: 96 GB

Interfaces: HDMI™
VGA
DisplayPort
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
Gigabit LAN (1 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
PS/2

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 8 x

No. of USB 3.2: 4 x

No. of PS/2 ports: 1 x

Depth: 300 mm

Height: 100 mm

Width: 300 mm

UKCA: yes
