Name: Gigabyte B760 GAMING X D4 GEN5 Motherboard PC base #####Intel® FC LGA 1700 Form factor (details) ATX Motherboard chipset
Brand: Gigabyte
SKU: 3720871

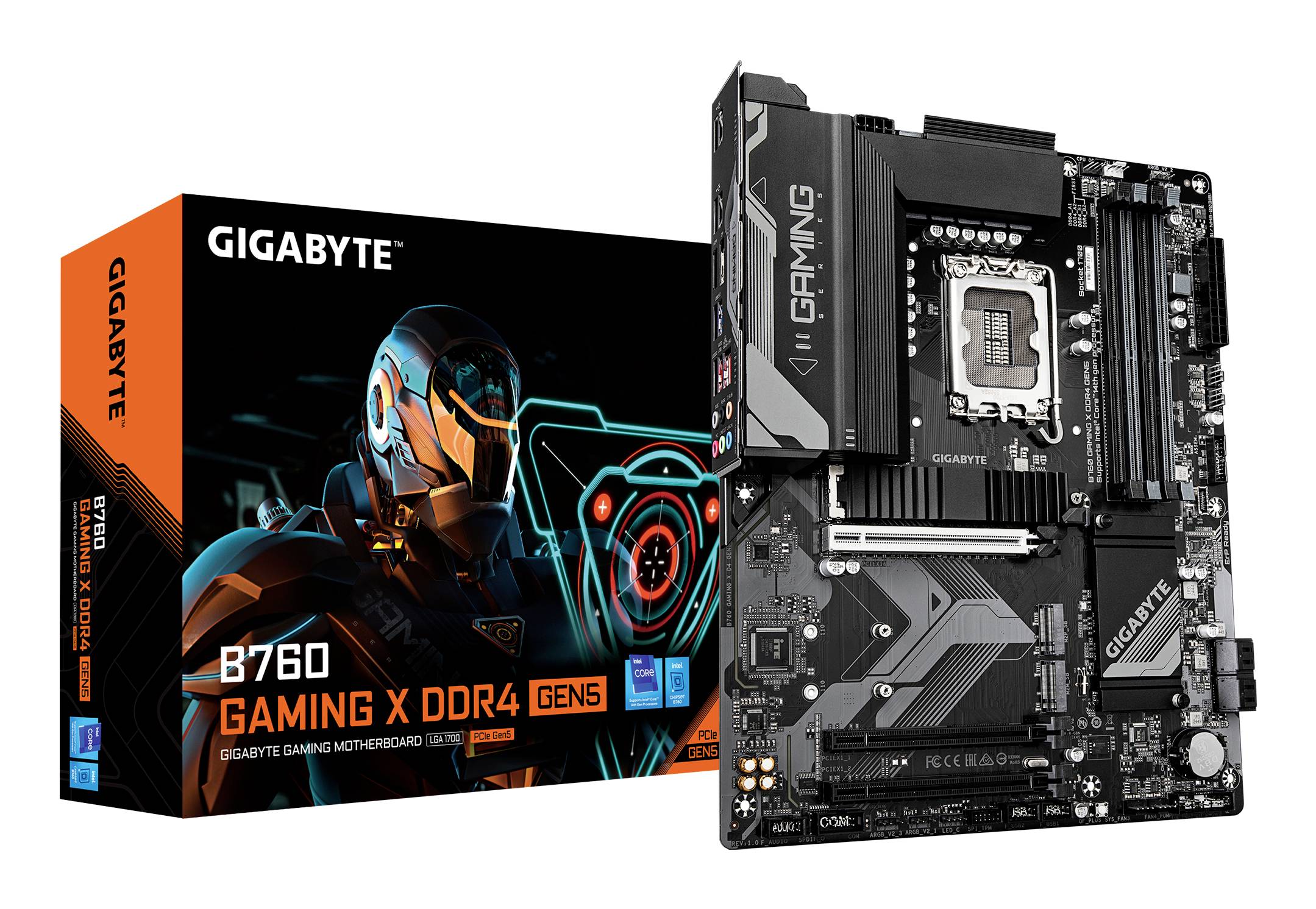

A GIGABYTE B760 Gaming X DDR4 motherboard shown next to its box. The box features futuristic artwork with an orange-blue color scheme.

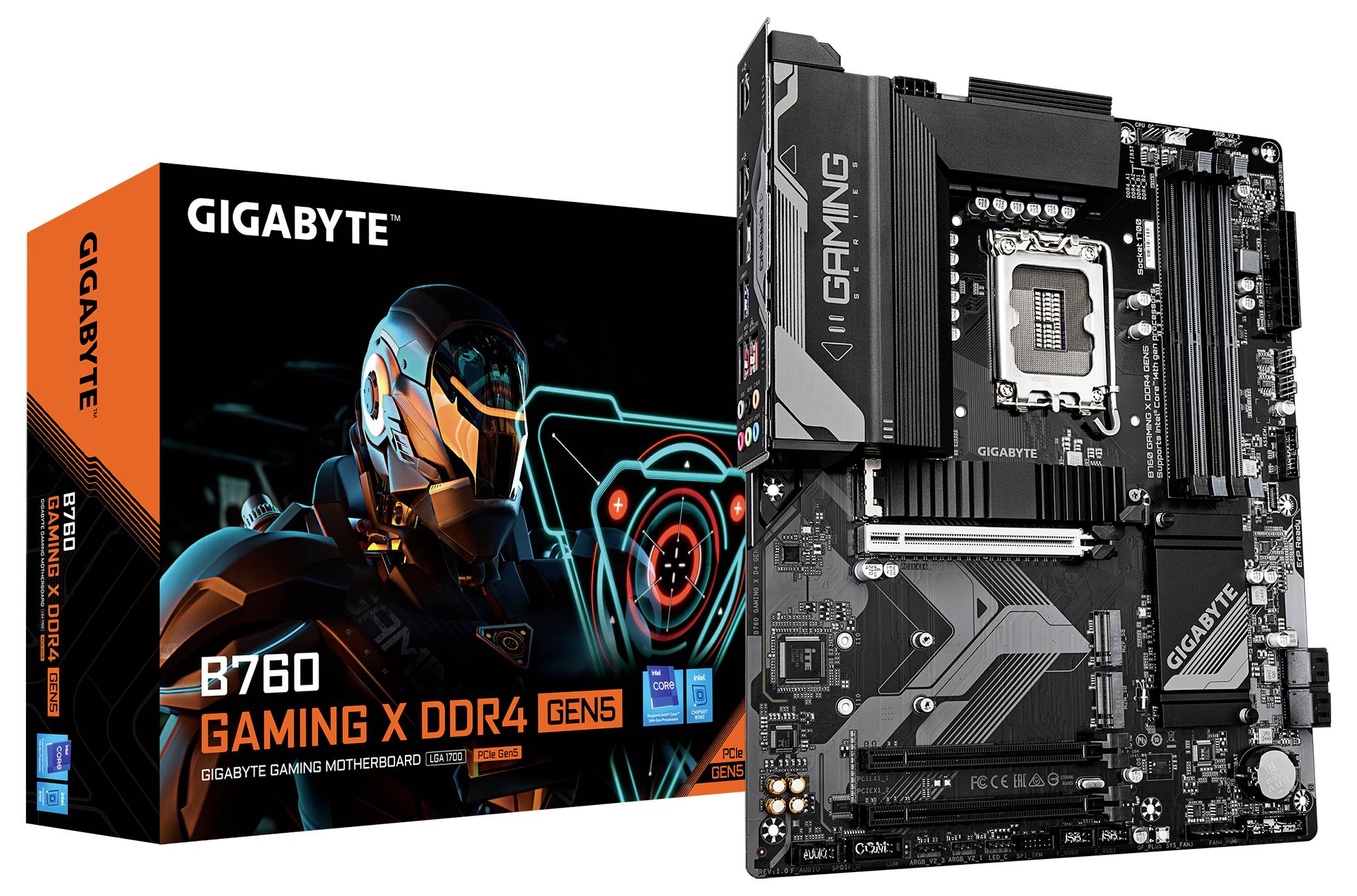

A Gigabyte B760 Gaming X DDR4 motherboard is shown next to its box, featuring futuristic robotic artwork.

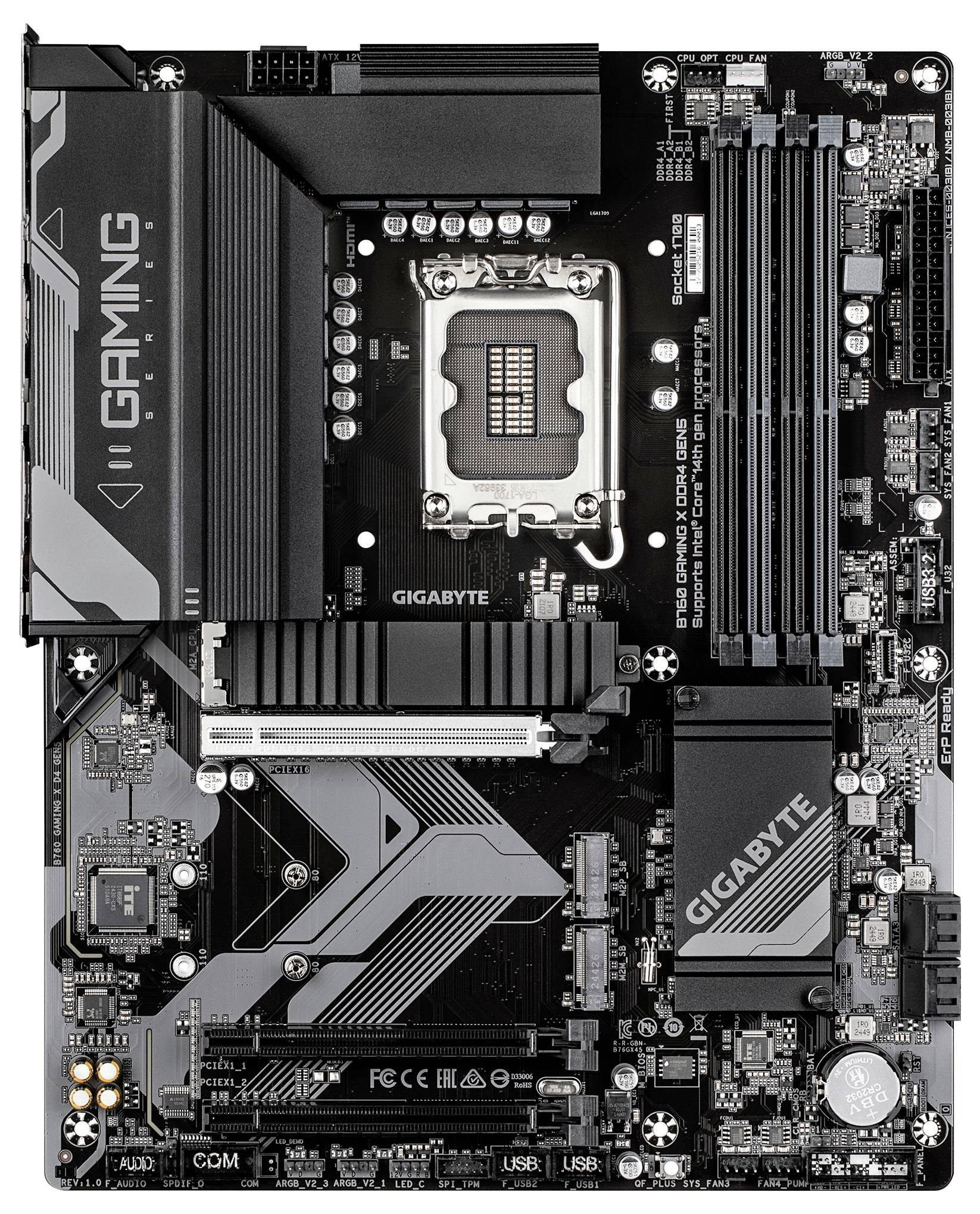

'Top view of a black Gigabyte gaming motherboard with multiple slots for RAM, PCIe, and connectors. Features prominent branding.'

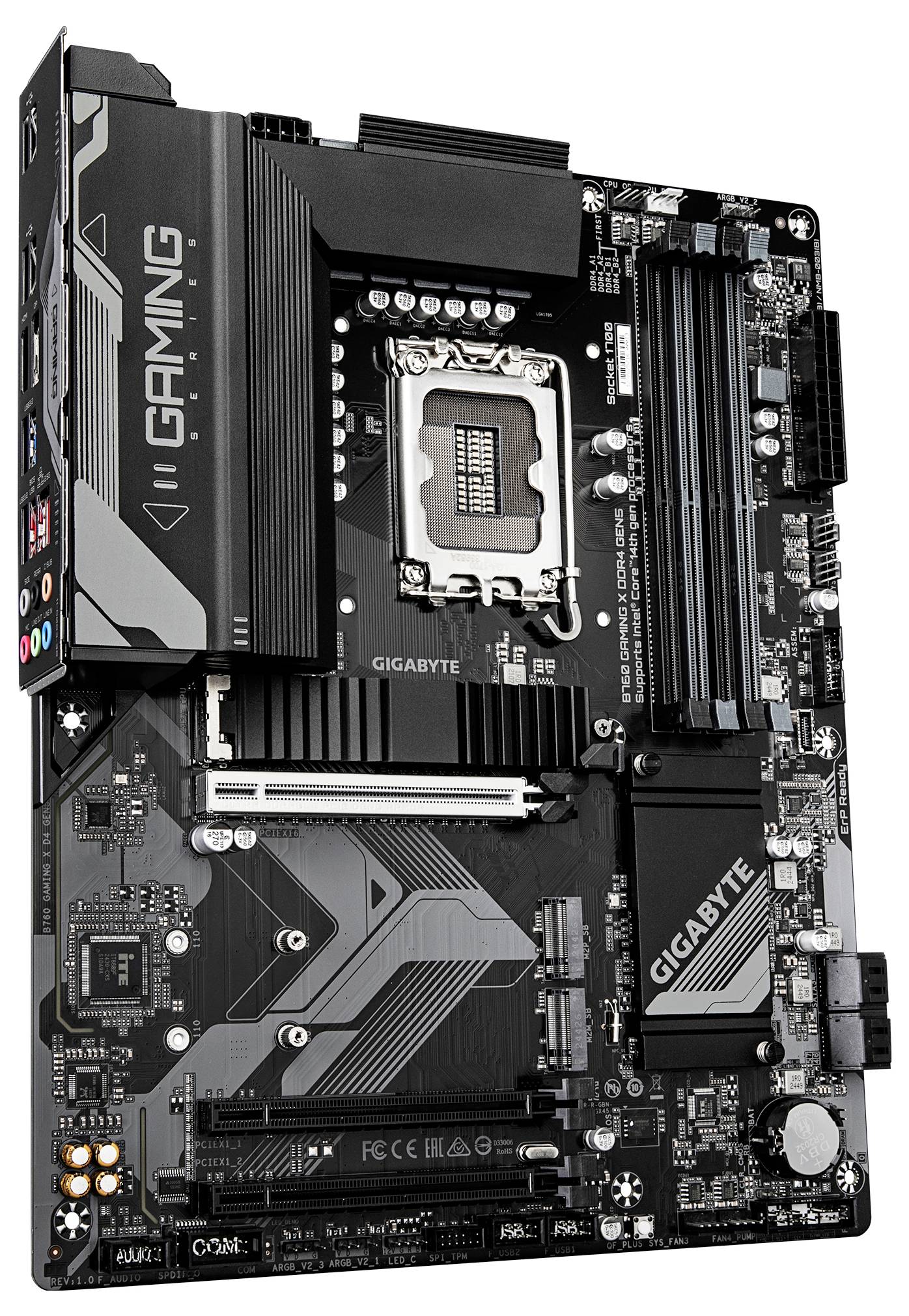

A black Gigabyte motherboard featuring four RAM slots, PCIe slots, and connectors. It supports Intel processors and gaming use.

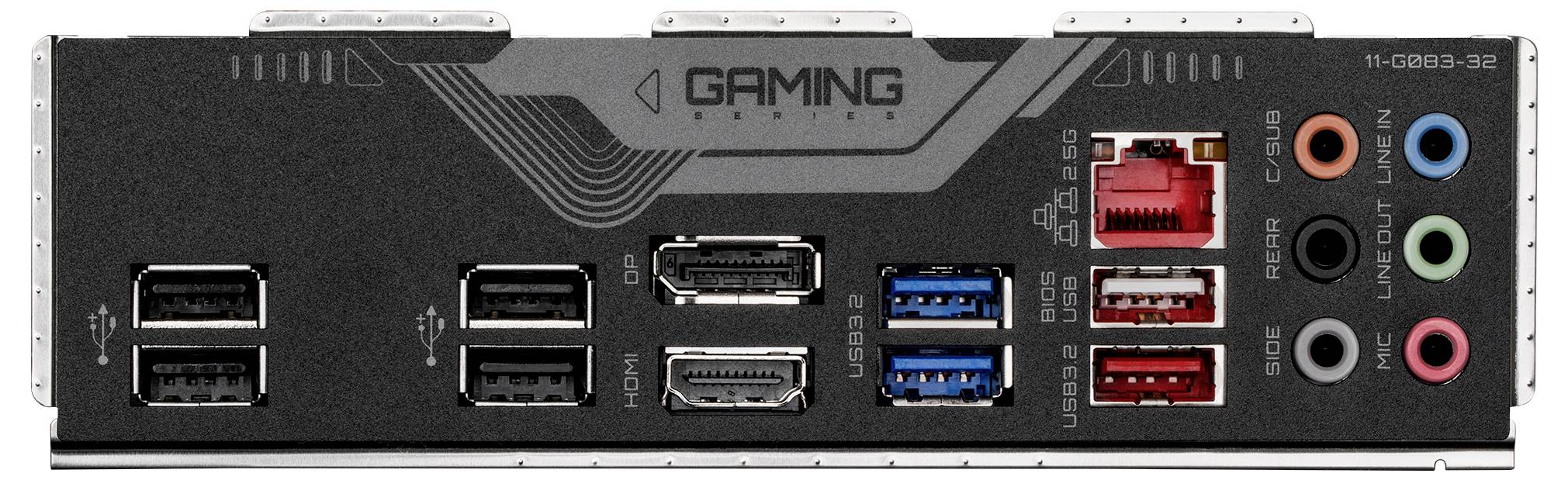

The image shows the rear I/O panel of a gaming motherboard, featuring multiple USB ports, audio jacks, an Ethernet port, and HDMI outputs.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B760 GAMING X D4 GEN5 Motherboard

PCIe Gen5 performance: Fast data transfer for responsive gaming
Next generation memory: 3 M.2 slots with PCIe 4.0 x4
Supports Intel core processors of 14./13./12. Generation
Efficient thermal design: VRM Thermal Armor Advanced & M.2 Thermal Guard
EZ-Latch: PCIe 5.0 x16 slot with quick release fastener
PCIe UD slot: SMD PCIe 5.0 Armor for better graphics card stability
Hybrid VRM solution with 8+1+1 phases
Dual channel DDR4: 4 DIMMs with XMP memory module support
Fast network connection: 2.5GBE LAN
Extensive connectivity options: Front USB-C 10Gb/s, DP, HDMI

Technical specifications

LGA 1700 processor socket
Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium
Supported processor slots: LGA 1700
HDMI version 2.1
Intel B760 motherboard chipset
Product color: Dark brown
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: Intel® B760

: #####Intel® FC LGA 1700

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

No. of PCIe 3.0 x16: 2 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Display resolution: 4096 x 2304 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 5 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)

Range of use: PC

Weight: 1.59 kg

Wi-Fi: No

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Number of memory slots: 4

Number of M.2 (M) slots: 3

Maximum internal memory supported by processor: 128 GB

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Front panel connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 5333 MHz

Lithium weight per battery: 0.07 g

: 4

: 2

: 2

: 1

: 32 GB

Battery weight: 3 g

Batteries included: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.8 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 7

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3720871 Gigabyte B760 GAMING X D4 GEN5 Motherboard PC base #####Intel® FC LGA 1700 Form factor (details) ATX Motherboard chipset

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.
