Name: Gigabyte B760M D3HP DDR4 Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760
Brand: Gigabyte
SKU: 3219773

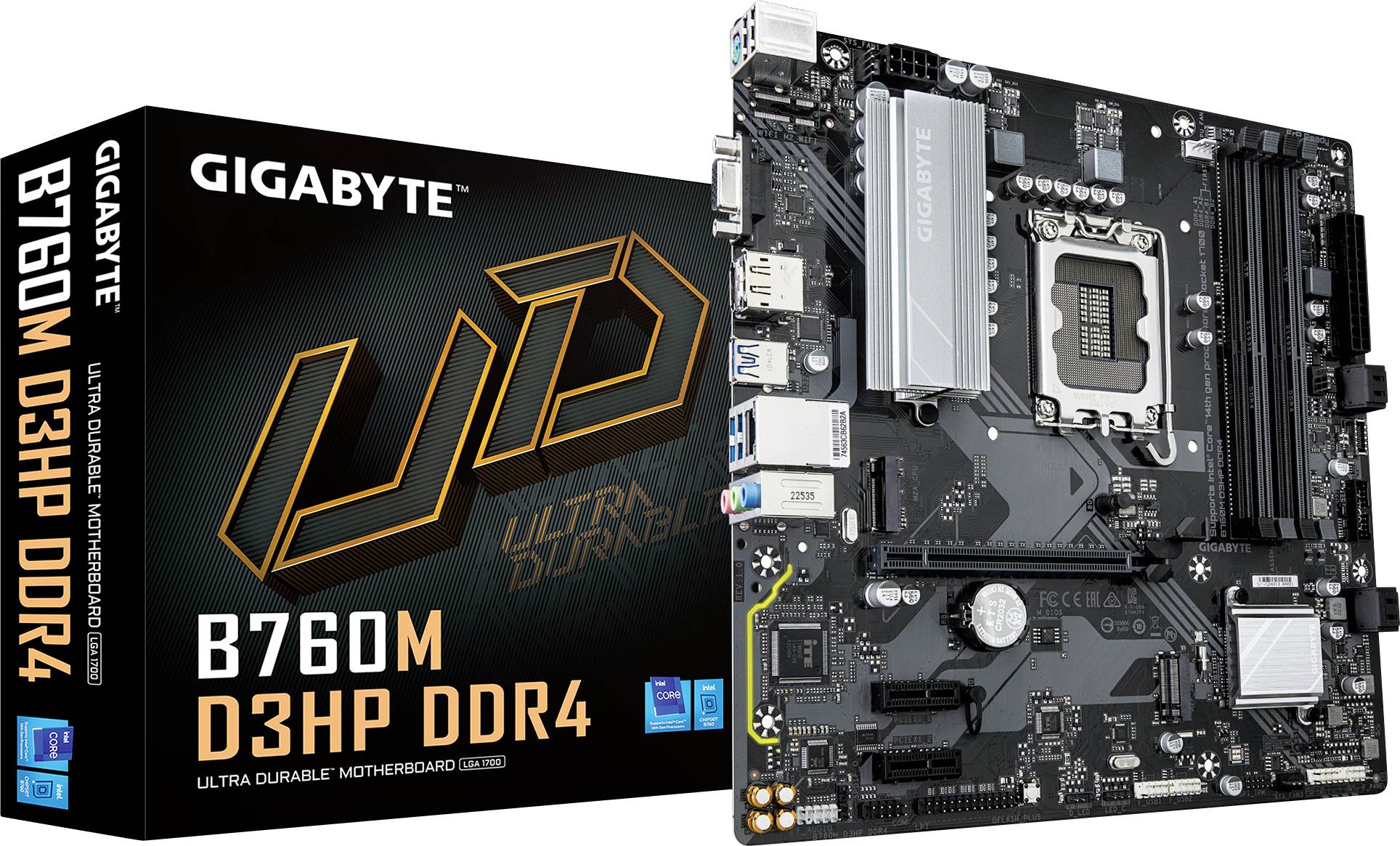

Gigabyte B760M D3HP DDR4 Motherboard next to its packaging. Suitable for high-performance computers, showing various ports and components.

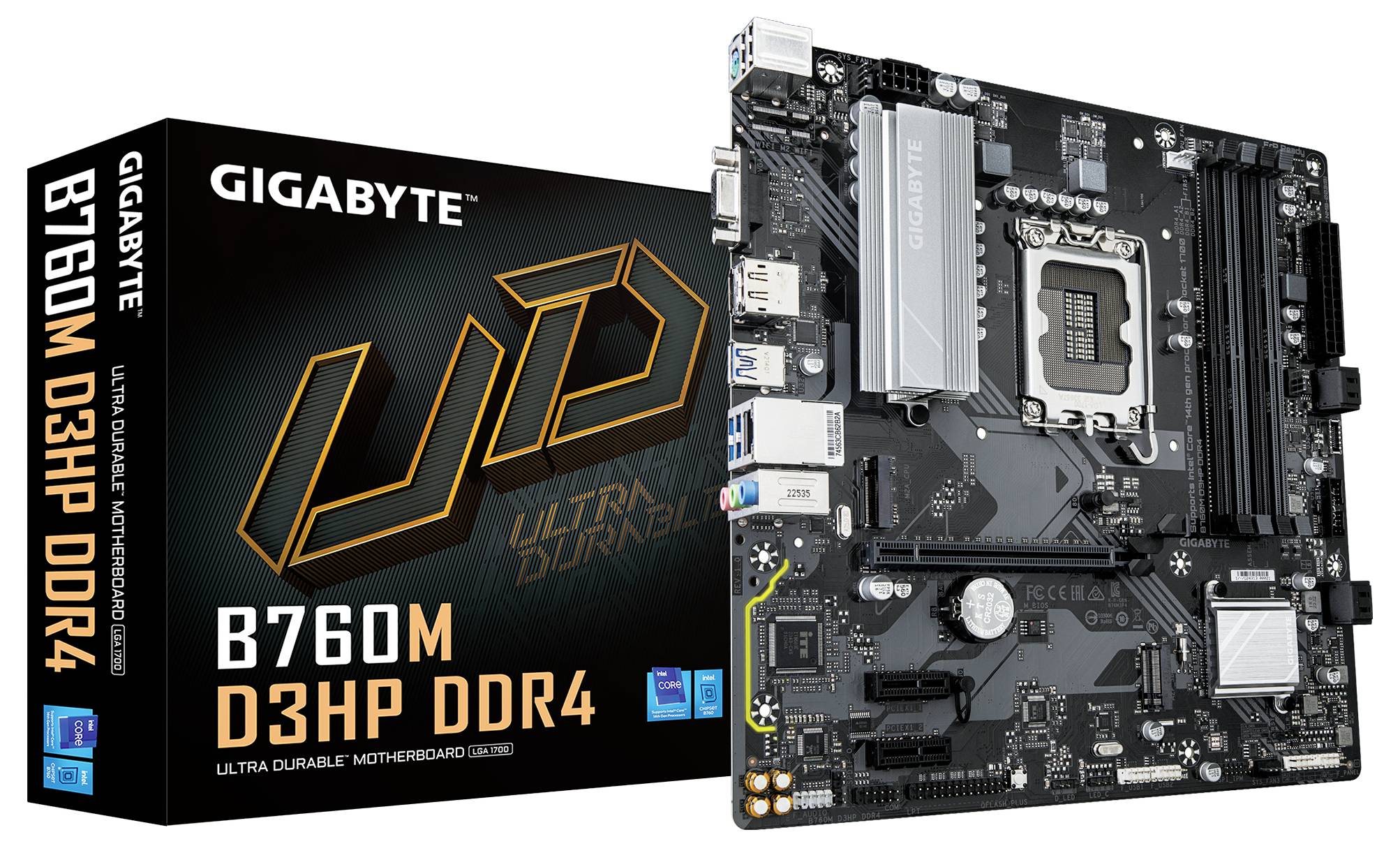

'GIGABYTE B760M D3HP DDR4 Motherboard' beside the packaging. Black PCB, heatsinks, slots for RAM, CPU, and expansion cards.

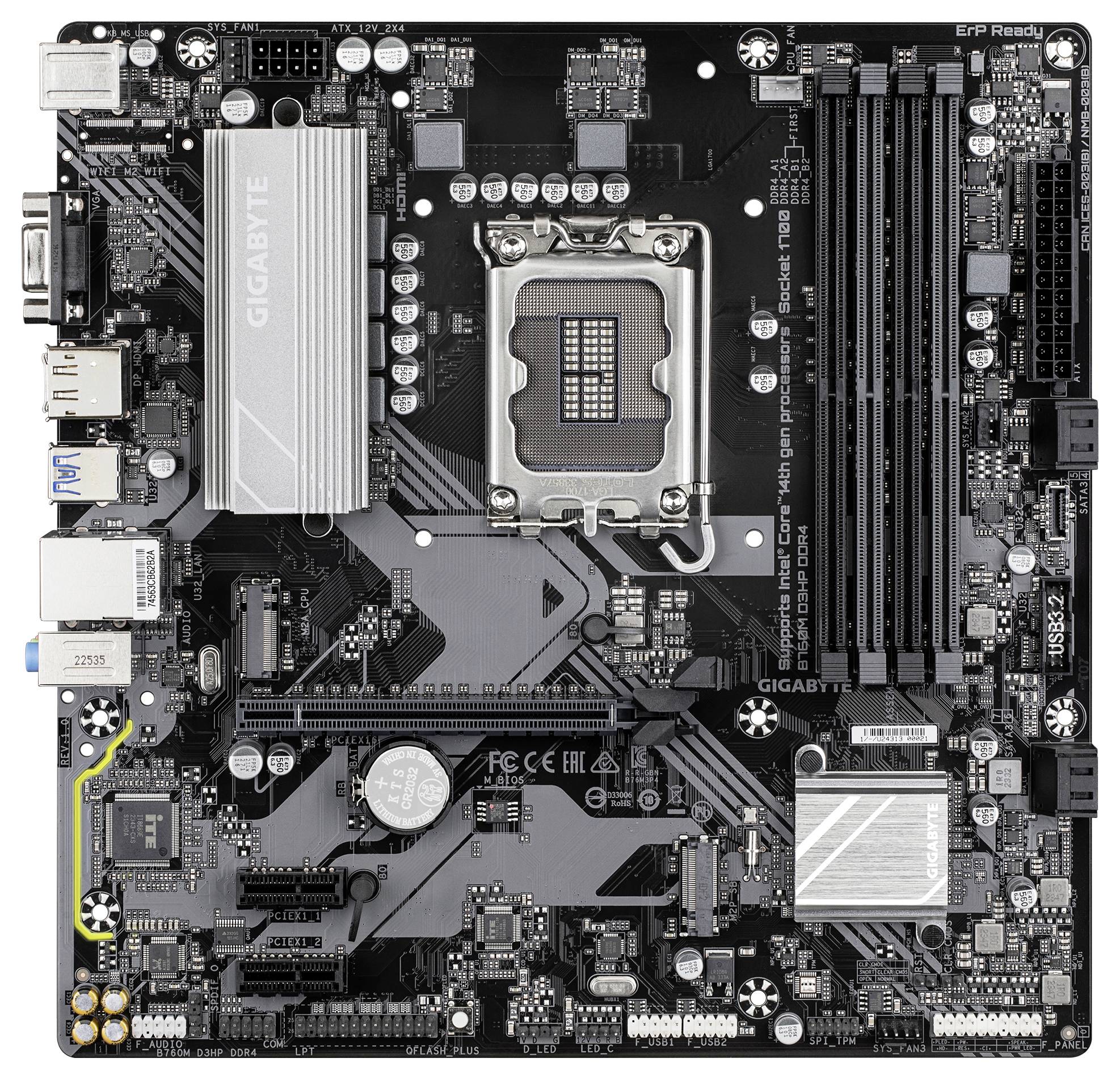

A Gigabyte motherboard with a CPU socket, memory slots, and various ports; suitable for use in a computer.

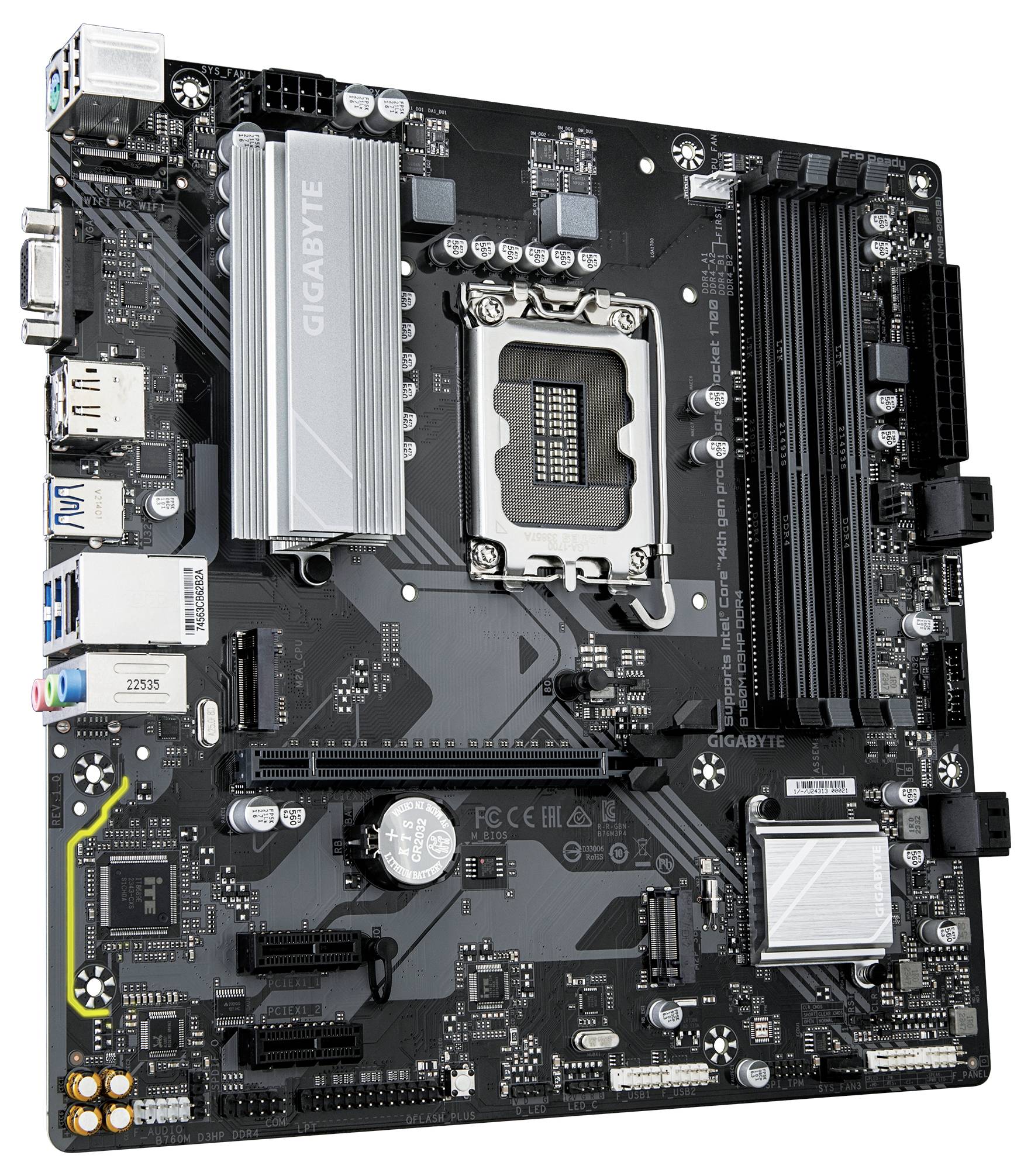

Motherboard with multiple connections for processor, memory, and expansion cards. Labelled 'GIGABYTE'.

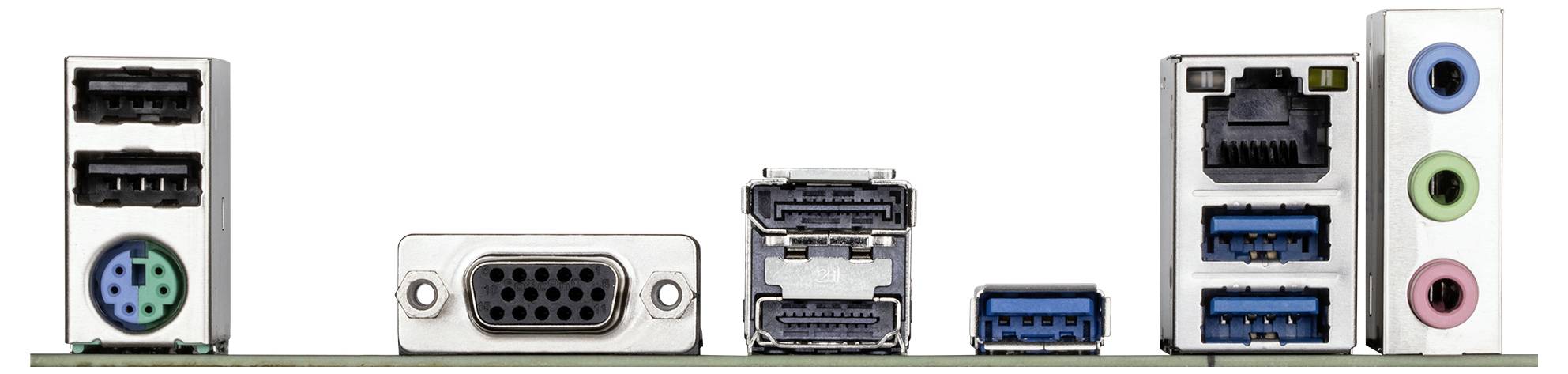

Several computer ports, including USB ports, VGA, Ethernet port and audio ports in various colours.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B760M D3HP DDR4 Motherboard

Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
PC micro ATX Intel B760 Express 7.1 channels
DDR4 SDRAM 4 DIMM ECC Without ECC RAM Maximum: 128 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet

Technical specifications

LGA 1700 processor socket
Compatible processors include Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor slots: LGA 1700
Maximum internal memory supported by the processor: 128 GB
Supported memory: DDR4 SDRAM
Number of memory slots: 4
RAM type DIMM
Memory channels: Two-channel
ECC: Yes
Without ECC: Yes
Supported memory speed: 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Supported memory clock rate (max.): 5333 MHz
RAM maximum: 128 GB
Memory module capacities supported: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Unbuffered memory: Yes
Supported drives: HDD & SSD
Supported drive interfaces: M.2, SATA III.
Maximum number of HDD supported: 4
Number of supported storage drives: 6
RAID support: Yes
RAID levels 0, 1, 5, 10
Parallel processing technology: Not supported
Maximum resolution 4096 x 2304 pixel
HDCP: Yes
DirectX version: 12.0
Number of USB 2.0 ports 2
USB 3.2 Gen 1 (3.1 Gen 1) Connections 1
SATA III connections 4
Total number of SATA ports: 4
Number of parallel ATA plugs: 1
S/PDIF out of connector: Yes
Audio connection: Yes
Front Panel audio connector: Yes
Front panel connector: Yes
ATX power plug (24-pin): Yes
Power fan connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
EPS Power Connector (8-pin): Yes
TPM connector: Yes
Parallel connector: Yes
Serial port headers: 1
12 V power connection: Yes
RGB LED pin strip: Yes
Number of USB 2.0 connections 2
USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 3
Number of Ethernet LAN connections (RJ-45): 1
Number of PS/2 connections 1
Number of VGA (D-Sub) Connections: 1
Number of HDMI connections: 1
HDMI version 2.1
Number of DisplayPort connections: 2
Display Ports Version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone input: Yes
Optical audio digital output: 3
USB-plug USB type-A
Ethernet/LAN: Yes
Ethernet interfaces, type Gigabit Ethernet
Motherboard Intel B760 Express chipset
Audio channels: 7.1 channels
PC health monitoring: Fan, temperature, voltage, water cooling
Component for: PC
Motherboard form factor: Micro ATX
Motherboard Chipset family: Intel
Energy source: ATX
Supports Windows operating systems: Windows 10, Windows 11
PCI Express x1 slots 1
PCI Express x1 (Gen 3.x) ports 1
PCI-Express x4 slots:1
PCI-Express x16 slots: 1
PCI-Express x16 (Gen 3.x) ports: 1
PCI Express x16 slots (Gen 4.x): 1
Number of M.2 (M) slots: 2
BIOS TYPE UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) Version: 2.7
System Administration BIOS (SMBIOS) Version: 2.7
Quantity per shipping box: 1 pieces(s)
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells: 1
Battery/battery type CR2032
Batteries/rechargeable batteries included: Yes
Included software: Norton Internet Security

Product type: Motherboard

Chipset: Intel® B760 Express

: Intel® 1700

Form factor: Micro-ATX

RAM type: DDR4 RAM

RAM / Max. upgrade: 128 GB

Interfaces: M.2

No. of DDR4 slots: 4 x

No. of LAN ports: 1 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x16: 1 x

No. of PCIe x4: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 2 x

No. of USB type A 3.0 ports: 3 x

No. of USB 3.2: 3 x

No. of IDE/ATA ports: 1 x

No. of SATA III ports: 4 x

No. of serial ports: 1 x

No. of parallel ports: 1 x

Onboard audio: 7.1

No. of PS/2 ports: 1 x

Factory colour: Brown

Depth: 244 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2304 Pixel

Design height: 35 mm

No. of 10 Gb LAN ports: 1 x

No. of DisplayPort: 2 x

No. of HDMI ports: 1 x

No. of USB ports: 2 x

No. of VGA ports: 1 x

No. of memory slots: 4

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

Christmas lighting features: 12.0

HDCP: Yes

No. of HDMI connections: 1

Video resolution: 4096 x 2304 Pixel

Range of use: PC

Weight: 990 g

Wi-Fi: No

Battery / technology: Lithium manganese Dioxide (LiMnO2)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3219773 Gigabyte B760M D3HP DDR4 Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
