Buy Gigabyte B760M E Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760

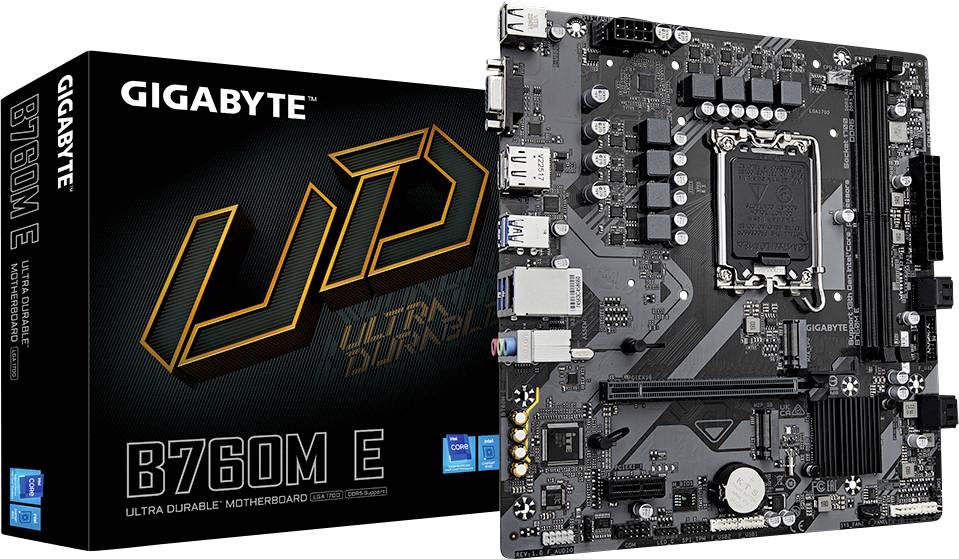

Gigabyte B760M E motherboard beside its packaging, displaying various ports and components on the circuit board.

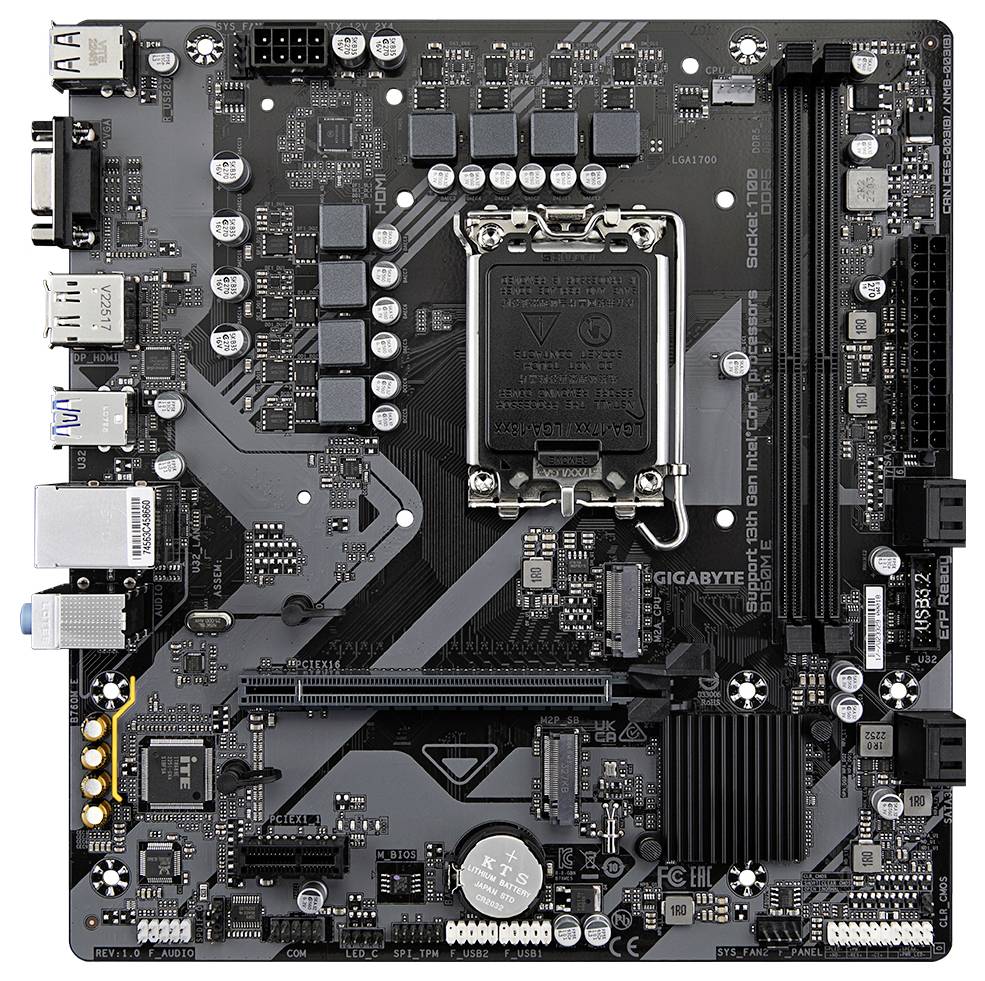

Black motherboard with various ports, slots, and electronic components; central processor socket is empty.

A black motherboard with multiple expansion slots, connectors, and electronic components, suitable for computer hardware.

Motherboard with multiple ports and components, supporting 9th generation Intel Core processors.

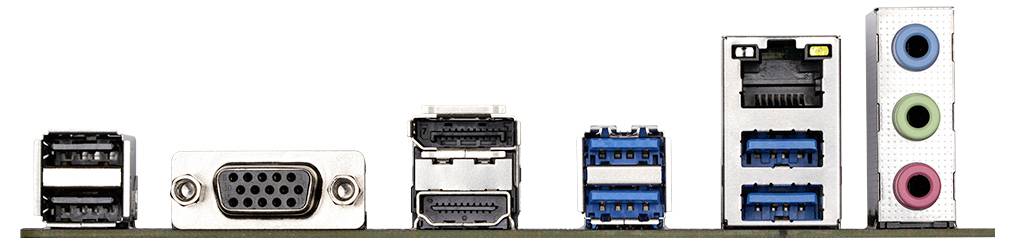

Front view of computer ports on a motherboard: USB ports, VGA port, Ethernet port, and audio sockets.

Back of a computer motherboard with various ports: USB, VGA, HDMI, Ethernet, Audio.

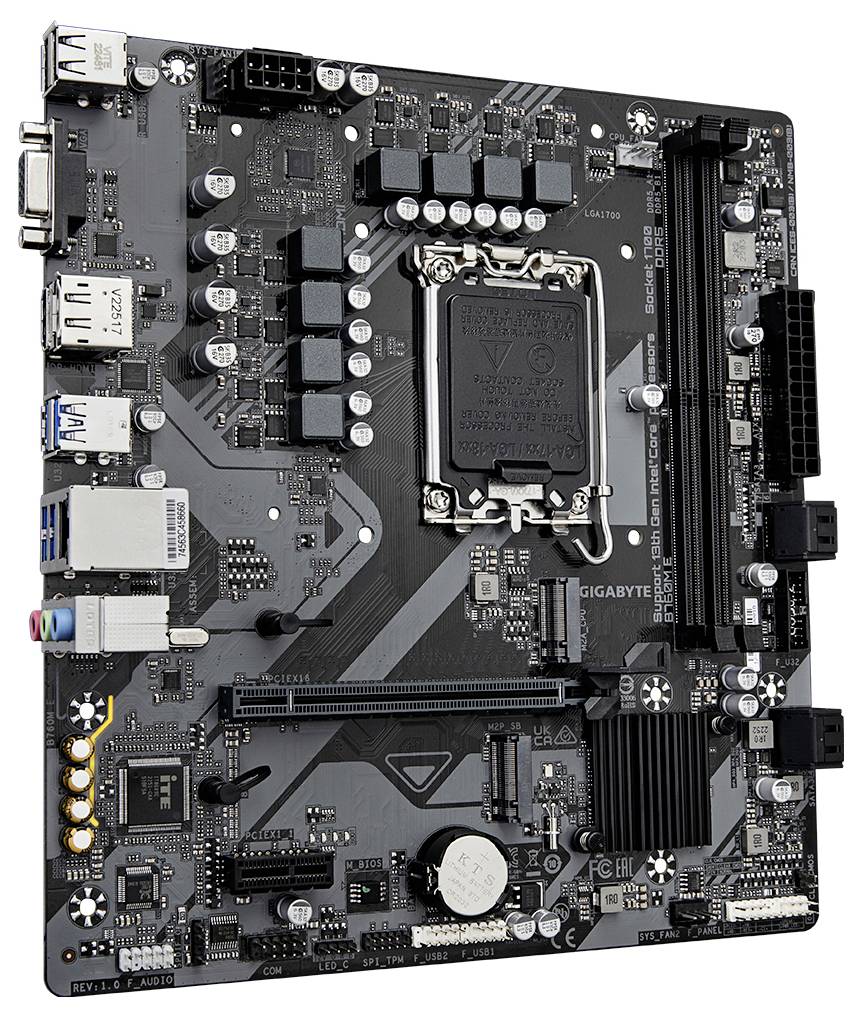

A computer motherboard with various ports, expansion slots, and a CPU socket, viewed from above.

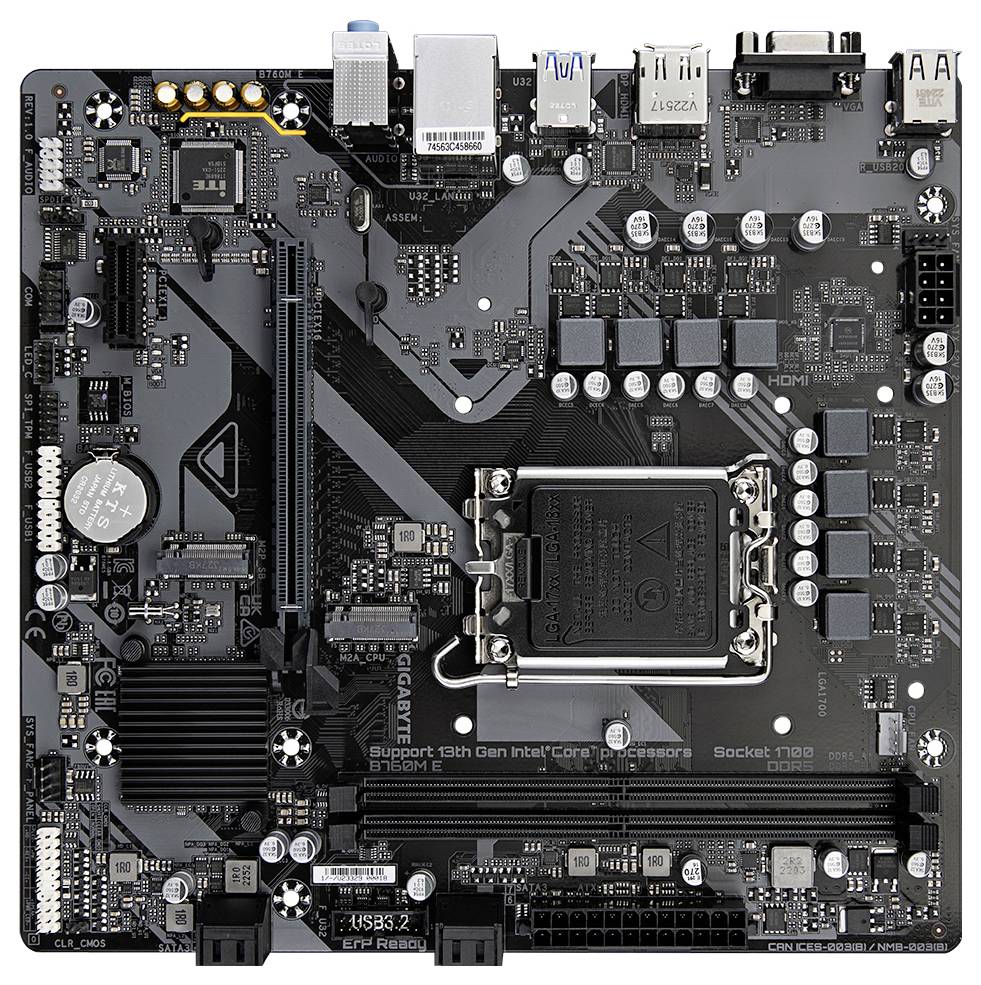

Black motherboard with multiple expansion slots and connectors, compatible with 9th Generation Intel processors, featuring HDMI port.

A black motherboard with multiple expansion slots, ports, and integrated circuits, suitable for computer hardware.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Gigabyte B760M E Motherboard

Highlights & Details

Intel LGA 1700 Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen, Intel® Pentium® Gold
PC micro ATX Intel B760 Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet

Technical specifications

LGA 1700 processor socket
Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium Gold
Supported processor slots: LGA 1700
ECC compatibility: ECC and non-ECC
Maximum internal memory per slot: 64 GB
Number of CPU fan ports: 1
Number of EPS power connections (4-pin): 1
Number of RGB LED pin strips: 1
HDMI version 2.1
Intel B760 motherboard chipset
Product color: Dark brown
Motherboard form factor: Micro ATX
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 4.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: Intel® B760

: Intel® 1700

Form factor: Micro-ATX

RAM type: DDR5 RAM

RAM / Max. upgrade: 128 GB

Interfaces: HDMI™
PCIe 4.0 x16
SATA III
USB A (USB 2.0)
VGA
DisplayPort

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

Factory colour: Multicolour

Depth: 215 mm

Height: 35 mm

Width: 230 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 4 x

Christmas lighting features: 12.0

Cooling: Passive

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)
LAN bandwidth management software

Range of use: PC

Wi-Fi: No

UKCA: yes

BIOS memory size: 128 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

PCI Express x1 (Gen 3.x) slots: 1

Number of memory slots: 2

Number of M.2 (M) slots: 2

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

12V power connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 7200 MHz

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

HDCP: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 900 g

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3405621 Gigabyte B760M E Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B760

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.

This text is machine translated.

Features

Supports Intel core processors of 14.,13. a. 12.cl. Generation,Incomparable performance: Hybrid 6+1+1 phase digital VRM solution,Dual channel DDR5: 2 DIMMs XMP memory module support,next generation memory: 2 PCIe 4.0 x4 M.2 slots,EZ-Latch: PCIe 4.0X16 slot with quick-release design,fast network connection: GbE LAN,extensive connectivity: Display port, HDMI, D-sub,Smart fan 6: Has multiple temperature sensors, hybrid fan connections with FAN STOP
